HM1303B
HM1303B

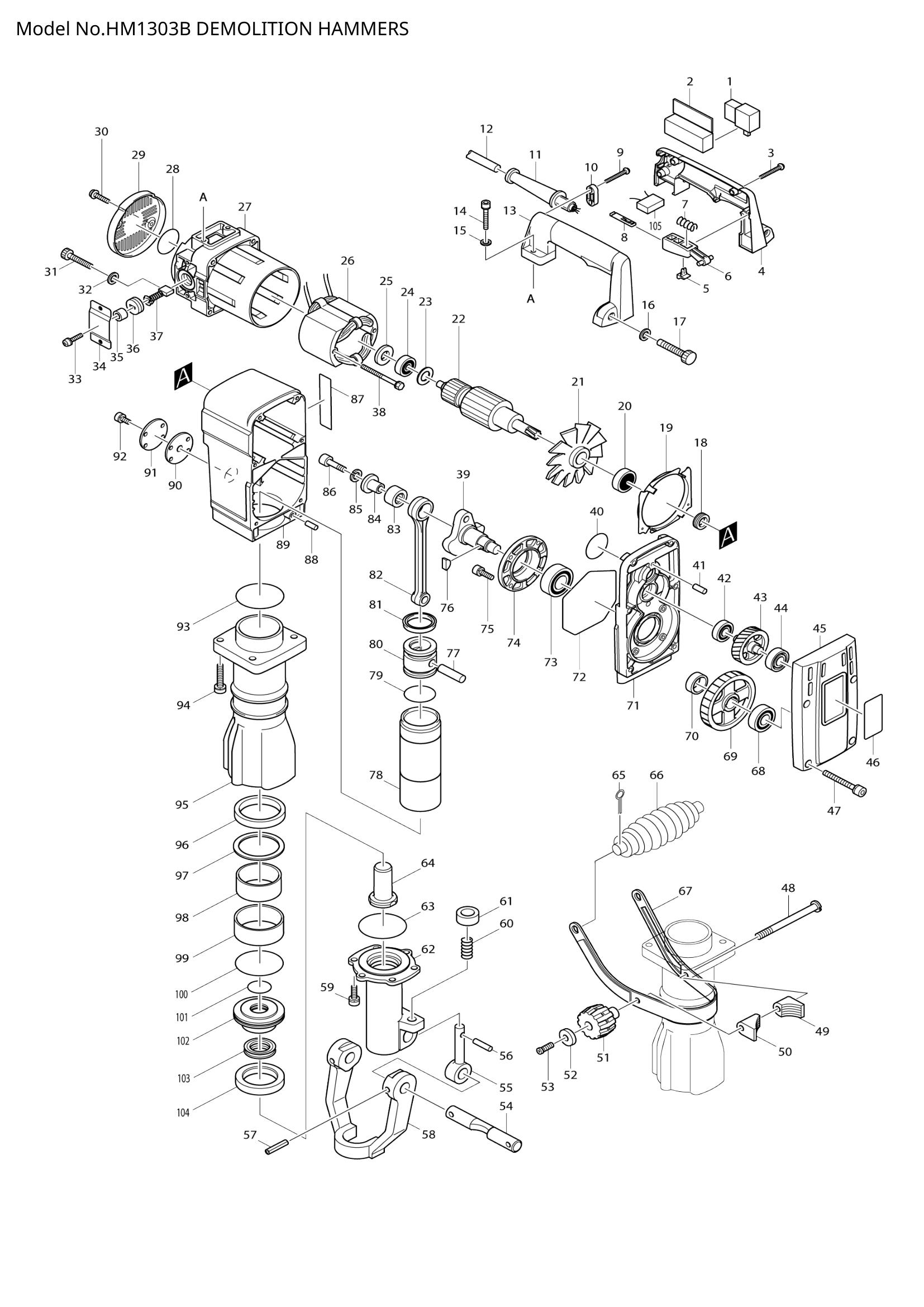

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 651922-3 | SWITCH TG71B | 1 | €11.13 | 1-4 weeks to ship | |
| 002 | 421529-7 | SWITCH BOX | 1 | €4.17 | 1-4 weeks to ship | |
| 003 | 265995-6 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | |
| 004 | 182844-1 | HANDLE SET | 1 | €58.44 | 1-4 weeks to ship | |
| 005 | 415805-9 | LOCK BUTTON | 1 | €0.83 | 1-4 weeks to ship | |
| 006 | 415120-1 | SWITCH LEVER | 1 | €2.78 | 1-4 weeks to ship | |
| 007 | 231457-6 | COMPRESSION SPRING 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 008 | 415806-7 | LOCK PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 009 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 013 | 182844-1 | HANDLE SET | 1 | €58.44 | 1-4 weeks to ship | |
| 014 | 922361-7 | HEX. SOCKET HEAD BOLT M6X40 | 2 | €0.56 | 1-4 weeks to ship | |
| 015 | 941152-7 | FLAT WASHER 6 | 2 | €0.56 | 1-4 weeks to ship | |
| 016 | 941152-7 | FLAT WASHER 6 | 2 | €0.56 | 1-4 weeks to ship | |
| 017 | 922376-4 | HEX. SOCKET HEAD BOLT M6X55 | 2 | €1.39 | 1-4 weeks to ship | |
| 018 | 331212-7 | SEAL | 1 | €4.17 | 1-4 weeks to ship | |
| 019 | 344273-8 | BAFFLE PLATE | 1 | €4.17 | 1-4 weeks to ship | |
| 020 | 211228-7 | BALL BEARING 6202DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 021 | 241128-7 | FAN 92 | 1 | €11.13 | 1-4 weeks to ship | |
| 023 | 681635-2 | INSULATION WASHER | 1 | €0.83 | 1-4 weeks to ship | |
| 024 | 211087-9 | BALL BEARING 6200DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 025 | 253794-8 | FLAT WASHER 18 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 159904-4 | MOTOR HOUSING COMPLETE | 1 | €89.06 | 1-4 weeks to ship | |
| 028 | 213406-5 | O RING 30 | 1 | €0.56 | 1-4 weeks to ship | |
| 029 | 284069-4 | REAR COVER | 1 | €10.58 | 1-4 weeks to ship | |
| 030 | 266021-4 | TAPPING SCREW 5X20 | 2 | €0.56 | 1-4 weeks to ship | |
| 031 | 922376-4 | HEX. SOCKET HEAD BOLT M6X55 | 4 | €1.39 | 1-4 weeks to ship | |
| 032 | 941151-9 | FLAT WASHER 6 | 4 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 4 | €0.56 | 1-4 weeks to ship | ||
| 033 | 911221-8 | PAN HEAD SCREW M5X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 034 | 344384-9 | HOLDER CAP PLATE | 2 | €4.45 | 1-4 weeks to ship | |
| 035 | 262049-0 | RUBBER RING 6 | 2 | €0.56 | 1-4 weeks to ship | |
| 036 | 643700-5 | BRUSH HOLDER CAP 7-18 | 2 | €1.11 | 1-4 weeks to ship | |
| 038 | + HEX. BOLT M5X65 | 2 | Not available in store | |||
| 039 | 322894-6 | CRANKSHAFT | 1 | €52.88 | 1-4 weeks to ship | |
| 040 | 213460-9 | O RING 35 | 1 | €0.56 | 1-4 weeks to ship | |
| 041 | 256111-1 | PIN 6 | 1 | €0.83 | 1-4 weeks to ship | |
| 042 | 211104-5 | BALL BEARING 6001 | 1 | €8.35 | 1-4 weeks to ship | |
| 043 | 226449-8 | HELICAL GEAR 34 | 1 | €41.75 | 1-4 weeks to ship | |
| 044 | 211109-5 | BALL BEARING 6201 | 1 | €4.17 | 1-4 weeks to ship | |
| 045 | 316732-2 | GEAR HOUSING COVER | 1 | €47.31 | 1-4 weeks to ship | |
| 046 | 858363-6 | NAME PLATE | 1 | €4.45 | 1-4 weeks to ship | |
| 048 | 266140-6 | SET BOLT M10X113 | 1 | €11.13 | 1-4 weeks to ship | |
| 049 | 416228-4 | HANDLE BASE | 1 | €2.78 | 1-4 weeks to ship | |
| 050 | 416228-4 | HANDLE BASE | 1 | €2.78 | 1-4 weeks to ship | |
| 051 | 252633-9 | WING NUT M10 | 1 | €8.35 | 1-4 weeks to ship | |
| 052 | 253194-2 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 053 | 922221-3 | HEX. SOCKET HEAD BOLT M5X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 922221-3 | HEX. SOCKET HEAD BOLT M5X16 | 1 | €0.56 | 1-4 weeks to ship | ||
| 054 | 322550-8 | TOOL RETAINER SHAFT | 1 | €37.29 | 1-4 weeks to ship | |
| 055 | 322477-2 | TOOL RETAINER POLE | 2 | €33.40 | 1-4 weeks to ship | |
| 056 | 256219-1 | PIN 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 057 | 951272-9 | SPRING PIN 8-40 | 2 | €0.83 | 1-4 weeks to ship | |
| 058 | 322478-0 | TOOL RETAINER | 1 | €429.42 | 1-4 weeks to ship | |
| 059 | 266010-9 | HEX. SOCKET HEAD BOLT M8X30 | 6 | €1.11 | 1-4 weeks to ship | |
| 060 | 233083-7 | COMPRESSION SPRING 12 | 2 | €1.39 | 1-4 weeks to ship | |
| 061 | 322560-5 | RETAINER RING | 2 | €11.13 | 1-4 weeks to ship | |
| 062 | 322901-5 | TOOL HOLDER | 1 | €208.73 | 1-4 weeks to ship | |
| 063 | 213707-1 | O RING 65 | 1 | €0.83 | 1-4 weeks to ship | |
| 064 | 322873-4 | IMPACT BOLT | 1 | €22.26 | 1-4 weeks to ship | |
| 065 | 952257-8 | SPLIT PIN 3.0-20 | 2 | €0.83 | 1-4 weeks to ship | |
| 066 | 273492-8 | GRIP 38 | 1 | €13.92 | 1-4 weeks to ship | |
| 068 | 211214-8 | BALL BEARING 6302 | 1 | €11.13 | 1-4 weeks to ship | |
| 069 | 226450-3 | HELICAL GEAR 57 | 1 | €52.88 | 1-4 weeks to ship | |
| 070 | 257196-0 | RING 25 | 1 | €2.78 | 1-4 weeks to ship | |
| 071 | 159806-4 | GEAR HOUSING COMPLETE | 1 | €86.27 | 1-4 weeks to ship | |
| 073 | 211373-8 | BALL BEARING 6205LLU | 1 | €13.92 | 1-4 weeks to ship | |
| 074 | 316730-6 | BEARING BOX | 1 | €11.13 | 1-4 weeks to ship | |
| 075 | 265366-7 | HEX. SOCKET HEAD BOLT M6X22 | 4 | €0.97 | 1-4 weeks to ship | |
| 076 | 254001-2 | WOODRUFF KEY 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 077 | 256238-7 | PIN 12 | 1 | €4.17 | 1-4 weeks to ship | |
| 078 | 322919-6 | HAMMER | 1 | €139.15 | 1-4 weeks to ship | |
| 079 | 213519-2 | O RING 36 | 1 | €5.57 | 1-4 weeks to ship | |
| 080 | 322871-8 | PISTON | 1 | €66.79 | 1-4 weeks to ship | |
| 081 | 213520-7 | Y RING 36 | 1 | €8.35 | 1-4 weeks to ship | |
| 082 | 322812-4 | CONNECTING ROD | 1 | €22.26 | 1-4 weeks to ship | |
| 083 | 212260-4 | NEEDLE BEARING 1716 | 1 | €22.26 | 1-4 weeks to ship | |
| 084 | 321825-2 | CRANK SLEEVE | 1 | €11.13 | 1-4 weeks to ship | |
| 085 | 942251-8 | SPRING WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 086 | 922557-0 | HEX. SOCKET HEAD BOLT M10X3 | 1 | €0.56 | 1-4 weeks to ship | |
| 087 | 819084-5 | MAKITA LABEL | 1 | €2.78 | 1-4 weeks to ship | |
| 088 | 256111-1 | PIN 6 | 1 | €0.83 | 1-4 weeks to ship | |
| 090 | 442009-0 | PACKING 50 | 1 | €0.70 | 1-4 weeks to ship | |
| 091 | 341397-1 | PLATE 50 | 1 | €1.39 | 1-4 weeks to ship | |
| 092 | 911211-1 | PAN HEAD SCREW M5X12 | 4 | €0.56 | 1-4 weeks to ship | |
| 093 | 213707-1 | O RING 65 | 1 | €0.83 | 1-4 weeks to ship | |
| 094 | 265367-5 | HEX. SOCKET HEAD BOLT M8X40 | 4 | €1.67 | 1-4 weeks to ship | |
| 095 | 316831-0 | BARREL | 1 | €175.33 | 1-4 weeks to ship | |
| 096 | 262068-6 | URETHANE RING 59 | 1 | €13.92 | 1-4 weeks to ship | |
| 097 | 267146-7 | FLAT WASHER 58 | 1 | €5.57 | 1-4 weeks to ship | |
| 098 | 322815-8 | IDLER | 1 | €55.66 | 1-4 weeks to ship | |
| 099 | 262536-9 | RUBBER SLEEVE 64 | 1 | €4.17 | 1-4 weeks to ship | |
| 100 | 213707-1 | O RING 65 | 1 | €0.83 | 1-4 weeks to ship | |
| 101 | 213390-4 | O RING 25 | 1 | €4.17 | 1-4 weeks to ship | |
| 102 | 322872-6 | SEAL HOLDER | 1 | €36.18 | 1-4 weeks to ship | |
| 103 | 213383-1 | X RING 25 | 1 | €16.70 | 1-4 weeks to ship | |
| 104 | 262072-5 | URETHANE RING 49 | 1 | €13.92 | 1-4 weeks to ship | |
| 105 | 645105-5 | NOISE SUPPRESSOR | 1 | €0.83 | 1-4 weeks to ship | |
| 645105-5 | NOISE SUPPRESSOR | 1 | €0.83 | 1-4 weeks to ship | ||
