HM1300
HM1300

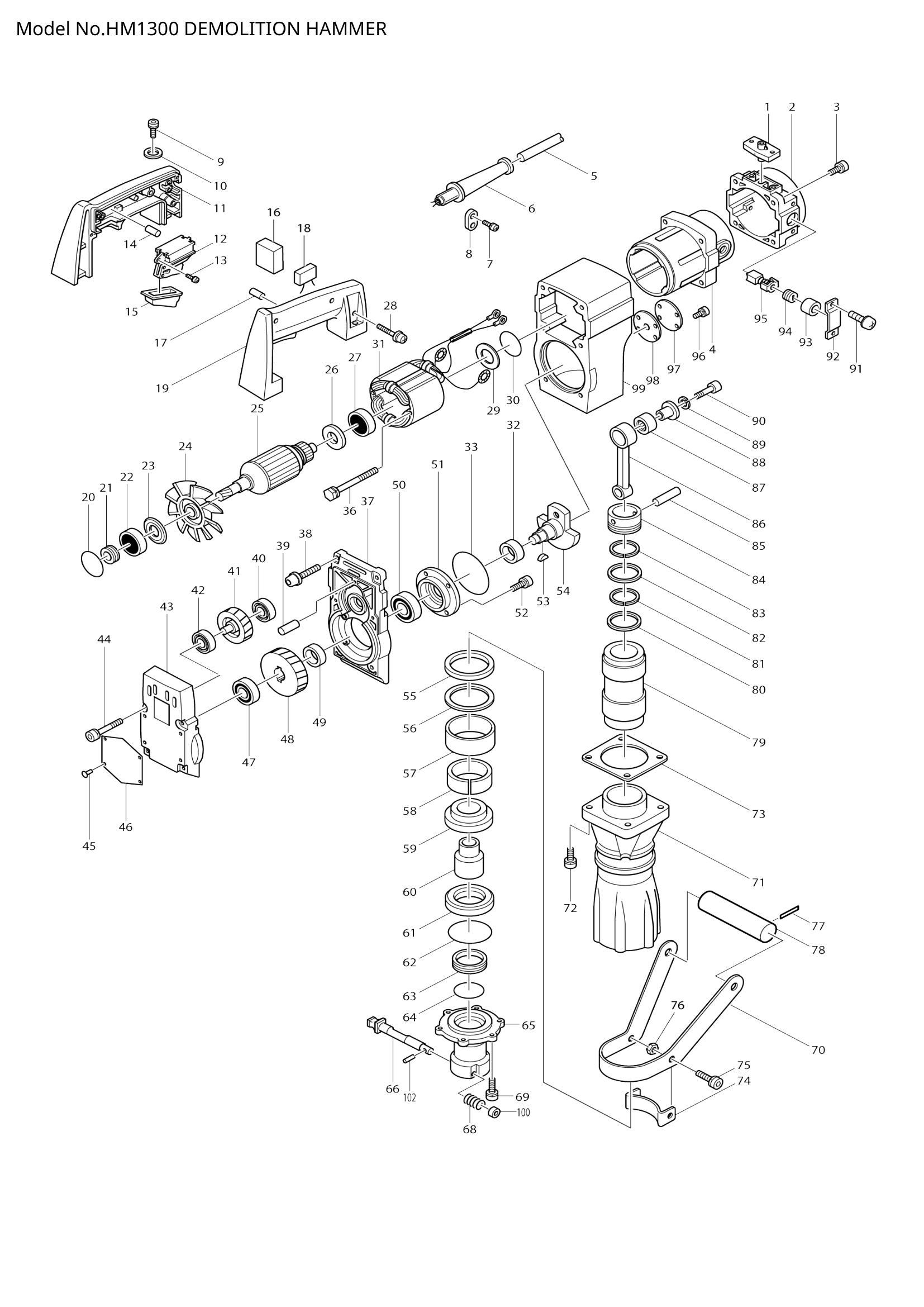

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 410725-2 | HANDLE BASE | 1 | €4.45 | 1-4 weeks to ship | |
| 003 | 922356-0 | HEX. SOCKET HEAD BOLT M6X35 | 4 | €0.56 | 1-4 weeks to ship | |
| 006 | 682505-8 | CORD GUARD 10-90 | 1 | €2.78 | 1-4 weeks to ship | |
| 009 | 922356-0 | HEX. SOCKET HEAD BOLT M6X35 | 4 | €0.56 | 1-4 weeks to ship | |
| 010 | 941152-7 | FLAT WASHER 6 | 4 | €0.56 | 1-4 weeks to ship | |
| 011 | 181702-8 | HANDLE SET | 1 | €31.73 | 1-4 weeks to ship | |
| 013 | 911129-6 | PAN HEAD SCREW M4X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 421265-5 | DUST COVER | 1 | €2.78 | 1-4 weeks to ship | |
| 017 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 019 | 181702-8 | HANDLE SET | 1 | €31.73 | 1-4 weeks to ship | |
| 020 | 213469-1 | O RING 35 | 1 | €4.17 | 1-4 weeks to ship | |
| 021 | 331271-1 | SEAL | 1 | €4.45 | 1-4 weeks to ship | |
| 022 | 211206-7 | BALL BEARING 6202LLB | 1 | €8.35 | 1-4 weeks to ship | |
| 023 | 213202-1 | DUST SEAL 15 | 1 | €0.83 | 1-4 weeks to ship | |
| 024 | 241648-1 | FAN 104 | 1 | €19.48 | 1-4 weeks to ship | |
| 027 | 211066-7 | BALL BEARING 6200LLB | 1 | €6.12 | 1-4 weeks to ship | |
| 028 | 911243-8 | PAN HEAD SCREW M5X25 | 3 | €0.56 | 1-4 weeks to ship | |
| 029 | 253794-8 | FLAT WASHER 18 | 1 | €0.56 | 1-4 weeks to ship | |
| 030 | 213406-5 | O RING 30 | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | 213408-1 | OIL SEAL 30 | 1 | €5.84 | 1-4 weeks to ship | |
| 033 | 213806-9 | O RING 90 | 1 | €1.11 | 1-4 weeks to ship | |
| 037 | 157633-3 | GEAR HOUSING | 1 | €121.34 | 1-4 weeks to ship | |
| 038 | 922341-3 | HEX. SOCKET HEAD BOLT M6X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 039 | 256111-1 | PIN 6 | 1 | €0.83 | 1-4 weeks to ship | |
| 041 | 221740-9 | HELICAL GEAR 43 | 1 | €61.23 | 1-4 weeks to ship | |
| 043 | 157634-1 | GEAR HOUSING COVER | 1 | €85.99 | 1-4 weeks to ship | |
| 044 | 922381-1 | HEX. SOCKET HEAD BOLT M6X60 | 4 | €1.67 | 1-4 weeks to ship | |
| 045 | 953106-2 | RIVET 0-5 | 4 | €0.56 | 1-4 weeks to ship | |
| 046 | 855559-0 | NAME PLATE HM1300 | 1 | €8.91 | 1-4 weeks to ship | |
| 048 | 221739-4 | HELICAL GEAR 68 | 1 | €69.58 | 1-4 weeks to ship | |
| 049 | 257111-4 | RING 25 | 1 | €4.45 | 1-4 weeks to ship | |
| 051 | BEARING BOX | 1 | Not available in store | |||
| 053 | 254001-2 | WOODRUFF KEY 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 054 | CRANK SHAFT | 1 | Not available in store | |||
| 055 | NYLON RING 60 | 1 | Not available in store | |||
| 056 | FLAT WASHER 60 | 1 | Not available in store | |||
| 057 | 421291-4 | RUBBER RING 68 | 1 | €6.26 | 1-4 weeks to ship | |
| 058 | 331300-0 | IDLER | 1 | €48.42 | 1-4 weeks to ship | |
| 061 | 421292-2 | URETHAN RING 44 | 1 | €22.54 | 1-4 weeks to ship | |
| 062 | 213707-1 | O RING 65 | 1 | €0.83 | 1-4 weeks to ship | |
| 064 | 213504-5 | O RING 40 | 1 | €0.56 | 1-4 weeks to ship | |
| 070 | 342855-0 | SIDE HANDLE | 1 | €25.60 | 1-4 weeks to ship | |
| 071 | 315780-8 | CYLINDER | 1 | €313.92 | 1-4 weeks to ship | |
| 073 | 442085-4 | CYLINDER PACKING | 1 | €4.45 | 1-4 weeks to ship | |
| 074 | 342852-6 | SIDE HANDLE PLATE | 1 | €4.45 | 1-4 weeks to ship | |
| 075 | 922441-9 | HEX. SOCKET HEAD BOLT M8X25 | 2 | €0.83 | 1-4 weeks to ship | |
| 076 | 252005-8 | HEX. NUT M8-13 | 2 | €1.11 | 1-4 weeks to ship | |
| 080 | 412067-0 | PISTON RING 46 | 1 | €35.62 | 1-4 weeks to ship | |
| 081 | 342853-4 | INNER RING 42 | 1 | €4.45 | 1-4 weeks to ship | |
| 082 | 412067-0 | PISTON RING 46 | 1 | €35.62 | 1-4 weeks to ship | |
| 083 | 342853-4 | INNER RING 42 | 1 | €4.45 | 1-4 weeks to ship | |
| 084 | 321824-4 | PISTON | 1 | €44.25 | 1-4 weeks to ship | |
| 086 | CONNECTING ROD | 1 | Not available in store | |||
| 087 | 212260-4 | NEEDLE BEARING 1716 | 1 | €22.26 | 1-4 weeks to ship | |
| 088 | 321825-2 | CRANK SLEEVE | 1 | €11.13 | 1-4 weeks to ship | |
| 089 | 942251-8 | SPRING WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 090 | 922557-0 | HEX. SOCKET HEAD BOLT M10X3 | 1 | €0.56 | 1-4 weeks to ship | |
| 091 | 911206-4 | PAN HEAD SCREW M5X10 | 4 | €0.56 | 1-4 weeks to ship | |
| 092 | HOLDER CAP PLATE | 2 | Not available in store | |||
| 096 | 911211-1 | PAN HEAD SCREW M5X12 | 4 | €0.56 | 1-4 weeks to ship | |
| 097 | 341397-1 | PLATE 50 | 1 | €1.39 | 1-4 weeks to ship | |
| 098 | 442009-0 | PACKING 50 | 1 | €0.70 | 1-4 weeks to ship | |
| 099 | 157635-9 | CRANK HOUSING | 1 | €412.30 | 1-4 weeks to ship | |
| 102 | 256219-1 | PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 403 | 181911-9 | STEEL CARRYING CASE | 1 | €254.09 | 1-4 weeks to ship | |
