HM1200
HM1200

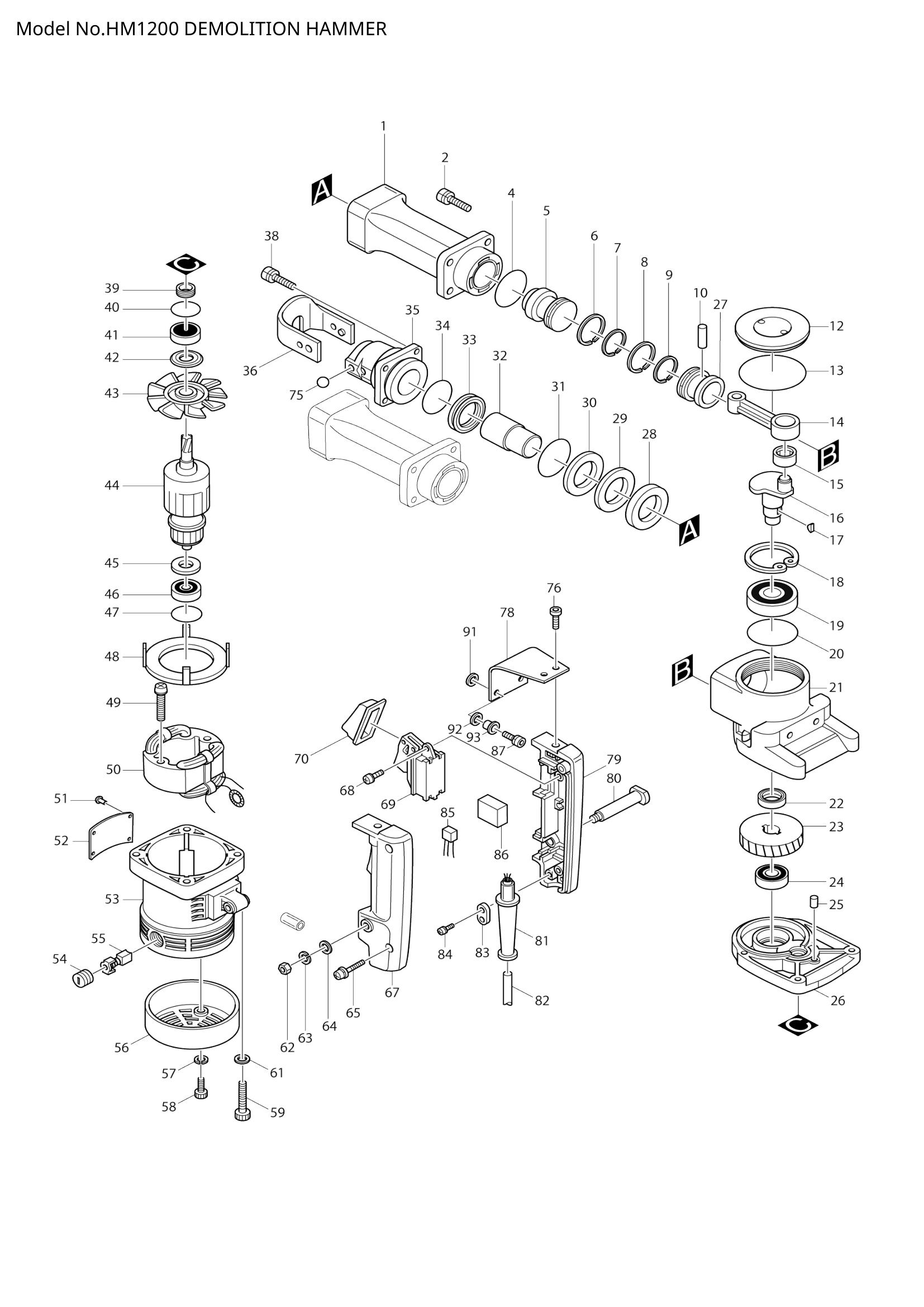

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 004 | 213655-4 | O RING 56 | 1 | €0.83 | 1-4 weeks to ship | |
| 213655-4 | O RING 56 | 1 | €0.83 | 1-4 weeks to ship | ||
| 005 | 321732-9 | STRIKER | 1 | €30.47 | 1-4 weeks to ship | |
| 321732-9 | STRIKER | 1 | €30.47 | 1-4 weeks to ship | ||
| 006 | 412049-2 | PISTON RING 40 | 1 | €19.48 | 1-4 weeks to ship | |
| 412049-2 | PISTON RING 40 | 1 | €19.48 | 1-4 weeks to ship | ||
| 007 | 341862-0 | INNER RING 36 | 1 | €8.35 | 1-4 weeks to ship | |
| 341862-0 | INNER RING 36 | 1 | €8.35 | 1-4 weeks to ship | ||
| 008 | 412049-2 | PISTON RING 40 | 1 | €19.48 | 1-4 weeks to ship | |
| 412049-2 | PISTON RING 40 | 1 | €19.48 | 1-4 weeks to ship | ||
| 009 | 341862-0 | INNER RING 36 | 1 | €8.35 | 1-4 weeks to ship | |
| 341862-0 | INNER RING 36 | 1 | €8.35 | 1-4 weeks to ship | ||
| 010 | 256120-0 | PIN 10 | 1 | €4.17 | 1-4 weeks to ship | |
| 256120-0 | PIN 10 | 1 | €4.17 | 1-4 weeks to ship | ||
| 013 | 213754-2 | O RING 71 | 1 | €1.11 | 1-4 weeks to ship | |
| 213754-2 | O RING 71 | 1 | €1.11 | 1-4 weeks to ship | ||
| 014 | 315419-3 | CONNECTING ROD | 1 | €27.27 | 1-4 weeks to ship | |
| 315419-3 | CONNECTING ROD | 1 | €27.27 | 1-4 weeks to ship | ||
| 015 | 212208-6 | NEEDLE BEARING 1516 | 1 | €22.26 | 1-4 weeks to ship | |
| 212208-6 | NEEDLE BEARING 1516 | 1 | €22.26 | 1-4 weeks to ship | ||
| 016 | CRANK SHAFT COMPLETE | 1 | Not available in store | |||
| CRANK SHAFT COMPLETE | 1 | Not available in store | ||||
| 017 | 254001-2 | WOODRUFF KEY 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 254001-2 | WOODRUFF KEY 4 | 2 | €0.56 | 1-4 weeks to ship | ||
| 018 | 962251-2 | RETAINING RING R-52 | 1 | €1.67 | 1-4 weeks to ship | |
| 962251-2 | RETAINING RING R-52 | 1 | €1.67 | 1-4 weeks to ship | ||
| 020 | 213656-2 | O RING 53 | 1 | €0.83 | 1-4 weeks to ship | |
| 213656-2 | O RING 53 | 1 | €0.83 | 1-4 weeks to ship | ||
| 022 | 213306-9 | OIL SEAL 20 | 1 | €4.73 | 1-4 weeks to ship | |
| 213306-9 | OIL SEAL 20 | 1 | €4.73 | 1-4 weeks to ship | ||
| 023 | 221701-9 | HELICAL GEAR 50 | 1 | €35.62 | 1-4 weeks to ship | |
| 221701-9 | HELICAL GEAR 50 | 1 | €35.62 | 1-4 weeks to ship | ||
| 024 | 211209-1 | BALL BEARING 6202 | 1 | €8.35 | 1-4 weeks to ship | |
| 211209-1 | BALL BEARING 6202 | 1 | €8.35 | 1-4 weeks to ship | ||
| 025 | 256111-1 | PIN 6 | 1 | €0.83 | 1-4 weeks to ship | |
| 256111-1 | PIN 6 | 1 | €0.83 | 1-4 weeks to ship | ||
| 026 | 157072-7 | GEAR HOUSING | 1 | €53.57 | 1-4 weeks to ship | |
| 157072-7 | GEAR HOUSING | 1 | €53.57 | 1-4 weeks to ship | ||
| 027 | 321441-0 | PISTON | 1 | €25.60 | 1-4 weeks to ship | |
| 321441-0 | PISTON | 1 | €25.60 | 1-4 weeks to ship | ||
| 029 | 261054-4 | NYLON WASHER 32 | 1 | €4.17 | 1-4 weeks to ship | |
| 261054-4 | NYLON WASHER 32 | 1 | €4.17 | 1-4 weeks to ship | ||
| 030 | 253845-7 | FLAT WASHER 31 | 1 | €8.77 | 1-4 weeks to ship | |
| 253845-7 | FLAT WASHER 31 | 1 | €8.77 | 1-4 weeks to ship | ||
| 031 | 213604-1 | O RING 50 | 1 | €0.83 | 1-4 weeks to ship | |
| 213604-1 | O RING 50 | 1 | €0.83 | 1-4 weeks to ship | ||
| 034 | 213464-1 | O RING 34 | 1 | €1.67 | 1-4 weeks to ship | |
| 213464-1 | O RING 34 | 1 | €1.67 | 1-4 weeks to ship | ||
| 036 | TOOL RETAINER | 1 | Not available in store | |||
| TOOL RETAINER | 1 | Not available in store | ||||
| 039 | 331180-4 | SEAL | 1 | €4.45 | 1-4 weeks to ship | |
| 331180-4 | SEAL | 1 | €4.45 | 1-4 weeks to ship | ||
| 040 | 213460-9 | O RING 35 | 1 | €0.56 | 1-4 weeks to ship | |
| 213460-9 | O RING 35 | 1 | €0.56 | 1-4 weeks to ship | ||
| 041 | 211206-7 | BALL BEARING 6202LLB | 1 | €8.35 | 1-4 weeks to ship | |
| 211206-7 | BALL BEARING 6202LLB | 1 | €8.35 | 1-4 weeks to ship | ||
| 042 | 213202-1 | DUST SEAL 15 | 1 | €0.83 | 1-4 weeks to ship | |
| 213202-1 | DUST SEAL 15 | 1 | €0.83 | 1-4 weeks to ship | ||
| 043 | 241638-4 | FAN 94 | 1 | €11.13 | 1-4 weeks to ship | |
| 241638-4 | FAN 94 | 1 | €11.13 | 1-4 weeks to ship | ||
| 047 | 213406-5 | O RING 30 | 1 | €0.56 | 1-4 weeks to ship | |
| 213406-5 | O RING 30 | 1 | €0.56 | 1-4 weeks to ship | ||
| 048 | 410163-8 | BAFFLE PLATE | 1 | €5.84 | 1-4 weeks to ship | |
| 410163-8 | BAFFLE PLATE | 1 | €5.84 | 1-4 weeks to ship | ||
| 052 | NAME PLATE HM1200 | 1 | Not available in store | |||
| NAME PLATE HM1200 | 1 | Not available in store | ||||
| 056 | 284055-5 | REAR COVER | 1 | €11.13 | 1-4 weeks to ship | |
| 284055-5 | REAR COVER | 1 | €11.13 | 1-4 weeks to ship | ||
| 062 | 931302-2 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 931302-2 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 063 | 942151-2 | SPRING WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 942151-2 | SPRING WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 942151-2 | SPRING WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 942151-2 | SPRING WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 064 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 065 | 911243-8 | PAN HEAD SCREW M5X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 911243-8 | PAN HEAD SCREW M5X25 | 2 | €0.56 | 1-4 weeks to ship | ||
| 068 | 911129-6 | PAN HEAD SCREW M4X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 911129-6 | PAN HEAD SCREW M4X16 | 1 | €0.56 | 1-4 weeks to ship | ||
| 070 | 421265-5 | DUST COVER | 1 | €2.78 | 1-4 weeks to ship | |
| 421265-5 | DUST COVER | 1 | €2.78 | 1-4 weeks to ship | ||
| 075 | 216003-6 | STEEL BALL 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 216003-6 | STEEL BALL 10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 080 | 321210-9 | HANDLE SHAFT | 1 | €2.78 | 1-4 weeks to ship | |
| 321210-9 | HANDLE SHAFT | 1 | €2.78 | 1-4 weeks to ship | ||
| 086 | SPONGE SHEET | 1 | Not available in store | |||
| SPONGE SHEET | 1 | Not available in store | ||||
| 091 | RUBBER RING 9 | 2 | Not available in store | |||
| RUBBER RING 9 | 2 | Not available in store | ||||
| 092 | 262052-1 | RUBBER RING 9 | 2 | €0.42 | 1-4 weeks to ship | |
| 262052-1 | RUBBER RING 9 | 2 | €0.42 | 1-4 weeks to ship | ||
| 093 | 257636-8 | SLEEVE 6 | 2 | €2.23 | 1-4 weeks to ship | |
| 257636-8 | SLEEVE 6 | 2 | €2.23 | 1-4 weeks to ship | ||
| 097 | 252640-2 | WING NUT M8 | 1 | €8.35 | 1-4 weeks to ship | |
| 252640-2 | WING NUT M8 | 1 | €8.35 | 1-4 weeks to ship | ||
| 098 | 417002-3 | SIDE HANDLE CAM | 2 | €1.11 | 1-4 weeks to ship | |
| 417002-3 | SIDE HANDLE CAM | 2 | €1.11 | 1-4 weeks to ship | ||
| 099 | 819063-3 | MAKITA LABEL | 2 | €0.56 | 1-4 weeks to ship | |
| 819063-3 | MAKITA LABEL | 2 | €0.56 | 1-4 weeks to ship | ||
| 400 | HEX. WRENCH 4 | 1 | Not available in store | |||
| HEX. WRENCH 4 | 1 | Not available in store | ||||
