HM1101C
HM1101C

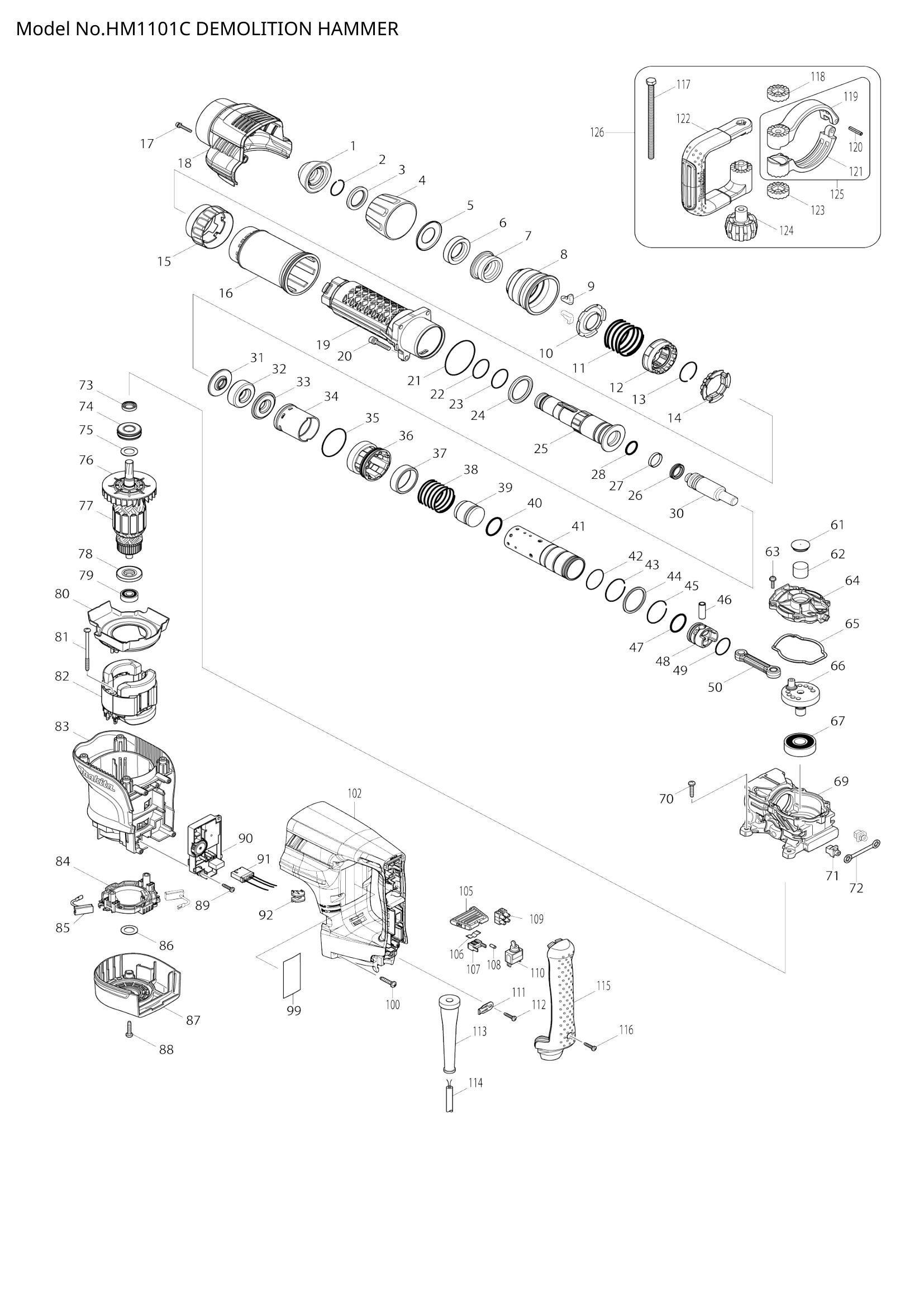

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 286285-4 | TOOL HOLDER CAP | 1 | €2.78 | 1-4 weeks to ship | |
| 002 | 233948-3 | RING SPRING 25 | 1 | €0.83 | 1-4 weeks to ship | |
| 003 | 257308-5 | RING 28 | 1 | €1.39 | 1-4 weeks to ship | |
| 004 | 450064-8 | CHUCK COVER | 1 | €4.17 | 1-4 weeks to ship | |
| 005 | 346247-5 | CUP WASHER 28 | 1 | €4.17 | 1-4 weeks to ship | |
| 006 | 262161-6 | RUBBER RING 28 | 1 | €5.57 | 1-4 weeks to ship | |
| 007 | 324752-2 | CHUCK RING | 1 | €19.48 | 1-4 weeks to ship | |
| 008 | 451836-4 | RELEASE COVER | 1 | €5.57 | 1-4 weeks to ship | |
| 009 | 310178-4 | TOOL RETAINER | 2 | €11.13 | 1-4 weeks to ship | |
| 010 | 345804-6 | SPRING GUIDE | 1 | €1.67 | 1-4 weeks to ship | |
| 011 | 234180-2 | COMPRESSION SPRING 47 | 1 | €2.78 | 1-4 weeks to ship | |
| 012 | 313193-7 | CHANGE RING | 1 | €22.26 | 1-4 weeks to ship | |
| 013 | 233982-3 | RING SPRING 33 | 1 | €1.11 | 1-4 weeks to ship | |
| 014 | 325904-8 | LOCK RING | 1 | €13.92 | 1-4 weeks to ship | |
| 015 | 451842-9 | CHANGE RING COVER | 1 | €5.57 | 1-4 weeks to ship | |
| 016 | 451835-6 | BARREL COVER | 1 | €11.13 | 1-4 weeks to ship | |
| 017 | 922148-7 | HEX. SOCKET HEAD BOLT M4X25 | 1 | €0.56 | 1-4 weeks to ship | |
| 018 | CRANK HOUSING COVER | 1 | Not available in store | |||
| 019 | 140411-8 | BARREL COMPLETE | 1 | €111.32 | 1-4 weeks to ship | |
| 020 | 922353-6 | HEX.SOCKET HEAD BOLT M6X30 | 4 | €0.56 | 1-4 weeks to ship | |
| 021 | 213654-6 | O RING 60 | 1 | €0.83 | 1-4 weeks to ship | |
| 022 | 213492-6 | O-RING 32 | 1 | €2.78 | 1-4 weeks to ship | |
| 023 | 213492-6 | O-RING 32 | 1 | €2.78 | 1-4 weeks to ship | |
| 024 | 262135-7 | RUBBER RING 36 | 1 | €2.78 | 1-4 weeks to ship | |
| 025 | 325901-4 | TOOL HOLDER | 1 | €158.63 | 1-4 weeks to ship | |
| 026 | 213281-9 | X-RING 18 | 1 | €4.17 | 1-4 weeks to ship | |
| 027 | 213392-0 | FLUORIDE RING 25 | 1 | €8.35 | 1-4 weeks to ship | |
| 028 | 213317-4 | O RING 20 | 1 | €0.56 | 1-4 weeks to ship | |
| 030 | 325902-2 | IMPACT BOLT | 1 | €22.26 | 1-4 weeks to ship | |
| 031 | 325903-0 | COLLARED SLEEVE 19 | 1 | €11.13 | 1-4 weeks to ship | |
| 032 | 422053-3 | RUBBER RING 20 | 1 | €16.70 | 1-4 weeks to ship | |
| 033 | 325903-0 | COLLARED SLEEVE 19 | 1 | €11.13 | 1-4 weeks to ship | |
| 034 | 412096-3 | SLIDE SLEEVE | 1 | €5.57 | 1-4 weeks to ship | |
| 035 | 213606-7 | O RING 48 | 1 | €0.83 | 1-4 weeks to ship | |
| 036 | 318604-7 | CYLINDER GUIDE | 1 | €16.70 | 1-4 weeks to ship | |
| 037 | 313194-5 | RING 39 | 1 | €4.17 | 1-4 weeks to ship | |
| 038 | 234178-9 | COMPRESSION SPRING 40 | 1 | €2.78 | 1-4 weeks to ship | |
| 039 | 325905-6 | STRIKER | 1 | €5.57 | 1-4 weeks to ship | |
| 040 | 213536-2 | O-RING 27 | 1 | €1.67 | 1-4 weeks to ship | |
| 041 | 331892-9 | CYLINDER 35 | 1 | €91.84 | 1-4 weeks to ship | |
| 042 | 213458-6 | O RING 34 | 1 | €0.56 | 1-4 weeks to ship | |
| 043 | 233981-5 | RING SPRING 38 | 1 | €1.11 | 1-4 weeks to ship | |
| 044 | 267423-7 | FLAT WASHER 40 | 1 | €2.78 | 1-4 weeks to ship | |
| 045 | 233981-5 | RING SPRING 38 | 1 | €1.11 | 1-4 weeks to ship | |
| 046 | 331911-1 | PIPE 10 | 1 | €4.17 | 1-4 weeks to ship | |
| 047 | 213536-2 | O-RING 27 | 1 | €1.67 | 1-4 weeks to ship | |
| 048 | 451833-0 | PISTON | 1 | €5.57 | 1-4 weeks to ship | |
| 049 | 213415-4 | O RING 28 | 1 | €0.56 | 1-4 weeks to ship | |
| 050 | 451834-8 | CONNECTING ROD | 1 | €4.17 | 1-4 weeks to ship | |
| 061 | 424311-3 | FILTER CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 062 | 443127-7 | FILTER | 1 | €0.83 | 1-4 weeks to ship | |
| 063 | 911133-5 | PAN HEAD SCREW M4X18 | 5 | €0.56 | 1-4 weeks to ship | |
| 064 | 451838-0 | CRANK CAP | 1 | €8.35 | 1-4 weeks to ship | |
| 065 | 424312-1 | SEAL RING | 1 | €0.83 | 1-4 weeks to ship | |
| 066 | 325899-5 | CRANK SHAFT | 1 | €27.83 | 1-4 weeks to ship | |
| 067 | 211279-0 | BALL BEARING 6303LLU | 1 | €11.13 | 1-4 weeks to ship | |
| 069 | CRANK HOUSING COMPLETE | 1 | Not available in store | |||
| 070 | 266041-8 | TAPPING SCREW 5X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 071 | 419008-7 | FIX GUIDE | 2 | €0.56 | 1-4 weeks to ship | |
| 072 | 423345-3 | CUSHION PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 073 | 213133-4 | OIL SEAL 12 | 1 | €5.57 | 1-4 weeks to ship | |
| 074 | 211295-2 | BALL BEARING 6202LLU | 1 | €13.92 | 1-4 weeks to ship | |
| 075 | 267215-4 | FLAT WASHER 15 | 1 | €1.11 | 1-4 weeks to ship | |
| 076 | 241908-1 | FAN 80 | 1 | €4.17 | 1-4 weeks to ship | |
| 077 | 517858-5 | ARMATURE ASSEMBLY 220-240V | 1 | €144.72 | 1-4 weeks to ship | |
| 078 | 681642-5 | INSULATION WASHER | 1 | €8.35 | 1-4 weeks to ship | |
| 079 | 210059-1 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 080 | 451837-2 | BAFFLE PLATE | 1 | €4.17 | 1-4 weeks to ship | |
| 081 | 266568-8 | TAPPING SCREW 5X80 | 2 | €1.39 | 1-4 weeks to ship | |
| 082 | 623418-4 | FIELD 220-240V | 1 | €30.61 | 1-4 weeks to ship | |
| 083 | 451840-3 | MOTOR HOUSING | 1 | €30.61 | 1-4 weeks to ship | |
| 084 | 638700-8 | BRUSH HOLDER UNIT | 1 | €16.70 | 1-4 weeks to ship | |
| 086 | 267215-4 | FLAT WASHER 15 | 1 | €1.11 | 1-4 weeks to ship | |
| 087 | 451839-8 | REAR COVER | 1 | €8.35 | 1-4 weeks to ship | |
| 088 | 266041-8 | TAPPING SCREW 5X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 090 | CONTROLLER | 1 | Not available in store | |||
| 091 | 638718-9 | LEAD UNIT | 1 | €8.35 | 1-4 weeks to ship | |
| 092 | 450240-4 | LENS | 1 | €1.11 | 1-4 weeks to ship | |
| 100 | 266041-8 | TAPPING SCREW 5X25 | 6 | €0.56 | 1-4 weeks to ship | |
| 102 | HANDLE COMPLETE | 1 | Not available in store | |||
| 105 | 450897-1 | SLIDE LEVER | 1 | €2.78 | 1-4 weeks to ship | |
| 106 | 232209-8 | LEAF SPRING | 1 | €0.83 | 1-4 weeks to ship | |
| 107 | 450891-3 | LEVER STOPPER | 1 | €1.11 | 1-4 weeks to ship | |
| 108 | 263027-3 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 109 | 654531-7 | TERMINAL BLOCK 2P | 1 | €2.78 | 1-4 weeks to ship | |
| 111 | 687169-3 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 112 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 113 | 682560-0 | CORD GUARD 10 | 1 | €1.67 | 1-4 weeks to ship | |
| 114 | 695123-3 | POWER SUPPLY CORD 1.5-2-4.0 | 1 | €30.61 | 1-4 weeks to ship | |
| 115 | HANDLE COVER | 1 | Not available in store | |||
| 116 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 117 | 265439-6 | HEX. BOLT M8X150 | 1 | €2.78 | 1-4 weeks to ship | |
| 118 | 417002-3 | SIDE HANDLE CAM | 1 | €1.11 | 1-4 weeks to ship | |
| 119 | SIDE HANDLE BASE 68A | 1 | Not available in store | |||
| 120 | 951166-8 | SPRING PIN 5-24 | 1 | €0.56 | 1-4 weeks to ship | |
| 121 | SIDE HANDLE BASE 68B | 1 | Not available in store | |||
| 122 | SIDE HANDLE | 1 | Not available in store | |||
| 123 | 417002-3 | SIDE HANDLE CAM | 1 | €1.11 | 1-4 weeks to ship | |
| 124 | 252640-2 | WING NUT M8 | 1 | €8.35 | 1-4 weeks to ship | |
| 125 | 151769-0 | SIDE HANDLE 68 COMPLETE | 1 | €22.26 | 1-4 weeks to ship | |
| 126 | SIDE HANDLE 68 ASS'Y | 1 | Not available in store | |||
