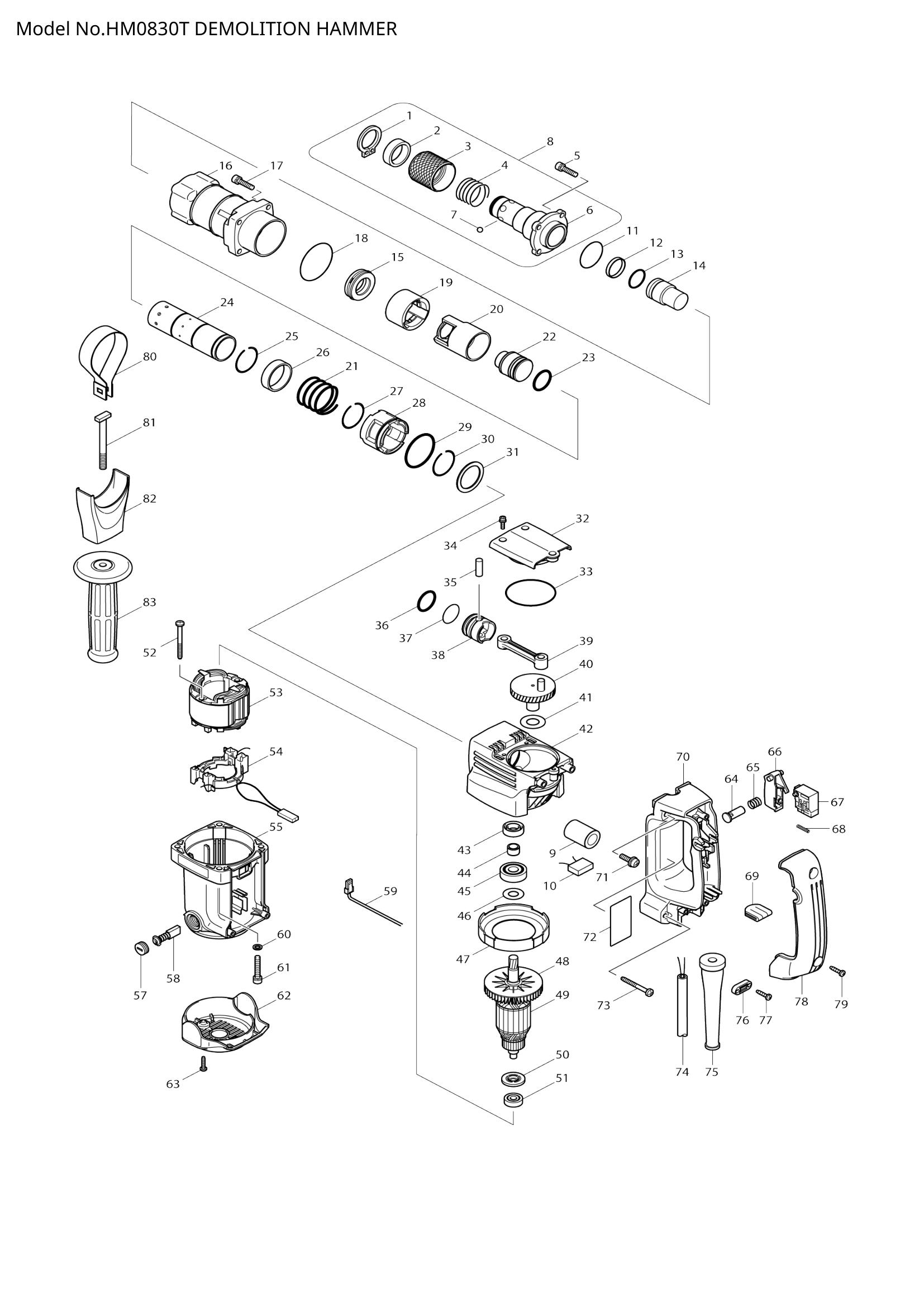

HM0830T
HM0830T
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 961108-4 | RETAINING RING S-28 | 1 | €1.11 | 1-4 weeks to ship | |
| 002 | 257206-3 | RING 29 | 1 | €7.10 | 1-4 weeks to ship | |
| 003 | 331518-3 | CHANGE RING | 1 | €30.47 | 1-4 weeks to ship | |
| 004 | 233191-4 | COMPRESSION SPRING 30 | 1 | €4.45 | 1-4 weeks to ship | |
| 005 | 265914-2 | HEX. SOCKET HEAD BOLT M6X25 | 4 | €0.83 | 1-4 weeks to ship | |
| 007 | 216004-4 | STEEL BALL 7.9 | 6 | €0.56 | 1-4 weeks to ship | |
| 008 | TOOL HOLDER ASS'Y | 1 | Not available in store | |||
| 009 | 685722-9 | SPONGE | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 645200-1 | NOISE SUPPRESSOR | 1 | €0.83 | 1-4 weeks to ship | |
| 011 | 213515-0 | O RING 36 | 1 | €0.83 | 1-4 weeks to ship | |
| 012 | 213431-6 | FLUORIDE RING 28 | 1 | €11.13 | 1-4 weeks to ship | |
| 013 | 213394-6 | O RING 23 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | IMPACT BOLT | 1 | Not available in store | |||
| 015 | RUBBER RING 24 | 1 | Not available in store | |||
| 016 | BARREL | 1 | Not available in store | |||
| 017 | 265914-2 | HEX. SOCKET HEAD BOLT M6X25 | 4 | €0.83 | 1-4 weeks to ship | |
| 018 | 213656-2 | O RING 53 | 1 | €0.83 | 1-4 weeks to ship | |
| 019 | GUIDE RING | 1 | Not available in store | |||
| 020 | SLIDE SLEEVE | 1 | Not available in store | |||
| 021 | COMPRESSION SPRING 37 | 1 | Not available in store | |||
| 022 | STRIKER | 1 | Not available in store | |||
| 023 | 213958-6 | O RING 24 | 1 | €2.78 | 1-4 weeks to ship | |
| 024 | CYLINDER 32 | 1 | Not available in store | |||
| 025 | 233927-1 | RING SPRING 34 | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | 331660-0 | RING 36 | 1 | €11.13 | 1-4 weeks to ship | |
| 027 | 233927-1 | RING SPRING 34 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 317719-7 | CYLINDER GUIDE | 1 | €16.70 | 1-4 weeks to ship | |
| 029 | 213611-4 | O RING 46 | 1 | €0.83 | 1-4 weeks to ship | |
| 030 | 233927-1 | RING SPRING 34 | 1 | €0.56 | 1-4 weeks to ship | |
| 031 | 267079-6 | FLAT WASHER 34 | 1 | €2.78 | 1-4 weeks to ship | |
| 032 | CRANK CAP | 1 | Not available in store | |||
| 033 | 213670-8 | O RING 58 | 1 | €1.11 | 1-4 weeks to ship | |
| 034 | 922123-3 | HEX. SOCKET HEAD BOLT M4X14 | 3 | €0.56 | 1-4 weeks to ship | |
| 035 | 268104-6 | PIN 8 | 1 | €0.97 | 1-4 weeks to ship | |
| 036 | 213958-6 | O RING 24 | 1 | €2.78 | 1-4 weeks to ship | |
| 037 | 213432-4 | O RING 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 038 | 418349-8 | PISTON | 1 | €2.78 | 1-4 weeks to ship | |
| 039 | 418350-3 | CONNECTING ROD | 1 | €5.57 | 1-4 weeks to ship | |
| 040 | CRANK SHAFT COMPLETE | 1 | Not available in store | |||
| 041 | 267025-9 | FLAT WASHER 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 042 | CRANK HOUSING COMPLETE | 1 | Not available in store | |||
| 043 | 213231-4 | OIL SEAL 15 | 1 | €8.35 | 1-4 weeks to ship | |
| 044 | 331596-3 | SLEEVE 12 | 1 | €4.17 | 1-4 weeks to ship | |
| 045 | 211137-0 | BALL BEARING 6201LLU | 1 | €8.35 | 1-4 weeks to ship | |
| 046 | 253759-0 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 047 | BAFFLE PLATE | 1 | Not available in store | |||
| 048 | 241863-7 | FAN 70 | 1 | €1.67 | 1-4 weeks to ship | |
| 049 | ARMATURE ASS'Y 240V | 1 | Not available in store | |||
| 050 | 681644-1 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 681644-1 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 051 | 210007-0 | BALL BEARING 608VV | 1 | €5.57 | 1-4 weeks to ship | |
| 052 | 266095-5 | TAPPING SCREW 5X55 | 2 | €0.83 | 1-4 weeks to ship | |
| 053 | FIELD 220-240V | 1 | Not available in store | |||
| 054 | SUPPORT COMPLETE | 1 | Not available in store | |||
| 055 | MOTOR HOUSING COMPLETE | 1 | Not available in store | |||
| 059 | LEAD UNIT | 1 | Not available in store | |||
| 060 | 941151-9 | FLAT WASHER 6 | 4 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 4 | €0.56 | 1-4 weeks to ship | ||
| 061 | 922356-0 | HEX. SOCKET HEAD BOLT M6X35 | 4 | €0.56 | 1-4 weeks to ship | |
| 062 | REAR COVER | 1 | Not available in store | |||
| 063 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 064 | LOCK BUTTON | 1 | Not available in store | |||
| 065 | COMPRESSION SPRING 11 | 1 | Not available in store | |||
| 066 | SWITCH LEVER | 1 | Not available in store | |||
| 067 | SWITCH SP215C-1 | 1 | Not available in store | |||
| 068 | 233408-5 | COMPRESSION SPRING 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 069 | 421583-1 | SPONGE SHEET | 1 | €0.56 | 1-4 weeks to ship | |
| 070 | HANDLE | 1 | Not available in store | |||
| 071 | 911333-7 | PAN HEAD SCREW M6X20 | 2 | €0.56 | 1-4 weeks to ship | |
| 072 | HM0830T NAME PLATE | 1 | Not available in store | |||
| 073 | 266056-5 | TAPPING SCREW 5X45 | 2 | €0.83 | 1-4 weeks to ship | |
| 074 | 695123-3 | POWER SUPPLY CORD 1.5-2-4.0 | 1 | €30.61 | 1-4 weeks to ship | |
| 075 | 682560-0 | CORD GUARD 10 | 1 | €1.67 | 1-4 weeks to ship | |
| 076 | 687053-2 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 077 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 078 | HANDLE COVER | 1 | Not available in store | |||
| 079 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 080 | 345361-4 | GRIP SPRING 60 | 1 | €11.13 | 1-4 weeks to ship | |
| 082 | 418363-4 | SIDE GRIP BASE 60 | 1 | €5.57 | 1-4 weeks to ship | |
| 083 | 152554-4 | GRIP 36 COMPLETE | 1 | €13.92 | 1-4 weeks to ship | |
