HM0810T
HM0810T

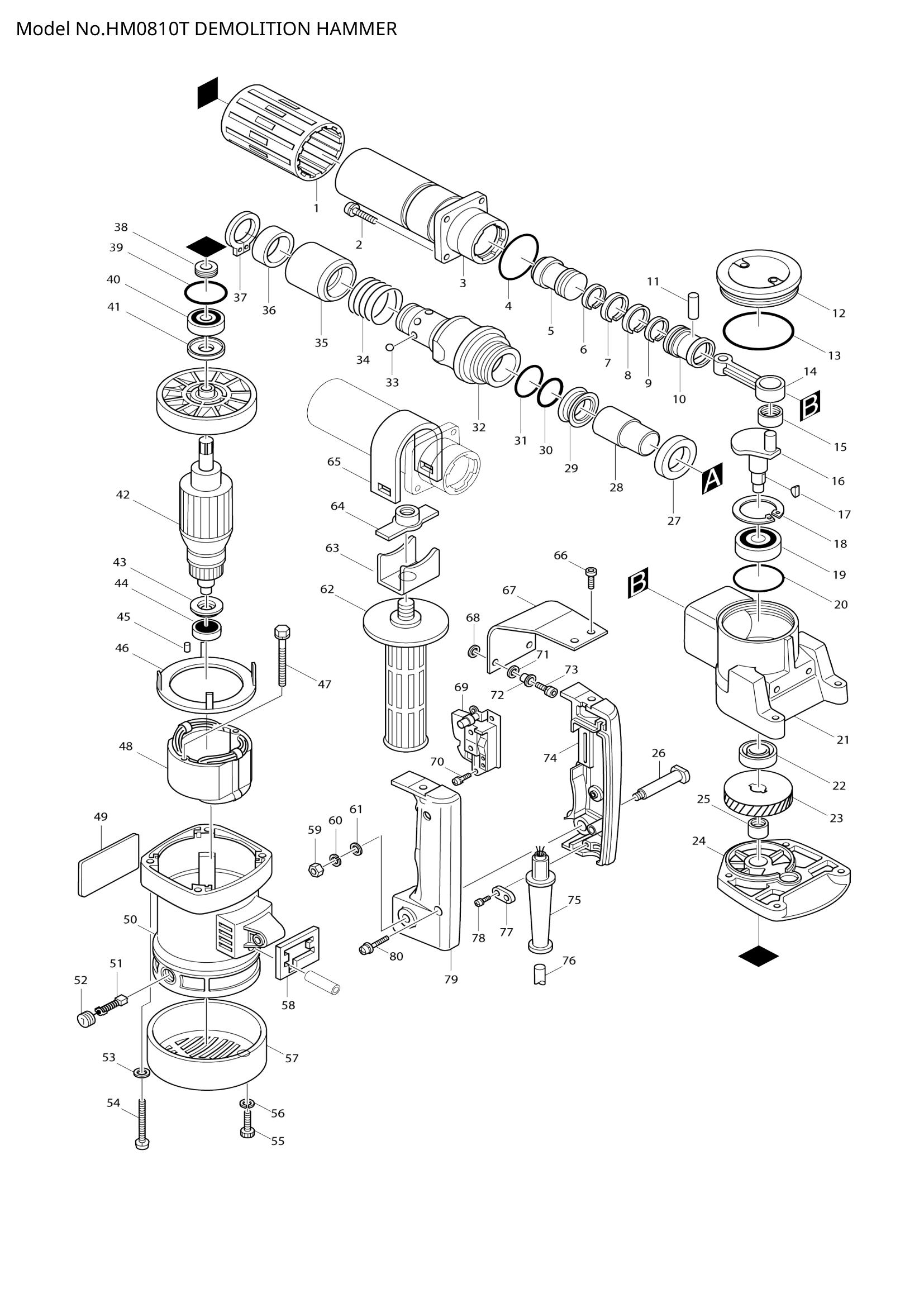

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | 922341-3 | HEX. SOCKET HEAD BOLT M6X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 003 | 151457-9 | BARREL COMPLETE | 1 | €158.77 | 1-4 weeks to ship | |
| 004 | 213554-0 | O RING 44 | 1 | €0.56 | 1-4 weeks to ship | |
| 005 | 321929-0 | STRIKER | 1 | €17.53 | 1-4 weeks to ship | |
| 006 | 412073-5 | INNER RING 26 | 1 | €5.57 | 1-4 weeks to ship | |
| 007 | 412053-1 | PISTON RING 30 | 1 | €8.35 | 1-4 weeks to ship | |
| 008 | 412053-1 | PISTON RING 30 | 1 | €8.35 | 1-4 weeks to ship | |
| 009 | 321514-9 | INNER RING 26 | 1 | €4.17 | 1-4 weeks to ship | |
| 010 | PISTON | 1 | Not available in store | |||
| 011 | 256165-8 | PIN 8 | 1 | €1.11 | 1-4 weeks to ship | |
| 013 | 213654-6 | O RING 60 | 1 | €0.83 | 1-4 weeks to ship | |
| 014 | 312956-8 | ROD | 1 | €22.26 | 1-4 weeks to ship | |
| 015 | 212108-0 | NEEDLE BEARING 1212 | 1 | €13.92 | 1-4 weeks to ship | |
| 016 | 321954-1 | CRANK SHAFT | 1 | €30.47 | 1-4 weeks to ship | |
| 017 | 254001-2 | WOODRUFF KEY 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 018 | 962203-3 | RETAINING RING R-47 | 1 | €0.83 | 1-4 weeks to ship | |
| 019 | 211279-0 | BALL BEARING 6303LLU | 1 | €11.13 | 1-4 weeks to ship | |
| 020 | 213606-7 | O RING 48 | 1 | €0.83 | 1-4 weeks to ship | |
| 021 | CRANK HOUSING COMPLETE | 1 | Not available in store | |||
| 022 | 213260-7 | OIL SEAL 17 | 1 | €4.17 | 1-4 weeks to ship | |
| 023 | 221669-9 | HELICAL GEAR 41 | 1 | €19.48 | 1-4 weeks to ship | |
| 024 | 157628-6 | GEAR HOUSING | 1 | €35.62 | 1-4 weeks to ship | |
| 025 | 212102-2 | NEEDLE BEARING 1210 | 1 | €6.26 | 1-4 weeks to ship | |
| 026 | 321210-9 | HANDLE SHAFT | 1 | €2.78 | 1-4 weeks to ship | |
| 027 | 253955-0 | FLAT WASHER 24 | 1 | €14.61 | 1-4 weeks to ship | |
| 028 | 321495-7 | IMPACT BOLT | 1 | €16.70 | 1-4 weeks to ship | |
| 029 | 213428-5 | X RING 28 | 1 | €23.52 | 1-4 weeks to ship | |
| 030 | 213411-2 | O RING 27 | 1 | €0.97 | 1-4 weeks to ship | |
| 031 | 213508-7 | O RING 38 | 1 | €0.56 | 1-4 weeks to ship | |
| 034 | 233191-4 | COMPRESSION SPRING 30 | 1 | €4.45 | 1-4 weeks to ship | |
| 035 | 331518-3 | CHANGE RING | 1 | €30.47 | 1-4 weeks to ship | |
| 036 | 257206-3 | RING 29 | 1 | €7.10 | 1-4 weeks to ship | |
| 038 | 331194-3 | SEAL | 1 | €2.78 | 1-4 weeks to ship | |
| 039 | 213459-4 | O RING 32 | 1 | €0.56 | 1-4 weeks to ship | |
| 041 | 213102-5 | DUST SEAL 12 | 1 | €1.39 | 1-4 weeks to ship | |
| 043 | 681625-5 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 044 | 211031-6 | BALL BEARING 608LLB | 1 | €1.67 | 1-4 weeks to ship | |
| 046 | 410509-8 | BAFFLE PLATE | 1 | €4.45 | 1-4 weeks to ship | |
| 047 | 265345-5 | + HEX. BOLT M5X60 | 2 | €1.39 | 1-4 weeks to ship | |
| 050 | MOTOR HOUSING | 1 | Not available in store | |||
| 051 | 181038-5 | A.C. CARBON BRUSH CB-105 | 1 | €0.56 | 1-4 weeks to ship | |
| 052 | 643600-9 | BRUSH HOLDER CAP 6-10 | 2 | €0.83 | 1-4 weeks to ship | |
| 057 | 284059-7 | REAR COVER | 1 | €2.92 | 1-4 weeks to ship | |
| 058 | 423257-0 | SPONGE 38.5-46 | 1 | €2.78 | 1-4 weeks to ship | |
| 059 | 931302-2 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 061 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 062 | 273457-0 | GRIP 32 | 1 | €19.76 | 1-4 weeks to ship | |
| 063 | 341922-8 | GRIP BASE | 1 | €4.45 | 1-4 weeks to ship | |
| 064 | 321497-3 | CLAMP NUT | 1 | €6.96 | 1-4 weeks to ship | |
| 065 | 341914-7 | GRIP CLAMP | 1 | €7.24 | 1-4 weeks to ship | |
| 066 | HEX. SOCKET HEAD BOLT M6X14 | 2 | Not available in store | |||
| 067 | 343753-1 | CUSHION PLATE | 2 | €6.40 | 1-4 weeks to ship | |
| 068 | RUBBER RING 9 | 2 | Not available in store | |||
| 070 | 911109-2 | PAN HEAD SCREW M4X8 | 2 | €0.56 | 1-4 weeks to ship | |
| 911109-2 | PAN HEAD SCREW M4X8 | 2 | €0.56 | 1-4 weeks to ship | ||
| 071 | 262052-1 | RUBBER RING 9 | 2 | €0.42 | 1-4 weeks to ship | |
| 072 | 257636-8 | SLEEVE 6 | 2 | €2.23 | 1-4 weeks to ship | |
| 073 | 265914-2 | HEX. SOCKET HEAD BOLT M6X25 | 2 | €0.83 | 1-4 weeks to ship | |
| 074 | 182590-6 | HANDLE SET | 1 | €25.60 | 1-4 weeks to ship | |
| 078 | 911133-5 | PAN HEAD SCREW M4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 079 | 182590-6 | HANDLE SET | 1 | €25.60 | 1-4 weeks to ship | |
| 080 | 911243-8 | PAN HEAD SCREW M5X25 | 1 | €0.56 | 1-4 weeks to ship | |
| 081 | 267203-1 | FLAT WASHER 43 | 1 | €2.78 | 1-4 weeks to ship | |
