HM002G
HM002G

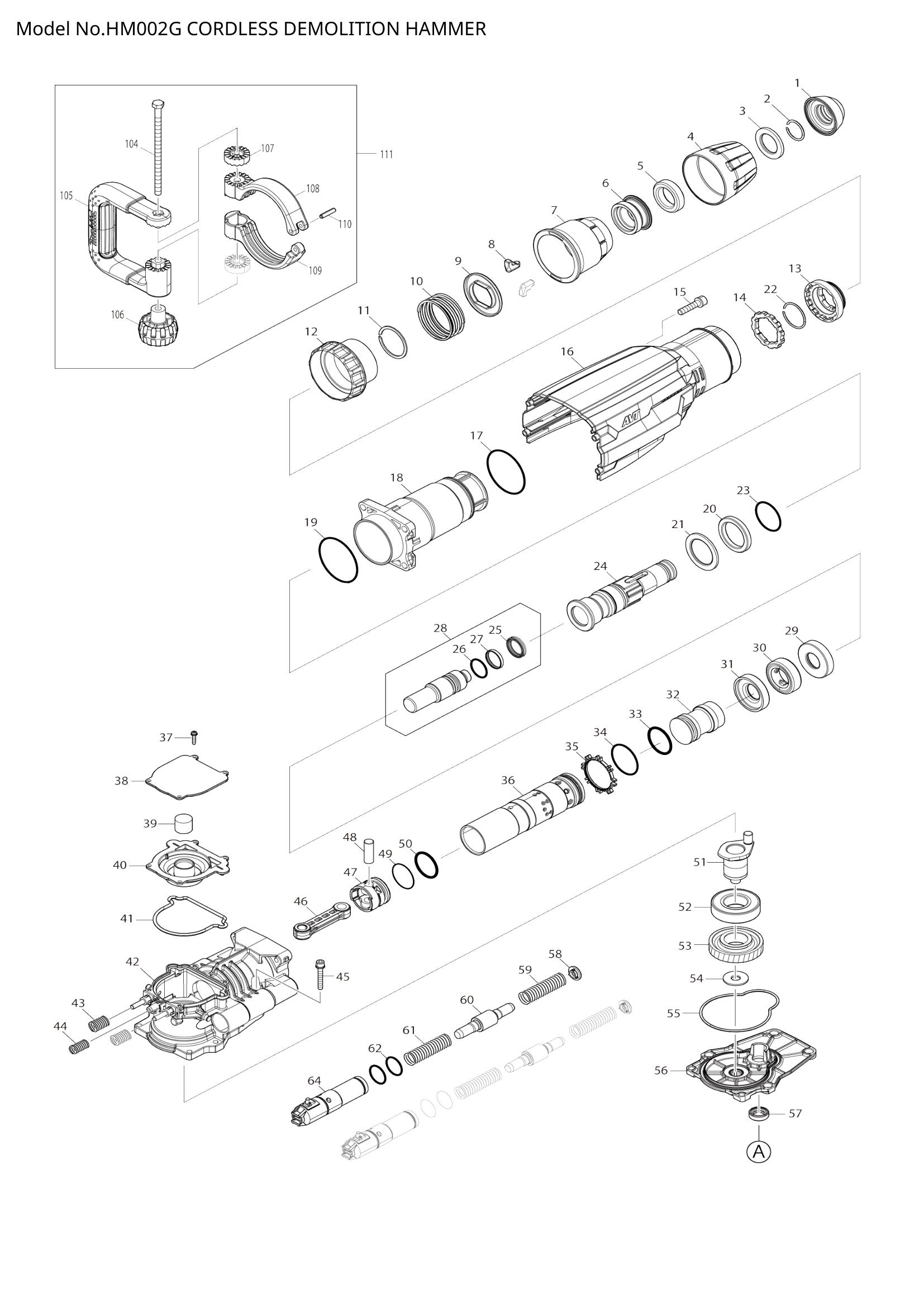

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 424165-8 | TOOL HOLDER CAP | 1 | €2.78 | 1-4 weeks to ship | |
| 424165-8 | TOOL HOLDER CAP | 1 | €2.78 | 1-4 weeks to ship | ||
| 002 | 233973-4 | RING SPRING 26 | 1 | €0.83 | 1-4 weeks to ship | |
| 233973-4 | RING SPRING 26 | 1 | €0.83 | 1-4 weeks to ship | ||
| 003 | 267386-7 | FLAT WASHER 30 | 1 | €8.35 | 1-4 weeks to ship | |
| 267386-7 | FLAT WASHER 30 | 1 | €8.35 | 1-4 weeks to ship | ||
| 004 | 450894-7 | CHUCK COVER | 1 | €4.17 | 1-4 weeks to ship | |
| 450894-7 | CHUCK COVER | 1 | €4.17 | 1-4 weeks to ship | ||
| 005 | 262147-0 | RUBBER RING 30 | 1 | €5.57 | 1-4 weeks to ship | |
| 262147-0 | RUBBER RING 30 | 1 | €5.57 | 1-4 weeks to ship | ||
| 006 | 324987-5 | CHUCK RING | 1 | €22.26 | 1-4 weeks to ship | |
| 324987-5 | CHUCK RING | 1 | €22.26 | 1-4 weeks to ship | ||
| 007 | 450895-5 | RELEASE COVER | 1 | €5.57 | 1-4 weeks to ship | |
| 450895-5 | RELEASE COVER | 1 | €5.57 | 1-4 weeks to ship | ||
| 008 | 310279-8 | TOOL RETAINER | 2 | €5.57 | 1-4 weeks to ship | |
| 310279-8 | TOOL RETAINER | 2 | €5.57 | 1-4 weeks to ship | ||
| 009 | 346015-6 | SPRING GUIDE | 1 | €4.17 | 1-4 weeks to ship | |
| 346015-6 | SPRING GUIDE | 1 | €4.17 | 1-4 weeks to ship | ||
| 010 | 234086-4 | COMPRESSION SPRING 56 | 1 | €4.17 | 1-4 weeks to ship | |
| 234086-4 | COMPRESSION SPRING 56 | 1 | €4.17 | 1-4 weeks to ship | ||
| 011 | 961232-3 | RETAINING RING WR-45 | 1 | €2.78 | 1-4 weeks to ship | |
| 961232-3 | RETAINING RING WR-45 | 1 | €2.78 | 1-4 weeks to ship | ||
| 012 | 450893-9 | CHANGE RING COVER | 1 | €4.17 | 1-4 weeks to ship | |
| 450893-9 | CHANGE RING COVER | 1 | €4.17 | 1-4 weeks to ship | ||
| 013 | 324969-7 | CHANGE RING | 1 | €36.18 | 1-4 weeks to ship | |
| 324969-7 | CHANGE RING | 1 | €36.18 | 1-4 weeks to ship | ||
| 014 | 324988-3 | LOCK RING | 1 | €25.05 | 1-4 weeks to ship | |
| 324988-3 | LOCK RING | 1 | €25.05 | 1-4 weeks to ship | ||
| 015 | 922456-6 | HEX. SOCKET HEAD BOLT M8X35 | 4 | €0.83 | 1-4 weeks to ship | |
| 922456-6 | HEX. SOCKET HEAD BOLT M8X35 | 4 | €0.83 | 1-4 weeks to ship | ||
| 016 | HOUSING COVER | 1 | Not available in store | |||
| HOUSING COVER | 1 | Not available in store | ||||
| 017 | O RING 60 | 1 | Not available in store | |||
| O RING 60 | 1 | Not available in store | ||||
| 018 | BARREL COMPLETE | 1 | Not available in store | |||
| BARREL COMPLETE | 1 | Not available in store | ||||
| 019 | 213720-9 | O RING 67 | 1 | €0.83 | 1-4 weeks to ship | |
| 213720-9 | O RING 67 | 1 | €0.83 | 1-4 weeks to ship | ||
| 020 | 262148-8 | RUBBER RING 39 | 1 | €4.17 | 1-4 weeks to ship | |
| 262148-8 | RUBBER RING 39 | 1 | €4.17 | 1-4 weeks to ship | ||
| 021 | 267387-5 | FLAT WASHER 39 | 1 | €8.35 | 1-4 weeks to ship | |
| 267387-5 | FLAT WASHER 39 | 1 | €8.35 | 1-4 weeks to ship | ||
| 022 | 233970-0 | RING SPRING 35 | 1 | €1.11 | 1-4 weeks to ship | |
| 233970-0 | RING SPRING 35 | 1 | €1.11 | 1-4 weeks to ship | ||
| 023 | 213079-4 | O-RING 35.5 | 1 | €2.78 | 1-4 weeks to ship | |
| 213079-4 | O-RING 35.5 | 1 | €2.78 | 1-4 weeks to ship | ||
| 024 | 324985-9 | TOOL HOLDER | 1 | €147.50 | 1-4 weeks to ship | |
| 324985-9 | TOOL HOLDER | 1 | €147.50 | 1-4 weeks to ship | ||
| 025 | 213980-3 | X-RING 21 | 1 | €4.17 | 1-4 weeks to ship | |
| 213980-3 | X-RING 21 | 1 | €4.17 | 1-4 weeks to ship | ||
| 026 | 213394-6 | O RING 23 | 1 | €0.56 | 1-4 weeks to ship | |
| 213394-6 | O RING 23 | 1 | €0.56 | 1-4 weeks to ship | ||
| 027 | 213431-6 | FLUORIDE RING 28 | 1 | €11.13 | 1-4 weeks to ship | |
| 213431-6 | FLUORIDE RING 28 | 1 | €11.13 | 1-4 weeks to ship | ||
| 028 | IMPACT BOLT ASSY | 1 | Not available in store | |||
| IMPACT BOLT ASSY | 1 | Not available in store | ||||
| 029 | 324993-0 | SHOULDER SLEEVE | 1 | €13.92 | 1-4 weeks to ship | |
| 324993-0 | SHOULDER SLEEVE | 1 | €13.92 | 1-4 weeks to ship | ||
| 030 | 262149-6 | RUBBER RING 24 | 1 | €8.35 | 1-4 weeks to ship | |
| 262149-6 | RUBBER RING 24 | 1 | €8.35 | 1-4 weeks to ship | ||
| 031 | 324993-0 | SHOULDER SLEEVE | 1 | €13.92 | 1-4 weeks to ship | |
| 324993-0 | SHOULDER SLEEVE | 1 | €13.92 | 1-4 weeks to ship | ||
| 032 | STRIKER | 1 | Not available in store | |||
| STRIKER | 1 | Not available in store | ||||
| 033 | 213499-2 | O-RING 31.5 | 1 | €4.17 | 1-4 weeks to ship | |
| 213499-2 | O-RING 31.5 | 1 | €4.17 | 1-4 weeks to ship | ||
| 034 | 213581-7 | O-RING 44 | 1 | €2.78 | 1-4 weeks to ship | |
| 213581-7 | O-RING 44 | 1 | €2.78 | 1-4 weeks to ship | ||
| 035 | 450889-0 | ONE WAY VALVE GUIDE | 1 | €0.83 | 1-4 weeks to ship | |
| 450889-0 | ONE WAY VALVE GUIDE | 1 | €0.83 | 1-4 weeks to ship | ||
| 036 | CYLINDER 40 | 1 | Not available in store | |||
| CYLINDER 40 | 1 | Not available in store | ||||
| 037 | 911133-5 | PAN HEAD SCREW M4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 911133-5 | PAN HEAD SCREW M4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 038 | CRANK CAP COVER | 1 | Not available in store | |||
| CRANK CAP COVER | 1 | Not available in store | ||||
| 039 | 443127-7 | FILTER | 1 | €0.83 | 1-4 weeks to ship | |
| 443127-7 | FILTER | 1 | €0.83 | 1-4 weeks to ship | ||
| 040 | CRANK CAP | 1 | Not available in store | |||
| CRANK CAP | 1 | Not available in store | ||||
| 041 | SEAL RING A | 1 | Not available in store | |||
| SEAL RING A | 1 | Not available in store | ||||
| 042 | CRANK HOUSING COMPLETE | 1 | Not available in store | |||
| CRANK HOUSING COMPLETE | 1 | Not available in store | ||||
| 043 | COMPRESSION SPRING 12 | 2 | Not available in store | |||
| COMPRESSION SPRING 12 | 2 | Not available in store | ||||
| 044 | COMPRESSION SPRING 10 | 1 | Not available in store | |||
| COMPRESSION SPRING 10 | 1 | Not available in store | ||||
| 045 | H.S.H.BOLT M6X40 WITH WR | 6 | Not available in store | |||
| H.S.H.BOLT M6X40 WITH WR | 6 | Not available in store | ||||
| 046 | CONNECTING ROD | 1 | Not available in store | |||
| CONNECTING ROD | 1 | Not available in store | ||||
| 047 | 450961-8 | PISTON | 1 | €11.13 | 1-4 weeks to ship | |
| 450961-8 | PISTON | 1 | €11.13 | 1-4 weeks to ship | ||
| 048 | 268121-6 | PIN 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 268121-6 | PIN 12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 049 | 213149-9 | O RING 35 | 1 | €1.39 | 1-4 weeks to ship | |
| 213149-9 | O RING 35 | 1 | €1.39 | 1-4 weeks to ship | ||
| 050 | 213499-2 | O-RING 31.5 | 1 | €4.17 | 1-4 weeks to ship | |
| 213499-2 | O-RING 31.5 | 1 | €4.17 | 1-4 weeks to ship | ||
| 051 | CRANK SHAFT | 1 | Not available in store | |||
| CRANK SHAFT | 1 | Not available in store | ||||
| 052 | BALL BEARING 6206LLB | 1 | Not available in store | |||
| BALL BEARING 6206LLB | 1 | Not available in store | ||||
| 053 | 226691-1 | HELICAL GEAR 57 | 1 | €44.53 | 1-4 weeks to ship | |
| 226691-1 | HELICAL GEAR 57 | 1 | €44.53 | 1-4 weeks to ship | ||
| 054 | 267398-0 | FLAT WASHER 12 | 1 | €1.39 | 1-4 weeks to ship | |
| 267398-0 | FLAT WASHER 12 | 1 | €1.39 | 1-4 weeks to ship | ||
| 055 | SEAL RING B | 1 | Not available in store | |||
| SEAL RING B | 1 | Not available in store | ||||
| 056 | GEAR HOUSING COMPLETE | 1 | Not available in store | |||
| GEAR HOUSING COMPLETE | 1 | Not available in store | ||||
| 057 | 213231-4 | OIL SEAL 15 | 1 | €8.35 | 1-4 weeks to ship | |
| 213231-4 | OIL SEAL 15 | 1 | €8.35 | 1-4 weeks to ship | ||
| 058 | SPRING PLATE | 2 | Not available in store | |||
| SPRING PLATE | 2 | Not available in store | ||||
| 059 | COMPRESSION SPRING 15 | 2 | Not available in store | |||
| COMPRESSION SPRING 15 | 2 | Not available in store | ||||
| 060 | 324992-2 | COUNTER WEIGHT | 2 | €5.57 | 1-4 weeks to ship | |
| 324992-2 | COUNTER WEIGHT | 2 | €5.57 | 1-4 weeks to ship | ||
| 061 | COMPRESSION SPRING 15 | 2 | Not available in store | |||
| COMPRESSION SPRING 15 | 2 | Not available in store | ||||
| 062 | 213953-6 | O RING 24 | 4 | €0.83 | 1-4 weeks to ship | |
| 213953-6 | O RING 24 | 4 | €0.83 | 1-4 weeks to ship | ||
| 064 | HOLDER COMPLETE | 2 | Not available in store | |||
| HOLDER COMPLETE | 2 | Not available in store | ||||
| 066 | BALL BEARING 6302DDW | 1 | Not available in store | |||
| BALL BEARING 6302DDW | 1 | Not available in store | ||||
| 067 | 267397-2 | FLAT WASHER 15 | 1 | €0.83 | 1-4 weeks to ship | |
| 267397-2 | FLAT WASHER 15 | 1 | €0.83 | 1-4 weeks to ship | ||
| 069 | 210059-1 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 210059-1 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | ||
| 070 | 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 071 | BAFFLE PLATE | 1 | Not available in store | |||
| BAFFLE PLATE | 1 | Not available in store | ||||
| 072 | STATOR | 1 | Not available in store | |||
| STATOR | 1 | Not available in store | ||||
| 073 | CONTROLLER B | 1 | Not available in store | |||
| CONTROLLER B | 1 | Not available in store | ||||
| 074 | STOPPER | 1 | Not available in store | |||
| STOPPER | 1 | Not available in store | ||||
| 075 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | ||
| 076 | LEAD UNIT | 1 | Not available in store | |||
| LEAD UNIT | 1 | Not available in store | ||||
| 077 | PAN HEAD SCREW M3X6 | 3 | Not available in store | |||
| PAN HEAD SCREW M3X6 | 3 | Not available in store | ||||
| 078 | MOTOR HOUSING | 1 | Not available in store | |||
| MOTOR HOUSING | 1 | Not available in store | ||||
| 079 | 256380-4 | SHOULDER PIN 4-6 | 2 | €0.42 | 1-4 weeks to ship | |
| 256380-4 | SHOULDER PIN 4-6 | 2 | €0.42 | 1-4 weeks to ship | ||
| 080 | BASE | 1 | Not available in store | |||
| BASE | 1 | Not available in store | ||||
| 081 | TORSION SPRING 13 | 1 | Not available in store | |||
| TORSION SPRING 13 | 1 | Not available in store | ||||
| 082 | LEVER COMPLETE | 1 | Not available in store | |||
| LEVER COMPLETE | 1 | Not available in store | ||||
| 083 | TAPPING SCREW 3X14 | 2 | Not available in store | |||
| TAPPING SCREW 3X14 | 2 | Not available in store | ||||
| 084 | SENSOR CIRCUIT | 1 | Not available in store | |||
| SENSOR CIRCUIT | 1 | Not available in store | ||||
| 085 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 086 | DIAL CIRCUIT | 1 | Not available in store | |||
| DIAL CIRCUIT | 1 | Not available in store | ||||
| 087 | MOTOR HOUSING COVER COMP | 1 | Not available in store | |||
| MOTOR HOUSING COVER COMP | 1 | Not available in store | ||||
| 088 | 266041-8 | TAPPING SCREW 5X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 266041-8 | TAPPING SCREW 5X25 | 4 | €0.56 | 1-4 weeks to ship | ||
| 089 | HOUSING SET | 1 | Not available in store | |||
| HOUSING SET | 1 | Not available in store | ||||
| 090 | 266041-8 | TAPPING SCREW 5X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 266041-8 | TAPPING SCREW 5X25 | 4 | €0.56 | 1-4 weeks to ship | ||
| 091 | COMPRESSION SPRING 8 | 1 | Not available in store | |||
| COMPRESSION SPRING 8 | 1 | Not available in store | ||||
| 092 | LED CIRCUIT | 1 | Not available in store | |||
| LED CIRCUIT | 1 | Not available in store | ||||
| 093 | CONTROLLER | 1 | Not available in store | |||
| CONTROLLER | 1 | Not available in store | ||||
| 095 | TERMINAL UNIT | 2 | Not available in store | |||
| TERMINAL UNIT | 2 | Not available in store | ||||
| 096 | 232152-1 | LEAF SPRING | 1 | €1.11 | 1-4 weeks to ship | |
| 232152-1 | LEAF SPRING | 1 | €1.11 | 1-4 weeks to ship | ||
| 097 | TRIGGER LOCK | 1 | Not available in store | |||
| TRIGGER LOCK | 1 | Not available in store | ||||
| 098 | SWITCH LEVER | 1 | Not available in store | |||
| SWITCH LEVER | 1 | Not available in store | ||||
| 099 | 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | |
| 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | ||
| 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | ||
| 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | ||
| 100 | COMPRESSION SPRING 5 | 1 | Not available in store | |||
| COMPRESSION SPRING 5 | 1 | Not available in store | ||||
| 101 | HOUSING SET | 1 | Not available in store | |||
| HOUSING SET | 1 | Not available in store | ||||
| 102 | CAP COMPLETE | 1 | Not available in store | |||
| CAP COMPLETE | 1 | Not available in store | ||||
| 103 | 265995-6 | TAPPING SCREW 4X18 | 10 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 10 | €0.56 | 1-4 weeks to ship | ||
| 104 | 265439-6 | HEX. BOLT M8X150 | 1 | €2.78 | 1-4 weeks to ship | |
| 265439-6 | HEX. BOLT M8X150 | 1 | €2.78 | 1-4 weeks to ship | ||
| 105 | SIDE HANDLE | 1 | Not available in store | |||
| SIDE HANDLE | 1 | Not available in store | ||||
| 106 | 252640-2 | WING NUT M8 | 1 | €8.35 | 1-4 weeks to ship | |
| 252640-2 | WING NUT M8 | 1 | €8.35 | 1-4 weeks to ship | ||
| 107 | 417002-3 | SIDE HANDLE CAM | 2 | €1.11 | 1-4 weeks to ship | |
| 417002-3 | SIDE HANDLE CAM | 2 | €1.11 | 1-4 weeks to ship | ||
| 108 | 318505-9 | SIDE HANDLE BASE 82A | 1 | €13.92 | 1-4 weeks to ship | |
| 318505-9 | SIDE HANDLE BASE 82A | 1 | €13.92 | 1-4 weeks to ship | ||
| 109 | 318506-7 | SIDE HANDLE BASE 82B | 1 | €13.92 | 1-4 weeks to ship | |
| 318506-7 | SIDE HANDLE BASE 82B | 1 | €13.92 | 1-4 weeks to ship | ||
| 110 | 951166-8 | SPRING PIN 5-24 | 1 | €0.56 | 1-4 weeks to ship | |
| 951166-8 | SPRING PIN 5-24 | 1 | €0.56 | 1-4 weeks to ship | ||
| 111 | 135269-8 | SIDE HANDLE 82 ASS'Y | 1 | €72.36 | 1-4 weeks to ship | |
| 135269-8 | SIDE HANDLE 82 ASS'Y | 1 | €72.36 | 1-4 weeks to ship | ||
| 112 | XGT LOGO LABEL | 1 | Not available in store | |||
| XGT LOGO LABEL | 1 | Not available in store | ||||
| 114 | HM002G NAME PLATE | 1 | Not available in store | |||
| HM002G NAME PLATE | 1 | Not available in store | ||||
| 115 | HM002G SERIAL NO. LABEL | 1 | Not available in store | |||
| HM002G SERIAL NO. LABEL | 1 | Not available in store | ||||
| 116 | 688163-8 | LINE FILTER | 1 | €0.83 | 1-4 weeks to ship | |
| 688163-8 | LINE FILTER | 1 | €0.83 | 1-4 weeks to ship | ||
