HM001G
HM001G

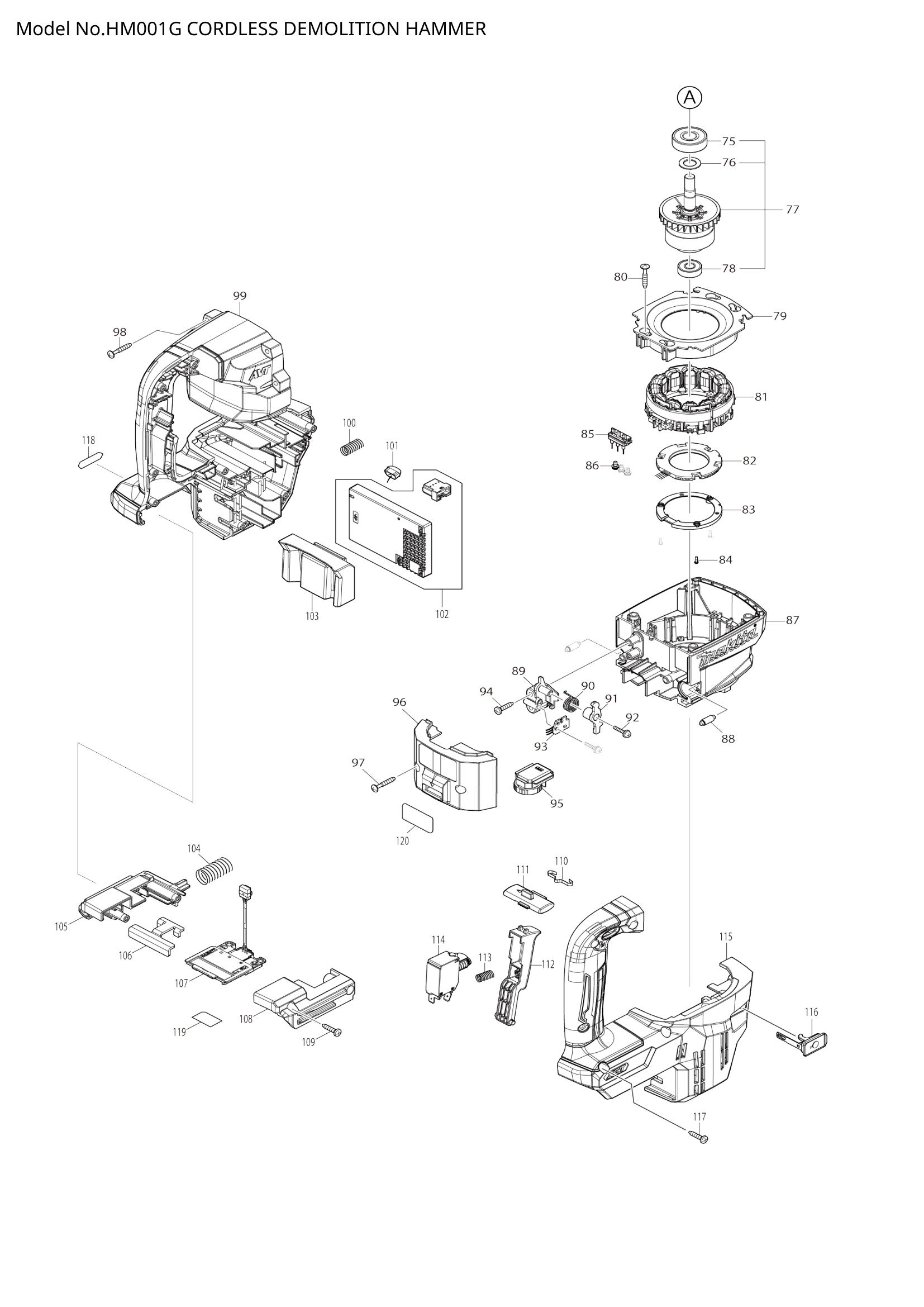

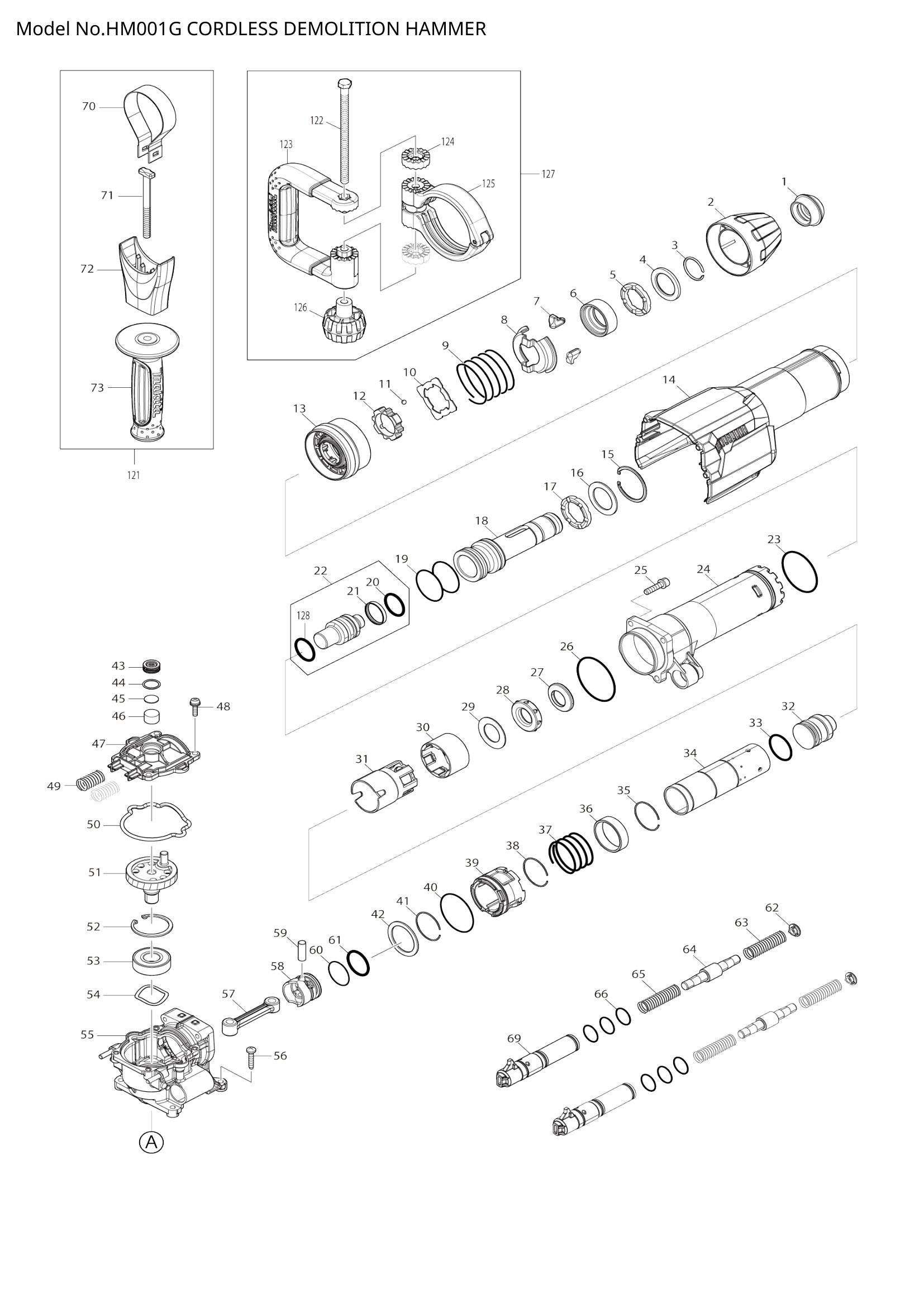

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 286287-0 | TOOL HOLDER CAP | 1 | €1.39 | 1-4 weeks to ship | |
| 286287-0 | TOOL HOLDER CAP | 1 | €1.39 | 1-4 weeks to ship | ||
| 002 | 451432-8 | CHUCK COVER | 1 | €4.17 | 1-4 weeks to ship | |
| 451432-8 | CHUCK COVER | 1 | €4.17 | 1-4 weeks to ship | ||
| 003 | 231984-3 | RING SPRING 25 | 1 | €1.11 | 1-4 weeks to ship | |
| 231984-3 | RING SPRING 25 | 1 | €1.11 | 1-4 weeks to ship | ||
| 004 | 267272-2 | FLAT WASHER 28 | 1 | €4.17 | 1-4 weeks to ship | |
| 267272-2 | FLAT WASHER 28 | 1 | €4.17 | 1-4 weeks to ship | ||
| 005 | 424261-2 | RUBBER RING 28 | 1 | €1.67 | 1-4 weeks to ship | |
| 424261-2 | RUBBER RING 28 | 1 | €1.67 | 1-4 weeks to ship | ||
| 006 | 331659-5 | CHUCK RING | 1 | €13.92 | 1-4 weeks to ship | |
| 331659-5 | CHUCK RING | 1 | €13.92 | 1-4 weeks to ship | ||
| 007 | 310108-5 | TOOL RETAINER | 2 | €11.13 | 1-4 weeks to ship | |
| 310108-5 | TOOL RETAINER | 2 | €11.13 | 1-4 weeks to ship | ||
| 008 | 346677-0 | SPRING GUIDE | 1 | €11.13 | 1-4 weeks to ship | |
| 346677-0 | SPRING GUIDE | 1 | €11.13 | 1-4 weeks to ship | ||
| 009 | 233387-7 | COMPRESSION SPRING 52 | 1 | €1.67 | 1-4 weeks to ship | |
| 233387-7 | COMPRESSION SPRING 52 | 1 | €1.67 | 1-4 weeks to ship | ||
| 010 | 346141-1 | PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 346141-1 | PLATE | 1 | €2.78 | 1-4 weeks to ship | ||
| 011 | 216002-8 | STEEL BALL 4.8 | 4 | €0.56 | 1-4 weeks to ship | |
| 216002-8 | STEEL BALL 4.8 | 4 | €0.56 | 1-4 weeks to ship | ||
| 012 | 310145-9 | LOCK RING | 1 | €16.70 | 1-4 weeks to ship | |
| 310145-9 | LOCK RING | 1 | €16.70 | 1-4 weeks to ship | ||
| 013 | 451433-6 | CHANGE RING | 1 | €2.78 | 1-4 weeks to ship | |
| 451433-6 | CHANGE RING | 1 | €2.78 | 1-4 weeks to ship | ||
| 015 | 257960-9 | RETAINING RING(INT) ROUND R- | 1 | €4.17 | 1-4 weeks to ship | |
| 257960-9 | RETAINING RING(INT) ROUND R- | 1 | €4.17 | 1-4 weeks to ship | ||
| 016 | 267273-0 | FLAT WASHER 29 | 1 | €1.39 | 1-4 weeks to ship | |
| 267273-0 | FLAT WASHER 29 | 1 | €1.39 | 1-4 weeks to ship | ||
| 017 | 424261-2 | RUBBER RING 28 | 1 | €1.67 | 1-4 weeks to ship | |
| 424261-2 | RUBBER RING 28 | 1 | €1.67 | 1-4 weeks to ship | ||
| 018 | TOOL HOLDER | 1 | Not available in store | |||
| TOOL HOLDER | 1 | Not available in store | ||||
| 019 | 213789-3 | O-RING 38 | 2 | €1.81 | 1-4 weeks to ship | |
| 213789-3 | O-RING 38 | 2 | €1.81 | 1-4 weeks to ship | ||
| 020 | 213394-6 | O RING 23 | 1 | €0.56 | 1-4 weeks to ship | |
| 213394-6 | O RING 23 | 1 | €0.56 | 1-4 weeks to ship | ||
| 021 | 213431-6 | FLUORIDE RING 28 | 1 | €11.13 | 1-4 weeks to ship | |
| 213431-6 | FLUORIDE RING 28 | 1 | €11.13 | 1-4 weeks to ship | ||
| 022 | IMPACT BOLT ASSY | 1 | Not available in store | |||
| IMPACT BOLT ASSY | 1 | Not available in store | ||||
| 023 | O-RING 48 | 1 | Not available in store | |||
| O-RING 48 | 1 | Not available in store | ||||
| 024 | BARREL | 1 | Not available in store | |||
| BARREL | 1 | Not available in store | ||||
| 025 | 922341-3 | HEX. SOCKET HEAD BOLT M6X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 922341-3 | HEX. SOCKET HEAD BOLT M6X25 | 4 | €0.56 | 1-4 weeks to ship | ||
| 026 | 213656-2 | O RING 53 | 1 | €0.83 | 1-4 weeks to ship | |
| 213656-2 | O RING 53 | 1 | €0.83 | 1-4 weeks to ship | ||
| 027 | 325732-1 | RING 20 | 1 | €5.57 | 1-4 weeks to ship | |
| 325732-1 | RING 20 | 1 | €5.57 | 1-4 weeks to ship | ||
| 028 | 424245-0 | RUBBER RING 20 | 1 | €2.78 | 1-4 weeks to ship | |
| 424245-0 | RUBBER RING 20 | 1 | €2.78 | 1-4 weeks to ship | ||
| 029 | 267407-5 | FLAT WASHER 23 | 1 | €1.39 | 1-4 weeks to ship | |
| 267407-5 | FLAT WASHER 23 | 1 | €1.39 | 1-4 weeks to ship | ||
| 030 | 451639-6 | GUIDE RING | 1 | €2.78 | 1-4 weeks to ship | |
| 451639-6 | GUIDE RING | 1 | €2.78 | 1-4 weeks to ship | ||
| 031 | SLIDE SLEEVE | 1 | Not available in store | |||
| SLIDE SLEEVE | 1 | Not available in store | ||||
| 032 | 324388-7 | STRIKER | 1 | €13.92 | 1-4 weeks to ship | |
| 324388-7 | STRIKER | 1 | €13.92 | 1-4 weeks to ship | ||
| 033 | 213958-6 | O RING 24 | 1 | €2.78 | 1-4 weeks to ship | |
| 213958-6 | O RING 24 | 1 | €2.78 | 1-4 weeks to ship | ||
| 034 | CYLINDER 32 | 1 | Not available in store | |||
| CYLINDER 32 | 1 | Not available in store | ||||
| 035 | 233927-1 | RING SPRING 34 | 1 | €0.56 | 1-4 weeks to ship | |
| 233927-1 | RING SPRING 34 | 1 | €0.56 | 1-4 weeks to ship | ||
| 036 | 331660-0 | RING 36 | 1 | €11.13 | 1-4 weeks to ship | |
| 331660-0 | RING 36 | 1 | €11.13 | 1-4 weeks to ship | ||
| 037 | COMPRESSION SPRING 37 | 1 | Not available in store | |||
| COMPRESSION SPRING 37 | 1 | Not available in store | ||||
| 038 | 233927-1 | RING SPRING 34 | 1 | €0.56 | 1-4 weeks to ship | |
| 233927-1 | RING SPRING 34 | 1 | €0.56 | 1-4 weeks to ship | ||
| 039 | 318510-6 | CYLINDER GUIDE | 1 | €13.92 | 1-4 weeks to ship | |
| 318510-6 | CYLINDER GUIDE | 1 | €13.92 | 1-4 weeks to ship | ||
| 040 | 213611-4 | O RING 46 | 1 | €0.83 | 1-4 weeks to ship | |
| 213611-4 | O RING 46 | 1 | €0.83 | 1-4 weeks to ship | ||
| 041 | 233927-1 | RING SPRING 34 | 1 | €0.56 | 1-4 weeks to ship | |
| 233927-1 | RING SPRING 34 | 1 | €0.56 | 1-4 weeks to ship | ||
| 042 | 267079-6 | FLAT WASHER 34 | 1 | €2.78 | 1-4 weeks to ship | |
| 267079-6 | FLAT WASHER 34 | 1 | €2.78 | 1-4 weeks to ship | ||
| 046 | 443129-3 | FILTER | 1 | €0.56 | 1-4 weeks to ship | |
| 443129-3 | FILTER | 1 | €0.56 | 1-4 weeks to ship | ||
| 047 | CRANK CAP | 1 | Not available in store | |||
| CRANK CAP | 1 | Not available in store | ||||
| 048 | 911233-1 | PAN HEAD SCREW M5X20 | 4 | €0.56 | 1-4 weeks to ship | |
| 911233-1 | PAN HEAD SCREW M5X20 | 4 | €0.56 | 1-4 weeks to ship | ||
| 049 | 234282-4 | COMPRESSION SPRING 12 | 2 | €0.28 | 1-4 weeks to ship | |
| 234282-4 | COMPRESSION SPRING 12 | 2 | €0.28 | 1-4 weeks to ship | ||
| 050 | SEAL RING | 1 | Not available in store | |||
| SEAL RING | 1 | Not available in store | ||||
| 051 | CRANK SHAFT 18.5 | 1 | Not available in store | |||
| CRANK SHAFT 18.5 | 1 | Not available in store | ||||
| 052 | 962157-4 | RETAINING RING R-40 | 1 | €0.83 | 1-4 weeks to ship | |
| 962157-4 | RETAINING RING R-40 | 1 | €0.83 | 1-4 weeks to ship | ||
| 053 | BALL BEARING 6203LLU | 1 | Not available in store | |||
| BALL BEARING 6203LLU | 1 | Not available in store | ||||
| 054 | 267825-7 | WAVE WASHER 30 | 1 | €0.56 | 1-4 weeks to ship | |
| 267825-7 | WAVE WASHER 30 | 1 | €0.56 | 1-4 weeks to ship | ||
| 055 | CRANK HOUSING ASSY | 1 | Not available in store | |||
| CRANK HOUSING ASSY | 1 | Not available in store | ||||
| 056 | 266041-8 | TAPPING SCREW 5X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 266041-8 | TAPPING SCREW 5X25 | 4 | €0.56 | 1-4 weeks to ship | ||
| 057 | 418350-3 | CONNECTING ROD | 1 | €5.57 | 1-4 weeks to ship | |
| 418350-3 | CONNECTING ROD | 1 | €5.57 | 1-4 weeks to ship | ||
| 058 | 418349-8 | PISTON | 1 | €2.78 | 1-4 weeks to ship | |
| 418349-8 | PISTON | 1 | €2.78 | 1-4 weeks to ship | ||
| 059 | 268104-6 | PIN 8 | 1 | €0.97 | 1-4 weeks to ship | |
| 268104-6 | PIN 8 | 1 | €0.97 | 1-4 weeks to ship | ||
| 060 | 213432-4 | O RING 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 213432-4 | O RING 26 | 1 | €0.56 | 1-4 weeks to ship | ||
| 061 | 213958-6 | O RING 24 | 1 | €2.78 | 1-4 weeks to ship | |
| 213958-6 | O RING 24 | 1 | €2.78 | 1-4 weeks to ship | ||
| 062 | SPRING PLATE A | 2 | Not available in store | |||
| SPRING PLATE A | 2 | Not available in store | ||||
| 063 | 234134-9 | COMPRESSION SPRING 12 | 2 | €0.83 | 1-4 weeks to ship | |
| 234134-9 | COMPRESSION SPRING 12 | 2 | €0.83 | 1-4 weeks to ship | ||
| 065 | 234134-9 | COMPRESSION SPRING 12 | 2 | €0.83 | 1-4 weeks to ship | |
| 234134-9 | COMPRESSION SPRING 12 | 2 | €0.83 | 1-4 weeks to ship | ||
| 069 | HOLDER COMPLETE | 2 | Not available in store | |||
| HOLDER COMPLETE | 2 | Not available in store | ||||
| 070 | 346140-3 | GRIP SPRING 70 | 1 | €5.57 | 1-4 weeks to ship | |
| 346140-3 | GRIP SPRING 70 | 1 | €5.57 | 1-4 weeks to ship | ||
| 071 | 266522-2 | SQUARE BOLT M8X95 | 1 | €1.67 | 1-4 weeks to ship | |
| 266522-2 | SQUARE BOLT M8X95 | 1 | €1.67 | 1-4 weeks to ship | ||
| 072 | 418363-4 | SIDE GRIP BASE 60 | 1 | €5.57 | 1-4 weeks to ship | |
| 418363-4 | SIDE GRIP BASE 60 | 1 | €5.57 | 1-4 weeks to ship | ||
| 073 | GRIP 36 COMPLETE | 1 | Not available in store | |||
| GRIP 36 COMPLETE | 1 | Not available in store | ||||
| 075 | 211106-1 | BALL BEARING 6201LLB | 1 | €5.57 | 1-4 weeks to ship | |
| 211106-1 | BALL BEARING 6201LLB | 1 | €5.57 | 1-4 weeks to ship | ||
| 076 | 253744-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 253744-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 078 | 210005-4 | BALL BEARING 608DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 210005-4 | BALL BEARING 608DDW | 1 | €2.78 | 1-4 weeks to ship | ||
| 079 | BAFFLE PLATE | 1 | Not available in store | |||
| BAFFLE PLATE | 1 | Not available in store | ||||
| 080 | 265999-8 | TAPPING SCREW 4X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 265999-8 | TAPPING SCREW 4X25 | 4 | €0.56 | 1-4 weeks to ship | ||
| 081 | 629335-6 | STATOR | 1 | €50.69 | 1-4 weeks to ship | |
| 629335-6 | STATOR | 1 | €50.69 | 1-4 weeks to ship | ||
| 082 | 620D76-1 | CONTROLLER B | 1 | €16.94 | 1-4 weeks to ship | |
| 620D76-1 | CONTROLLER B | 1 | €16.94 | 1-4 weeks to ship | ||
| 620D76-1 | CONTROLLER B | 1 | €16.94 | 1-4 weeks to ship | ||
| 620D76-1 | CONTROLLER B | 1 | €16.94 | 1-4 weeks to ship | ||
| 083 | STOPPER | 1 | Not available in store | |||
| STOPPER | 1 | Not available in store | ||||
| 084 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | ||
| 085 | LEAD UNIT | 1 | Not available in store | |||
| LEAD UNIT | 1 | Not available in store | ||||
| 086 | PAN HEAD SCREW M3X6 | 3 | Not available in store | |||
| PAN HEAD SCREW M3X6 | 3 | Not available in store | ||||
| 087 | MOTOR HOUSING | 1 | Not available in store | |||
| MOTOR HOUSING | 1 | Not available in store | ||||
| 088 | 256380-4 | SHOULDER PIN 4-6 | 2 | €0.42 | 1-4 weeks to ship | |
| 256380-4 | SHOULDER PIN 4-6 | 2 | €0.42 | 1-4 weeks to ship | ||
| 089 | BASE | 1 | Not available in store | |||
| BASE | 1 | Not available in store | ||||
| 090 | TORSION SPRING 13 | 1 | Not available in store | |||
| TORSION SPRING 13 | 1 | Not available in store | ||||
| 091 | LEVER COMPLETE | 1 | Not available in store | |||
| LEVER COMPLETE | 1 | Not available in store | ||||
| 092 | TAPPING SCREW 3X14 | 2 | Not available in store | |||
| TAPPING SCREW 3X14 | 2 | Not available in store | ||||
| 093 | SENSOR CIRCUIT | 1 | Not available in store | |||
| SENSOR CIRCUIT | 1 | Not available in store | ||||
| 094 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 096 | MOTOR HOUSING COVER COMP | 1 | Not available in store | |||
| MOTOR HOUSING COVER COMP | 1 | Not available in store | ||||
| 097 | 265999-8 | TAPPING SCREW 4X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 265999-8 | TAPPING SCREW 4X25 | 2 | €0.56 | 1-4 weeks to ship | ||
| 098 | 265999-8 | TAPPING SCREW 4X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 265999-8 | TAPPING SCREW 4X25 | 4 | €0.56 | 1-4 weeks to ship | ||
| 099 | HOUSING SET | 1 | Not available in store | |||
| HOUSING SET | 1 | Not available in store | ||||
| 100 | COMPRESSION SPRING 8 | 1 | Not available in store | |||
| COMPRESSION SPRING 8 | 1 | Not available in store | ||||
| 101 | 620549-0 | LED CIRCUIT | 1 | €4.04 | 1-4 weeks to ship | |
| 620549-0 | LED CIRCUIT | 1 | €4.04 | 1-4 weeks to ship | ||
| 620549-0 | LED CIRCUIT | 1 | €4.04 | 1-4 weeks to ship | ||
| 620549-0 | LED CIRCUIT | 1 | €4.04 | 1-4 weeks to ship | ||
| 102 | CONTROLLER | 1 | Not available in store | |||
| CONTROLLER | 1 | Not available in store | ||||
| 103 | CUSHION RUBBER | 1 | Not available in store | |||
| CUSHION RUBBER | 1 | Not available in store | ||||
| 104 | COMPRESSION SPRING 13 | 1 | Not available in store | |||
| COMPRESSION SPRING 13 | 1 | Not available in store | ||||
| 105 | BATTERY HOLDER SET | 1 | Not available in store | |||
| BATTERY HOLDER SET | 1 | Not available in store | ||||
| 106 | 346039-2 | SUPPORT PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 346039-2 | SUPPORT PLATE | 1 | €0.83 | 1-4 weeks to ship | ||
| 107 | 632P49-4 | TERMINAL UNIT | 1 | €9.46 | 1-4 weeks to ship | |
| 632P49-4 | TERMINAL UNIT | 1 | €9.46 | 1-4 weeks to ship | ||
| 108 | BATTERY HOLDER SET | 1 | Not available in store | |||
| BATTERY HOLDER SET | 1 | Not available in store | ||||
| 109 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 110 | 232152-1 | LEAF SPRING | 1 | €1.11 | 1-4 weeks to ship | |
| 232152-1 | LEAF SPRING | 1 | €1.11 | 1-4 weeks to ship | ||
| 111 | TRIGGER LOCK | 1 | Not available in store | |||
| TRIGGER LOCK | 1 | Not available in store | ||||
| 112 | SWITCH LEVER | 1 | Not available in store | |||
| SWITCH LEVER | 1 | Not available in store | ||||
| 113 | COMPRESSION SPRING 5 | 1 | Not available in store | |||
| COMPRESSION SPRING 5 | 1 | Not available in store | ||||
| 114 | SWITCH C3JW-6B-PA | 1 | Not available in store | |||
| SWITCH C3JW-6B-PA | 1 | Not available in store | ||||
| 115 | HOUSING SET | 1 | Not available in store | |||
| HOUSING SET | 1 | Not available in store | ||||
| 116 | CAP COMPLETE | 1 | Not available in store | |||
| CAP COMPLETE | 1 | Not available in store | ||||
| 117 | 266326-2 | TAPPING SCREW 4X18 | 8 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 8 | €0.56 | 1-4 weeks to ship | ||
| 118 | XGT LOGO LABEL | 1 | Not available in store | |||
| XGT LOGO LABEL | 1 | Not available in store | ||||
| 119 | HM001G SERIAL NO. LABEL | 1 | Not available in store | |||
| HM001G SERIAL NO. LABEL | 1 | Not available in store | ||||
| 120 | HM001G NAME PLATE | 1 | Not available in store | |||
| HM001G NAME PLATE | 1 | Not available in store | ||||
| 121 | 135332-7 | GRIP 36 ASSEMBLY | 1 | €22.26 | 1-4 weeks to ship | |
| 135332-7 | GRIP 36 ASSEMBLY | 1 | €22.26 | 1-4 weeks to ship | ||
| 128 | 213385-7 | O RING 24 | 1 | €1.67 | 1-4 weeks to ship | |
| 213385-7 | O RING 24 | 1 | €1.67 | 1-4 weeks to ship | ||
