HK0500
HK0500

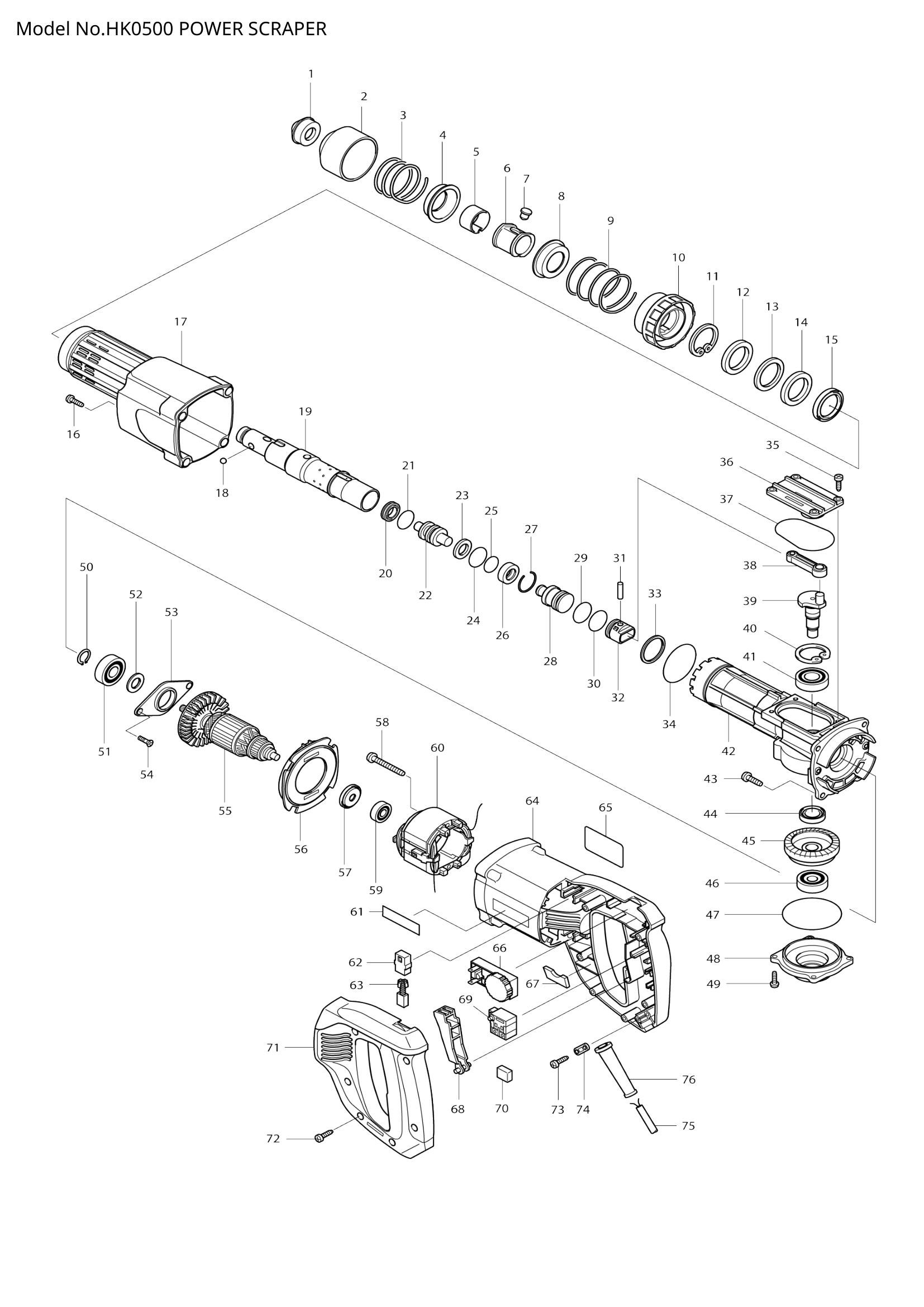

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | 416729-2 | CHUCK COVER | 1 | €4.17 | 1-4 weeks to ship | |
| 003 | 233203-3 | COMPRESSION SPRING 38 | 1 | €0.56 | 1-4 weeks to ship | |
| 004 | 344691-0 | SPRING GUIDE | 1 | €1.39 | 1-4 weeks to ship | |
| 005 | 232192-9 | LEAF SPRING 26 | 1 | €2.78 | 1-4 weeks to ship | |
| 006 | 323724-4 | CHUCK RING | 1 | €22.26 | 1-4 weeks to ship | |
| 007 | 256447-8 | PIN 8 | 1 | €2.78 | 1-4 weeks to ship | |
| 008 | 344691-0 | SPRING GUIDE | 1 | €1.39 | 1-4 weeks to ship | |
| 009 | 233238-4 | COMPRESSION SPRING 38 | 1 | €0.83 | 1-4 weeks to ship | |
| 010 | 416733-1 | CHANGE RING | 1 | €4.17 | 1-4 weeks to ship | |
| 011 | 962156-6 | RETAINING RING R-38 | 1 | €0.83 | 1-4 weeks to ship | |
| 962156-6 | RETAINING RING R-38 | 1 | €0.83 | 1-4 weeks to ship | ||
| 012 | 257218-6 | RING 27 | 1 | €11.13 | 1-4 weeks to ship | |
| 013 | 261113-4 | URETHANE WASHER 28 | 1 | €4.17 | 1-4 weeks to ship | |
| 014 | 257218-6 | RING 27 | 1 | €11.13 | 1-4 weeks to ship | |
| 015 | 213433-2 | OIL SEAL 30 | 1 | €5.57 | 1-4 weeks to ship | |
| 016 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 017 | 416734-9 | CRANK HOUSING COVER | 1 | €22.54 | 1-4 weeks to ship | |
| 018 | 216022-2 | STEEL BALL 7.0 | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | 213173-2 | X RING 13 | 1 | €5.57 | 1-4 weeks to ship | |
| 021 | 213214-4 | O RING 16 | 1 | €1.11 | 1-4 weeks to ship | |
| 023 | 267192-0 | FLAT WASHER 13 | 1 | €2.78 | 1-4 weeks to ship | |
| 024 | 213175-8 | O RING 14 | 1 | €1.39 | 1-4 weeks to ship | |
| 025 | 213117-2 | O RING 11 | 1 | €1.39 | 1-4 weeks to ship | |
| 026 | 323846-0 | O RING CASE | 1 | €4.17 | 1-4 weeks to ship | |
| 027 | 231987-7 | RING SPRING 21 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 323848-6 | STRIKER | 1 | €11.13 | 1-4 weeks to ship | |
| 029 | 213227-5 | O RING 16 | 1 | €0.56 | 1-4 weeks to ship | |
| 030 | 213227-5 | O RING 16 | 1 | €0.56 | 1-4 weeks to ship | |
| 031 | 256123-4 | PIN 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | 416726-8 | PISTON | 1 | €4.17 | 1-4 weeks to ship | |
| 033 | 267129-7 | FLAT WASHER 27 | 1 | €0.56 | 1-4 weeks to ship | |
| 034 | 213560-5 | O RING 44 | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | 266034-5 | TAPPING SCREW CT 4X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 036 | CRANK CAP | 1 | Not available in store | |||
| 037 | 213656-2 | O RING 53 | 1 | €0.83 | 1-4 weeks to ship | |
| 038 | 416727-6 | ROD | 1 | €1.67 | 1-4 weeks to ship | |
| 039 | 323826-6 | CRANK SHAFT | 1 | €19.48 | 1-4 weeks to ship | |
| 040 | 962151-6 | RETAINING RING R-32 | 1 | €0.56 | 1-4 weeks to ship | |
| 041 | 211232-6 | BALL BEARING 6002LLU | 1 | €11.13 | 1-4 weeks to ship | |
| 042 | CRANK HOUSING COMPLETE | 1 | Not available in store | |||
| 043 | 266021-4 | TAPPING SCREW 5X20 | 4 | €0.56 | 1-4 weeks to ship | |
| 044 | 213219-4 | OIL SEAL 15 | 1 | €4.17 | 1-4 weeks to ship | |
| 045 | 226779-7 | SPIRAL BEVEL GEAR 41 | 1 | €36.18 | 1-4 weeks to ship | |
| 046 | 211066-7 | BALL BEARING 6200LLB | 1 | €6.12 | 1-4 weeks to ship | |
| 048 | GEAR COVER COMPLETE | 1 | Not available in store | |||
| 049 | 266034-5 | TAPPING SCREW CT 4X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 050 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 051 | 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 052 | 253069-5 | FLAT WASHER 12 | 1 | €0.83 | 1-4 weeks to ship | |
| 053 | 285690-2 | BEARING RETAINER 68 | 1 | €2.78 | 1-4 weeks to ship | |
| 054 | + COUNTERSUNK HEAD SCREW | 2 | Not available in store | |||
| 056 | BAFFLE PLATE | 1 | Not available in store | |||
| 057 | 681644-1 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 681644-1 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 058 | 266211-9 | TAPPING SCREW 5X40 | 2 | €0.56 | 1-4 weeks to ship | |
| 059 | 210005-4 | BALL BEARING 608DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 062 | 643605-9 | BRUSH HOLDER | 2 | €1.11 | 1-4 weeks to ship | |
| 064 | 416736-5 | MOTOR HOUSING | 1 | €33.40 | 1-4 weeks to ship | |
| 065 | 851374-0 | NAME PLATE HK0500 | 1 | €2.92 | 1-4 weeks to ship | |
| 067 | 423308-9 | SPONGE SHEET 13-33 | 1 | €2.09 | 1-4 weeks to ship | |
| 068 | 416728-4 | SWITCH LEVER | 1 | €4.45 | 1-4 weeks to ship | |
| 069 | 651969-7 | SWITCH | 1 | €13.92 | 1-4 weeks to ship | |
| 071 | 151544-4 | HANDLE COVER COMPLETE | 1 | €16.70 | 1-4 weeks to ship | |
| 072 | 265995-6 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | |
| 073 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 077 | 231979-6 | RING SPRING 17 | 1 | €0.56 | 1-4 weeks to ship | |
| 078 | 135167-6 | TOOL HOLDER ASS'Y | 1 | €201.49 | 1-4 weeks to ship | |
