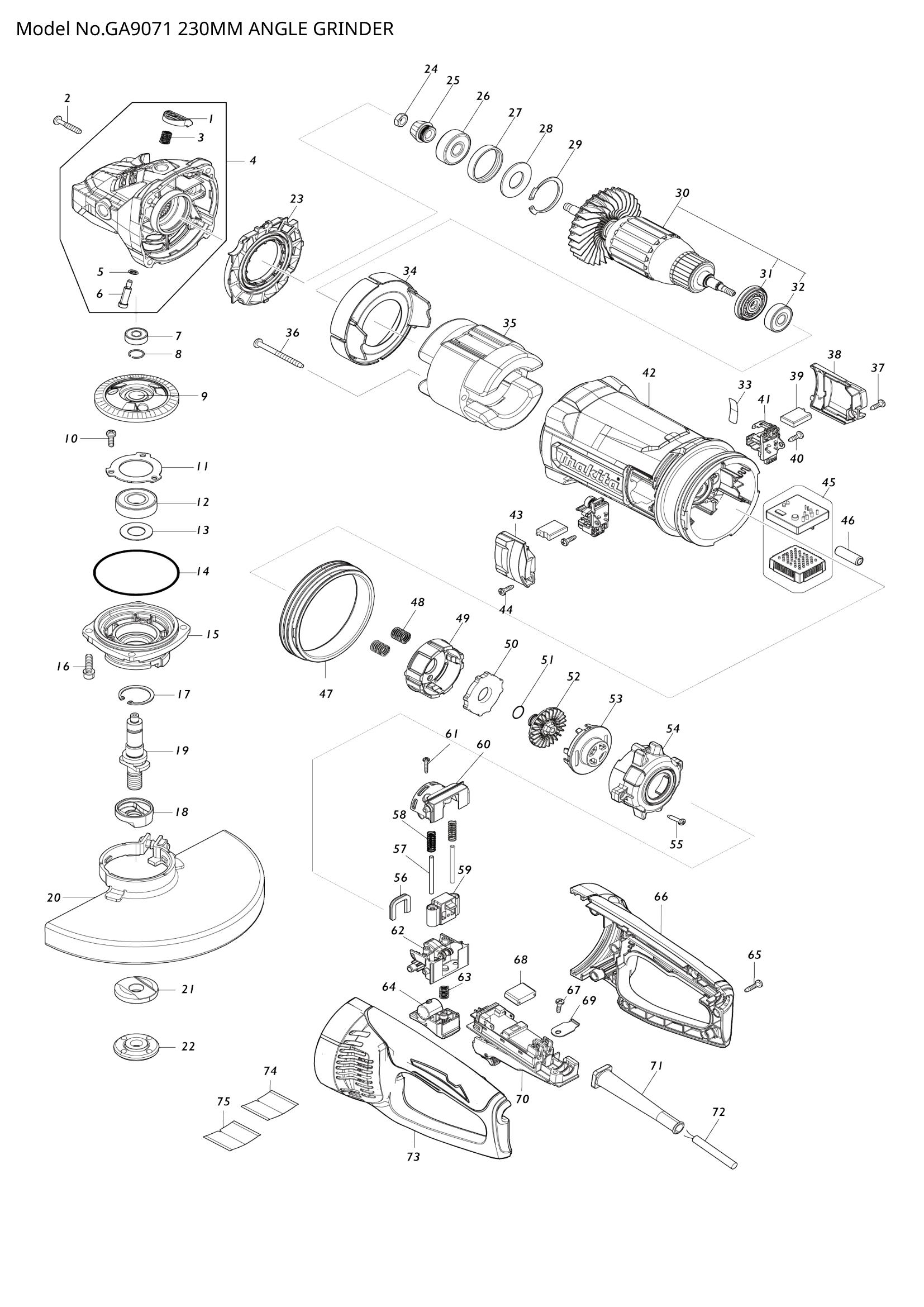

GA9071
GA9071
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 456247-8 | PIN CAP | 1 | €0.42 | 1-4 weeks to ship | |
| 456247-8 | PIN CAP | 1 | €0.42 | 1-4 weeks to ship | ||
| 002 | TAPPING SCREW 5X30 | 4 | Not available in store | |||
| 003 | 234391-9 | COMPRESSION SPRING 8 | 1 | €0.14 | 1-4 weeks to ship | |
| 004 | GEAR HOUSING COMPLETE | 1 | Not available in store | |||
| 006 | 256571-7 | SHOULDER PIN 7 | 1 | €0.83 | 1-4 weeks to ship | |
| 007 | 211032-4 | BALL BEARING 608ZZ | 1 | €1.67 | 1-4 weeks to ship | |
| 008 | 233925-5 | RING SPRING 13 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 227653-2 | SPIRAL BEVEL GEAR 54 | 1 | €13.64 | 1-4 weeks to ship | |
| 010 | 265120-9 | PAN HEAD SCREW M5X16 | 3 | €0.56 | 1-4 weeks to ship | |
| 011 | 285741-1 | BEARING RETAINER 50 | 1 | €0.70 | 1-4 weeks to ship | |
| 012 | 211278-2 | BALL BEARING 6203DDW | 1 | €11.13 | 1-4 weeks to ship | |
| 013 | 267487-1 | FLAT WASHER 17 | 1 | €0.70 | 1-4 weeks to ship | |
| 014 | 213760-7 | O RING 78 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | BEARING BOX | 1 | Not available in store | |||
| 016 | 265541-5 | HEX. SOCKET HEAD BOLT M6X22 | 4 | €0.56 | 1-4 weeks to ship | |
| 017 | 962151-6 | RETAINING RING R-32 | 1 | €0.56 | 1-4 weeks to ship | |
| 018 | 310800-3 | LEAD FLANGE | 1 | €12.11 | 1-4 weeks to ship | |
| 019 | SPINDLE | 1 | Not available in store | |||
| 021 | 224447-6 | INNER FLANGE 42B | 1 | €4.45 | 1-4 weeks to ship | |
| 022 | 224485-8 | LOCK NUT 14-45 | 1 | €2.92 | 1-4 weeks to ship | |
| 023 | 456238-9 | DIFFUSER | 1 | €1.67 | 1-4 weeks to ship | |
| 456238-9 | DIFFUSER | 1 | €1.67 | 1-4 weeks to ship | ||
| 024 | 252194-9 | HEX. NUT M8 | 1 | €0.56 | 1-4 weeks to ship | |
| 025 | 227652-4 | SPIRAL BEVEL GEAR 13 | 1 | €5.29 | 1-4 weeks to ship | |
| 026 | 211132-0 | BALL BEARING 6301DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 027 | 262085-6 | RUBBER RING 38 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 267299-2 | FLAT WASHER 20 | 1 | €0.56 | 1-4 weeks to ship | |
| 029 | 962211-4 | RETAINING RING R-42 | 1 | €1.67 | 1-4 weeks to ship | |
| 030 | ARMATURE ASS'Y 220-240V | 1 | Not available in store | |||
| 031 | INSULATION WASHER | 1 | Not available in store | |||
| 032 | BALL BEARING 6200DDW | 1 | Not available in store | |||
| 033 | GA9071 SERIAL NO. LABEL | 1 | Not available in store | |||
| 034 | 456239-7 | BAFFLE PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 456239-7 | BAFFLE PLATE | 1 | €0.56 | 1-4 weeks to ship | ||
| 035 | FIELD 240V | 1 | Not available in store | |||
| 036 | 266044-2 | TAPPING SCREW 5X60 | 2 | €1.11 | 1-4 weeks to ship | |
| 038 | BRUSH HOLDER COVER SET | 1 | Not available in store | |||
| 039 | CARBON BRUSH SET CB-224 | 1 | Not available in store | |||
| 041 | BRUSH HOLDER | 2 | Not available in store | |||
| 042 | MOTOR HOUSING | 1 | Not available in store | |||
| 043 | BRUSH HOLDER COVER SET | 1 | Not available in store | |||
| 045 | CONTROLLER | 1 | Not available in store | |||
| 046 | 688165-4 | LINE FILTER | 1 | €0.56 | 1-4 weeks to ship | |
| 047 | VIBRATION PROOF RUBBER | 1 | Not available in store | |||
| 048 | COMPRESSION SPRING 10 | 2 | Not available in store | |||
| 049 | SHOE HOLDER | 1 | Not available in store | |||
| 050 | BRAKE SHOE | 1 | Not available in store | |||
| 051 | 213118-0 | O RING 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 052 | FAN 45 | 1 | Not available in store | |||
| 053 | SHOE HOLDER CAP | 1 | Not available in store | |||
| 054 | SHOE HOLDER COVER COMPLET | 1 | Not available in store | |||
| 056 | LINK SEAL | 1 | Not available in store | |||
| 057 | PIN 4 | 2 | Not available in store | |||
| 058 | COMPRESSION SPRING 7 | 2 | Not available in store | |||
| 059 | SLIDE RAIL COMPLETE | 1 | Not available in store | |||
| 060 | UPPER LINK CASE | 1 | Not available in store | |||
| 061 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 062 | LOWER LINK CASE COMPLETE | 1 | Not available in store | |||
| 063 | 233375-4 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 064 | LOCK BUTTON | 1 | Not available in store | |||
| 066 | HANDLE SET | 1 | Not available in store | |||
| 068 | 645088-9 | NOISE SUPPRESSOR | 1 | €0.56 | 1-4 weeks to ship | |
| 069 | 687169-3 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 070 | SWITCH UNIT | 1 | Not available in store | |||
| 071 | 682573-1 | CORD GUARD 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 682573-1 | CORD GUARD 10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 072 | 695107-1 | POWER SUPPLY CORD 1.5-2-2.5 | 1 | €11.83 | 1-4 weeks to ship | |
| 073 | HANDLE SET | 1 | Not available in store | |||
| 074 | GA9071 NAME PLATE | 1 | Not available in store | |||
| 075 | CLEAR LABEL | 1 | Not available in store | |||
