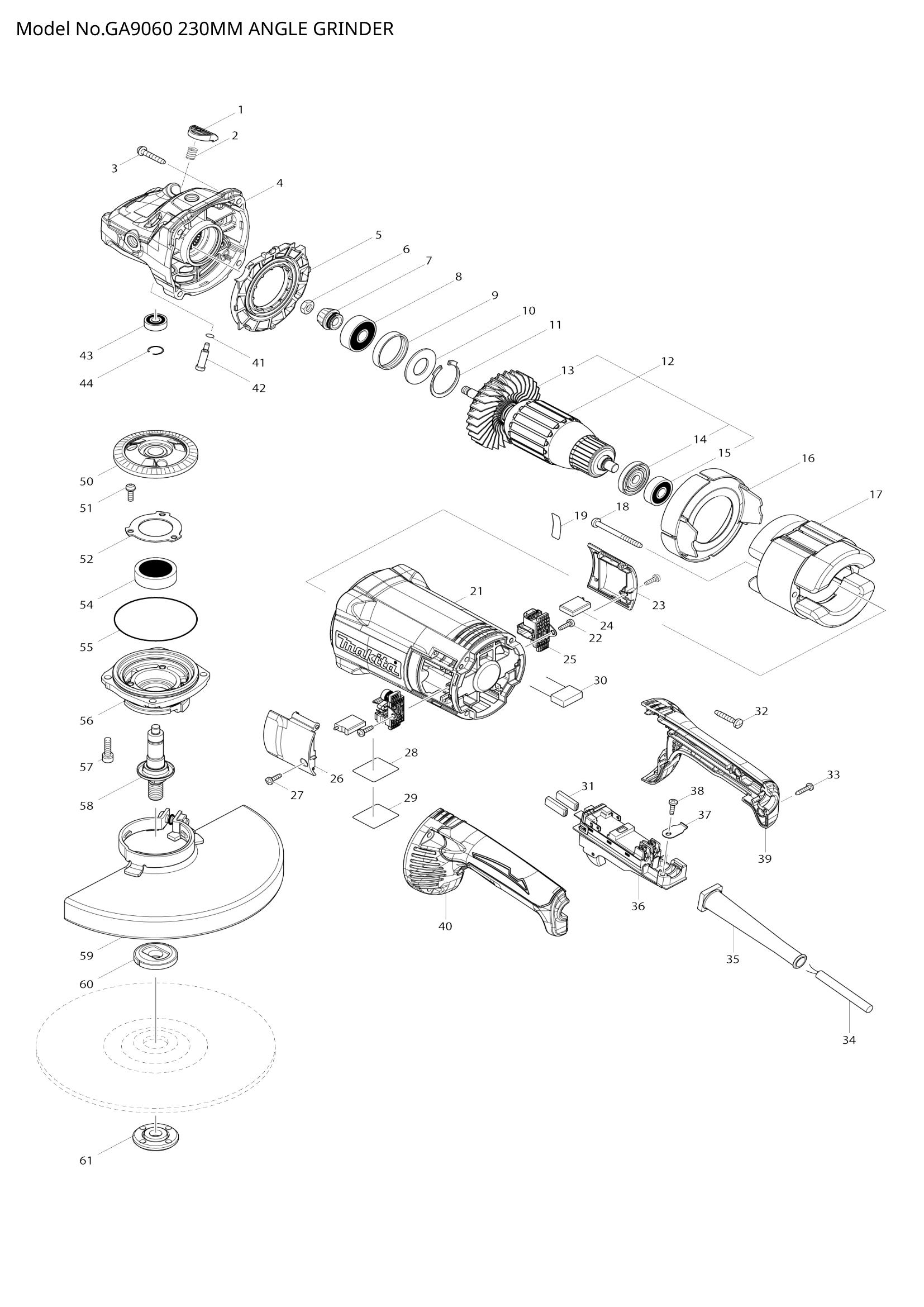

GA9060
GA9060
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 456247-8 | PIN CAP | 1 | €0.42 | 1-4 weeks to ship | |
| 456247-8 | PIN CAP | 1 | €0.42 | 1-4 weeks to ship | ||
| 456247-8 | PIN CAP | 1 | €0.42 | 1-4 weeks to ship | ||
| 456247-8 | PIN CAP | 1 | €0.42 | 1-4 weeks to ship | ||
| 002 | 234391-9 | COMPRESSION SPRING 8 | 1 | €0.14 | 1-4 weeks to ship | |
| 234391-9 | COMPRESSION SPRING 8 | 1 | €0.14 | 1-4 weeks to ship | ||
| 003 | 251489-7 | TAPPING SCREW 5X30 | 4 | €0.28 | 1-4 weeks to ship | |
| 251489-7 | TAPPING SCREW 5X30 | 4 | €0.28 | 1-4 weeks to ship | ||
| 004 | 143485-8 | GEAR HOUSING COMPLETE | 1 | €26.86 | 1-4 weeks to ship | |
| 143485-8 | GEAR HOUSING COMPLETE | 1 | €26.86 | 1-4 weeks to ship | ||
| 005 | 456238-9 | DIFFUSER | 1 | €1.67 | 1-4 weeks to ship | |
| 456238-9 | DIFFUSER | 1 | €1.67 | 1-4 weeks to ship | ||
| 456238-9 | DIFFUSER | 1 | €1.67 | 1-4 weeks to ship | ||
| 456238-9 | DIFFUSER | 1 | €1.67 | 1-4 weeks to ship | ||
| 006 | 252194-9 | HEX. NUT M8 | 1 | €0.56 | 1-4 weeks to ship | |
| 252194-9 | HEX. NUT M8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 007 | 227652-4 | SPIRAL BEVEL GEAR 13 | 1 | €5.29 | 1-4 weeks to ship | |
| 227652-4 | SPIRAL BEVEL GEAR 13 | 1 | €5.29 | 1-4 weeks to ship | ||
| 008 | 211132-0 | BALL BEARING 6301DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 211132-0 | BALL BEARING 6301DDW | 1 | €4.17 | 1-4 weeks to ship | ||
| 009 | 262085-6 | RUBBER RING 38 | 1 | €0.56 | 1-4 weeks to ship | |
| 262085-6 | RUBBER RING 38 | 1 | €0.56 | 1-4 weeks to ship | ||
| 010 | 267299-2 | FLAT WASHER 20 | 1 | €0.56 | 1-4 weeks to ship | |
| 267299-2 | FLAT WASHER 20 | 1 | €0.56 | 1-4 weeks to ship | ||
| 011 | 962211-4 | RETAINING RING R-42 | 1 | €1.67 | 1-4 weeks to ship | |
| 962211-4 | RETAINING RING R-42 | 1 | €1.67 | 1-4 weeks to ship | ||
| 012 | 513448-2 | ARMATURE ASS'Y 220V | 1 | €56.49 | 1-4 weeks to ship | |
| 513448-2 | ARMATURE ASS'Y 220V | 1 | €56.49 | 1-4 weeks to ship | ||
| 513448-2 | ARMATURE ASS'Y 220V | 1 | €56.49 | 1-4 weeks to ship | ||
| 513448-2 | ARMATURE ASS'Y 220V | 1 | €56.49 | 1-4 weeks to ship | ||
| 013 | FAN 86 | 1 | Not available in store | |||
| FAN 86 | 1 | Not available in store | ||||
| 014 | 681630-2 | INSULATION WASHER | 1 | €1.11 | 1-4 weeks to ship | |
| 681630-2 | INSULATION WASHER | 1 | €1.11 | 1-4 weeks to ship | ||
| 015 | 211087-9 | BALL BEARING 6200DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 211087-9 | BALL BEARING 6200DDW | 1 | €4.17 | 1-4 weeks to ship | ||
| 016 | 456239-7 | BAFFLE PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 456239-7 | BAFFLE PLATE | 1 | €0.56 | 1-4 weeks to ship | ||
| 456239-7 | BAFFLE PLATE | 1 | €0.56 | 1-4 weeks to ship | ||
| 456239-7 | BAFFLE PLATE | 1 | €0.56 | 1-4 weeks to ship | ||
| 017 | 621779-6 | FIELD 240V | 1 | €51.90 | 1-4 weeks to ship | |
| 621779-6 | FIELD 240V | 1 | €51.90 | 1-4 weeks to ship | ||
| 621779-6 | FIELD 240V | 1 | €51.90 | 1-4 weeks to ship | ||
| 621779-6 | FIELD 240V | 1 | €51.90 | 1-4 weeks to ship | ||
| 018 | 266044-2 | TAPPING SCREW 5X60 | 2 | €1.11 | 1-4 weeks to ship | |
| 266044-2 | TAPPING SCREW 5X60 | 2 | €1.11 | 1-4 weeks to ship | ||
| 019 | GA9060 SERIAL NO. LABEL | 1 | Not available in store | |||
| GA9060 SERIAL NO. LABEL | 1 | Not available in store | ||||
| 021 | 456240-2 | MOTOR HOUSING | 1 | €25.19 | 1-4 weeks to ship | |
| 456240-2 | MOTOR HOUSING | 1 | €25.19 | 1-4 weeks to ship | ||
| 456240-2 | MOTOR HOUSING | 1 | €25.19 | 1-4 weeks to ship | ||
| 456240-2 | MOTOR HOUSING | 1 | €25.19 | 1-4 weeks to ship | ||
| 022 | 266192-7 | TAPPING SCREW 4X14 | 2 | €0.56 | 1-4 weeks to ship | |
| 266192-7 | TAPPING SCREW 4X14 | 2 | €0.56 | 1-4 weeks to ship | ||
| 024 | 197129-2 | CARBON BRUSH CB-218 | 1 | €4.45 | 1-4 weeks to ship | |
| 197129-2 | CARBON BRUSH CB-218 | 1 | €4.45 | 1-4 weeks to ship | ||
| 027 | 266192-7 | TAPPING SCREW 4X14 | 2 | €0.56 | 1-4 weeks to ship | |
| 266192-7 | TAPPING SCREW 4X14 | 2 | €0.56 | 1-4 weeks to ship | ||
| 028 | GA9060 NAME PLATE | 1 | Not available in store | |||
| GA9060 NAME PLATE | 1 | Not available in store | ||||
| 031 | 686036-9 | RECEPTACLE SLEEVE | 2 | €0.56 | 1-4 weeks to ship | |
| 686036-9 | RECEPTACLE SLEEVE | 2 | €0.56 | 1-4 weeks to ship | ||
| 032 | 251489-7 | TAPPING SCREW 5X30 | 4 | €0.28 | 1-4 weeks to ship | |
| 251489-7 | TAPPING SCREW 5X30 | 4 | €0.28 | 1-4 weeks to ship | ||
| 033 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 034 | 695107-1 | POWER SUPPLY CORD 1.5-2-2.5 | 1 | €11.83 | 1-4 weeks to ship | |
| 695107-1 | POWER SUPPLY CORD 1.5-2-2.5 | 1 | €11.83 | 1-4 weeks to ship | ||
| 035 | 682573-1 | CORD GUARD 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 682573-1 | CORD GUARD 10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 682573-1 | CORD GUARD 10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 682573-1 | CORD GUARD 10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 036 | SWITCH UNIT | 1 | Not available in store | |||
| SWITCH UNIT | 1 | Not available in store | ||||
| 037 | 687169-3 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 687169-3 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 038 | 266192-7 | TAPPING SCREW 4X14 | 1 | €0.56 | 1-4 weeks to ship | |
| 266192-7 | TAPPING SCREW 4X14 | 1 | €0.56 | 1-4 weeks to ship | ||
| 039 | HANDLE SET | 1 | Not available in store | |||
| HANDLE SET | 1 | Not available in store | ||||
| 040 | HANDLE SET | 1 | Not available in store | |||
| HANDLE SET | 1 | Not available in store | ||||
| 042 | 256571-7 | SHOULDER PIN 7 | 1 | €0.83 | 1-4 weeks to ship | |
| 256571-7 | SHOULDER PIN 7 | 1 | €0.83 | 1-4 weeks to ship | ||
| 043 | 211032-4 | BALL BEARING 608ZZ | 1 | €1.67 | 1-4 weeks to ship | |
| 211032-4 | BALL BEARING 608ZZ | 1 | €1.67 | 1-4 weeks to ship | ||
| 044 | 233925-5 | RING SPRING 13 | 1 | €0.56 | 1-4 weeks to ship | |
| 233925-5 | RING SPRING 13 | 1 | €0.56 | 1-4 weeks to ship | ||
| 050 | 227653-2 | SPIRAL BEVEL GEAR 54 | 1 | €13.64 | 1-4 weeks to ship | |
| 227653-2 | SPIRAL BEVEL GEAR 54 | 1 | €13.64 | 1-4 weeks to ship | ||
| 051 | 265120-9 | PAN HEAD SCREW M5X16 | 3 | €0.56 | 1-4 weeks to ship | |
| 265120-9 | PAN HEAD SCREW M5X16 | 3 | €0.56 | 1-4 weeks to ship | ||
| 052 | 285741-1 | BEARING RETAINER 50 | 1 | €0.70 | 1-4 weeks to ship | |
| 285741-1 | BEARING RETAINER 50 | 1 | €0.70 | 1-4 weeks to ship | ||
| 054 | 211278-2 | BALL BEARING 6203DDW | 1 | €11.13 | 1-4 weeks to ship | |
| 211278-2 | BALL BEARING 6203DDW | 1 | €11.13 | 1-4 weeks to ship | ||
| 055 | 213760-7 | O RING 78 | 1 | €0.56 | 1-4 weeks to ship | |
| 213760-7 | O RING 78 | 1 | €0.56 | 1-4 weeks to ship | ||
| 056 | 319351-3 | BEARING BOX | 1 | €8.21 | 1-4 weeks to ship | |
| 319351-3 | BEARING BOX | 1 | €8.21 | 1-4 weeks to ship | ||
| 057 | 265541-5 | HEX. SOCKET HEAD BOLT M6X22 | 4 | €0.56 | 1-4 weeks to ship | |
| 265541-5 | HEX. SOCKET HEAD BOLT M6X22 | 4 | €0.56 | 1-4 weeks to ship | ||
| 058 | 143484-0 | SPINDLE COMPLETE | 1 | €6.26 | 1-4 weeks to ship | |
| 143484-0 | SPINDLE COMPLETE | 1 | €6.26 | 1-4 weeks to ship | ||
| 060 | INNER FLANGE 42 | 1 | Not available in store | |||
| INNER FLANGE 42 | 1 | Not available in store | ||||
| 061 | 224485-8 | LOCK NUT 14-45 | 1 | €2.92 | 1-4 weeks to ship | |
| 224485-8 | LOCK NUT 14-45 | 1 | €2.92 | 1-4 weeks to ship | ||
