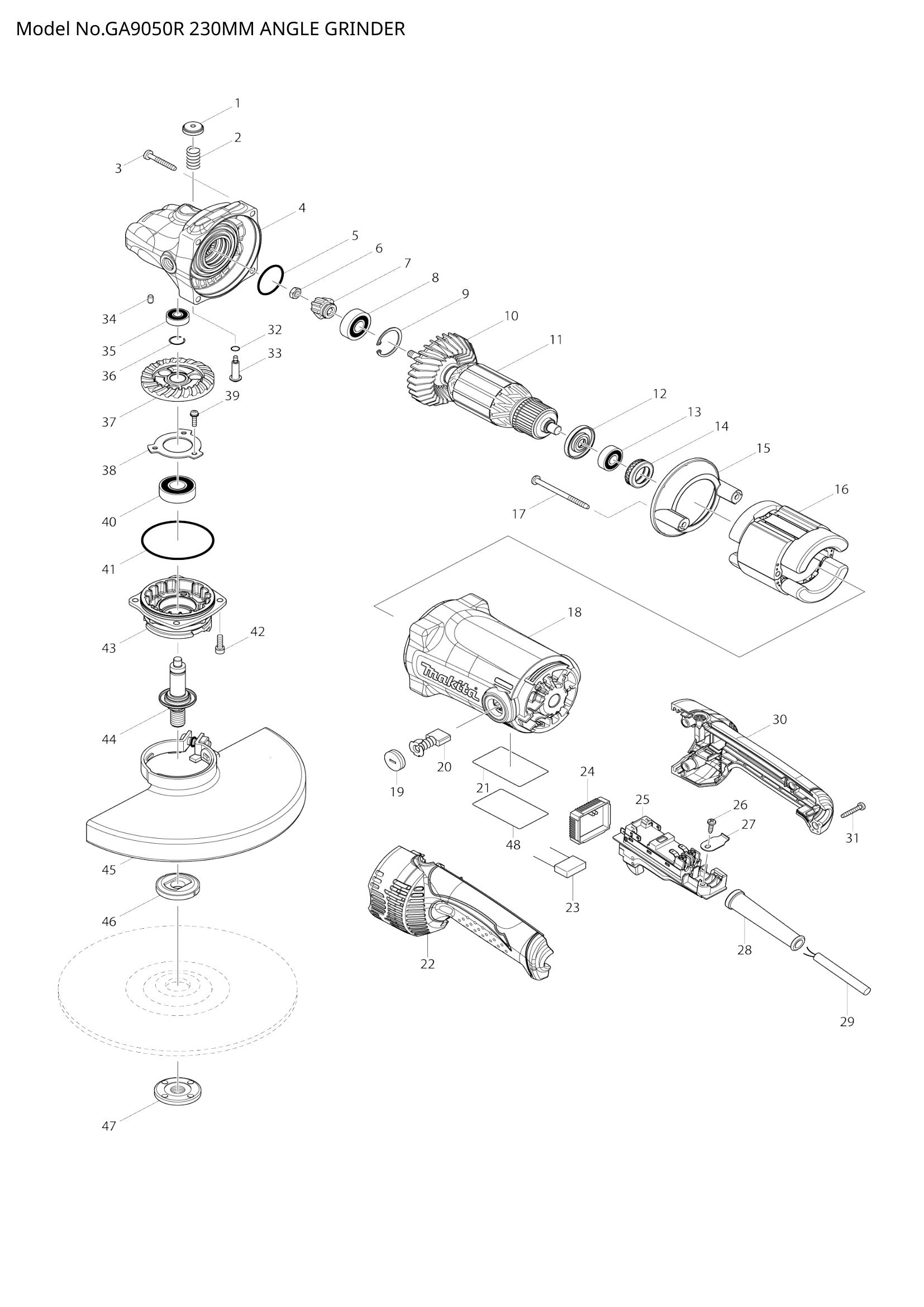

GA9050R
GA9050R
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 451485-7 | PIN CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 002 | 233292-8 | COMPRESSION SPRING 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 264010-3 | HEX.NUT M7 | 1 | €0.56 | 1-4 weeks to ship | |
| 007 | 227563-3 | SPIRAL BEVEL GEAR 10B | 1 | €4.17 | 1-4 weeks to ship | |
| 009 | 257965-9 | RETAINING RING (INT) R-32 | 1 | €4.17 | 1-4 weeks to ship | |
| 010 | 240120-0 | FAN 80 | 1 | €4.17 | 1-4 weeks to ship | |
| 011 | 518747-7 | ARMATURE ASSEMBLY 240V | 1 | €94.62 | 1-4 weeks to ship | |
| 518747-7 | ARMATURE ASSEMBLY 240V | 1 | €94.62 | 1-4 weeks to ship | ||
| 012 | 681657-2 | INSULATION WASHER | 1 | €0.83 | 1-4 weeks to ship | |
| 013 | 210059-1 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 014 | 421490-8 | RUBBER RING 26 | 1 | €8.35 | 1-4 weeks to ship | |
| 015 | 451480-7 | BAFFLE PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 016 | 527700-2 | FIELD ASSEMBLY 240V | 1 | €41.75 | 1-4 weeks to ship | |
| 018 | 140222-1 | MOTOR HOUSING COMPLETE | 1 | €16.70 | 1-4 weeks to ship | |
| 019 | 643700-5 | BRUSH HOLDER CAP 7-18 | 2 | €1.11 | 1-4 weeks to ship | |
| 021 | GA9050R NAME PLATE | 1 | Not available in store | |||
| 022 | 188849-9 | HANDLE SET | 1 | €11.13 | 1-4 weeks to ship | |
| 025 | 650107-8 | SWITCH TG08-2300-013 | 1 | €16.70 | 1-4 weeks to ship | |
| 027 | 687169-3 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 682574-9 | CORD GUARD 10-90 | 1 | €0.56 | 1-4 weeks to ship | |
| 682574-9 | CORD GUARD 10-90 | 1 | €0.56 | 1-4 weeks to ship | ||
| 029 | 665865-3 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | €16.70 | 1-4 weeks to ship | |
| 030 | 188849-9 | HANDLE SET | 1 | €11.13 | 1-4 weeks to ship | |
| 033 | 256516-5 | SHOULDER PIN 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 034 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | 210029-0 | BALL BEARING 608ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 036 | 233925-5 | RING SPRING 13 | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | 227561-7 | SPIRAL BEVEL GEAR 49 | 1 | €13.92 | 1-4 weeks to ship | |
| 038 | 285851-4 | BEARING RETAINER | 1 | €0.56 | 1-4 weeks to ship | |
| 039 | 911128-8 | P.H.SCREW M4X16 WITH WR | 3 | €0.56 | 1-4 weeks to ship | |
| 911128-8 | P.H.SCREW M4X16 WITH WR | 3 | €0.56 | 1-4 weeks to ship | ||
| 040 | 211241-5 | BALL BEARING 6202DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 041 | 213720-9 | O RING 67 | 1 | €0.83 | 1-4 weeks to ship | |
| 042 | 922221-3 | HEX. SOCKET HEAD BOLT M5X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 922221-3 | HEX. SOCKET HEAD BOLT M5X16 | 4 | €0.56 | 1-4 weeks to ship | ||
| 043 | 318523-7 | BEARING BOX | 1 | €5.57 | 1-4 weeks to ship | |
| 044 | 140224-7 | SPINDLE COMPLETE A | 1 | €4.17 | 1-4 weeks to ship | |
| 046 | INNER FLANGE 42 | 1 | Not available in store | |||
| INNER FLANGE 47 ASS'Y | 1 | Not available in store | ||||
| 047 | 224543-0 | LOCK NUT 14-45 | 1 | €2.78 | 1-4 weeks to ship | |
