GA9030
GA9030

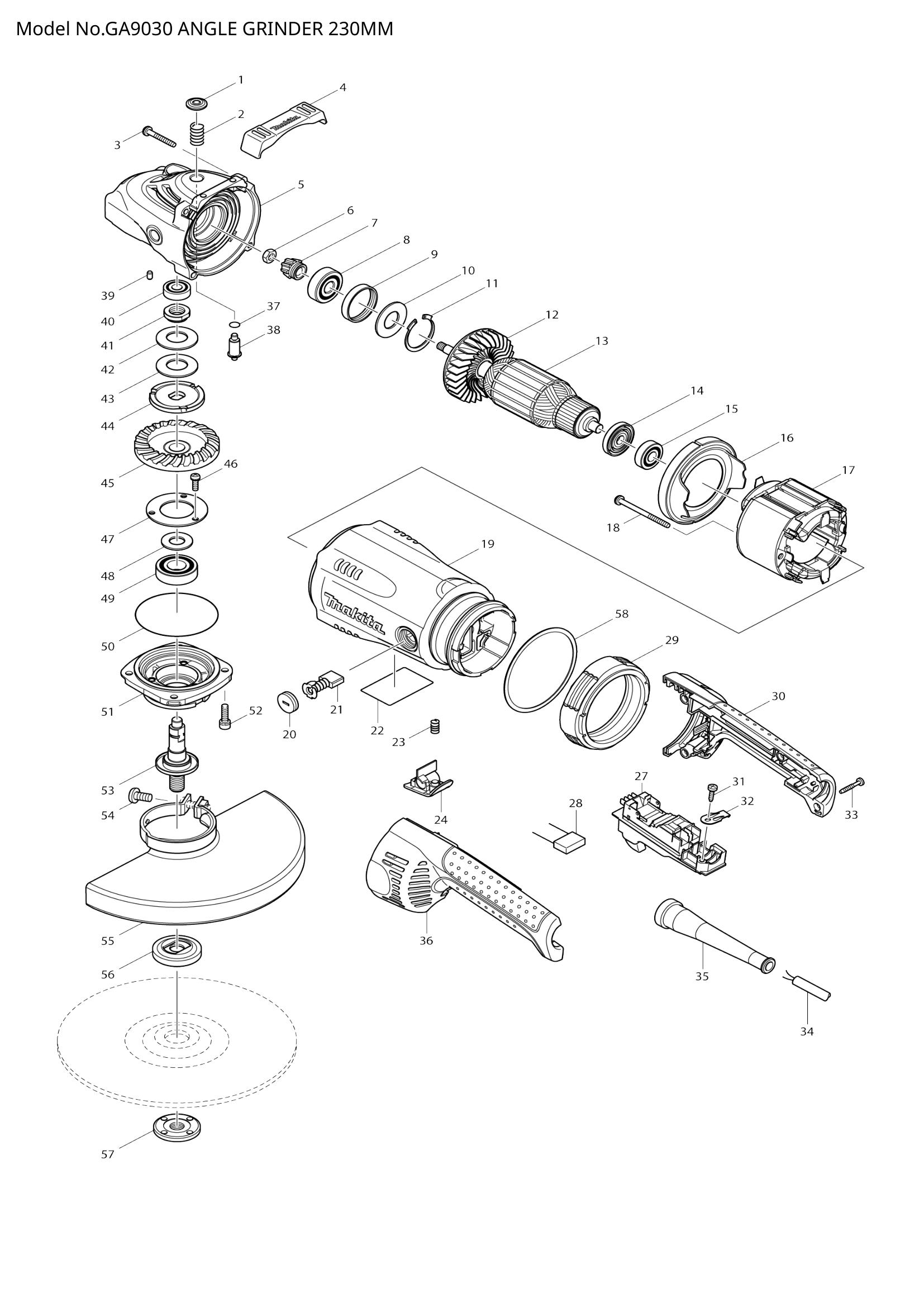

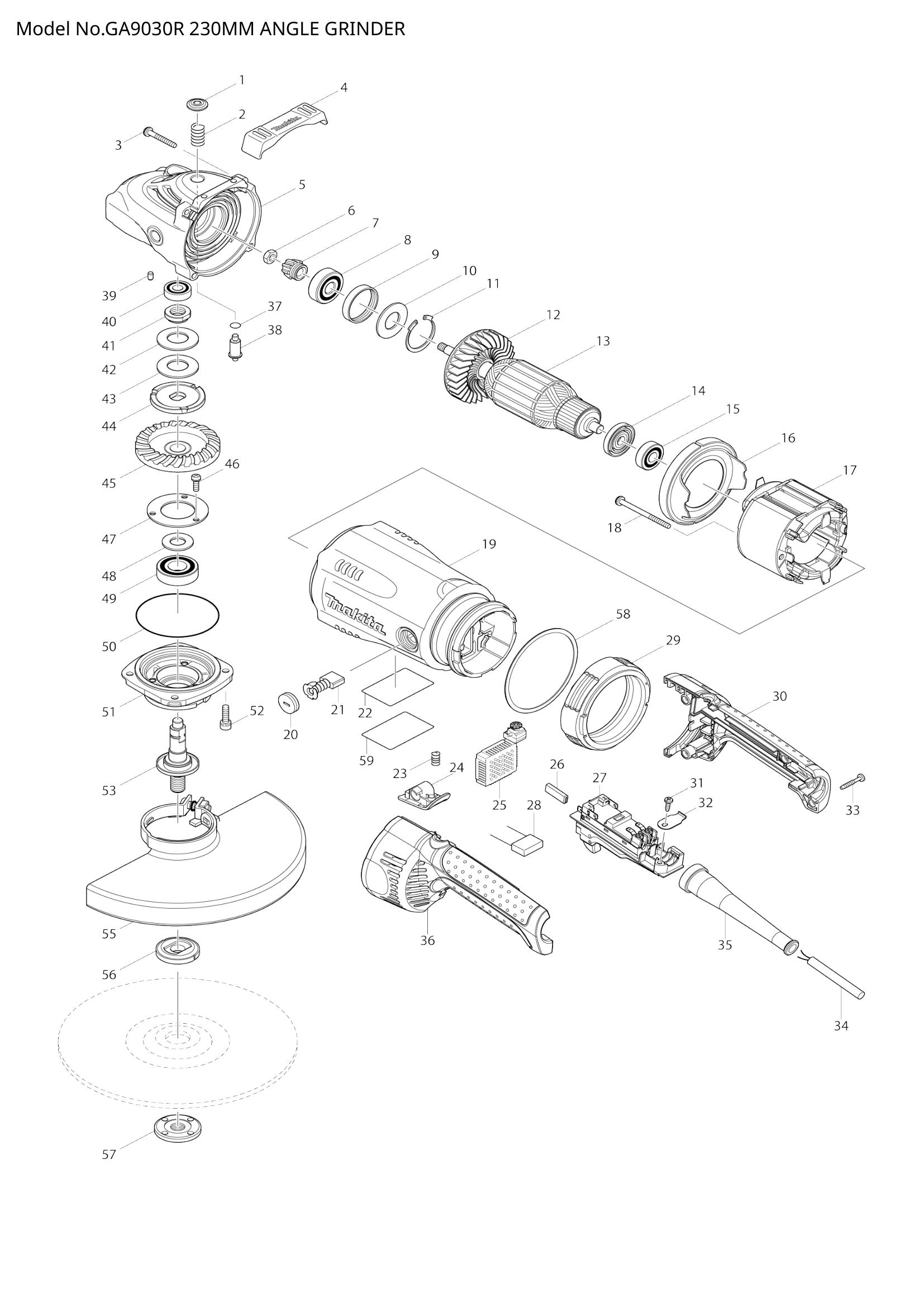

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 419133-4 | PIN CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 419133-4 | PIN CAP | 1 | €0.56 | 1-4 weeks to ship | ||
| 419133-4 | PIN CAP | 1 | €0.56 | 1-4 weeks to ship | ||
| 419133-4 | PIN CAP | 1 | €0.56 | 1-4 weeks to ship | ||
| 002 | 233292-8 | COMPRESSION SPRING 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 233292-8 | COMPRESSION SPRING 12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 233292-8 | COMPRESSION SPRING 12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 233292-8 | COMPRESSION SPRING 12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 004 | 419144-9 | BUMPER | 1 | €0.56 | 1-4 weeks to ship | |
| 419144-9 | BUMPER | 1 | €0.56 | 1-4 weeks to ship | ||
| 419144-9 | BUMPER | 1 | €0.56 | 1-4 weeks to ship | ||
| 419144-9 | BUMPER | 1 | €0.56 | 1-4 weeks to ship | ||
| 006 | 252194-9 | HEX. NUT M8 | 1 | €0.56 | 1-4 weeks to ship | |
| 252194-9 | HEX. NUT M8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 252194-9 | HEX. NUT M8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 252194-9 | HEX. NUT M8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 007 | 227490-4 | SPIRAL BEVEL GEAR 12 | 1 | €5.57 | 1-4 weeks to ship | |
| 227490-4 | SPIRAL BEVEL GEAR 12 | 1 | €5.57 | 1-4 weeks to ship | ||
| 227490-4 | SPIRAL BEVEL GEAR 12 | 1 | €5.57 | 1-4 weeks to ship | ||
| 227490-4 | SPIRAL BEVEL GEAR 12 | 1 | €5.57 | 1-4 weeks to ship | ||
| 008 | 211132-0 | BALL BEARING 6301DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 211132-0 | BALL BEARING 6301DDW | 1 | €4.17 | 1-4 weeks to ship | ||
| 211132-0 | BALL BEARING 6301DDW | 1 | €4.17 | 1-4 weeks to ship | ||
| 211132-0 | BALL BEARING 6301DDW | 1 | €4.17 | 1-4 weeks to ship | ||
| 009 | 262085-6 | RUBBER RING 38 | 1 | €0.56 | 1-4 weeks to ship | |
| 262085-6 | RUBBER RING 38 | 1 | €0.56 | 1-4 weeks to ship | ||
| 262085-6 | RUBBER RING 38 | 1 | €0.56 | 1-4 weeks to ship | ||
| 262085-6 | RUBBER RING 38 | 1 | €0.56 | 1-4 weeks to ship | ||
| 010 | 267299-2 | FLAT WASHER 20 | 1 | €0.56 | 1-4 weeks to ship | |
| 267299-2 | FLAT WASHER 20 | 1 | €0.56 | 1-4 weeks to ship | ||
| 267299-2 | FLAT WASHER 20 | 1 | €0.56 | 1-4 weeks to ship | ||
| 267299-2 | FLAT WASHER 20 | 1 | €0.56 | 1-4 weeks to ship | ||
| 011 | 962211-4 | RETAINING RING R-42 | 1 | €1.67 | 1-4 weeks to ship | |
| 962211-4 | RETAINING RING R-42 | 1 | €1.67 | 1-4 weeks to ship | ||
| 962211-4 | RETAINING RING R-42 | 1 | €1.67 | 1-4 weeks to ship | ||
| 962211-4 | RETAINING RING R-42 | 1 | €1.67 | 1-4 weeks to ship | ||
| 012 | 240081-4 | FAN 80 | 1 | €2.78 | 1-4 weeks to ship | |
| 240081-4 | FAN 80 | 1 | €2.78 | 1-4 weeks to ship | ||
| 240081-4 | FAN 80 | 1 | €2.78 | 1-4 weeks to ship | ||
| 240081-4 | FAN 80 | 1 | €2.78 | 1-4 weeks to ship | ||
| 014 | 681630-2 | INSULATION WASHER | 1 | €1.11 | 1-4 weeks to ship | |
| 681630-2 | INSULATION WASHER | 1 | €1.11 | 1-4 weeks to ship | ||
| 681630-2 | INSULATION WASHER | 1 | €1.11 | 1-4 weeks to ship | ||
| 681630-2 | INSULATION WASHER | 1 | €1.11 | 1-4 weeks to ship | ||
| 016 | 419135-0 | BAFFLE PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 419135-0 | BAFFLE PLATE | 1 | €0.83 | 1-4 weeks to ship | ||
| 419135-0 | BAFFLE PLATE | 1 | €0.83 | 1-4 weeks to ship | ||
| 419135-0 | BAFFLE PLATE | 1 | €0.83 | 1-4 weeks to ship | ||
| 018 | 266029-8 | TAPPING SCREW 5X65 | 2 | €1.39 | 1-4 weeks to ship | |
| 266029-8 | TAPPING SCREW 5X65 | 2 | €1.39 | 1-4 weeks to ship | ||
| 266029-8 | TAPPING SCREW 5X65 | 2 | €1.39 | 1-4 weeks to ship | ||
| 266029-8 | TAPPING SCREW 5X65 | 2 | €1.39 | 1-4 weeks to ship | ||
| 019 | 154786-9 | MOTOR HOUSING COMPLETE | 1 | €22.26 | 1-4 weeks to ship | |
| 154786-9 | MOTOR HOUSING COMPLETE | 1 | €22.26 | 1-4 weeks to ship | ||
| 154786-9 | MOTOR HOUSING COMPLETE | 1 | €22.26 | 1-4 weeks to ship | ||
| 154786-9 | MOTOR HOUSING COMPLETE | 1 | €22.26 | 1-4 weeks to ship | ||
| 020 | 643700-5 | BRUSH HOLDER CAP 7-18 | 2 | €1.11 | 1-4 weeks to ship | |
| 643700-5 | BRUSH HOLDER CAP 7-18 | 2 | €1.11 | 1-4 weeks to ship | ||
| 643700-5 | BRUSH HOLDER CAP 7-18 | 2 | €1.11 | 1-4 weeks to ship | ||
| 643700-5 | BRUSH HOLDER CAP 7-18 | 2 | €1.11 | 1-4 weeks to ship | ||
| 022 | GA9030 NAME PLATE | 1 | Not available in store | |||
| GA9030 NAME PLATE | 1 | Not available in store | ||||
| GA9030 NAME PLATE | 1 | Not available in store | ||||
| GA9030 NAME PLATE | 1 | Not available in store | ||||
| 023 | 233375-4 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 233375-4 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | ||
| 233375-4 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | ||
| 233375-4 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | ||
| 024 | 419260-7 | LOCK BUTTON | 1 | €0.56 | 1-4 weeks to ship | |
| 419260-7 | LOCK BUTTON | 1 | €0.56 | 1-4 weeks to ship | ||
| 419260-7 | LOCK BUTTON | 1 | €0.56 | 1-4 weeks to ship | ||
| 419260-7 | LOCK BUTTON | 1 | €0.56 | 1-4 weeks to ship | ||
| 028 | 645088-9 | NOISE SUPPRESSOR | 1 | €0.56 | 1-4 weeks to ship | |
| 645088-9 | NOISE SUPPRESSOR | 1 | €0.56 | 1-4 weeks to ship | ||
| 645088-9 | NOISE SUPPRESSOR | 1 | €0.56 | 1-4 weeks to ship | ||
| 645088-9 | NOISE SUPPRESSOR | 1 | €0.56 | 1-4 weeks to ship | ||
| 029 | 421936-4 | VIBRATION PROOF RUBBER | 1 | €1.39 | 1-4 weeks to ship | |
| 421936-4 | VIBRATION PROOF RUBBER | 1 | €1.39 | 1-4 weeks to ship | ||
| 421936-4 | VIBRATION PROOF RUBBER | 1 | €1.39 | 1-4 weeks to ship | ||
| 421936-4 | VIBRATION PROOF RUBBER | 1 | €1.39 | 1-4 weeks to ship | ||
| 030 | 188123-5 | HANDLE SET | 1 | €13.92 | 1-4 weeks to ship | |
| 188123-5 | HANDLE SET | 1 | €13.92 | 1-4 weeks to ship | ||
| 188123-5 | HANDLE SET | 1 | €13.92 | 1-4 weeks to ship | ||
| 188123-5 | HANDLE SET | 1 | €13.92 | 1-4 weeks to ship | ||
| 032 | 687169-3 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 687169-3 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 687169-3 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 687169-3 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 035 | 682560-0 | CORD GUARD 10 | 1 | €1.67 | 1-4 weeks to ship | |
| 682560-0 | CORD GUARD 10 | 1 | €1.67 | 1-4 weeks to ship | ||
| 682560-0 | CORD GUARD 10 | 1 | €1.67 | 1-4 weeks to ship | ||
| 682560-0 | CORD GUARD 10 | 1 | €1.67 | 1-4 weeks to ship | ||
| 036 | 188123-5 | HANDLE SET | 1 | €13.92 | 1-4 weeks to ship | |
| 188123-5 | HANDLE SET | 1 | €13.92 | 1-4 weeks to ship | ||
| 188123-5 | HANDLE SET | 1 | €13.92 | 1-4 weeks to ship | ||
| 188123-5 | HANDLE SET | 1 | €13.92 | 1-4 weeks to ship | ||
| 037 | 213062-1 | O RING 9 | 1 | €0.56 | 1-4 weeks to ship | |
| 213062-1 | O RING 9 | 1 | €0.56 | 1-4 weeks to ship | ||
| 213062-1 | O RING 9 | 1 | €0.56 | 1-4 weeks to ship | ||
| 213062-1 | O RING 9 | 1 | €0.56 | 1-4 weeks to ship | ||
| 038 | 256491-5 | SHOULDER PIN 5 | 1 | €0.83 | 1-4 weeks to ship | |
| 256491-5 | SHOULDER PIN 5 | 1 | €0.83 | 1-4 weeks to ship | ||
| 256491-5 | SHOULDER PIN 5 | 1 | €0.83 | 1-4 weeks to ship | ||
| 256491-5 | SHOULDER PIN 5 | 1 | €0.83 | 1-4 weeks to ship | ||
| 039 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 041 | 252429-8 | NUT M15-23 | 1 | €1.11 | 1-4 weeks to ship | |
| 252429-8 | NUT M15-23 | 1 | €1.11 | 1-4 weeks to ship | ||
| 252429-8 | NUT M15-23 | 1 | €1.11 | 1-4 weeks to ship | ||
| 252429-8 | NUT M15-23 | 1 | €1.11 | 1-4 weeks to ship | ||
| 042 | 232163-6 | CUP SPRING 20 | 1 | €0.56 | 1-4 weeks to ship | |
| 232163-6 | CUP SPRING 20 | 1 | €0.56 | 1-4 weeks to ship | ||
| 232163-6 | CUP SPRING 20 | 1 | €0.56 | 1-4 weeks to ship | ||
| 232163-6 | CUP SPRING 20 | 1 | €0.56 | 1-4 weeks to ship | ||
| 043 | 232163-6 | CUP SPRING 20 | 1 | €0.56 | 1-4 weeks to ship | |
| 232163-6 | CUP SPRING 20 | 1 | €0.56 | 1-4 weeks to ship | ||
| 232163-6 | CUP SPRING 20 | 1 | €0.56 | 1-4 weeks to ship | ||
| 232163-6 | CUP SPRING 20 | 1 | €0.56 | 1-4 weeks to ship | ||
| 044 | 267798-4 | LOCK WASHER | 1 | €4.17 | 1-4 weeks to ship | |
| 267798-4 | LOCK WASHER | 1 | €4.17 | 1-4 weeks to ship | ||
| 267798-4 | LOCK WASHER | 1 | €4.17 | 1-4 weeks to ship | ||
| 267798-4 | LOCK WASHER | 1 | €4.17 | 1-4 weeks to ship | ||
| 045 | 227492-0 | SPIRAL BEVEL GEAR 53C | 1 | €16.70 | 1-4 weeks to ship | |
| 227492-0 | SPIRAL BEVEL GEAR 53C | 1 | €16.70 | 1-4 weeks to ship | ||
| 227492-0 | SPIRAL BEVEL GEAR 53C | 1 | €16.70 | 1-4 weeks to ship | ||
| 227492-0 | SPIRAL BEVEL GEAR 53C | 1 | €16.70 | 1-4 weeks to ship | ||
| 046 | 265120-9 | PAN HEAD SCREW M5X16 | 3 | €0.56 | 1-4 weeks to ship | |
| 265120-9 | PAN HEAD SCREW M5X16 | 3 | €0.56 | 1-4 weeks to ship | ||
| 265120-9 | PAN HEAD SCREW M5X16 | 3 | €0.56 | 1-4 weeks to ship | ||
| 265120-9 | PAN HEAD SCREW M5X16 | 3 | €0.56 | 1-4 weeks to ship | ||
| 047 | 285724-1 | BEARING RETAINER 50 | 1 | €0.56 | 1-4 weeks to ship | |
| 285724-1 | BEARING RETAINER 50 | 1 | €0.56 | 1-4 weeks to ship | ||
| 285724-1 | BEARING RETAINER 50 | 1 | €0.56 | 1-4 weeks to ship | ||
| 285724-1 | BEARING RETAINER 50 | 1 | €0.56 | 1-4 weeks to ship | ||
| 048 | 267167-9 | FLAT WASHER 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 267167-9 | FLAT WASHER 15 | 1 | €0.56 | 1-4 weeks to ship | ||
| 267167-9 | FLAT WASHER 15 | 1 | €0.56 | 1-4 weeks to ship | ||
| 267167-9 | FLAT WASHER 15 | 1 | €0.56 | 1-4 weeks to ship | ||
| 050 | 213760-7 | O RING 78 | 1 | €0.56 | 1-4 weeks to ship | |
| 213760-7 | O RING 78 | 1 | €0.56 | 1-4 weeks to ship | ||
| 213760-7 | O RING 78 | 1 | €0.56 | 1-4 weeks to ship | ||
| 213760-7 | O RING 78 | 1 | €0.56 | 1-4 weeks to ship | ||
| 052 | 265541-5 | HEX. SOCKET HEAD BOLT M6X22 | 4 | €0.56 | 1-4 weeks to ship | |
| 265541-5 | HEX. SOCKET HEAD BOLT M6X22 | 4 | €0.56 | 1-4 weeks to ship | ||
| 265541-5 | HEX. SOCKET HEAD BOLT M6X22 | 4 | €0.56 | 1-4 weeks to ship | ||
| 265541-5 | HEX. SOCKET HEAD BOLT M6X22 | 4 | €0.56 | 1-4 weeks to ship | ||
| 053 | 154777-0 | SPINDLE COMPLETE | 1 | €11.13 | 1-4 weeks to ship | |
| 154777-0 | SPINDLE COMPLETE | 1 | €11.13 | 1-4 weeks to ship | ||
| 154777-0 | SPINDLE COMPLETE | 1 | €11.13 | 1-4 weeks to ship | ||
| 154777-0 | SPINDLE COMPLETE | 1 | €11.13 | 1-4 weeks to ship | ||
| 056 | INNER FLANGE 47 ASS'Y | 1 | Not available in store | |||
| INNER FLANGE 47 ASS'Y | 1 | Not available in store | ||||
| INNER FLANGE 47 ASS'Y | 1 | Not available in store | ||||
| INNER FLANGE 47 ASS'Y | 1 | Not available in store | ||||
| 057 | 224543-0 | LOCK NUT 14-45 | 1 | €2.78 | 1-4 weeks to ship | |
| 224543-0 | LOCK NUT 14-45 | 1 | €2.78 | 1-4 weeks to ship | ||
| 224543-0 | LOCK NUT 14-45 | 1 | €2.78 | 1-4 weeks to ship | ||
| 224543-0 | LOCK NUT 14-45 | 1 | €2.78 | 1-4 weeks to ship | ||
| 058 | 261131-2 | NYLON WASHER 89 | 1 | €0.56 | 1-4 weeks to ship | |
| 261131-2 | NYLON WASHER 89 | 1 | €0.56 | 1-4 weeks to ship | ||
| 261131-2 | NYLON WASHER 89 | 1 | €0.56 | 1-4 weeks to ship | ||
| 261131-2 | NYLON WASHER 89 | 1 | €0.56 | 1-4 weeks to ship | ||
