6222D
6222D

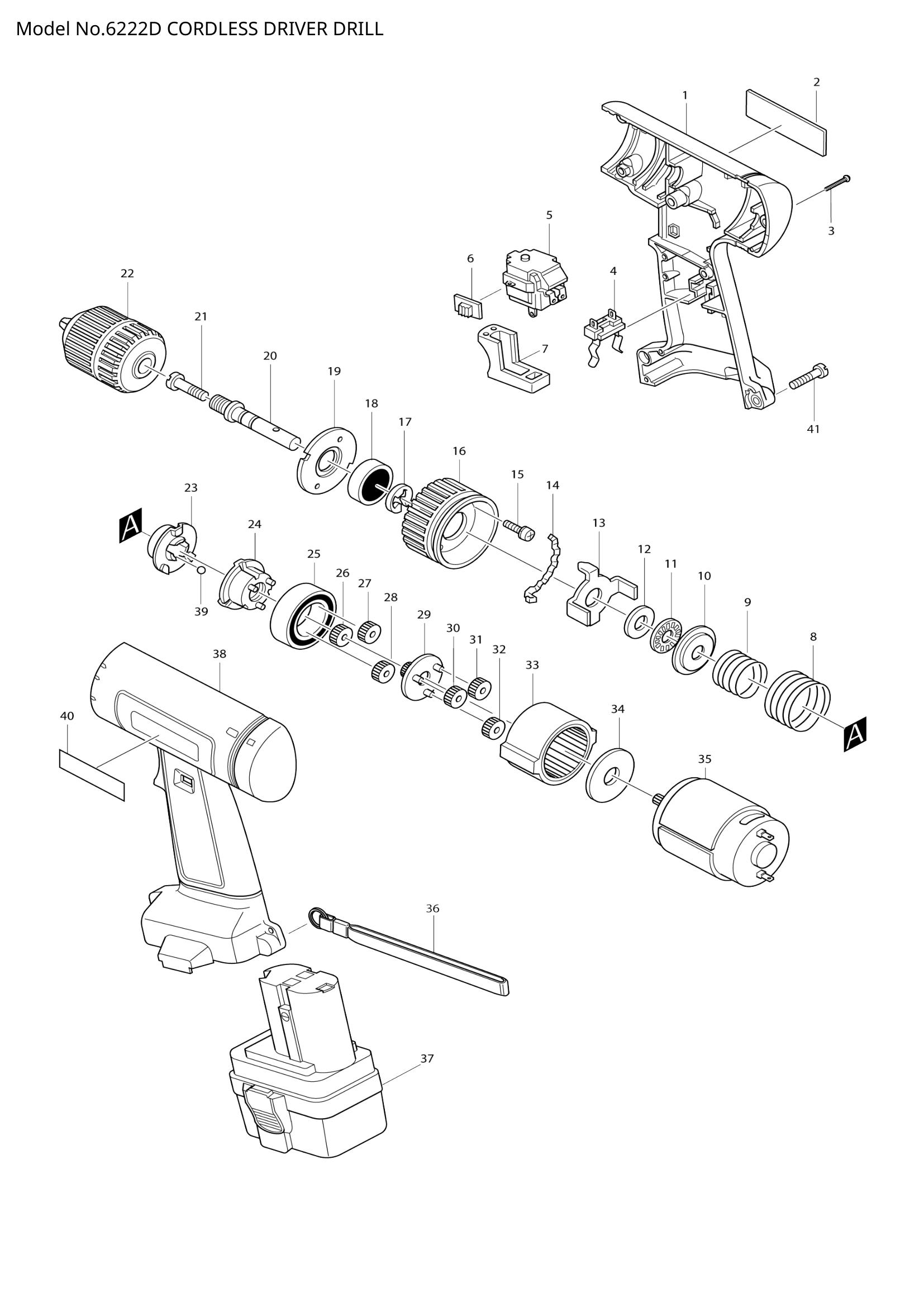

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 004 | 643909-9 | BATTERY HOLDER | 1 | €1.39 | 1-4 weeks to ship | |
| 643909-9 | BATTERY HOLDER | 1 | €1.39 | 1-4 weeks to ship | ||
| 006 | 414740-8 | LEVER | 1 | €2.78 | 1-4 weeks to ship | |
| 007 | 415671-4 | SWITCH LEVER | 1 | €0.56 | 1-4 weeks to ship | |
| 008 | 233044-7 | COMPRESSION SPRING 27 | 1 | €2.78 | 1-4 weeks to ship | |
| 009 | COMPRESSION SPRING 22 | 1 | Not available in store | |||
| 010 | WASHER 10 | 1 | Not available in store | |||
| 011 | THRUST NEEDLE CAGE 1023 | 1 | Not available in store | |||
| 012 | 253180-3 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | 165087-0 | SLIDER | 1 | €4.45 | 1-4 weeks to ship | |
| 014 | 344131-8 | CAM PLATE | 2 | €1.39 | 1-4 weeks to ship | |
| 015 | 911023-2 | PAN HEAD SCREW M3X14 | 2 | €0.83 | 1-4 weeks to ship | |
| 016 | 415515-8 | CHANGE RING | 1 | €2.78 | 1-4 weeks to ship | |
| 017 | 961015-1 | STOP RING E-9 | 1 | €0.28 | 1-4 weeks to ship | |
| 961015-1 | STOP RING E-9 | 1 | €0.28 | 1-4 weeks to ship | ||
| 019 | 285678-2 | BEARING RETAINER 14 | 1 | €2.92 | 1-4 weeks to ship | |
| 020 | SPINDLE | 1 | Not available in store | |||
| 021 | 251451-2 | - PAN HEAD SCREW M5X22 | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | 223115-8 | CLUTCH CAM | 1 | €5.43 | 1-4 weeks to ship | |
| 024 | 153229-8 | CLUTCH CAM COMPLETE | 1 | €5.84 | 1-4 weeks to ship | |
| 025 | 211375-4 | BALL BEARING 6805LLB | 1 | €13.92 | 1-4 weeks to ship | |
| 026 | 226284-4 | SPUR GEAR 15 | 1 | €0.83 | 1-4 weeks to ship | |
| 027 | 226284-4 | SPUR GEAR 15 | 1 | €0.83 | 1-4 weeks to ship | |
| 028 | 226284-4 | SPUR GEAR 15 | 1 | €0.83 | 1-4 weeks to ship | |
| 029 | 153228-0 | SPUR GEAR 9 COMPLETE | 1 | €2.78 | 1-4 weeks to ship | |
| 030 | 226283-6 | SPUR GEAR 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 031 | 226283-6 | SPUR GEAR 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | 226283-6 | SPUR GEAR 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 033 | 226285-2 | INTERNAL GEAR 42 | 1 | €4.45 | 1-4 weeks to ship | |
| 034 | 267067-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | 629694-8 | DC MOTOR 9.6V | 1 | €71.94 | 1-4 weeks to ship | |
| 629694-8 | DC MOTOR 9.6V | 1 | €71.94 | 1-4 weeks to ship | ||
| 037 | BATTERY 9120 SET | 1 | Not available in store | |||
| 039 | 216011-7 | STEEL BALL 5.6 | 3 | €0.56 | 1-4 weeks to ship | |
| 040 | 819063-3 | MAKITA LABEL | 1 | €0.56 | 1-4 weeks to ship | |
| 041 | 911143-2 | PAN HEAD SCREW M4X22 | 1 | €0.56 | 1-4 weeks to ship | |
