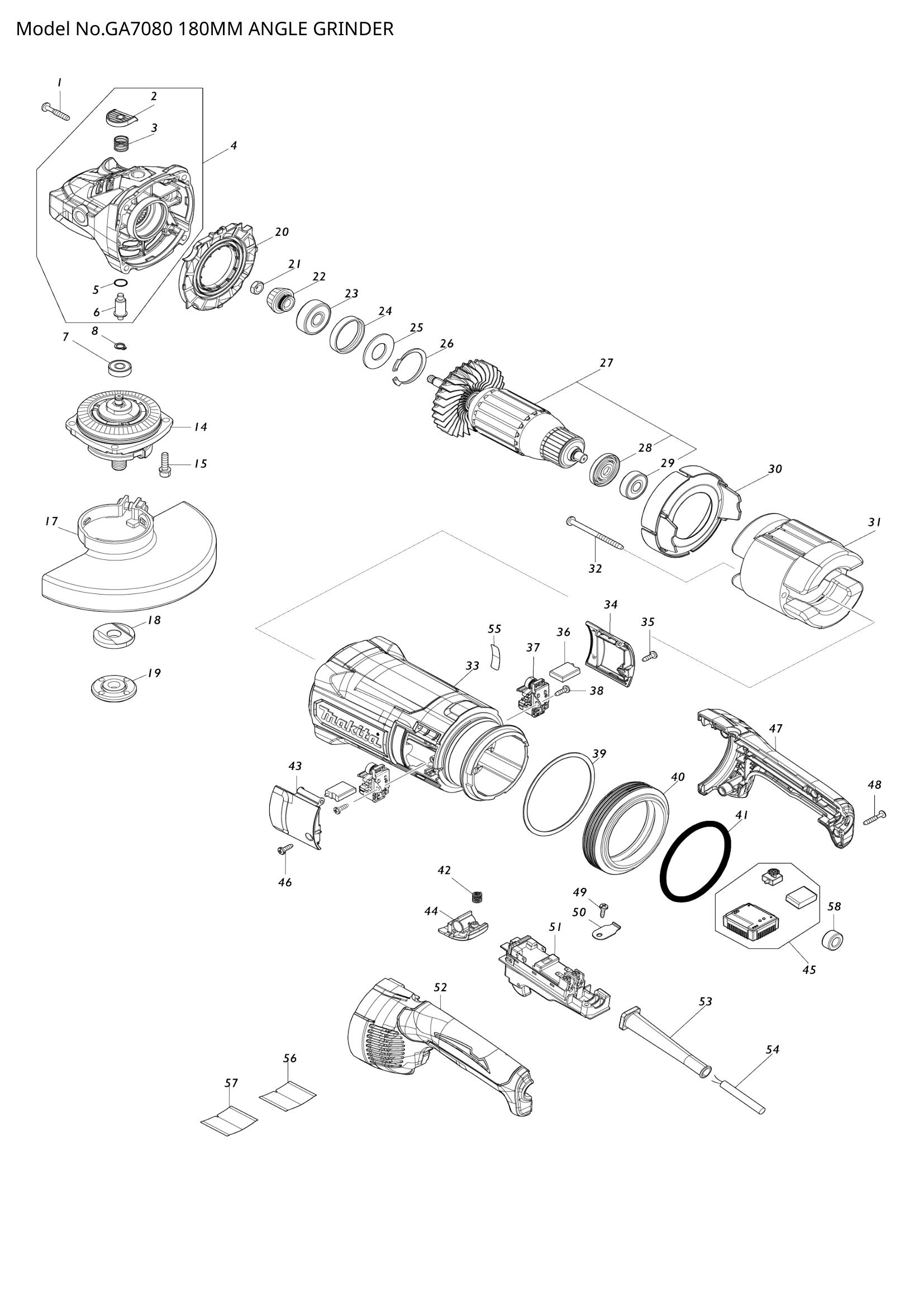

GA7080
GA7080
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | PIN CAP | 1 | Not available in store | |||
| 003 | 233292-8 | COMPRESSION SPRING 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 004 | GEAR HOUSING ASSY | 1 | Not available in store | |||
| 005 | 213062-1 | O RING 9 | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 256491-5 | SHOULDER PIN 5 | 1 | €0.83 | 1-4 weeks to ship | |
| 007 | 211032-4 | BALL BEARING 608ZZ | 1 | €1.67 | 1-4 weeks to ship | |
| 008 | 961004-6 | RETAINING RING (EXT) S-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | TORQUE LIMITER ASSEMBLY 180 | 1 | Not available in store | |||
| 015 | 265541-5 | HEX. SOCKET HEAD BOLT M6X22 | 4 | €0.56 | 1-4 weeks to ship | |
| 018 | INNER FLANGE 47 ASS'Y | 1 | Not available in store | |||
| 019 | 224485-8 | LOCK NUT 14-45 | 1 | €2.92 | 1-4 weeks to ship | |
| 020 | 456238-9 | DIFFUSER | 1 | €1.67 | 1-4 weeks to ship | |
| 456238-9 | DIFFUSER | 1 | €1.67 | 1-4 weeks to ship | ||
| 021 | 252194-9 | HEX. NUT M8 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | SPIRAL BEVEL GEAR 15 | 1 | Not available in store | |||
| 023 | 211132-0 | BALL BEARING 6301DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 024 | 262085-6 | RUBBER RING 38 | 1 | €0.56 | 1-4 weeks to ship | |
| 025 | 267299-2 | FLAT WASHER 20 | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | 962211-4 | RETAINING RING R-42 | 1 | €1.67 | 1-4 weeks to ship | |
| 027 | ARMATURE ASS'Y 240V | 1 | Not available in store | |||
| 028 | 681630-2 | INSULATION WASHER | 1 | €1.11 | 1-4 weeks to ship | |
| 029 | 211087-9 | BALL BEARING 6200DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 030 | 456239-7 | BAFFLE PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 456239-7 | BAFFLE PLATE | 1 | €0.56 | 1-4 weeks to ship | ||
| 031 | FIELD 240V | 1 | Not available in store | |||
| 032 | 266038-7 | TAPPING SCREW 5X70 | 2 | €2.09 | 1-4 weeks to ship | |
| 033 | MOTOR HOUSING | 1 | Not available in store | |||
| 034 | 456246-0 | BRUSH HOLDER COVER R | 1 | €2.09 | 1-4 weeks to ship | |
| 456246-0 | BRUSH HOLDER COVER R | 1 | €2.09 | 1-4 weeks to ship | ||
| 035 | 266385-6 | TAPPING SCREW 4X14 | 1 | €0.56 | 1-4 weeks to ship | |
| 036 | CARBON BRUSH SET CB-224 | 1 | Not available in store | |||
| 037 | 643715-2 | BRUSH HOLDER | 2 | €1.81 | 1-4 weeks to ship | |
| 643715-2 | BRUSH HOLDER | 2 | €1.81 | 1-4 weeks to ship | ||
| 038 | 266385-6 | TAPPING SCREW 4X14 | 2 | €0.56 | 1-4 weeks to ship | |
| 039 | NYLON WASHER 89 | 1 | Not available in store | |||
| 040 | VIBRATION PROOF RUBBER | 1 | Not available in store | |||
| 041 | O RING 79 | 1 | Not available in store | |||
| 042 | 233375-4 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 043 | 456245-2 | BRUSH HOLDER COVER L | 1 | €1.11 | 1-4 weeks to ship | |
| 456245-2 | BRUSH HOLDER COVER L | 1 | €1.11 | 1-4 weeks to ship | ||
| 044 | LOCK BUTTON | 1 | Not available in store | |||
| 045 | CONTROLLER | 1 | Not available in store | |||
| 046 | 266385-6 | TAPPING SCREW 4X14 | 1 | €0.56 | 1-4 weeks to ship | |
| 047 | HANDLE SET | 1 | Not available in store | |||
| 048 | 265999-8 | TAPPING SCREW 4X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 049 | 266385-6 | TAPPING SCREW 4X14 | 1 | €0.56 | 1-4 weeks to ship | |
| 050 | 687169-3 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 051 | 632F79-5 | SWITCH UNIT | 1 | €17.67 | 1-4 weeks to ship | |
| 632F79-5 | SWITCH UNIT | 1 | €17.67 | 1-4 weeks to ship | ||
| 052 | HANDLE SET | 1 | Not available in store | |||
| 053 | 682573-1 | CORD GUARD 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 682573-1 | CORD GUARD 10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 055 | GA7080 SERIAL NO. LABEL | 1 | Not available in store | |||
| 056 | GA7080 NAME PLATE | 1 | Not available in store | |||
