GA7030R
GA7030R

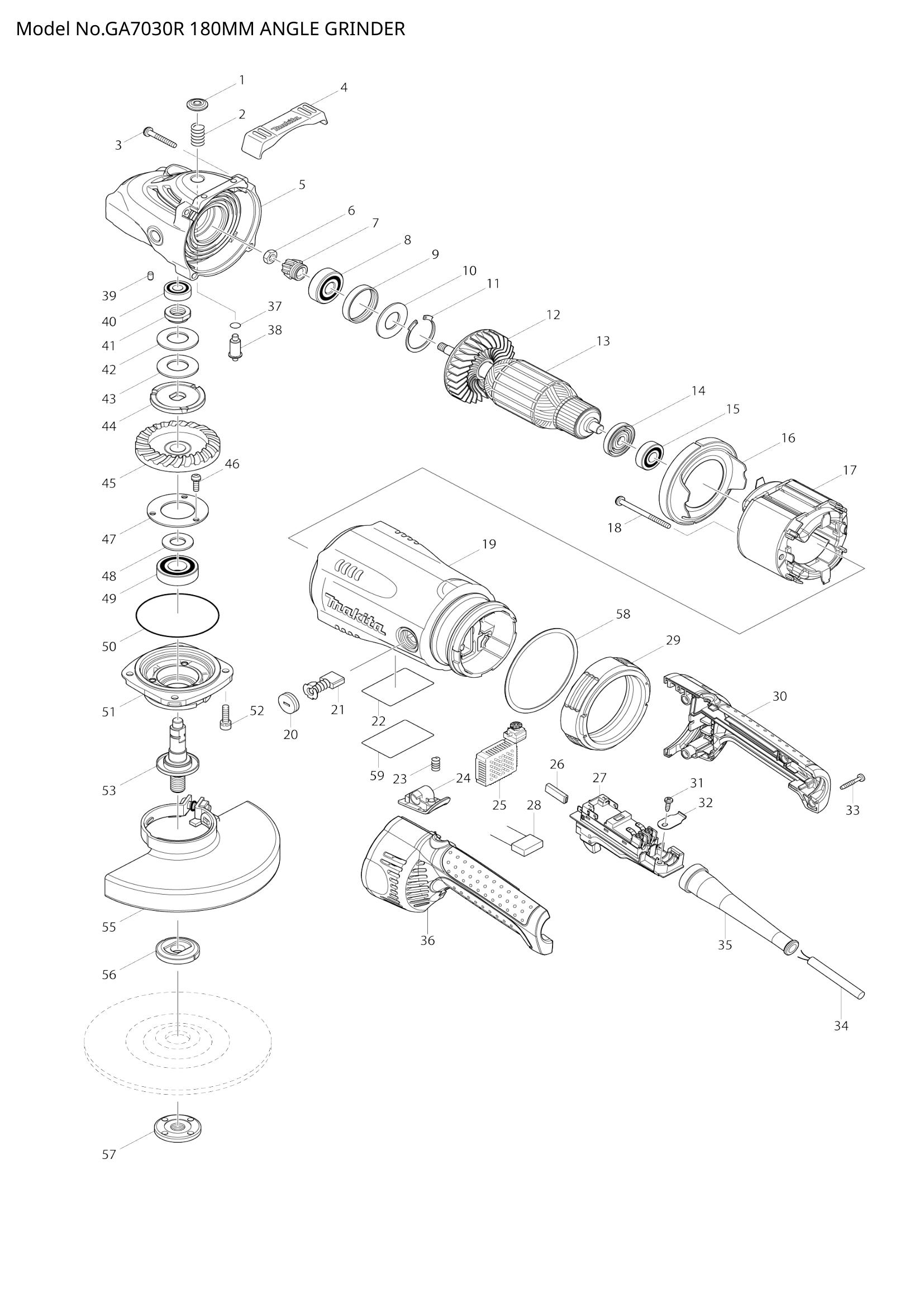

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 419133-4 | PIN CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 002 | 233292-8 | COMPRESSION SPRING 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 004 | 419144-9 | BUMPER | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 252194-9 | HEX. NUT M8 | 1 | €0.56 | 1-4 weeks to ship | |
| 007 | 227488-1 | SPIRAL BEVEL GEAR 16 | 1 | €4.17 | 1-4 weeks to ship | |
| 008 | 211132-0 | BALL BEARING 6301DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 009 | 262085-6 | RUBBER RING 38 | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 267299-2 | FLAT WASHER 20 | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | 962211-4 | RETAINING RING R-42 | 1 | €1.67 | 1-4 weeks to ship | |
| 012 | 240081-4 | FAN 80 | 1 | €2.78 | 1-4 weeks to ship | |
| 013 | 517828-4 | ARMATURE ASS'Y 220V | 1 | €72.36 | 1-4 weeks to ship | |
| 014 | 681630-2 | INSULATION WASHER | 1 | €1.11 | 1-4 weeks to ship | |
| 015 | 211087-9 | BALL BEARING 6200DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 016 | 419135-0 | BAFFLE PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 017 | FIELD ASSEMBLY 220-240V | 1 | Not available in store | |||
| 018 | 266029-8 | TAPPING SCREW 5X65 | 2 | €1.39 | 1-4 weeks to ship | |
| 019 | 154786-9 | MOTOR HOUSING COMPLETE | 1 | €22.26 | 1-4 weeks to ship | |
| 020 | 643700-5 | BRUSH HOLDER CAP 7-18 | 2 | €1.11 | 1-4 weeks to ship | |
| 022 | GA7030R NAME PLATE | 1 | Not available in store | |||
| 023 | 233375-4 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 024 | LOCK BUTTON | 1 | Not available in store | |||
| 025 | CONTROLLER | 1 | Not available in store | |||
| 026 | 686036-9 | RECEPTACLE SLEEVE | 2 | €0.56 | 1-4 weeks to ship | |
| 027 | 650107-8 | SWITCH TG08-2300-013 | 1 | €16.70 | 1-4 weeks to ship | |
| 028 | 645088-9 | NOISE SUPPRESSOR | 1 | €0.56 | 1-4 weeks to ship | |
| 029 | 421936-4 | VIBRATION PROOF RUBBER | 1 | €1.39 | 1-4 weeks to ship | |
| 030 | HANDLE SET | 1 | Not available in store | |||
| 032 | 687169-3 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 034 | 695107-1 | POWER SUPPLY CORD 1.5-2-2.5 | 1 | €11.83 | 1-4 weeks to ship | |
| 035 | 682560-0 | CORD GUARD 10 | 1 | €1.67 | 1-4 weeks to ship | |
| 036 | HANDLE SET | 1 | Not available in store | |||
| 037 | 213062-1 | O RING 9 | 1 | €0.56 | 1-4 weeks to ship | |
| 038 | 256491-5 | SHOULDER PIN 5 | 1 | €0.83 | 1-4 weeks to ship | |
| 039 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 040 | 211061-7 | BALL BEARING 6000LLB | 1 | €2.78 | 1-4 weeks to ship | |
| 041 | 252429-8 | NUT M15-23 | 1 | €1.11 | 1-4 weeks to ship | |
| 042 | 232163-6 | CUP SPRING 20 | 1 | €0.56 | 1-4 weeks to ship | |
| 043 | 232163-6 | CUP SPRING 20 | 1 | €0.56 | 1-4 weeks to ship | |
| 044 | 267798-4 | LOCK WASHER | 1 | €4.17 | 1-4 weeks to ship | |
| 045 | 227493-8 | SPIRAL BEVEL GEAR 53D | 1 | €13.92 | 1-4 weeks to ship | |
| 046 | 265120-9 | PAN HEAD SCREW M5X16 | 3 | €0.56 | 1-4 weeks to ship | |
| 047 | 285724-1 | BEARING RETAINER 50 | 1 | €0.56 | 1-4 weeks to ship | |
| 048 | 267167-9 | FLAT WASHER 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 049 | 211278-2 | BALL BEARING 6203DDW | 1 | €11.13 | 1-4 weeks to ship | |
| 050 | 213760-7 | O RING 78 | 1 | €0.56 | 1-4 weeks to ship | |
| 051 | 318377-2 | BEARING BOX | 1 | €5.57 | 1-4 weeks to ship | |
| 052 | 265541-5 | HEX. SOCKET HEAD BOLT M6X22 | 4 | €0.56 | 1-4 weeks to ship | |
| 053 | 154777-0 | SPINDLE COMPLETE | 1 | €11.13 | 1-4 weeks to ship | |
| 055 | WHEEL COVER 180K ASSEMBLY | 1 | Not available in store | |||
| 056 | INNER FLANGE 42 | 1 | Not available in store | |||
| INNER FLANGE 47 ASS'Y | 1 | Not available in store | ||||
| 057 | 224543-0 | LOCK NUT 14-45 | 1 | €2.78 | 1-4 weeks to ship | |
| 058 | 261131-2 | NYLON WASHER 89 | 1 | €0.56 | 1-4 weeks to ship | |
