GA5095
GA5095

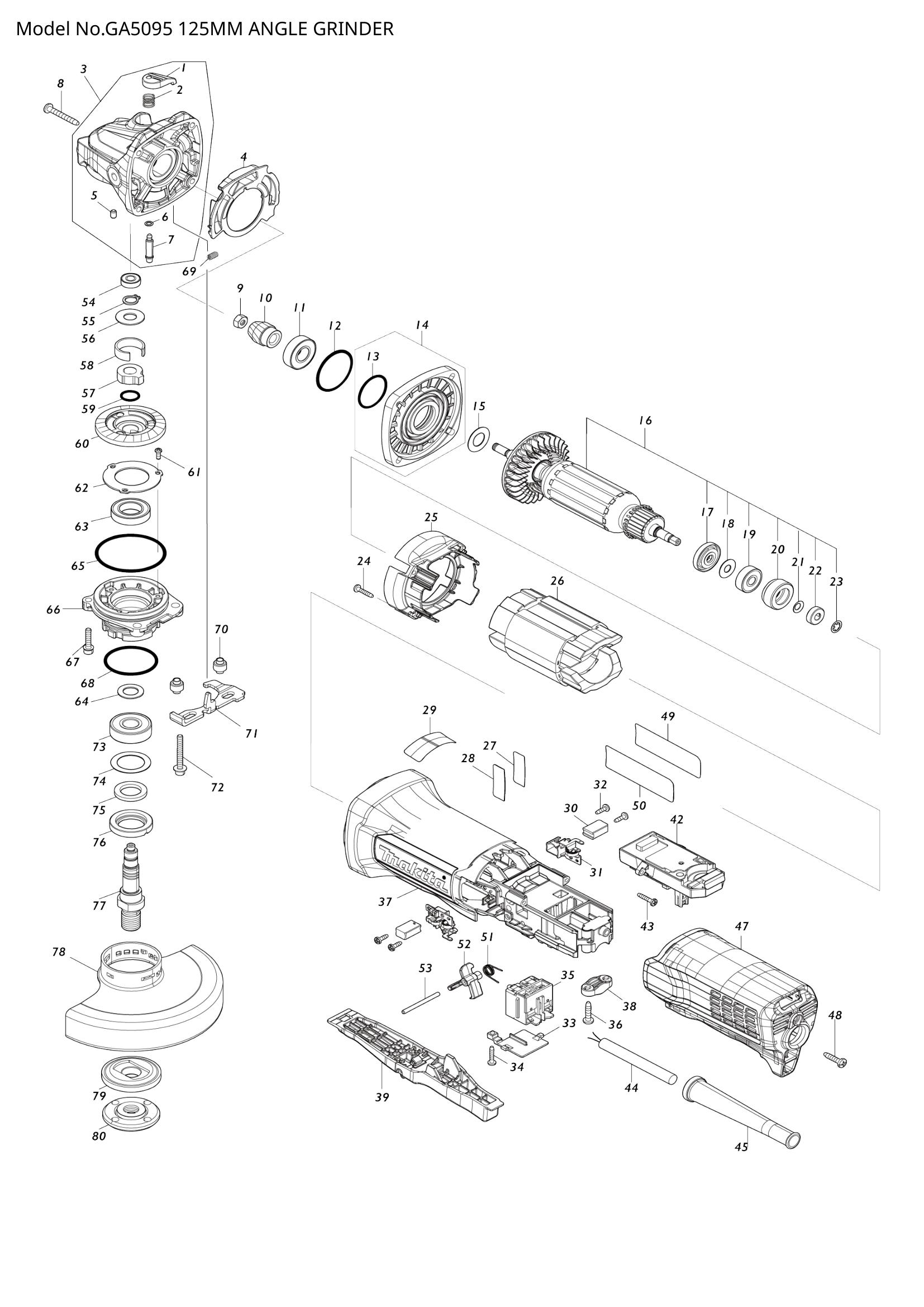

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 453369-5 | PIN CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 453369-5 | PIN CAP | 1 | €0.56 | 1-4 weeks to ship | ||
| 002 | 234057-1 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 234057-1 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 003 | GEAR HOUSING ASS'Y | 1 | Not available in store | |||
| GEAR HOUSING ASS'Y | 1 | Not available in store | ||||
| 004 | DIFFUSER | 1 | Not available in store | |||
| DIFFUSER | 1 | Not available in store | ||||
| 005 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 007 | 256535-1 | SHOULDER PIN 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 256535-1 | SHOULDER PIN 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 008 | 266361-0 | TAPPING SCREW 4X30 | 4 | €0.56 | 1-4 weeks to ship | |
| 266361-0 | TAPPING SCREW 4X30 | 4 | €0.56 | 1-4 weeks to ship | ||
| 009 | 252186-8 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 252186-8 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 010 | SPIRAL BEVEL GEAR 11 | 1 | Not available in store | |||
| SPIRAL BEVEL GEAR 11 | 1 | Not available in store | ||||
| 011 | 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | ||
| 012 | RUBBER PLATE | 1 | Not available in store | |||
| RUBBER PLATE | 1 | Not available in store | ||||
| 013 | O-RING 27.5 | 1 | Not available in store | |||
| O-RING 27.5 | 1 | Not available in store | ||||
| 014 | GEAR HOUSING COVER ASS'Y | 1 | Not available in store | |||
| GEAR HOUSING COVER ASS'Y | 1 | Not available in store | ||||
| 015 | 253084-9 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 253084-9 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 016 | ARMATURE ASS'Y 240V | 1 | Not available in store | |||
| ARMATURE ASS'Y 240V | 1 | Not available in store | ||||
| 017 | 681656-4 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 681656-4 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 018 | 253823-7 | FLAT WASHER 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 253823-7 | FLAT WASHER 7 | 1 | €0.56 | 1-4 weeks to ship | ||
| 019 | 210027-4 | BALL BEARING 627DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 210027-4 | BALL BEARING 627DDW | 1 | €4.17 | 1-4 weeks to ship | ||
| 020 | LABYRINTH RUBBER RING 22 | 1 | Not available in store | |||
| LABYRINTH RUBBER RING 22 | 1 | Not available in store | ||||
| 021 | 267756-0 | WAVE WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 267756-0 | WAVE WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 022 | 688117-5 | MAGNET SLEEVE | 1 | €2.78 | 1-4 weeks to ship | |
| 688117-5 | MAGNET SLEEVE | 1 | €2.78 | 1-4 weeks to ship | ||
| 023 | 259039-2 | SELF LOCK 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 259039-2 | SELF LOCK 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 024 | 266429-2 | TAPPING SCREW 3X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 266429-2 | TAPPING SCREW 3X16 | 4 | €0.56 | 1-4 weeks to ship | ||
| 025 | BAFFLE PLATE A | 1 | Not available in store | |||
| BAFFLE PLATE A | 1 | Not available in store | ||||
| 026 | FIELD 220-240V | 1 | Not available in store | |||
| FIELD 220-240V | 1 | Not available in store | ||||
| 028 | GA5095 SERIAL NO. LABEL | 1 | Not available in store | |||
| GA5095 SERIAL NO. LABEL | 1 | Not available in store | ||||
| 030 | CARBON BRUSH 264 SET | 1 | Not available in store | |||
| CARBON BRUSH 264 SET | 1 | Not available in store | ||||
| 031 | BRUSH HOLDER | 2 | Not available in store | |||
| BRUSH HOLDER | 2 | Not available in store | ||||
| 032 | 266007-8 | TAPPING SCREW BIND PT 3X10 | 4 | €0.56 | 1-4 weeks to ship | |
| 266007-8 | TAPPING SCREW BIND PT 3X10 | 4 | €0.56 | 1-4 weeks to ship | ||
| 033 | SWITCH COVER | 1 | Not available in store | |||
| SWITCH COVER | 1 | Not available in store | ||||
| 034 | 266429-2 | TAPPING SCREW 3X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 266429-2 | TAPPING SCREW 3X16 | 1 | €0.56 | 1-4 weeks to ship | ||
| 035 | SWITCH FPC-2115T-0-02 | 1 | Not available in store | |||
| SWITCH FPC-2115T-0-02 | 1 | Not available in store | ||||
| 036 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 037 | MOTOR HOUSING A | 1 | Not available in store | |||
| MOTOR HOUSING A | 1 | Not available in store | ||||
| 038 | 687123-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 687123-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 687123-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 687123-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 039 | SWITCH LEVER COMPLETE | 1 | Not available in store | |||
| SWITCH LEVER COMPLETE | 1 | Not available in store | ||||
| 042 | CONTROLLER | 1 | Not available in store | |||
| CONTROLLER | 1 | Not available in store | ||||
| 043 | 266429-2 | TAPPING SCREW 3X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 266429-2 | TAPPING SCREW 3X16 | 2 | €0.56 | 1-4 weeks to ship | ||
| 044 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | Not available in store | |||
| POWER SUPPLY CORD 1.0-2-2.5 | 1 | Not available in store | ||||
| 045 | CORD GUARD | 1 | Not available in store | |||
| CORD GUARD | 1 | Not available in store | ||||
| 047 | REAR COVER C | 1 | Not available in store | |||
| REAR COVER C | 1 | Not available in store | ||||
| 048 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 050 | GA5095 NAME PLATE | 1 | Not available in store | |||
| GA5095 NAME PLATE | 1 | Not available in store | ||||
| 051 | TORSION SPRING 8 | 1 | Not available in store | |||
| TORSION SPRING 8 | 1 | Not available in store | ||||
| 052 | ROLL LINK | 1 | Not available in store | |||
| ROLL LINK | 1 | Not available in store | ||||
| 053 | ROD 3 | 1 | Not available in store | |||
| ROD 3 | 1 | Not available in store | ||||
| 054 | 210026-6 | BALL BEARING 696ZZ | 1 | €4.17 | 1-4 weeks to ship | |
| 210026-6 | BALL BEARING 696ZZ | 1 | €4.17 | 1-4 weeks to ship | ||
| 055 | 961006-2 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 961006-2 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 056 | 253180-3 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 253180-3 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 057 | JOINT SLEEVE | 1 | Not available in store | |||
| JOINT SLEEVE | 1 | Not available in store | ||||
| 058 | C TYPE PLATE | 1 | Not available in store | |||
| C TYPE PLATE | 1 | Not available in store | ||||
| 059 | 213122-9 | O RING 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 213122-9 | O RING 12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 060 | SPIRAL BEVEL GEAR 38 | 1 | Not available in store | |||
| SPIRAL BEVEL GEAR 38 | 1 | Not available in store | ||||
| 061 | 265199-0 | + PAN HEAD SCREW M3X8 | 3 | €0.56 | 1-4 weeks to ship | |
| 265199-0 | + PAN HEAD SCREW M3X8 | 3 | €0.56 | 1-4 weeks to ship | ||
| 062 | BEARING RETAINER 27-46 | 1 | Not available in store | |||
| BEARING RETAINER 27-46 | 1 | Not available in store | ||||
| 063 | 210302-8 | BALL BEARING 6903ZZ | 1 | €11.13 | 1-4 weeks to ship | |
| 210302-8 | BALL BEARING 6903ZZ | 1 | €11.13 | 1-4 weeks to ship | ||
| 064 | 253744-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 253744-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 065 | 213641-5 | O RING 51 | 1 | €0.56 | 1-4 weeks to ship | |
| 213641-5 | O RING 51 | 1 | €0.56 | 1-4 weeks to ship | ||
| 066 | BEARING BOX A | 1 | Not available in store | |||
| BEARING BOX A | 1 | Not available in store | ||||
| 067 | 266948-8 | HEX S. H. BOLT M4X20 WITH WR | 2 | €0.28 | 1-4 weeks to ship | |
| 266948-8 | HEX S. H. BOLT M4X20 WITH WR | 2 | €0.28 | 1-4 weeks to ship | ||
| 069 | COMPRESSION SPRING 4 | 1 | Not available in store | |||
| COMPRESSION SPRING 4 | 1 | Not available in store | ||||
| 070 | 327322-6 | SLEEVE 4 | 2 | €0.74 | 1-4 weeks to ship | |
| 327322-6 | SLEEVE 4 | 2 | €0.74 | 1-4 weeks to ship | ||
| 071 | LEVER A | 1 | Not available in store | |||
| LEVER A | 1 | Not available in store | ||||
| 072 | H.S.H.BOLT M4X35(WITH WG) | 2 | Not available in store | |||
| H.S.H.BOLT M4X35(WITH WG) | 2 | Not available in store | ||||
| 073 | 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | ||
| 074 | 267279-8 | FLAT WASHER 21 | 1 | €0.56 | 1-4 weeks to ship | |
| 267279-8 | FLAT WASHER 21 | 1 | €0.56 | 1-4 weeks to ship | ||
| 075 | 443124-3 | FELT RING 17 | 1 | €0.42 | 1-4 weeks to ship | |
| 443124-3 | FELT RING 17 | 1 | €0.42 | 1-4 weeks to ship | ||
| 076 | 285854-8 | BEARING RETAINER 20-33 | 1 | €1.11 | 1-4 weeks to ship | |
| 285854-8 | BEARING RETAINER 20-33 | 1 | €1.11 | 1-4 weeks to ship | ||
| 077 | SPINDLE | 1 | Not available in store | |||
| SPINDLE | 1 | Not available in store | ||||
| 079 | 224490-5 | INNER FLANGE 14-45 | 1 | €1.68 | 1-4 weeks to ship | |
| 224490-5 | INNER FLANGE 14-45 | 1 | €1.68 | 1-4 weeks to ship | ||
| 080 | 224485-8 | LOCK NUT 14-45 | 1 | €2.92 | 1-4 weeks to ship | |
| 224485-8 | LOCK NUT 14-45 | 1 | €2.92 | 1-4 weeks to ship | ||
