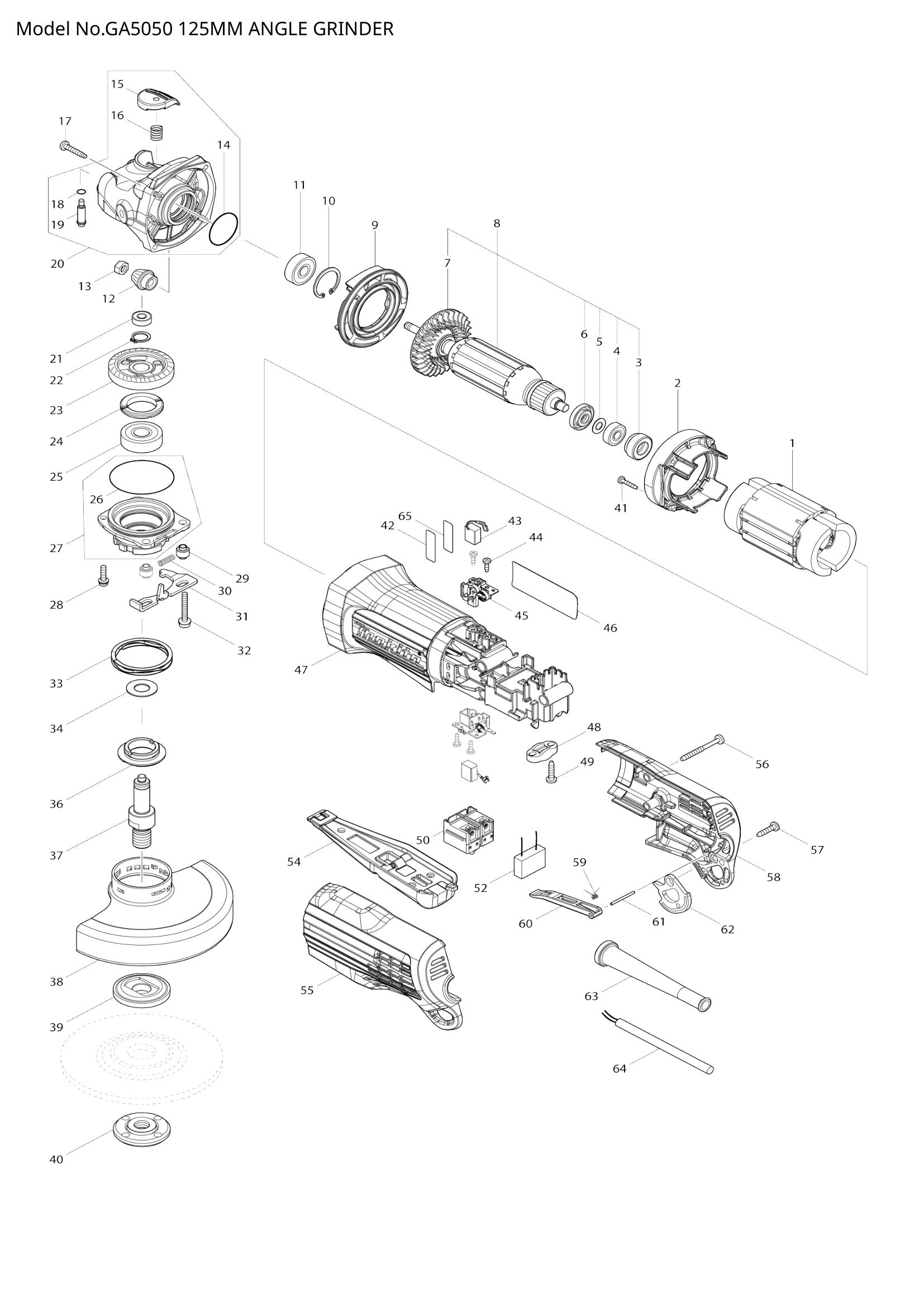

GA5050
GA5050
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | FIELD | 1 | Not available in store | |||
| FIELD | 1 | Not available in store | ||||
| 002 | BAFFLE PLATE | 1 | Not available in store | |||
| BAFFLE PLATE | 1 | Not available in store | ||||
| 003 | RUBBER RING 19 | 1 | Not available in store | |||
| RUBBER RING 19 | 1 | Not available in store | ||||
| 004 | 210017-7 | BALL BEARING 607DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 210017-7 | BALL BEARING 607DDW | 1 | €2.78 | 1-4 weeks to ship | ||
| 005 | 253186-1 | FLAT WASHER 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 253186-1 | FLAT WASHER 7 | 1 | €0.56 | 1-4 weeks to ship | ||
| 006 | 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 007 | FAN60 | 1 | Not available in store | |||
| FAN60 | 1 | Not available in store | ||||
| 008 | ARMATURE ASS'Y 240V | 1 | Not available in store | |||
| ARMATURE ASS'Y 240V | 1 | Not available in store | ||||
| 009 | DIFFUSER | 1 | Not available in store | |||
| DIFFUSER | 1 | Not available in store | ||||
| 010 | 962105-3 | RETAINING RING R-26 | 1 | €0.56 | 1-4 weeks to ship | |
| 962105-3 | RETAINING RING R-26 | 1 | €0.56 | 1-4 weeks to ship | ||
| 011 | 211092-6 | BALL BEARING 629DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 211092-6 | BALL BEARING 629DDW | 1 | €4.17 | 1-4 weeks to ship | ||
| 012 | SPIRAL BEVEL GEAR 10 | 1 | Not available in store | |||
| SPIRAL BEVEL GEAR 10 | 1 | Not available in store | ||||
| 013 | 252186-8 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 252186-8 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 014 | 213445-5 | O-RING 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 213445-5 | O-RING 26 | 1 | €0.56 | 1-4 weeks to ship | ||
| 015 | PIN CAP | 1 | Not available in store | |||
| PIN CAP | 1 | Not available in store | ||||
| 016 | COMPRESSION SPRING 9 | 1 | Not available in store | |||
| COMPRESSION SPRING 9 | 1 | Not available in store | ||||
| 017 | 266324-6 | TAPPING SCREW 4X22 | 4 | €0.56 | 1-4 weeks to ship | |
| 266324-6 | TAPPING SCREW 4X22 | 4 | €0.56 | 1-4 weeks to ship | ||
| 018 | O-RING 6 | 1 | Not available in store | |||
| O-RING 6 | 1 | Not available in store | ||||
| 019 | SHOULDER PIN 6 | 1 | Not available in store | |||
| SHOULDER PIN 6 | 1 | Not available in store | ||||
| 020 | GEAR HOUSING B ASS'Y | 1 | Not available in store | |||
| GEAR HOUSING B ASS'Y | 1 | Not available in store | ||||
| 021 | 210006-2 | BALL BEARING 696ZZ | 1 | €4.17 | 1-4 weeks to ship | |
| 210006-2 | BALL BEARING 696ZZ | 1 | €4.17 | 1-4 weeks to ship | ||
| 022 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 023 | SPIRAL BEVEL GEAR 37 | 1 | Not available in store | |||
| SPIRAL BEVEL GEAR 37 | 1 | Not available in store | ||||
| 024 | BEARING RETAINER 23-33 | 1 | Not available in store | |||
| BEARING RETAINER 23-33 | 1 | Not available in store | ||||
| 025 | 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | ||
| 027 | BEARING BOX A ASS'Y | 1 | Not available in store | |||
| BEARING BOX A ASS'Y | 1 | Not available in store | ||||
| 028 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | |
| 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 029 | 327322-6 | SLEEVE 4 | 2 | €0.74 | 1-4 weeks to ship | |
| 327322-6 | SLEEVE 4 | 2 | €0.74 | 1-4 weeks to ship | ||
| 030 | COMPRESSION SPRING 4 | 1 | Not available in store | |||
| COMPRESSION SPRING 4 | 1 | Not available in store | ||||
| 031 | LEVER | 1 | Not available in store | |||
| LEVER | 1 | Not available in store | ||||
| 032 | 911159-7 | PAN HEAD SCREW M4X30 | 2 | €0.83 | 1-4 weeks to ship | |
| 911159-7 | PAN HEAD SCREW M4X30 | 2 | €0.83 | 1-4 weeks to ship | ||
| 034 | 267238-2 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 267238-2 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 036 | PLATE RETAINER 20 | 1 | Not available in store | |||
| PLATE RETAINER 20 | 1 | Not available in store | ||||
| 037 | SPINDLE | 1 | Not available in store | |||
| SPINDLE | 1 | Not available in store | ||||
| 039 | 224490-5 | INNER FLANGE 14-45 | 1 | €1.68 | 1-4 weeks to ship | |
| 224490-5 | INNER FLANGE 14-45 | 1 | €1.68 | 1-4 weeks to ship | ||
| 040 | 224485-8 | LOCK NUT 14-45 | 1 | €2.92 | 1-4 weeks to ship | |
| 224485-8 | LOCK NUT 14-45 | 1 | €2.92 | 1-4 weeks to ship | ||
| 041 | 266429-2 | TAPPING SCREW 3X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 266429-2 | TAPPING SCREW 3X16 | 4 | €0.56 | 1-4 weeks to ship | ||
| 042 | GA5050 SERIAL NO. LABEL | 1 | Not available in store | |||
| GA5050 SERIAL NO. LABEL | 1 | Not available in store | ||||
| 043 | CARBON BRUSH SET CB-260 | 1 | Not available in store | |||
| CARBON BRUSH SET CB-260 | 1 | Not available in store | ||||
| 044 | 266007-8 | TAPPING SCREW BIND PT 3X10 | 4 | €0.56 | 1-4 weeks to ship | |
| 266007-8 | TAPPING SCREW BIND PT 3X10 | 4 | €0.56 | 1-4 weeks to ship | ||
| 045 | BRUSH HOLDER | 2 | Not available in store | |||
| BRUSH HOLDER | 2 | Not available in store | ||||
| 046 | GA5050 NAME PLATE | 1 | Not available in store | |||
| GA5050 NAME PLATE | 1 | Not available in store | ||||
| 047 | MOTOR HOUSING | 1 | Not available in store | |||
| MOTOR HOUSING | 1 | Not available in store | ||||
| 048 | 687123-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 687123-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 687123-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 687123-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 049 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 054 | SWITCH LEVER COMPLETE | 1 | Not available in store | |||
| SWITCH LEVER COMPLETE | 1 | Not available in store | ||||
| 055 | REAR COVER SET | 1 | Not available in store | |||
| REAR COVER SET | 1 | Not available in store | ||||
| 056 | 266048-4 | TAPPING SCREW 4X40 | 3 | €0.56 | 1-4 weeks to ship | |
| 266048-4 | TAPPING SCREW 4X40 | 3 | €0.56 | 1-4 weeks to ship | ||
| 057 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 058 | REAR COVER SET | 1 | Not available in store | |||
| REAR COVER SET | 1 | Not available in store | ||||
| 059 | TORSION SPRING 2 | 1 | Not available in store | |||
| TORSION SPRING 2 | 1 | Not available in store | ||||
| 060 | SWITCH LINK LEVER | 1 | Not available in store | |||
| SWITCH LINK LEVER | 1 | Not available in store | ||||
| 061 | PIN 2 | 1 | Not available in store | |||
| PIN 2 | 1 | Not available in store | ||||
| 062 | STRAP RING | 1 | Not available in store | |||
| STRAP RING | 1 | Not available in store | ||||
| 063 | 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | |
| 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 064 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | Not available in store | |||
| POWER SUPPLY CORD 1.0-2-2.5 | 1 | Not available in store | ||||
| 066 | 213789-3 | O-RING 38 | 1 | €1.81 | 1-4 weeks to ship | |
| 213789-3 | O-RING 38 | 1 | €1.81 | 1-4 weeks to ship | ||
