GA5040R
GA5040R

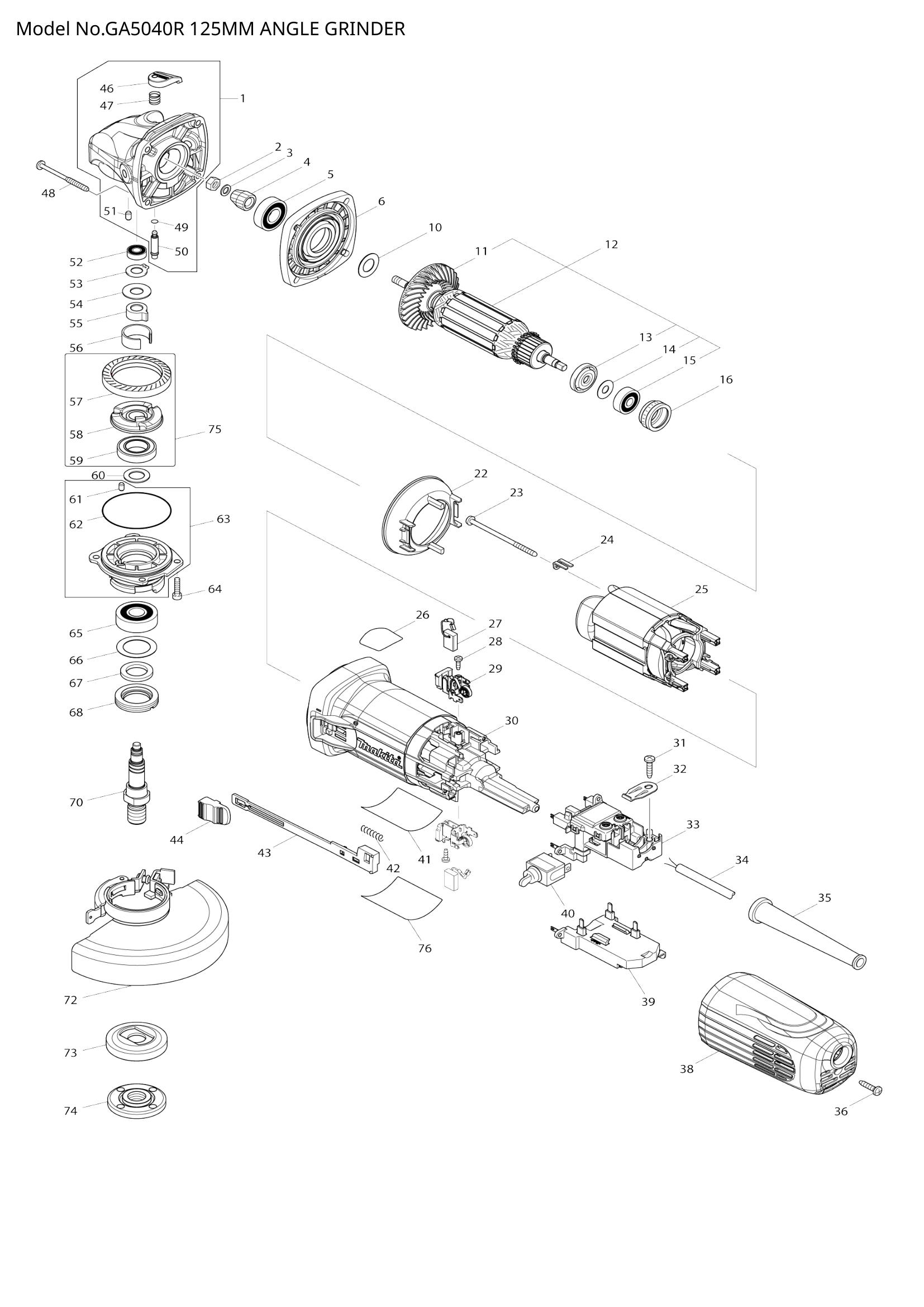

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | 252186-8 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 003 | 253077-6 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 004 | 227591-8 | SPIRAL BEVEL GEAR 10 | 1 | €8.35 | 1-4 weeks to ship | |
| 005 | 211142-7 | BALL BEARING 6001LLB | 1 | €8.35 | 1-4 weeks to ship | |
| 006 | 141981-0 | GEAR HOUSING COVER COMPLE | 1 | €6.40 | 1-4 weeks to ship | |
| 010 | 253084-9 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | 240134-9 | FAN 60 | 1 | €1.67 | 1-4 weeks to ship | |
| 012 | 515364-4 | ARMATURE ASS'Y 240V | 1 | €58.44 | 1-4 weeks to ship | |
| 013 | 681656-4 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 253823-7 | FLAT WASHER 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 210027-4 | BALL BEARING 627DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 022 | 453367-9 | BUFFLE PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 023 | 266258-3 | TAPPING SCREW 4X70 | 2 | €0.83 | 1-4 weeks to ship | |
| 024 | 344871-8 | RETAINER | 2 | €0.56 | 1-4 weeks to ship | |
| 025 | 626649-4 | FIELD 240V | 1 | €30.61 | 1-4 weeks to ship | |
| 027 | 194074-2 | CARBON BRUSH CB-325 | 1 | €1.39 | 1-4 weeks to ship | |
| 028 | 266007-8 | TAPPING SCREW BIND PT 3X10 | 2 | €0.56 | 1-4 weeks to ship | |
| 029 | 643770-4 | BRUSH HOLDER | 2 | €1.39 | 1-4 weeks to ship | |
| 643770-4 | BRUSH HOLDER | 2 | €1.39 | 1-4 weeks to ship | ||
| 030 | 453366-1 | MOTOR HOUSING | 1 | €8.35 | 1-4 weeks to ship | |
| 453366-1 | MOTOR HOUSING | 1 | €8.35 | 1-4 weeks to ship | ||
| 032 | 687169-3 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 034 | 695034-2 | POWER SUPPLY CORD 1.0-2-4.0 | 1 | €19.48 | 1-4 weeks to ship | |
| 035 | 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | |
| 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 038 | 453365-3 | REAR COVER C | 1 | €2.78 | 1-4 weeks to ship | |
| 041 | GA5040R NAME PLATE | 1 | Not available in store | |||
| 042 | 233071-4 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 043 | 453847-5 | SWITCH LEVER | 1 | €0.83 | 1-4 weeks to ship | |
| 044 | 453368-7 | SWITCH KNOB | 1 | €0.56 | 1-4 weeks to ship | |
| 046 | 453369-5 | PIN CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 047 | 234057-1 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 050 | 256535-1 | SHOULDER PIN 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 051 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 052 | 210006-2 | BALL BEARING 696ZZ | 1 | €4.17 | 1-4 weeks to ship | |
| 053 | 961005-4 | RETAINING RING S-9 | 1 | €0.56 | 1-4 weeks to ship | |
| 054 | 253180-3 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 056 | 346556-2 | C TYPE PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 057 | 227592-6 | SPIRAL BEVEL GEAR 38 | 1 | €5.57 | 1-4 weeks to ship | |
| 058 | 313228-4 | COUPLING | 1 | €5.57 | 1-4 weeks to ship | |
| 059 | 210302-8 | BALL BEARING 6903ZZ | 1 | €11.13 | 1-4 weeks to ship | |
| 060 | 253744-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 061 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 062 | 213641-5 | O RING 51 | 1 | €0.56 | 1-4 weeks to ship | |
| 064 | 265490-6 | HEX. SOCKET HEAD BOLT M4X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 065 | 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 066 | 267279-8 | FLAT WASHER 21 | 1 | €0.56 | 1-4 weeks to ship | |
| 067 | 443124-3 | FELT RING 17 | 1 | €0.42 | 1-4 weeks to ship | |
| 068 | 285854-8 | BEARING RETAINER 20-33 | 1 | €1.11 | 1-4 weeks to ship | |
| 070 | 326130-2 | SPINDLE | 1 | €8.35 | 1-4 weeks to ship | |
| 073 | INNER FLANGE 42 | 1 | Not available in store | |||
| 074 | 224554-5 | LOCK NUT 14-45 | 1 | €2.78 | 1-4 weeks to ship | |
| 075 | 135555-7 | COUPLING ASS'Y | 1 | €26.86 | 1-4 weeks to ship | |
