GA5030R
GA5030R

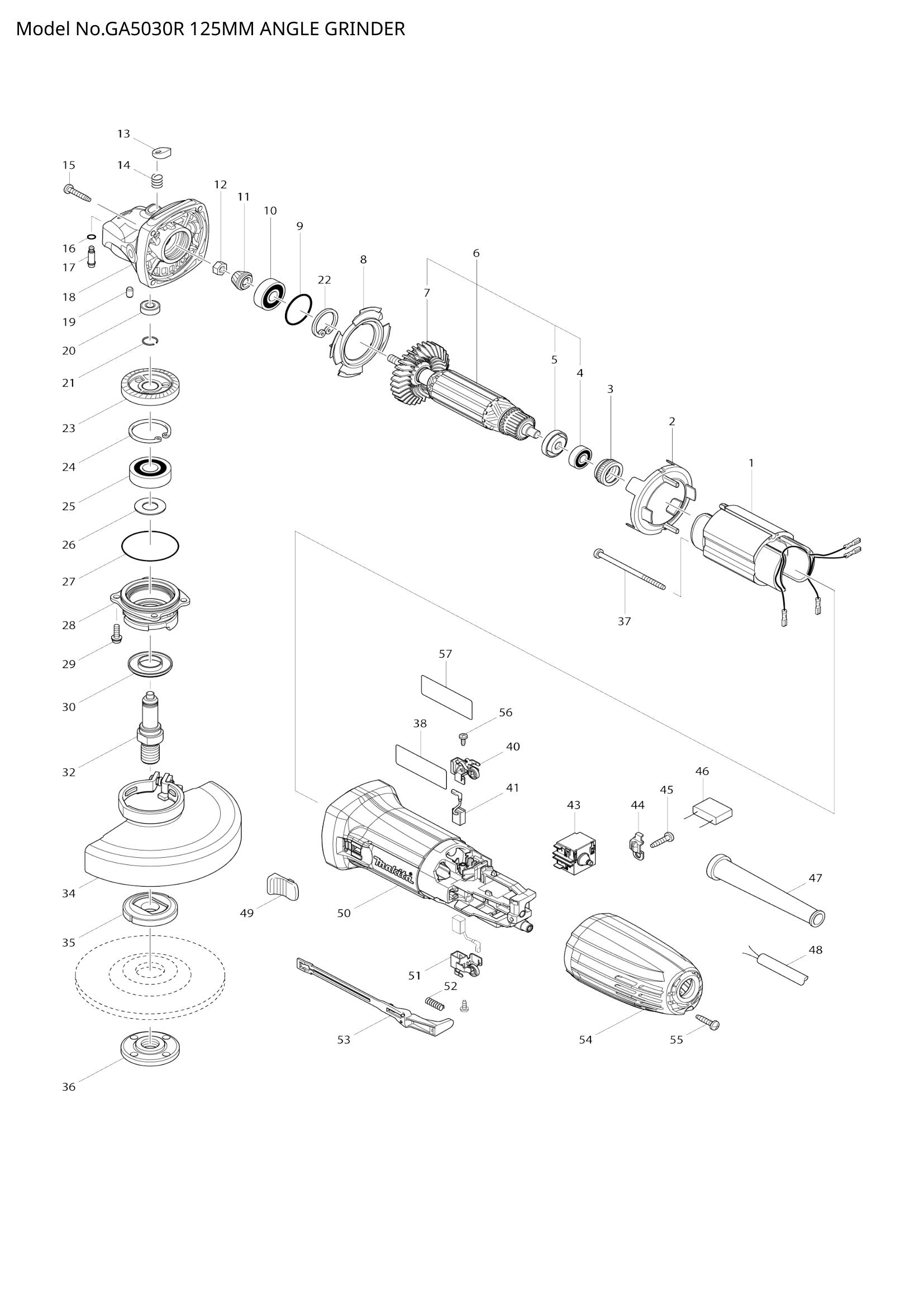

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 633903-9 | FIELD 220-240V | 1 | €16.00 | 1-4 weeks to ship | |
| 002 | 450796-7 | BAFFLE PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 004 | 210034-7 | BALL BEARING 607LLB | 1 | €1.39 | 1-4 weeks to ship | |
| 005 | 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 006 | 517649-4 | ARMATURE ASS'Y 240V | 1 | €25.05 | 1-4 weeks to ship | |
| 007 | 240139-9 | FAN 56 | 1 | €0.83 | 1-4 weeks to ship | |
| 008 | 413126-3 | GUIDE PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 211092-6 | BALL BEARING 629DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 012 | 252186-8 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | 417771-6 | PIN CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 234057-1 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 256510-7 | SHOULDER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 018 | 318335-8 | GEAR HOUSING | 1 | €11.13 | 1-4 weeks to ship | |
| 019 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | 210033-9 | BALL BEARING 696ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 021 | 233950-6 | RING SPRING 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 962105-3 | RETAINING RING R-26 | 1 | €0.56 | 1-4 weeks to ship | |
| 024 | 962151-6 | RETAINING RING R-32 | 1 | €0.56 | 1-4 weeks to ship | |
| 025 | 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 027 | 213561-3 | O RING 42 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 318336-6 | BEARING BOX | 1 | €2.78 | 1-4 weeks to ship | |
| 029 | 265099-4 | PAN HEAD SCREW M4X14 | 4 | €0.56 | 1-4 weeks to ship | |
| 030 | 345464-4 | LABYRINTH RING | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | 324954-0 | SPINDLE | 1 | €4.17 | 1-4 weeks to ship | |
| 035 | INNER FLANGE 42 | 1 | Not available in store | |||
| 036 | 224554-5 | LOCK NUT 14-45 | 1 | €2.78 | 1-4 weeks to ship | |
| 038 | GA5030R NAME PLATE | 1 | Not available in store | |||
| 040 | 643839-4 | BRUSH HOLDER 6X9 | 1 | €1.11 | 1-4 weeks to ship | |
| 643839-4 | BRUSH HOLDER 6X9 | 1 | €1.11 | 1-4 weeks to ship | ||
| 043 | 650769-2 | SWITCH | 1 | €15.58 | 1-4 weeks to ship | |
| 044 | 687681-3 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 047 | 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | |
| 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 048 | 665394-6 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | €9.04 | 1-4 weeks to ship | |
| 049 | 418016-5 | SWITCH KNOB | 1 | €0.56 | 1-4 weeks to ship | |
| 050 | 456380-6 | MOTOR HOUSING | 1 | €5.43 | 1-4 weeks to ship | |
| 051 | 643839-4 | BRUSH HOLDER 6X9 | 1 | €1.11 | 1-4 weeks to ship | |
| 643839-4 | BRUSH HOLDER 6X9 | 1 | €1.11 | 1-4 weeks to ship | ||
| 052 | 233121-5 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 053 | 450797-5 | SWITCH LEVER | 1 | €0.56 | 1-4 weeks to ship | |
