GA4591
GA4591

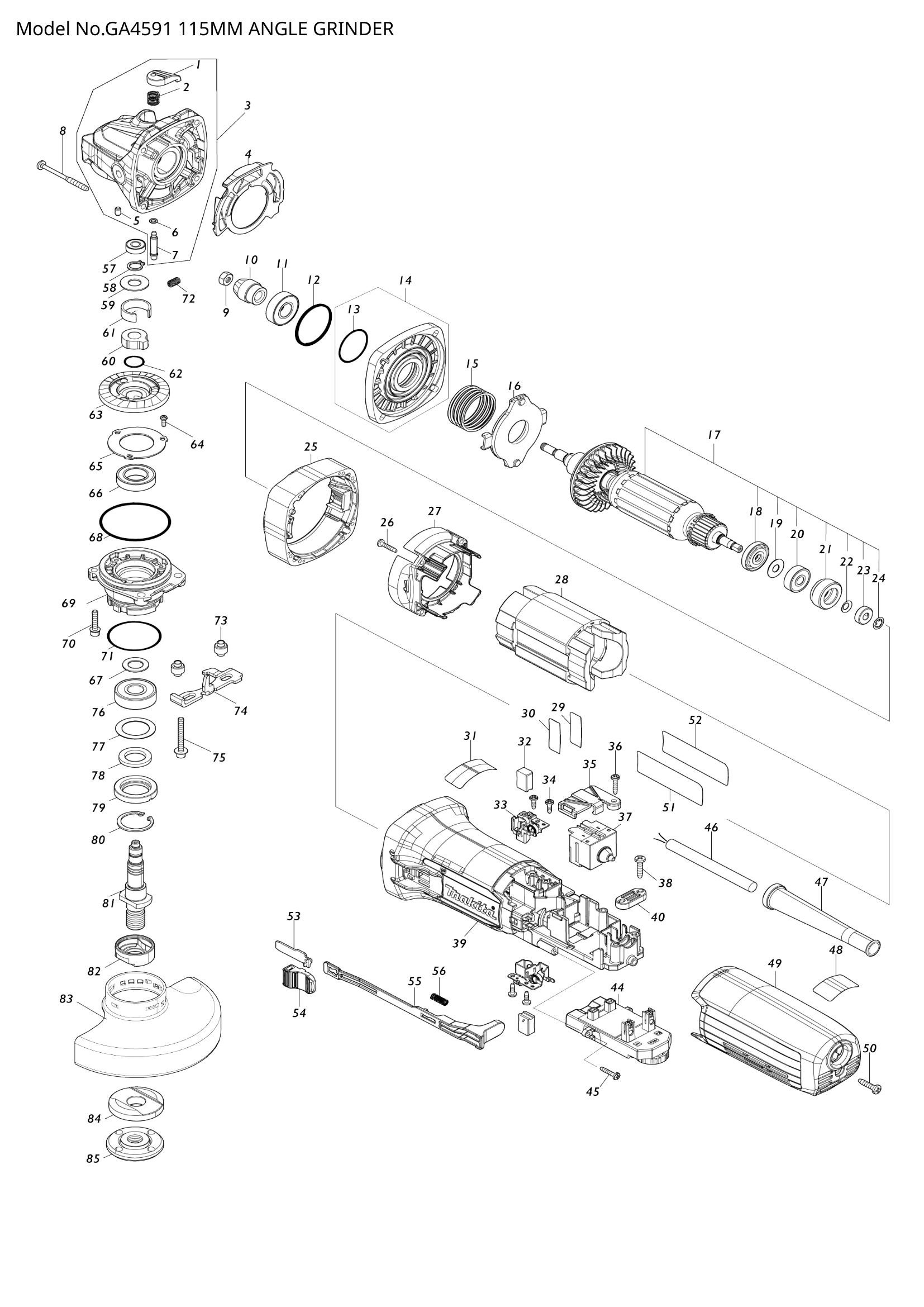

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 453369-5 | PIN CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 002 | 234057-1 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 003 | GEAR HOUSING ASS'Y | 1 | Not available in store | |||
| 004 | DIFFUSER | 1 | Not available in store | |||
| 005 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 007 | 256535-1 | SHOULDER PIN 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 008 | 266467-4 | TAPPING SCREW 4X50 | 4 | €0.56 | 1-4 weeks to ship | |
| 009 | 252186-8 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | SPIRAL BEVEL GEAR 11 | 1 | Not available in store | |||
| 011 | 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 012 | RUBBER PLATE | 1 | Not available in store | |||
| 013 | O-RING 27.5 | 1 | Not available in store | |||
| 014 | GEAR HOUSING COVER ASS'Y | 1 | Not available in store | |||
| 015 | 234230-3 | COMPRESSION SPRING 33 | 1 | €0.14 | 1-4 weeks to ship | |
| 016 | 141515-9 | BRAKE SHOE HOLDER COMPLET | 1 | €22.96 | 1-4 weeks to ship | |
| 017 | ARMATURE ASS'Y 240V | 1 | Not available in store | |||
| 018 | 681656-4 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 019 | 253823-7 | FLAT WASHER 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | 210027-4 | BALL BEARING 627DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 021 | LABYRINTH RUBBER RING 22 | 1 | Not available in store | |||
| 022 | 267756-0 | WAVE WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | 688117-5 | MAGNET SLEEVE | 1 | €2.78 | 1-4 weeks to ship | |
| 024 | 259039-2 | SELF LOCK 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 025 | SPACER | 1 | Not available in store | |||
| 026 | 266429-2 | TAPPING SCREW 3X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 027 | BAFFLE PLATE B | 1 | Not available in store | |||
| 028 | FIELD 220-240V | 1 | Not available in store | |||
| 030 | GA4591 SERIAL NO. LABEL | 1 | Not available in store | |||
| 032 | CARBON BRUSH 264 SET | 1 | Not available in store | |||
| 033 | BRUSH HOLDER | 2 | Not available in store | |||
| 034 | 266007-8 | TAPPING SCREW BIND PT 3X10 | 4 | €0.56 | 1-4 weeks to ship | |
| 035 | SWITCH COVER | 1 | Not available in store | |||
| 036 | 266429-2 | TAPPING SCREW 3X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | SWITCH FPC-2115T-0-02 | 1 | Not available in store | |||
| 038 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 039 | MOTOR HOUSING B | 1 | Not available in store | |||
| 040 | 687123-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 687123-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 044 | CONTROLLER | 1 | Not available in store | |||
| 045 | 266429-2 | TAPPING SCREW 3X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 046 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | Not available in store | |||
| 047 | CORD GUARD | 1 | Not available in store | |||
| 048 | INDICATION LABEL | 1 | Not available in store | |||
| 049 | REAR COVER C | 1 | Not available in store | |||
| 050 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 051 | GA4591 NAME PLATE | 1 | Not available in store | |||
| 053 | SWITCH PLATE | 1 | Not available in store | |||
| 054 | SWITCH KNOB B | 1 | Not available in store | |||
| 055 | SWITCH LEVER | 1 | Not available in store | |||
| 056 | 233121-5 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 057 | 210026-6 | BALL BEARING 696ZZ | 1 | €4.17 | 1-4 weeks to ship | |
| 058 | 961006-2 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 059 | 253180-3 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 060 | JOINT SLEEVE | 1 | Not available in store | |||
| 061 | C TYPE PLATE | 1 | Not available in store | |||
| 062 | 213122-9 | O RING 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 063 | SPIRAL BEVEL GEAR 38 | 1 | Not available in store | |||
| 064 | 265199-0 | + PAN HEAD SCREW M3X8 | 3 | €0.56 | 1-4 weeks to ship | |
| 065 | BEARING RETAINER 27-46 | 1 | Not available in store | |||
| 066 | 210302-8 | BALL BEARING 6903ZZ | 1 | €11.13 | 1-4 weeks to ship | |
| 067 | 253744-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 068 | 213641-5 | O RING 51 | 1 | €0.56 | 1-4 weeks to ship | |
| 069 | BEARING BOX B | 1 | Not available in store | |||
| 070 | 266948-8 | HEX S. H. BOLT M4X20 WITH WR | 2 | €0.28 | 1-4 weeks to ship | |
| 072 | COMPRESSION SPRING 4 | 1 | Not available in store | |||
| 073 | 327322-6 | SLEEVE 4 | 2 | €0.74 | 1-4 weeks to ship | |
| 074 | LEVER B | 1 | Not available in store | |||
| 075 | H.S.H.BOLT M4X35(WITH WG) | 2 | Not available in store | |||
| 076 | 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 077 | 267279-8 | FLAT WASHER 21 | 1 | €0.56 | 1-4 weeks to ship | |
| 078 | 443124-3 | FELT RING 17 | 1 | €0.42 | 1-4 weeks to ship | |
| 079 | 285854-8 | BEARING RETAINER 20-33 | 1 | €1.11 | 1-4 weeks to ship | |
| 080 | 962105-3 | RETAINING RING R-26 | 1 | €0.56 | 1-4 weeks to ship | |
| 081 | SPINDLE | 1 | Not available in store | |||
| 082 | 310514-4 | LEAD FLANGE | 1 | €10.16 | 1-4 weeks to ship | |
| 084 | 224447-6 | INNER FLANGE 42B | 1 | €4.45 | 1-4 weeks to ship | |
| 085 | 224485-8 | LOCK NUT 14-45 | 1 | €2.92 | 1-4 weeks to ship | |
