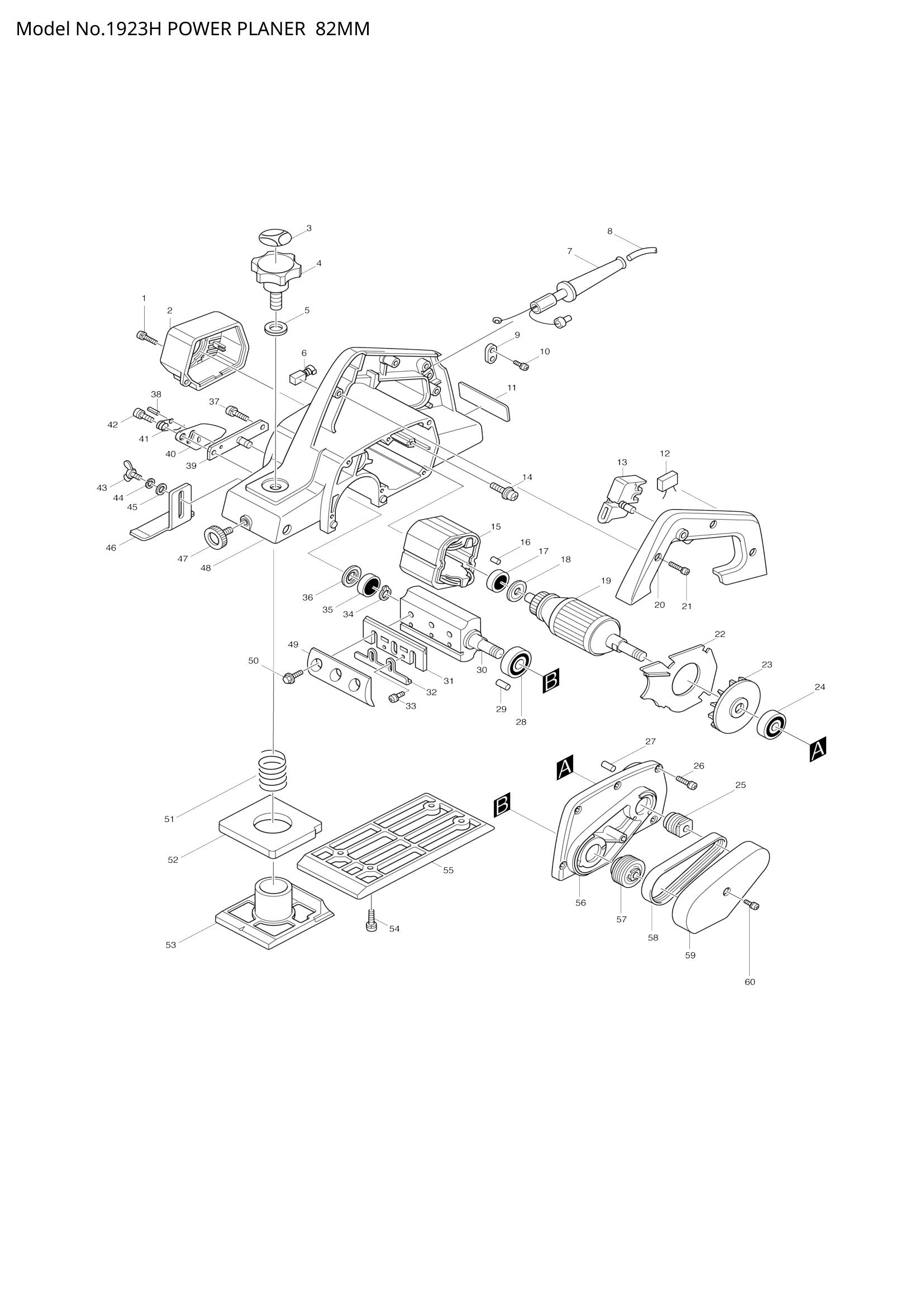

1923H
1923H
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | 410828-2 | REAR COVER | 1 | €8.35 | 1-4 weeks to ship | |
| 003 | 816601-2 | SCALE LABEL | 1 | €2.09 | 1-4 weeks to ship | |
| 004 | 271231-0 | KNOB 46 | 1 | €2.78 | 1-4 weeks to ship | |
| 005 | 941251-5 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | 855640-7 | NAME PLATE 1923H | 1 | €2.78 | 1-4 weeks to ship | |
| 014 | 911224-2 | PAN HEAD SCREW M5X16 | 2 | €0.83 | 1-4 weeks to ship | |
| 016 | 263014-2 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 211031-6 | BALL BEARING 608LLB | 1 | €1.67 | 1-4 weeks to ship | |
| 018 | 681613-2 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 911158-9 | PAN HEAD SCREW M4X30 | 3 | €0.56 | 1-4 weeks to ship | |
| 022 | 410827-4 | BAFFLE PLATE | 1 | €4.17 | 1-4 weeks to ship | |
| 023 | 241836-0 | FAN 65 | 1 | €4.17 | 1-4 weeks to ship | |
| 024 | 211066-7 | BALL BEARING 6200LLB | 1 | €6.12 | 1-4 weeks to ship | |
| 027 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 211067-5 | BALL BEARING 6200ZZ | 1 | €5.57 | 1-4 weeks to ship | |
| 029 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 034 | 961003-8 | RETAINING RING S-7 | 1 | €0.56 | 1-4 weeks to ship | |
| 036 | 285637-6 | BEARING RETAINER 7-21 | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | 911226-8 | PAN HEAD SCREW M5X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 041 | 231504-3 | TORSION SPRING 10 | 1 | €0.83 | 1-4 weeks to ship | |
| 043 | 924206-5 | WING BOLT M5X10 | 1 | €0.56 | 1-4 weeks to ship | |
| 924206-5 | WING BOLT M5X10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 044 | 942101-7 | SPRING WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 942101-7 | SPRING WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 045 | 941101-4 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 046 | 342390-8 | DEPTH GUIDE | 1 | €2.78 | 1-4 weeks to ship | |
| 047 | 251812-6 | SCREW M5X10 | 1 | €0.83 | 1-4 weeks to ship | |
| 048 | 157661-8 | MAIN FRAME | 1 | €52.88 | 1-4 weeks to ship | |
| 052 | 421007-7 | RUBBER PACKING | 1 | €0.97 | 1-4 weeks to ship | |
| 055 | 312023-9 | BASE | 1 | €11.13 | 1-4 weeks to ship | |
| 059 | 410826-6 | BELT COVER | 1 | €4.17 | 1-4 weeks to ship | |
| 902 | 331232-1 | SET BLOCK | 2 | €21.57 | 1-4 weeks to ship | |
| 903 | 342647-7 | SET PLATE | 2 | €4.87 | 1-4 weeks to ship | |
| 904 | TRIANGULAR RULE | 1 | Not available in store | |||
| 905 | 781213-9 | WRENCH 8 | 1 | €2.78 | 1-4 weeks to ship | |
| 906 | HEX. WRENCH 2.5 | 1 | Not available in store | |||
| 915 | 253807-5 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 917 | 343947-8 | SLIDE PLATE | 1 | €4.45 | 1-4 weeks to ship | |
