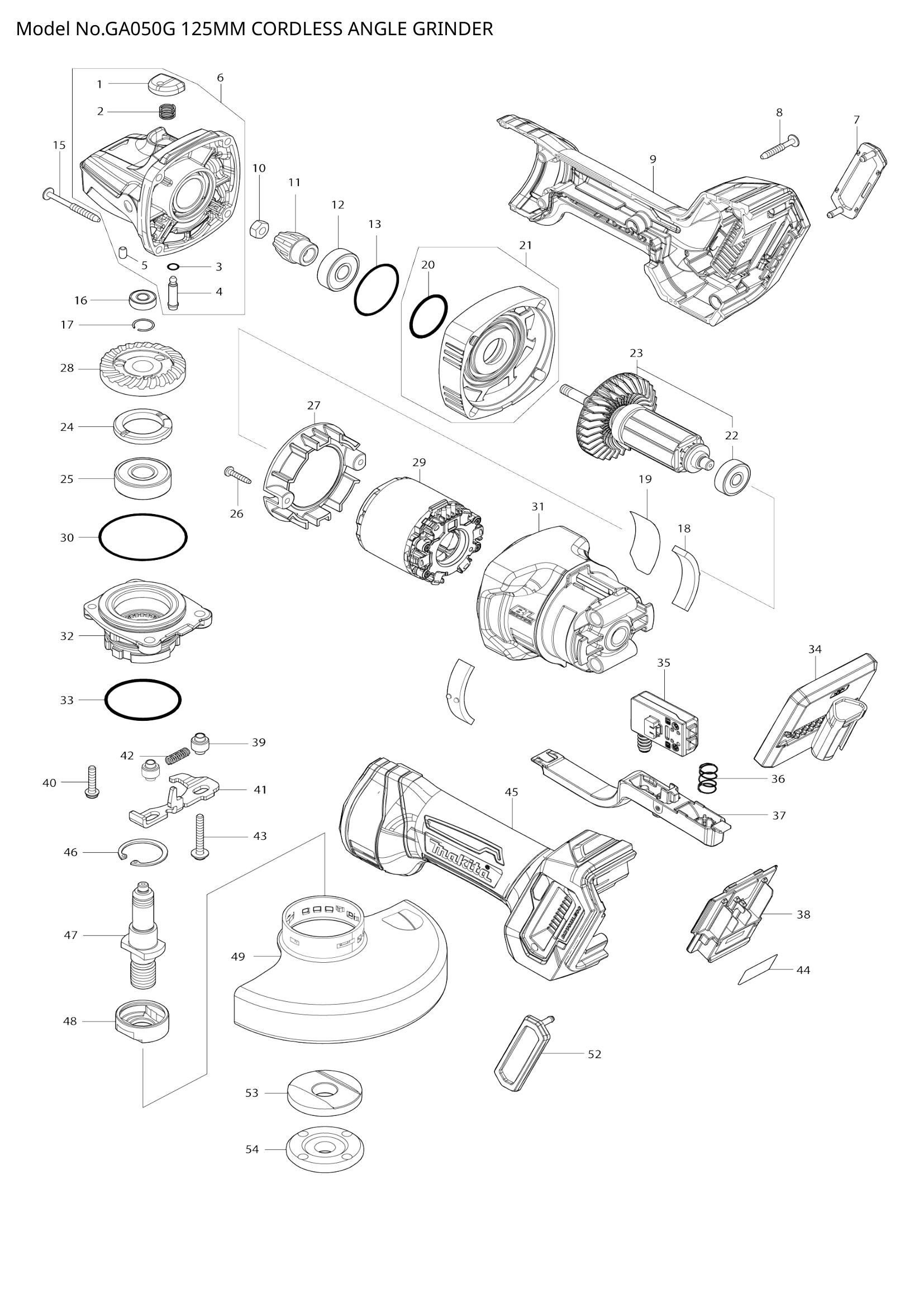

GA050G
GA050G
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | PIN CAP | 1 | Not available in store | |||
| 002 | 233072-2 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 003 | 213960-9 | O RING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 004 | 256546-6 | SHOULDER PIN 4 | 1 | €0.42 | 1-4 weeks to ship | |
| 005 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | GEAR HOUSING ASSEMBLY | 1 | Not available in store | |||
| 007 | DUST COVER | 1 | Not available in store | |||
| 008 | 265999-8 | TAPPING SCREW 4X25 | 5 | €0.56 | 1-4 weeks to ship | |
| 009 | HANDLE SET | 1 | Not available in store | |||
| 010 | 252186-8 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | 226976-5 | SPIRAL BEVEL GEAR 10 | 1 | €5.43 | 1-4 weeks to ship | |
| 012 | 210042-8 | BALL BEARING 629LLB | 1 | €4.17 | 1-4 weeks to ship | |
| 013 | O-RING 32 | 1 | Not available in store | |||
| 015 | 266048-4 | TAPPING SCREW 4X40 | 4 | €0.56 | 1-4 weeks to ship | |
| 016 | 210033-9 | BALL BEARING 696ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 017 | 233950-6 | RING SPRING 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 018 | FRONT CUSHION | 2 | Not available in store | |||
| 019 | GA050G NAME PLATE | 1 | Not available in store | |||
| 020 | 213445-5 | O-RING 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | GEAR HOUSING COVER ASS'Y | 1 | Not available in store | |||
| 024 | BEARING RETAINER 23-33 | 1 | Not available in store | |||
| 025 | 211137-0 | BALL BEARING 6201LLU | 1 | €8.35 | 1-4 weeks to ship | |
| 026 | 266429-2 | TAPPING SCREW 3X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 027 | BAFFLE PLATE | 1 | Not available in store | |||
| 028 | SPIRAL BEVEL GEAR 37 | 1 | Not available in store | |||
| 029 | STATOR | 1 | Not available in store | |||
| 030 | 213622-9 | O RING 45 | 1 | €0.56 | 1-4 weeks to ship | |
| 031 | MOTOR HOUSING SET | 1 | Not available in store | |||
| 032 | BEARING BOX COMPLETE | 1 | Not available in store | |||
| 033 | 213789-3 | O-RING 38 | 1 | €1.81 | 1-4 weeks to ship | |
| 034 | CONTROLLER | 1 | Not available in store | |||
| 035 | 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | |
| 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | ||
| 036 | 233263-5 | COMPRESSION SPRING 9 | 1 | €0.07 | 1-4 weeks to ship | |
| 037 | SWITCH LEVER COMPLETE | 1 | Not available in store | |||
| 038 | 632P65-6 | TERMINAL UNIT | 1 | €9.41 | 1-4 weeks to ship | |
| 039 | 327322-6 | SLEEVE 4 | 2 | €0.74 | 1-4 weeks to ship | |
| 040 | 911138-5 | P.H.SCREW M4X20 WITH WR | 2 | €0.56 | 1-4 weeks to ship | |
| 041 | LEVER | 1 | Not available in store | |||
| 042 | COMPRESSION SPRING 4 | 1 | Not available in store | |||
| 043 | 911159-7 | PAN HEAD SCREW M4X30 | 2 | €0.83 | 1-4 weeks to ship | |
| 044 | GA050G SERIAL NO.LABEL | 1 | Not available in store | |||
| 045 | HANDLE SET | 1 | Not available in store | |||
| 046 | 962105-3 | RETAINING RING R-26 | 1 | €0.56 | 1-4 weeks to ship | |
| 047 | 326672-6 | SPINDLE | 1 | €7.65 | 1-4 weeks to ship | |
| 048 | 310514-4 | LEAD FLANGE | 1 | €10.16 | 1-4 weeks to ship | |
| 049 | WHEEL COVER 125 COMPLETE | 1 | Not available in store | |||
| 052 | DUST COVER | 1 | Not available in store | |||
| 053 | 224447-6 | INNER FLANGE 42B | 1 | €4.45 | 1-4 weeks to ship | |
| 054 | 224485-8 | LOCK NUT 14-45 | 1 | €2.92 | 1-4 weeks to ship | |
