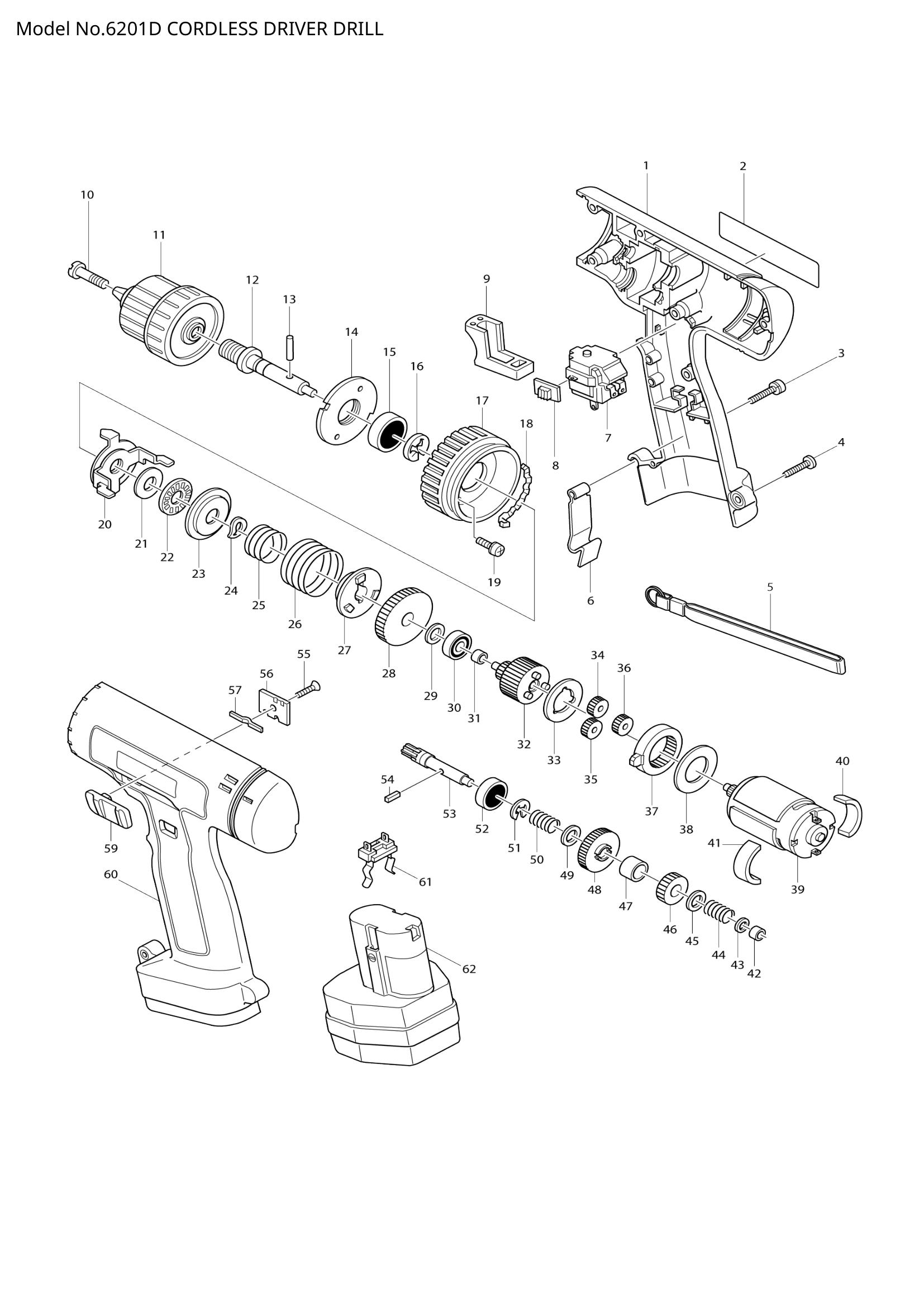

6201D
6201D
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | 857010-6 | NAME PLATE 6201D | 1 | €2.78 | 1-4 weeks to ship | |
| 003 | 911143-2 | PAN HEAD SCREW M4X22 | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | SET PLATE | 1 | Not available in store | |||
| 008 | 414740-8 | LEVER | 1 | €2.78 | 1-4 weeks to ship | |
| 012 | SPINDLE | 1 | Not available in store | |||
| 013 | 216011-7 | STEEL BALL 5.6 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 285673-2 | BEARING RETAINER 14 | 1 | €4.45 | 1-4 weeks to ship | |
| 015 | 211061-7 | BALL BEARING 6000LLB | 1 | €2.78 | 1-4 weeks to ship | |
| 016 | 961015-1 | STOP RING E-9 | 1 | €0.28 | 1-4 weeks to ship | |
| 961015-1 | STOP RING E-9 | 1 | €0.28 | 1-4 weeks to ship | ||
| 017 | 415013-2 | CHANGE RING | 1 | €8.35 | 1-4 weeks to ship | |
| 018 | 343976-1 | CAM PLATE | 2 | €4.45 | 1-4 weeks to ship | |
| 019 | 911119-9 | PAN HEAD SCREW M4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 020 | 165024-4 | SLIDER | 1 | €8.35 | 1-4 weeks to ship | |
| 021 | 253180-3 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | THRUST NEEDLE CAGE 1023 | 1 | Not available in store | |||
| 023 | WASHER 10 | 1 | Not available in store | |||
| 024 | 253932-2 | WAVE WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 025 | COMPRESSION SPRING 22 | 1 | Not available in store | |||
| 026 | 233044-7 | COMPRESSION SPRING 27 | 1 | €2.78 | 1-4 weeks to ship | |
| 027 | 223090-8 | CLUTCH CAM | 1 | €30.47 | 1-4 weeks to ship | |
| 028 | 226250-1 | SPUR GEAR 49 | 1 | €17.53 | 1-4 weeks to ship | |
| 029 | 267100-1 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 030 | 211016-2 | BALL BEARING 626LLB | 1 | €4.17 | 1-4 weeks to ship | |
| 031 | 214019-5 | PLANE BEARING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | GEAR COMPLETE | 1 | Not available in store | |||
| 033 | 267098-2 | FLAT WASHER 16 | 1 | €0.83 | 1-4 weeks to ship | |
| 034 | SPUR GEAR 15 | 1 | Not available in store | |||
| 035 | SPUR GEAR 15 | 1 | Not available in store | |||
| 036 | SPUR GEAR 15 | 1 | Not available in store | |||
| 037 | 226248-8 | INTERNAL GEAR 48 | 1 | €11.13 | 1-4 weeks to ship | |
| 038 | 253794-8 | FLAT WASHER 18 | 1 | €0.56 | 1-4 weeks to ship | |
| 039 | 629627-3 | DC MOTOR 9.6V | 1 | €58.44 | 1-4 weeks to ship | |
| 040 | 835244-1 | SPONGE 14-72 | 1 | €2.09 | 1-4 weeks to ship | |
| 041 | 835244-1 | SPONGE 14-72 | 1 | €2.09 | 1-4 weeks to ship | |
| 042 | 214019-5 | PLANE BEARING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 043 | 267099-0 | FLAT WASHER 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 044 | 233041-3 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 048 | 226292-5 | SPUR GEAR 40 | 1 | €15.03 | 1-4 weeks to ship | |
| 050 | 233041-3 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 051 | 961013-5 | STOP RING E-7 | 1 | €0.56 | 1-4 weeks to ship | |
| 052 | 211031-6 | BALL BEARING 608LLB | 1 | €1.67 | 1-4 weeks to ship | |
| 053 | SPUR GEAR 8 | 1 | Not available in store | |||
| 054 | 254236-5 | KEY 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 055 | +COUNTERSUNK HEAD SCREW M | 1 | Not available in store | |||
| 057 | 232053-3 | LEAF SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 059 | LEVER | 1 | Not available in store | |||
| 061 | 643918-8 | BATTERY HOLDER | 1 | €4.17 | 1-4 weeks to ship | |
| 643918-8 | BATTERY HOLDER | 1 | €4.17 | 1-4 weeks to ship | ||
