GA044G
GA044G

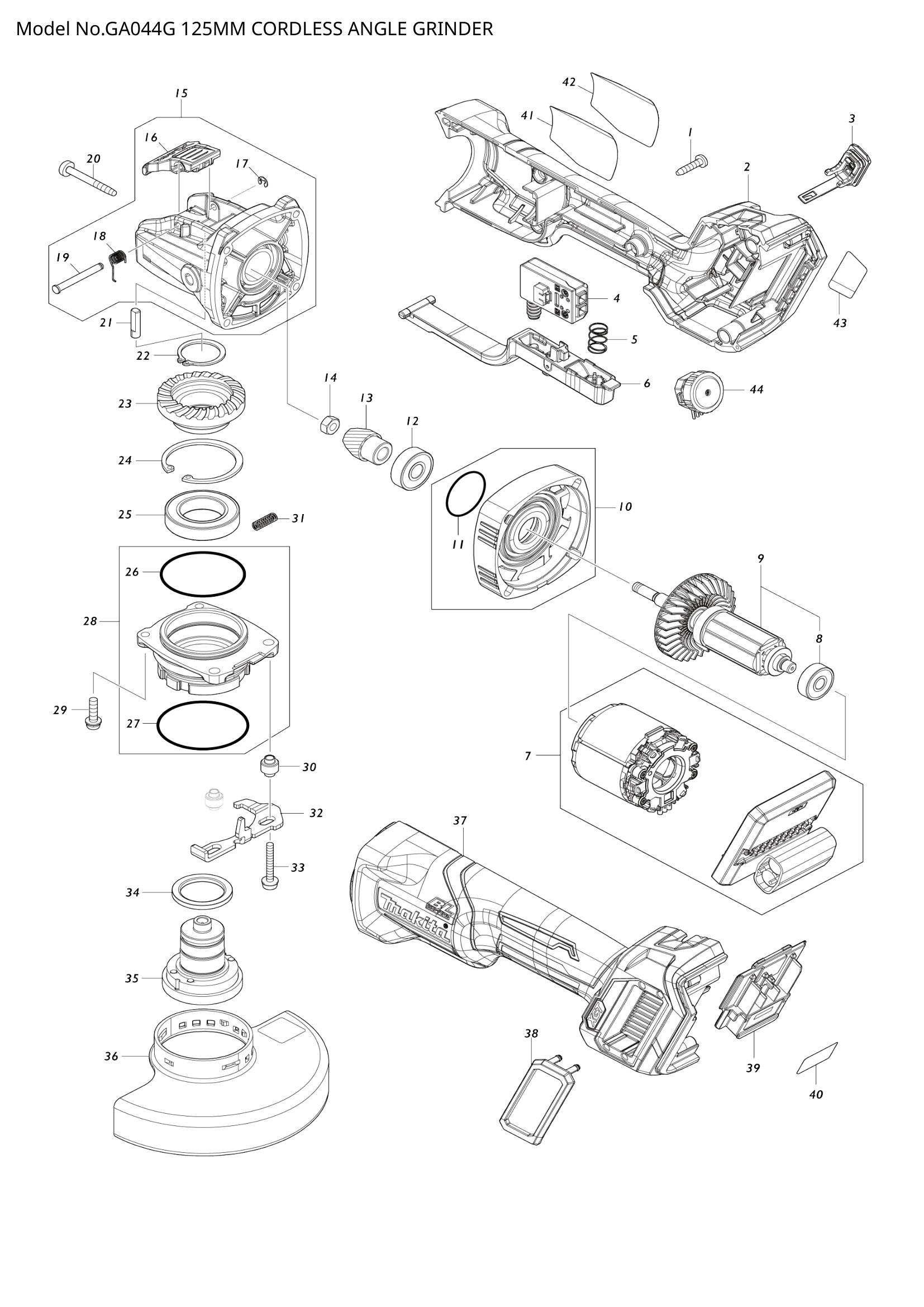

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 266326-2 | TAPPING SCREW 4X18 | 5 | €0.56 | 1-4 weeks to ship | |
| 002 | MOTOR HOUSING SET | 1 | Not available in store | |||
| 003 | CAP COMPLETE | 1 | Not available in store | |||
| 004 | 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | |
| 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | ||
| 005 | 233263-5 | COMPRESSION SPRING 9 | 1 | €0.07 | 1-4 weeks to ship | |
| 006 | SWITCH LEVER COMPLETE | 1 | Not available in store | |||
| 007 | STATOR COMPLETE | 1 | Not available in store | |||
| 010 | 136190-4 | GEAR HOUSING COVER ASS'Y | 1 | €6.26 | 1-4 weeks to ship | |
| 011 | 213445-5 | O-RING 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 012 | 210042-8 | BALL BEARING 629LLB | 1 | €4.17 | 1-4 weeks to ship | |
| 013 | SPIRAL BEVEL GEAR 10 | 1 | Not available in store | |||
| 014 | 252186-8 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | GEAR HOUSING ASS'Y | 1 | Not available in store | |||
| 016 | LEVER | 1 | Not available in store | |||
| 017 | 961017-7 | STOP RING E-3 | 1 | €0.56 | 1-4 weeks to ship | |
| 018 | TORSION SPRING 5 | 1 | Not available in store | |||
| 019 | HEADED PIN 4 | 1 | Not available in store | |||
| 020 | 266048-4 | TAPPING SCREW 4X40 | 4 | €0.56 | 1-4 weeks to ship | |
| 021 | SHAFT | 1 | Not available in store | |||
| 022 | RETAINING RING S-24 | 1 | Not available in store | |||
| 023 | SPIRAL BEVEL GEAR 37 | 1 | Not available in store | |||
| 024 | 962201-7 | RETAINING RING (INT) R-42 | 1 | €0.83 | 1-4 weeks to ship | |
| 025 | BALL BEARING 6905DDW | 1 | Not available in store | |||
| 026 | 213622-9 | O RING 45 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 213783-5 | O-RING 48 | 1 | €3.20 | 1-4 weeks to ship | |
| 028 | BEARING BOX ASS'Y | 1 | Not available in store | |||
| 029 | 911138-5 | P.H.SCREW M4X20 WITH WR | 2 | €0.56 | 1-4 weeks to ship | |
| 030 | 327322-6 | SLEEVE 4 | 2 | €0.74 | 1-4 weeks to ship | |
| 031 | COMPRESSION SPRING 4 | 1 | Not available in store | |||
| 032 | LEVER | 1 | Not available in store | |||
| 033 | 911159-7 | PAN HEAD SCREW M4X30 | 2 | €0.83 | 1-4 weeks to ship | |
| 034 | RING 25 | 1 | Not available in store | |||
| 035 | SPINDLE ASSEMBLY | 1 | Not available in store | |||
| 036 | WHEEL COVER 125 COMPLETE | 1 | Not available in store | |||
| 037 | MOTOR HOUSING SET | 1 | Not available in store | |||
| 038 | 422610-7 | DUST COVER | 1 | €1.21 | 1-4 weeks to ship | |
| 039 | 632P65-6 | TERMINAL UNIT | 1 | €9.41 | 1-4 weeks to ship | |
| 040 | GA044G SERIAL NO. LABEL | 1 | Not available in store | |||
| 041 | GA044G NAME PLATE | 1 | Not available in store | |||
| 043 | INDICATION LABEL | 1 | Not available in store | |||
| 044 | DIAL CIRCUIT | 1 | Not available in store | |||
