GA037G
GA037G

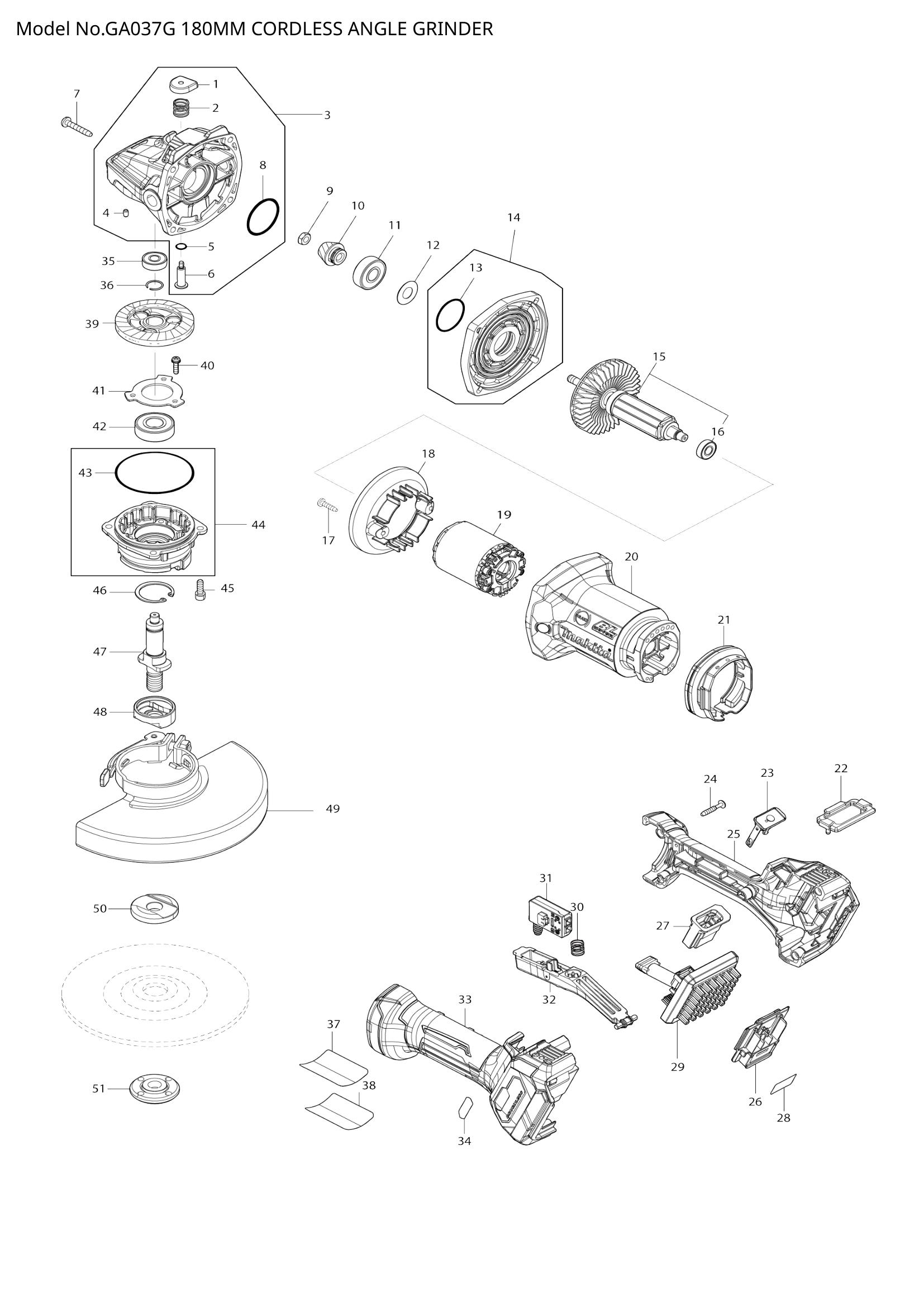

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | PIN CAP | 1 | Not available in store | |||
| 002 | 233292-8 | COMPRESSION SPRING 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 003 | GEAR HOUSING ASS'Y | 1 | Not available in store | |||
| 004 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 005 | 213026-5 | O RING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 256516-5 | SHOULDER PIN 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 007 | 266173-1 | TAPPING SCREW 5X30 | 4 | €0.56 | 1-4 weeks to ship | |
| 008 | 213510-0 | O RING 36 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 264010-3 | HEX.NUT M7 | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | SPIRAL BEVEL GEAR 10A | 1 | Not available in store | |||
| 011 | 211137-0 | BALL BEARING 6201LLU | 1 | €8.35 | 1-4 weeks to ship | |
| 012 | 253759-0 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | 213459-4 | O RING 32 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | GEAR HOUSING COVER ASS'Y | 1 | Not available in store | |||
| 015 | 519436-7 | ROTOR ASS'Y | 1 | €43.30 | 1-4 weeks to ship | |
| 519436-7 | ROTOR ASS'Y | 1 | €43.30 | 1-4 weeks to ship | ||
| 016 | 211166-3 | BALL BEARING 698DDW | 1 | €1.39 | 1-4 weeks to ship | |
| 017 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 018 | 457618-2 | BAFFLE PLATE | 1 | €1.06 | 1-4 weeks to ship | |
| 457618-2 | BAFFLE PLATE | 1 | €1.06 | 1-4 weeks to ship | ||
| 019 | STATOR | 1 | Not available in store | |||
| 020 | 457615-8 | MOTOR HOUSING | 1 | €9.74 | 1-4 weeks to ship | |
| 457615-8 | MOTOR HOUSING | 1 | €9.74 | 1-4 weeks to ship | ||
| 021 | 457619-0 | VIBRATION PROOF RUBBER | 1 | €2.53 | 1-4 weeks to ship | |
| 457619-0 | VIBRATION PROOF RUBBER | 1 | €2.53 | 1-4 weeks to ship | ||
| 022 | DUST COVER | 1 | Not available in store | |||
| 023 | CAP COMPLETE | 1 | Not available in store | |||
| 024 | 265999-8 | TAPPING SCREW 4X25 | 5 | €0.56 | 1-4 weeks to ship | |
| 025 | HANDLE SET | 1 | Not available in store | |||
| 026 | 632P49-4 | TERMINAL UNIT | 1 | €9.46 | 1-4 weeks to ship | |
| 027 | CONNECTOR CASE | 1 | Not available in store | |||
| 028 | GA037G SERIAL NO. LABEL | 1 | Not available in store | |||
| 029 | CONTROLLER | 1 | Not available in store | |||
| 030 | 234357-9 | COMPRESSION SPRING 11 | 1 | €0.14 | 1-4 weeks to ship | |
| 031 | 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | |
| 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | ||
| 032 | SWITCH LEVER COMPLETE | 1 | Not available in store | |||
| 033 | HANDLE SET | 1 | Not available in store | |||
| 034 | XGT LOGO LABEL | 1 | Not available in store | |||
| 035 | 210029-0 | BALL BEARING 608ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 036 | 233925-5 | RING SPRING 13 | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | GA037G NAME PLATE | 1 | Not available in store | |||
| 039 | SPIRAL BEVEL GEAR 38 | 1 | Not available in store | |||
| 040 | 911128-8 | P.H.SCREW M4X16 WITH WR | 3 | €0.56 | 1-4 weeks to ship | |
| 911128-8 | P.H.SCREW M4X16 WITH WR | 3 | €0.56 | 1-4 weeks to ship | ||
| 041 | 285851-4 | BEARING RETAINER | 1 | €0.56 | 1-4 weeks to ship | |
| 042 | 211241-5 | BALL BEARING 6202DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 043 | 213720-9 | O RING 67 | 1 | €0.83 | 1-4 weeks to ship | |
| 044 | BEARING BOX ASS'Y | 1 | Not available in store | |||
| 045 | 922221-3 | HEX. SOCKET HEAD BOLT M5X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 922221-3 | HEX. SOCKET HEAD BOLT M5X16 | 4 | €0.56 | 1-4 weeks to ship | ||
| 046 | 962151-6 | RETAINING RING R-32 | 1 | €0.56 | 1-4 weeks to ship | |
| 047 | 326963-5 | SPINDLE | 1 | €6.41 | 1-4 weeks to ship | |
| 048 | 310800-3 | LEAD FLANGE | 1 | €12.11 | 1-4 weeks to ship | |
| 050 | 224447-6 | INNER FLANGE 42B | 1 | €4.45 | 1-4 weeks to ship | |
| 051 | 224485-8 | LOCK NUT 14-45 | 1 | €2.92 | 1-4 weeks to ship | |
