GA026G
GA026G

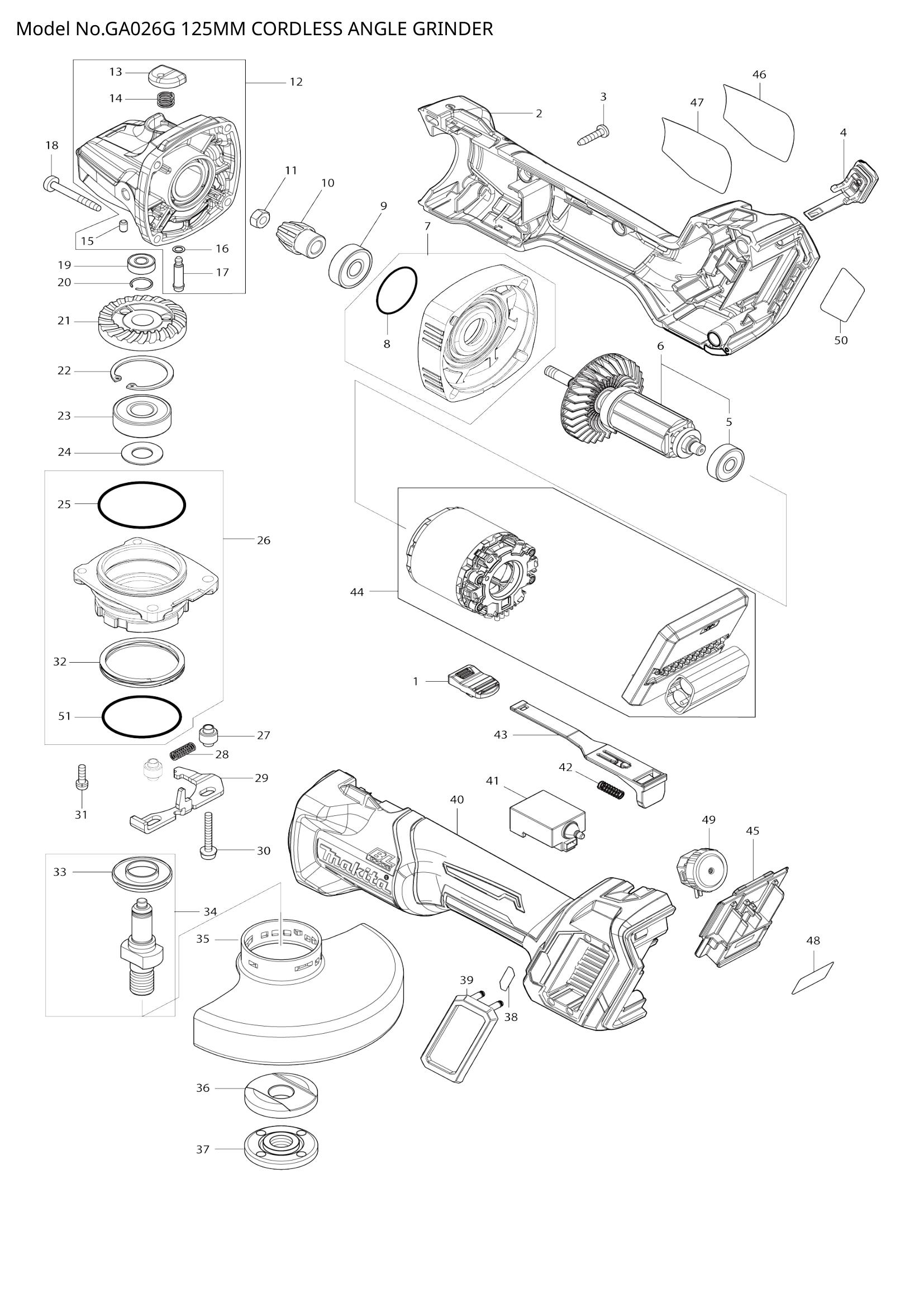

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 455447-7 | SWITCH KNOB | 1 | €0.28 | 1-4 weeks to ship | |
| 455447-7 | SWITCH KNOB | 1 | €0.28 | 1-4 weeks to ship | ||
| 002 | MOTOR HOUSING SET | 1 | Not available in store | |||
| 003 | 266326-2 | TAPPING SCREW 4X18 | 5 | €0.56 | 1-4 weeks to ship | |
| 004 | CAP COMPLETE | 1 | Not available in store | |||
| 007 | 136190-4 | GEAR HOUSING COVER ASS'Y | 1 | €6.26 | 1-4 weeks to ship | |
| 008 | 213445-5 | O-RING 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 210042-8 | BALL BEARING 629LLB | 1 | €4.17 | 1-4 weeks to ship | |
| 010 | 226976-5 | SPIRAL BEVEL GEAR 10 | 1 | €5.43 | 1-4 weeks to ship | |
| 011 | 252186-8 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 012 | GEAR HOUSING ASS'Y | 1 | Not available in store | |||
| 013 | PIN CAP | 1 | Not available in store | |||
| 014 | 233072-2 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 213960-9 | O RING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 256546-6 | SHOULDER PIN 4 | 1 | €0.42 | 1-4 weeks to ship | |
| 018 | 266048-4 | TAPPING SCREW 4X40 | 4 | €0.56 | 1-4 weeks to ship | |
| 019 | 210033-9 | BALL BEARING 696ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 020 | 233950-6 | RING SPRING 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 226862-0 | SPIRAL BEVEL GEAR 37 | 1 | €5.01 | 1-4 weeks to ship | |
| 022 | 962151-6 | RETAINING RING R-32 | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 024 | FLAT WASHER 12 | 1 | Not available in store | |||
| 026 | BEARING BOX ASS'Y | 1 | Not available in store | |||
| 027 | 327322-6 | SLEEVE 4 | 2 | €0.74 | 1-4 weeks to ship | |
| 028 | COMPRESSION SPRING 4 | 1 | Not available in store | |||
| 029 | LEVER A | 1 | Not available in store | |||
| 030 | 911159-7 | PAN HEAD SCREW M4X30 | 2 | €0.83 | 1-4 weeks to ship | |
| 031 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | |
| 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 033 | LABYRINTH RING | 1 | Not available in store | |||
| 034 | SPINDLE ASS'Y | 1 | Not available in store | |||
| 036 | INNER FLANGE 42 | 1 | Not available in store | |||
| 037 | 224554-5 | LOCK NUT 14-45 | 1 | €2.78 | 1-4 weeks to ship | |
| 038 | XGT LOGO LABEL | 1 | Not available in store | |||
| 039 | 422610-7 | DUST COVER | 1 | €1.21 | 1-4 weeks to ship | |
| 040 | MOTOR HOUSING SET | 1 | Not available in store | |||
| 041 | SWITCH FPM-1130 | 1 | Not available in store | |||
| 042 | 233121-5 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 043 | SWITCH LEVER | 1 | Not available in store | |||
| 044 | STATOR COMPLETE | 1 | Not available in store | |||
| 045 | 632P65-6 | TERMINAL UNIT | 1 | €9.41 | 1-4 weeks to ship | |
| 047 | GA026G NAME PLATE | 1 | Not available in store | |||
| 048 | GA026G SERIAL NO. LABEL | 1 | Not available in store | |||
| 049 | DIAL CIRCUIT | 1 | Not available in store | |||
| 050 | INDICATION LABEL | 1 | Not available in store | |||
| 051 | 213510-0 | O RING 36 | 1 | €0.56 | 1-4 weeks to ship | |
