GA005G
GA005G

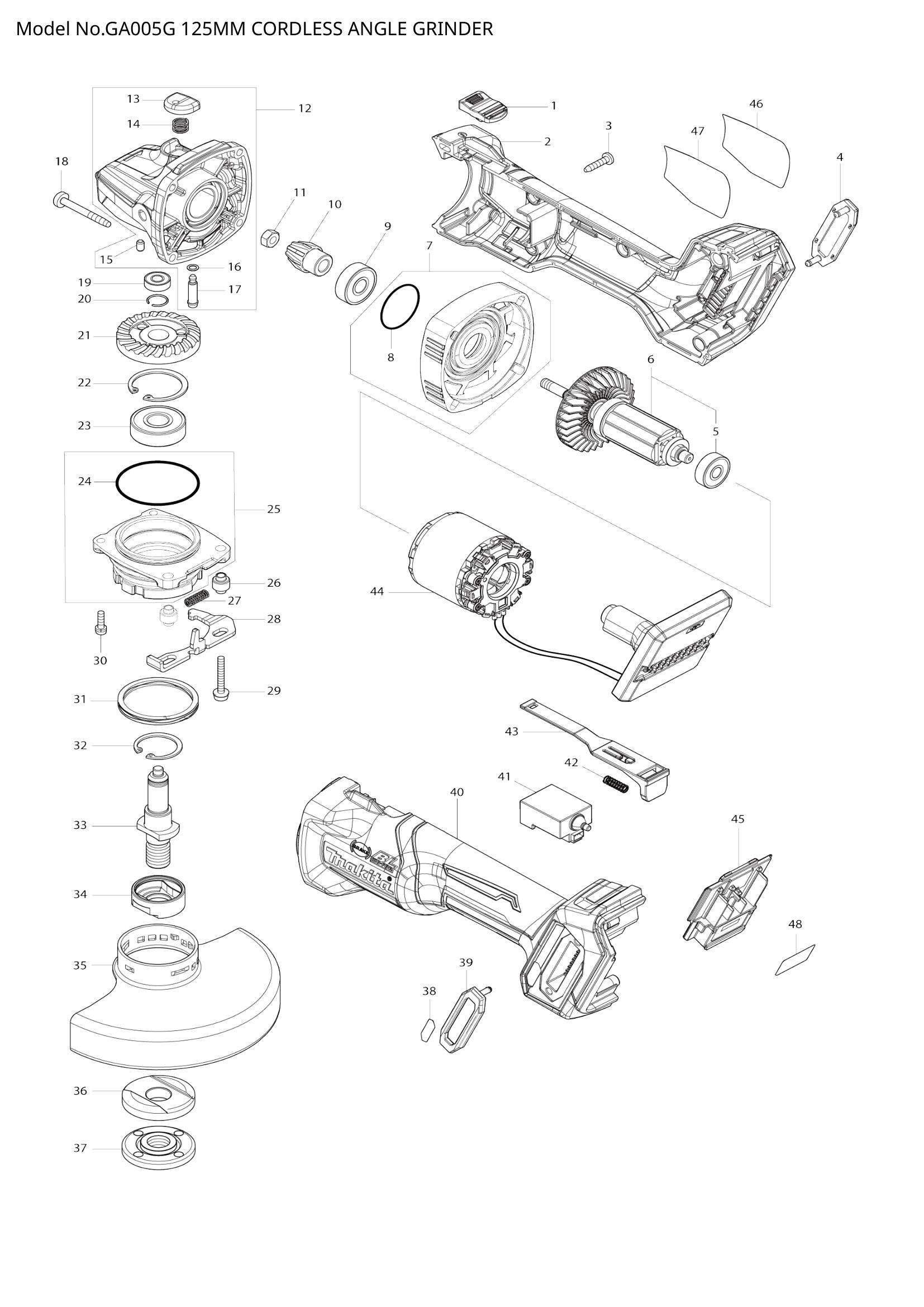

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 455447-7 | SWITCH KNOB | 1 | €0.28 | 1-4 weeks to ship | |
| 455447-7 | SWITCH KNOB | 1 | €0.28 | 1-4 weeks to ship | ||
| 002 | MOTOR HOUSING SET | 1 | Not available in store | |||
| 003 | 266326-2 | TAPPING SCREW 4X18 | 5 | €0.56 | 1-4 weeks to ship | |
| 004 | 422563-0 | DUST COVER | 1 | €1.53 | 1-4 weeks to ship | |
| 007 | 136190-4 | GEAR HOUSING COVER ASS'Y | 1 | €6.26 | 1-4 weeks to ship | |
| 008 | 213445-5 | O-RING 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 210042-8 | BALL BEARING 629LLB | 1 | €4.17 | 1-4 weeks to ship | |
| 010 | 226976-5 | SPIRAL BEVEL GEAR 10 | 1 | €5.43 | 1-4 weeks to ship | |
| 011 | 252186-8 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 012 | GEAR HOUSING ASS'Y | 1 | Not available in store | |||
| 013 | PIN CAP | 1 | Not available in store | |||
| 014 | 233072-2 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 213960-9 | O RING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 256546-6 | SHOULDER PIN 4 | 1 | €0.42 | 1-4 weeks to ship | |
| 018 | 266048-4 | TAPPING SCREW 4X40 | 4 | €0.56 | 1-4 weeks to ship | |
| 019 | 210033-9 | BALL BEARING 696ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 020 | 233950-6 | RING SPRING 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 226862-0 | SPIRAL BEVEL GEAR 37 | 1 | €5.01 | 1-4 weeks to ship | |
| 022 | 962151-6 | RETAINING RING R-32 | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 026 | 327322-6 | SLEEVE 4 | 2 | €0.74 | 1-4 weeks to ship | |
| 027 | COMPRESSION SPRING 4 | 1 | Not available in store | |||
| 028 | 347641-4 | LEVER B | 1 | €2.92 | 1-4 weeks to ship | |
| 029 | 911159-7 | PAN HEAD SCREW M4X30 | 2 | €0.83 | 1-4 weeks to ship | |
| 030 | 911138-5 | P.H.SCREW M4X20 WITH WR | 2 | €0.56 | 1-4 weeks to ship | |
| 032 | 962105-3 | RETAINING RING R-26 | 1 | €0.56 | 1-4 weeks to ship | |
| 033 | 326672-6 | SPINDLE | 1 | €7.65 | 1-4 weeks to ship | |
| 034 | 310514-4 | LEAD FLANGE | 1 | €10.16 | 1-4 weeks to ship | |
| 036 | 224447-6 | INNER FLANGE 42B | 1 | €4.45 | 1-4 weeks to ship | |
| 037 | 224554-5 | LOCK NUT 14-45 | 1 | €2.78 | 1-4 weeks to ship | |
| 038 | 8007R2-2 | XGT LOGO LABEL | 1 | €0.13 | 1-4 weeks to ship | |
| 039 | 422563-0 | DUST COVER | 1 | €1.53 | 1-4 weeks to ship | |
| 040 | MOTOR HOUSING SET | 1 | Not available in store | |||
| 041 | SWITCH FPM-1130 | 1 | Not available in store | |||
| 042 | 233121-5 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 043 | SWITCH LEVER | 1 | Not available in store | |||
| 044 | STATOR COMPLETE | 1 | Not available in store | |||
| 045 | 632P65-6 | TERMINAL UNIT | 1 | €9.41 | 1-4 weeks to ship | |
| 047 | GA005G NAME PLATE | 1 | Not available in store | |||
| 048 | GA005G SERIAL NO. LABEL | 1 | Not available in store | |||
