6172D
6172D

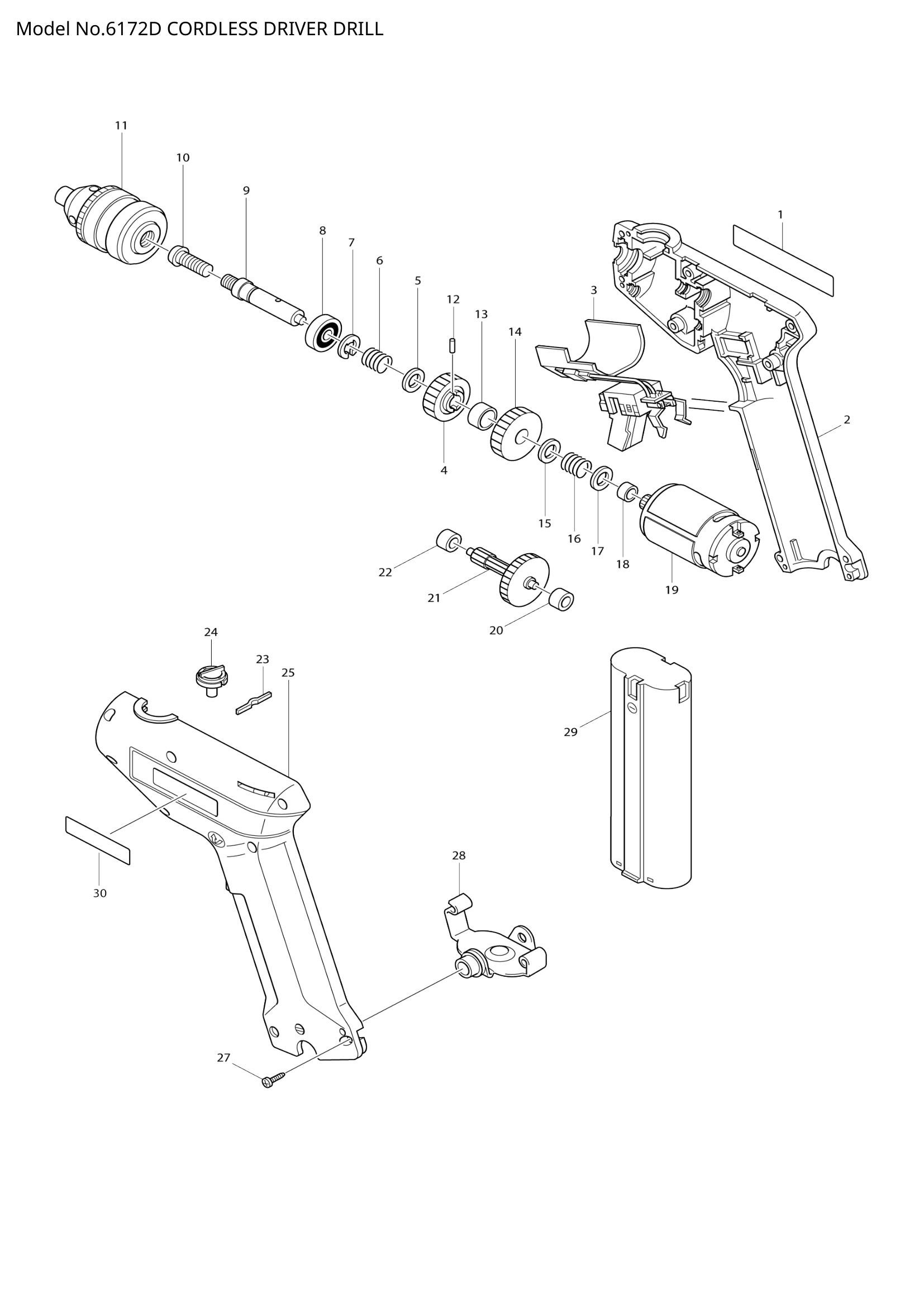

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 856794-3 | NAME PLATE 6172D | 1 | €2.78 | 1-4 weeks to ship | |
| 856794-3 | NAME PLATE 6172D | 1 | €2.78 | 1-4 weeks to ship | ||
| 003 | 651912-6 | SWITCH TG55A | 1 | €55.66 | 1-4 weeks to ship | |
| 651912-6 | SWITCH TG55A | 1 | €55.66 | 1-4 weeks to ship | ||
| 004 | 221861-7 | SPUR GEAR 69 | 1 | €13.92 | 1-4 weeks to ship | |
| 221861-7 | SPUR GEAR 69 | 1 | €13.92 | 1-4 weeks to ship | ||
| 005 | 253330-0 | THIN WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 253330-0 | THIN WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 006 | COMPRESSION SPRING 10 | 1 | Not available in store | |||
| COMPRESSION SPRING 10 | 1 | Not available in store | ||||
| 007 | 961015-1 | STOP RING E-9 | 1 | €0.28 | 1-4 weeks to ship | |
| 961015-1 | STOP RING E-9 | 1 | €0.28 | 1-4 weeks to ship | ||
| 961015-1 | STOP RING E-9 | 1 | €0.28 | 1-4 weeks to ship | ||
| 961015-1 | STOP RING E-9 | 1 | €0.28 | 1-4 weeks to ship | ||
| 008 | 211061-7 | BALL BEARING 6000LLB | 1 | €2.78 | 1-4 weeks to ship | |
| 211061-7 | BALL BEARING 6000LLB | 1 | €2.78 | 1-4 weeks to ship | ||
| 009 | 321723-0 | SPINDLE | 1 | €16.70 | 1-4 weeks to ship | |
| 321723-0 | SPINDLE | 1 | €16.70 | 1-4 weeks to ship | ||
| 012 | 256101-4 | PIN 3 | 1 | €2.09 | 1-4 weeks to ship | |
| 256101-4 | PIN 3 | 1 | €2.09 | 1-4 weeks to ship | ||
| 013 | 257073-6 | RING 16 | 1 | €2.78 | 1-4 weeks to ship | |
| 257073-6 | RING 16 | 1 | €2.78 | 1-4 weeks to ship | ||
| 014 | 221862-5 | SPUR GEAR 78 | 1 | €15.03 | 1-4 weeks to ship | |
| 221862-5 | SPUR GEAR 78 | 1 | €15.03 | 1-4 weeks to ship | ||
| 015 | 253330-0 | THIN WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 253330-0 | THIN WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 016 | COMPRESSION SPRING 10 | 1 | Not available in store | |||
| COMPRESSION SPRING 10 | 1 | Not available in store | ||||
| 017 | 253807-5 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 253807-5 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 018 | 214017-9 | PLANE BEARING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 214017-9 | PLANE BEARING 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 020 | 214016-1 | PLANE BEARING 3 | 1 | €2.09 | 1-4 weeks to ship | |
| 214016-1 | PLANE BEARING 3 | 1 | €2.09 | 1-4 weeks to ship | ||
| 021 | 153126-8 | GEAR COMPLETE | 1 | €30.61 | 1-4 weeks to ship | |
| 153126-8 | GEAR COMPLETE | 1 | €30.61 | 1-4 weeks to ship | ||
| 022 | 214016-1 | PLANE BEARING 3 | 1 | €2.09 | 1-4 weeks to ship | |
| 214016-1 | PLANE BEARING 3 | 1 | €2.09 | 1-4 weeks to ship | ||
| 023 | 232053-3 | LEAF SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 232053-3 | LEAF SPRING | 1 | €0.56 | 1-4 weeks to ship | ||
| 024 | 168097-6 | SHIFTER | 1 | €5.57 | 1-4 weeks to ship | |
| 168097-6 | SHIFTER | 1 | €5.57 | 1-4 weeks to ship | ||
| 030 | 819063-3 | MAKITA LABEL | 1 | €0.56 | 1-4 weeks to ship | |
| 819063-3 | MAKITA LABEL | 1 | €0.56 | 1-4 weeks to ship | ||
