FS6300
FS6300

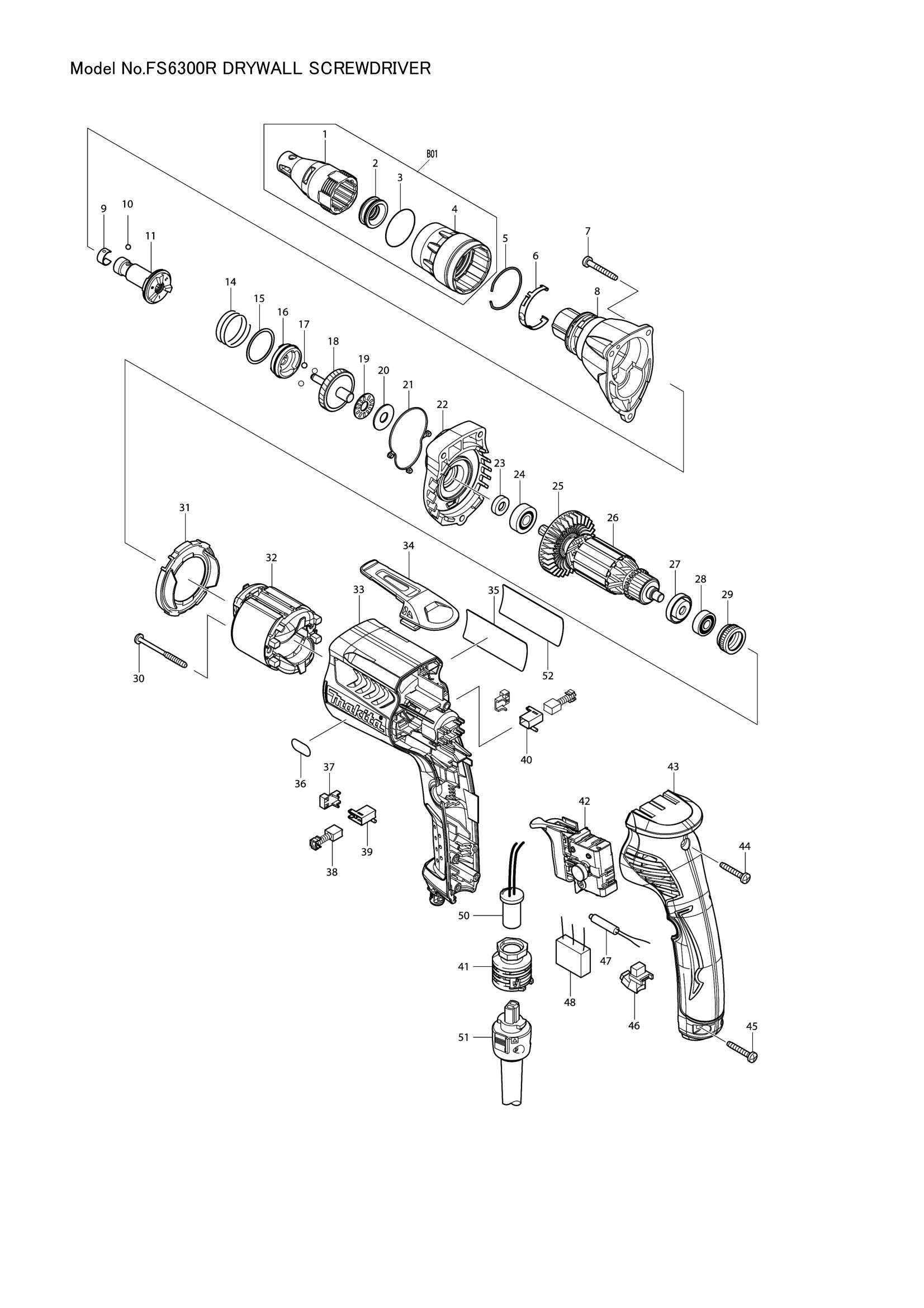

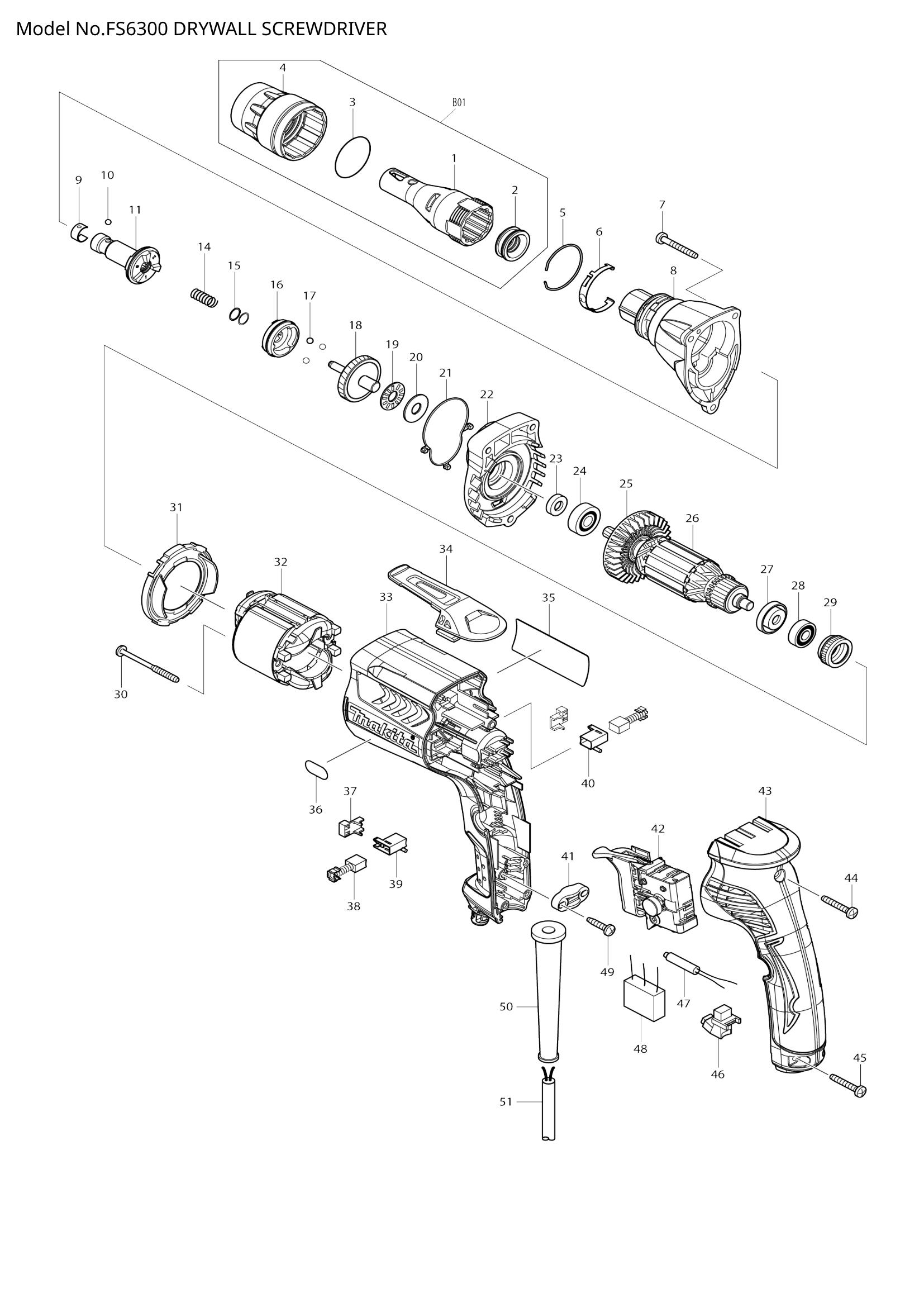

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 158875-2 | LOCATOR S COMPLETE | 1 | €5.57 | 1-4 weeks to ship | |
| 158875-2 | LOCATOR S COMPLETE | 1 | €5.57 | 1-4 weeks to ship | ||
| 002 | 424163-2 | DUST SEAL SLEEVE | 1 | €0.56 | 1-4 weeks to ship | |
| 424163-2 | DUST SEAL SLEEVE | 1 | €0.56 | 1-4 weeks to ship | ||
| 003 | 424235-3 | SEAL RING 30 | 1 | €0.56 | 1-4 weeks to ship | |
| 424235-3 | SEAL RING 30 | 1 | €0.56 | 1-4 weeks to ship | ||
| 005 | 233974-2 | RING SPRING 33 | 1 | €0.56 | 1-4 weeks to ship | |
| 233974-2 | RING SPRING 33 | 1 | €0.56 | 1-4 weeks to ship | ||
| 006 | 232245-4 | LEAF SPRING | 1 | €2.78 | 1-4 weeks to ship | |
| 232245-4 | LEAF SPRING | 1 | €2.78 | 1-4 weeks to ship | ||
| 007 | 266361-0 | TAPPING SCREW 4X30 | 3 | €0.56 | 1-4 weeks to ship | |
| 266361-0 | TAPPING SCREW 4X30 | 3 | €0.56 | 1-4 weeks to ship | ||
| 008 | 158881-7 | GEAR HOUSING HSA COMPLETE | 1 | €16.70 | 1-4 weeks to ship | |
| 158881-7 | GEAR HOUSING HSA COMPLETE | 1 | €16.70 | 1-4 weeks to ship | ||
| 009 | 232050-9 | LEAF SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 232050-9 | LEAF SPRING | 1 | €0.56 | 1-4 weeks to ship | ||
| 010 | 216001-0 | STEEL BALL 3.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 216001-0 | STEEL BALL 3.5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 011 | 158886-7 | SPINDLE 125S COMPLETE | 1 | €22.26 | 1-4 weeks to ship | |
| 158886-7 | SPINDLE 125S COMPLETE | 1 | €22.26 | 1-4 weeks to ship | ||
| 014 | 234121-8 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 234121-8 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 015 | 267202-3 | FLAT WASHER 8 | 2 | €0.56 | 1-4 weeks to ship | |
| 267202-3 | FLAT WASHER 8 | 2 | €0.56 | 1-4 weeks to ship | ||
| 016 | 223170-0 | CLUTCH CAM 125S | 1 | €13.92 | 1-4 weeks to ship | |
| 223170-0 | CLUTCH CAM 125S | 1 | €13.92 | 1-4 weeks to ship | ||
| 017 | 216008-6 | STEEL BALL 4 | 3 | €0.56 | 1-4 weeks to ship | |
| 216008-6 | STEEL BALL 4 | 3 | €0.56 | 1-4 weeks to ship | ||
| 018 | 158885-9 | GEAR 38S COMPLETE | 1 | €22.26 | 1-4 weeks to ship | |
| 158885-9 | GEAR 38S COMPLETE | 1 | €22.26 | 1-4 weeks to ship | ||
| 020 | 216212-7 | WASHER 821 | 1 | €1.25 | 1-4 weeks to ship | |
| 216212-7 | WASHER 821 | 1 | €1.25 | 1-4 weeks to ship | ||
| 021 | 424162-4 | SEAL RING | 1 | €0.56 | 1-4 weeks to ship | |
| 424162-4 | SEAL RING | 1 | €0.56 | 1-4 weeks to ship | ||
| 022 | 158874-4 | GEAR HOUSING COVER COMPLE | 1 | €2.78 | 1-4 weeks to ship | |
| 158874-4 | GEAR HOUSING COVER COMPLE | 1 | €2.78 | 1-4 weeks to ship | ||
| 023 | 451100-3 | RING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 451100-3 | RING 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 024 | 210007-0 | BALL BEARING 608VV | 1 | €5.57 | 1-4 weeks to ship | |
| 210007-0 | BALL BEARING 608VV | 1 | €5.57 | 1-4 weeks to ship | ||
| 025 | 240083-0 | FAN 52 | 1 | €1.39 | 1-4 weeks to ship | |
| 240083-0 | FAN 52 | 1 | €1.39 | 1-4 weeks to ship | ||
| 026 | 515754-1 | ARMATURE ASSEMBLY 240V | 1 | €22.26 | 1-4 weeks to ship | |
| 515754-1 | ARMATURE ASSEMBLY 240V | 1 | €22.26 | 1-4 weeks to ship | ||
| 027 | 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 028 | 210062-2 | BALL BEARING 607ZZ | 1 | €0.83 | 1-4 weeks to ship | |
| 210062-2 | BALL BEARING 607ZZ | 1 | €0.83 | 1-4 weeks to ship | ||
| 029 | 421868-5 | LABYRINTH RUBBER RING 19 | 1 | €0.83 | 1-4 weeks to ship | |
| 421868-5 | LABYRINTH RUBBER RING 19 | 1 | €0.83 | 1-4 weeks to ship | ||
| 030 | 266467-4 | TAPPING SCREW 4X50 | 2 | €0.56 | 1-4 weeks to ship | |
| 266467-4 | TAPPING SCREW 4X50 | 2 | €0.56 | 1-4 weeks to ship | ||
| 031 | 450880-8 | BAFFLE PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 450880-8 | BAFFLE PLATE | 1 | €0.56 | 1-4 weeks to ship | ||
| 032 | 633693-4 | FIELD 220-240V | 1 | €11.13 | 1-4 weeks to ship | |
| 633693-4 | FIELD 220-240V | 1 | €11.13 | 1-4 weeks to ship | ||
| 033 | 450878-5 | MOTOR HOUSING L | 1 | €8.35 | 1-4 weeks to ship | |
| 450878-5 | MOTOR HOUSING L | 1 | €8.35 | 1-4 weeks to ship | ||
| 034 | 162272-6 | HOOK | 1 | €1.67 | 1-4 weeks to ship | |
| 162272-6 | HOOK | 1 | €1.67 | 1-4 weeks to ship | ||
| 035 | 866558-7 | FS6300 NAME PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 866558-7 | FS6300 NAME PLATE | 1 | €0.56 | 1-4 weeks to ship | ||
| 036 | 6000RPM INDICATION LABEL | 1 | Not available in store | |||
| 6000RPM INDICATION LABEL | 1 | Not available in store | ||||
| 037 | 689111-0 | SPACER | 2 | €0.56 | 1-4 weeks to ship | |
| 689111-0 | SPACER | 2 | €0.56 | 1-4 weeks to ship | ||
| 039 | 643948-9 | BRUSH HOLDER | 1 | €0.56 | 1-4 weeks to ship | |
| 643948-9 | BRUSH HOLDER | 1 | €0.56 | 1-4 weeks to ship | ||
| 040 | 643951-0 | BRUSH HOLDER | 1 | €0.56 | 1-4 weeks to ship | |
| 643951-0 | BRUSH HOLDER | 1 | €0.56 | 1-4 weeks to ship | ||
| 041 | 687124-5 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 687124-5 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 042 | 650614-1 | SWITCH | 1 | €22.26 | 1-4 weeks to ship | |
| 650614-1 | SWITCH | 1 | €22.26 | 1-4 weeks to ship | ||
| 043 | 158878-6 | HANDLE COVER L COMPLETE | 1 | €11.13 | 1-4 weeks to ship | |
| 158878-6 | HANDLE COVER L COMPLETE | 1 | €11.13 | 1-4 weeks to ship | ||
| 044 | 266374-1 | TAPPING SCREW 4X25 | 1 | €0.56 | 1-4 weeks to ship | |
| 266374-1 | TAPPING SCREW 4X25 | 1 | €0.56 | 1-4 weeks to ship | ||
| 045 | 266374-1 | TAPPING SCREW 4X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 266374-1 | TAPPING SCREW 4X25 | 2 | €0.56 | 1-4 weeks to ship | ||
| 046 | 631939-2 | LIGHT CIRCUIT | 1 | €8.35 | 1-4 weeks to ship | |
| 631939-2 | LIGHT CIRCUIT | 1 | €8.35 | 1-4 weeks to ship | ||
| 047 | 646122-8 | CHOKE COIL | 1 | €1.39 | 1-4 weeks to ship | |
| 646122-8 | CHOKE COIL | 1 | €1.39 | 1-4 weeks to ship | ||
| 646122-8 | CHOKE COIL | 1 | €1.39 | 1-4 weeks to ship | ||
| 646122-8 | CHOKE COIL | 1 | €1.39 | 1-4 weeks to ship | ||
| 048 | 645253-0 | NOISE SUPPRESSOR | 1 | €1.11 | 1-4 weeks to ship | |
| 645253-0 | NOISE SUPPRESSOR | 1 | €1.11 | 1-4 weeks to ship | ||
| 645253-0 | NOISE SUPPRESSOR | 1 | €1.11 | 1-4 weeks to ship | ||
| 645253-0 | NOISE SUPPRESSOR | 1 | €1.11 | 1-4 weeks to ship | ||
| 049 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 050 | 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | |
| 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 051 | 695034-2 | POWER SUPPLY CORD 1.0-2-4.0 | 1 | €19.48 | 1-4 weeks to ship | |
| 695034-2 | POWER SUPPLY CORD 1.0-2-4.0 | 1 | €19.48 | 1-4 weeks to ship | ||
| 053 | 423413-2 | RUBBER PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 423413-2 | RUBBER PLATE | 1 | €0.56 | 1-4 weeks to ship | ||
