6096D
6096D

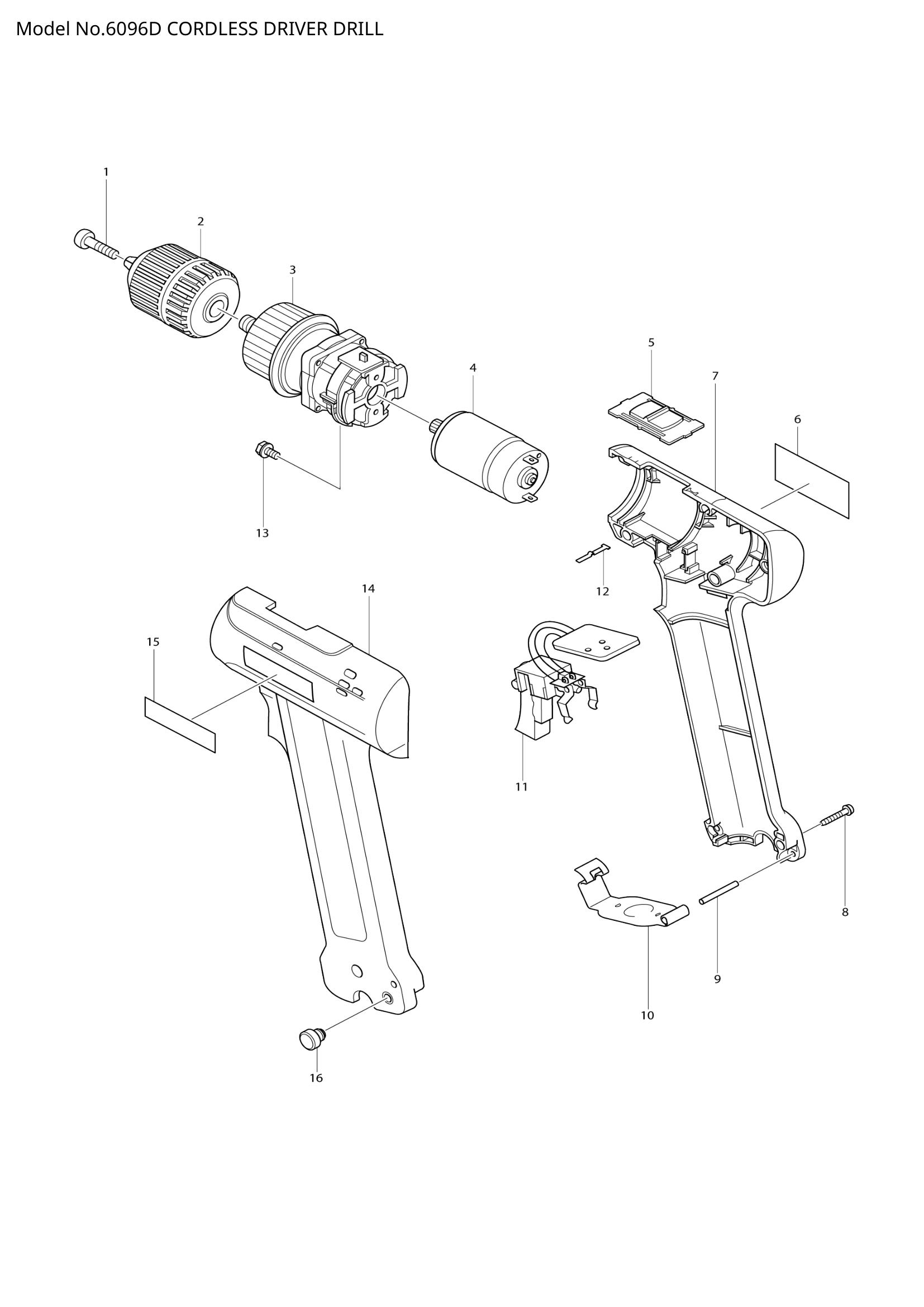

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 251457-0 | - PAN HEAD SCREW M5X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 251457-0 | - PAN HEAD SCREW M5X20 | 1 | €0.56 | 1-4 weeks to ship | ||
| 003 | 125087-2 | GEAR ASS'Y | 1 | €33.40 | 1-4 weeks to ship | |
| 125087-2 | GEAR ASS'Y | 1 | €33.40 | 1-4 weeks to ship | ||
| 005 | 125091-1 | SPEED CHANGE LEVER ASS'Y | 1 | €0.83 | 1-4 weeks to ship | |
| 125091-1 | SPEED CHANGE LEVER ASS'Y | 1 | €0.83 | 1-4 weeks to ship | ||
| 006 | 859566-5 | Name plate 6096D | 1 | €2.92 | 1-4 weeks to ship | |
| 859566-5 | Name plate 6096D | 1 | €2.92 | 1-4 weeks to ship | ||
| 007 | 183016-1 | Housing set (blue) | 1 | €18.09 | 1-4 weeks to ship | |
| 183016-1 | Housing set (blue) | 1 | €18.09 | 1-4 weeks to ship | ||
| 008 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 7 | €0.56 | 1-4 weeks to ship | |
| 266130-9 | TAPPING SCREW BIND PT 3X16 | 7 | €0.56 | 1-4 weeks to ship | ||
| 009 | 256252-3 | PIN 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 256252-3 | PIN 3 | 1 | €0.56 | 1-4 weeks to ship | ||
| 010 | 344549-3 | SET PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 344549-3 | SET PLATE | 1 | €2.78 | 1-4 weeks to ship | ||
| 012 | 232182-2 | LEAF SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 232182-2 | LEAF SPRING | 1 | €0.56 | 1-4 weeks to ship | ||
| 013 | 911003-8 | PAN HEAD SCREW M3X6 | 2 | €0.56 | 1-4 weeks to ship | |
| 911003-8 | PAN HEAD SCREW M3X6 | 2 | €0.56 | 1-4 weeks to ship | ||
| 911003-8 | PAN HEAD SCREW M3X6 | 2 | €0.56 | 1-4 weeks to ship | ||
| 911003-8 | PAN HEAD SCREW M3X6 | 2 | €0.56 | 1-4 weeks to ship | ||
| 014 | 183016-1 | Housing set (blue) | 1 | €18.09 | 1-4 weeks to ship | |
| 183016-1 | Housing set (blue) | 1 | €18.09 | 1-4 weeks to ship | ||
| 015 | 819063-3 | MAKITA LABEL | 1 | €0.56 | 1-4 weeks to ship | |
| 819063-3 | MAKITA LABEL | 1 | €0.56 | 1-4 weeks to ship | ||
| 016 | 263022-3 | RUBBER PIN 6 | 2 | €0.83 | 1-4 weeks to ship | |
| 263022-3 | RUBBER PIN 6 | 2 | €0.83 | 1-4 weeks to ship |
