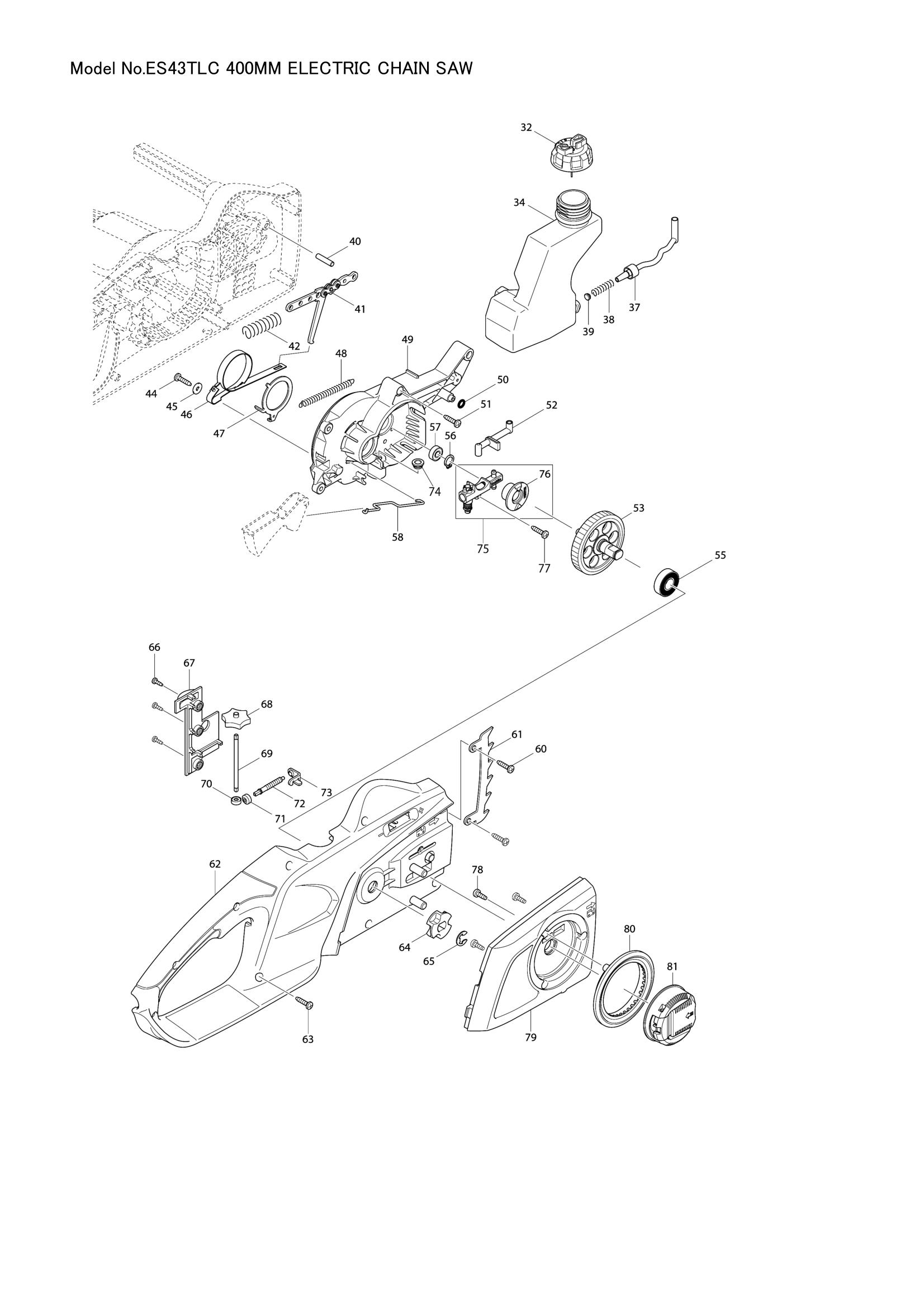

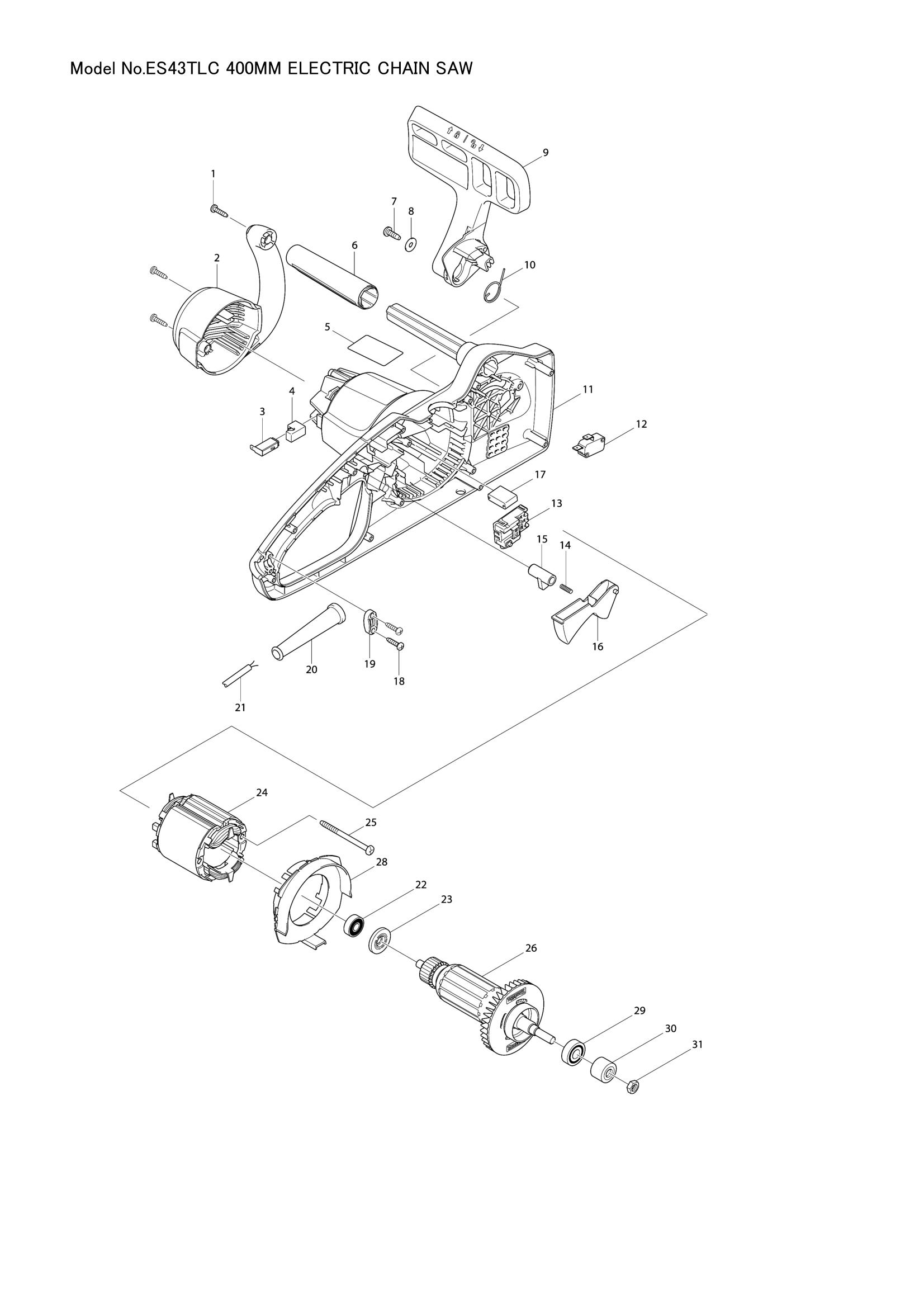

ES43TLC
ES43TLC
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 266326-2 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | ||
| 002 | 454725-2 | REAR COVER | 1 | €4.17 | 1-4 weeks to ship | |
| 454725-2 | REAR COVER | 1 | €4.17 | 1-4 weeks to ship | ||
| 454725-2 | REAR COVER | 1 | €4.17 | 1-4 weeks to ship | ||
| 454725-2 | REAR COVER | 1 | €4.17 | 1-4 weeks to ship | ||
| 003 | 191972-1 | CARBON BRUSH CB-132 | 1 | €5.57 | 1-4 weeks to ship | |
| 191972-1 | CARBON BRUSH CB-132 | 1 | €5.57 | 1-4 weeks to ship | ||
| 004 | 682211-5 | RUBBER SLEEVE | 2 | €0.56 | 1-4 weeks to ship | |
| 682211-5 | RUBBER SLEEVE | 2 | €0.56 | 1-4 weeks to ship | ||
| 005 | ES-43 TLC NAME PLATE | 1 | Not available in store | |||
| ES-43 TLC NAME PLATE | 1 | Not available in store | ||||
| 006 | 424600-6 | FRONT GRIP | 1 | €1.25 | 1-4 weeks to ship | |
| 424600-6 | FRONT GRIP | 1 | €1.25 | 1-4 weeks to ship | ||
| 007 | 266388-0 | TAPPING SCREW 5X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 266388-0 | TAPPING SCREW 5X16 | 1 | €0.56 | 1-4 weeks to ship | ||
| 008 | 253807-5 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 253807-5 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 010 | 231640-5 | TORSION SPRING 20 | 1 | €0.56 | 1-4 weeks to ship | |
| 231640-5 | TORSION SPRING 20 | 1 | €0.56 | 1-4 weeks to ship | ||
| 011 | 187784-8 | HOUSING SET | 1 | €29.22 | 1-4 weeks to ship | |
| 187784-8 | HOUSING SET | 1 | €29.22 | 1-4 weeks to ship | ||
| 012 | 650577-1 | SWITCH SD-006-BB2AA-AA | 1 | €2.78 | 1-4 weeks to ship | |
| 650577-1 | SWITCH SD-006-BB2AA-AA | 1 | €2.78 | 1-4 weeks to ship | ||
| 013 | 650716-3 | SWITCH TGC31B | 1 | €7.65 | 1-4 weeks to ship | |
| 650716-3 | SWITCH TGC31B | 1 | €7.65 | 1-4 weeks to ship | ||
| 650716-3 | SWITCH TGC31B | 1 | €7.65 | 1-4 weeks to ship | ||
| 650716-3 | SWITCH TGC31B | 1 | €7.65 | 1-4 weeks to ship | ||
| 016 | 455185-1 | SWITCH LEVER | 1 | €1.67 | 1-4 weeks to ship | |
| 455185-1 | SWITCH LEVER | 1 | €1.67 | 1-4 weeks to ship | ||
| 017 | 645149-5 | NOISE SUPPRESSOR | 1 | €0.56 | 1-4 weeks to ship | |
| 645149-5 | NOISE SUPPRESSOR | 1 | €0.56 | 1-4 weeks to ship | ||
| 018 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 019 | 687124-5 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 687124-5 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 020 | 682540-6 | CORD GUARD 9.3-90 | 1 | €1.39 | 1-4 weeks to ship | |
| 682540-6 | CORD GUARD 9.3-90 | 1 | €1.39 | 1-4 weeks to ship | ||
| 022 | 210029-0 | BALL BEARING 608ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 210029-0 | BALL BEARING 608ZZ | 1 | €1.11 | 1-4 weeks to ship | ||
| 023 | 681644-1 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 681644-1 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 681644-1 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 681644-1 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 028 | 419238-0 | BAFFLE PLATE | 1 | €0.70 | 1-4 weeks to ship | |
| 419238-0 | BAFFLE PLATE | 1 | €0.70 | 1-4 weeks to ship | ||
| 029 | 211061-7 | BALL BEARING 6000LLB | 1 | €2.78 | 1-4 weeks to ship | |
| 211061-7 | BALL BEARING 6000LLB | 1 | €2.78 | 1-4 weeks to ship | ||
| 030 | 227153-2 | SPUR GEAR 12 | 1 | €1.11 | 1-4 weeks to ship | |
| 227153-2 | SPUR GEAR 12 | 1 | €1.11 | 1-4 weeks to ship | ||
| 031 | 931403-6 | HEX. NUT M8 | 1 | €0.56 | 1-4 weeks to ship | |
| 931403-6 | HEX. NUT M8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 032 | 142282-9 | TANK CAP COMPLETE | 1 | €2.78 | 1-4 weeks to ship | |
| 142282-9 | TANK CAP COMPLETE | 1 | €2.78 | 1-4 weeks to ship | ||
| 034 | 454729-4 | OIL TANK | 1 | €2.09 | 1-4 weeks to ship | |
| 454729-4 | OIL TANK | 1 | €2.09 | 1-4 weeks to ship | ||
| 454729-4 | OIL TANK | 1 | €2.09 | 1-4 weeks to ship | ||
| 454729-4 | OIL TANK | 1 | €2.09 | 1-4 weeks to ship | ||
| 037 | 424602-2 | OIL TUBE | 1 | €1.11 | 1-4 weeks to ship | |
| 424602-2 | OIL TUBE | 1 | €1.11 | 1-4 weeks to ship | ||
| 038 | 231975-4 | SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 231975-4 | SPRING | 1 | €0.56 | 1-4 weeks to ship | ||
| 039 | 416274-7 | CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 416274-7 | CAP | 1 | €0.56 | 1-4 weeks to ship | ||
| 040 | 268238-5 | PIN 5 | 1 | €0.83 | 1-4 weeks to ship | |
| 268238-5 | PIN 5 | 1 | €0.83 | 1-4 weeks to ship | ||
| 041 | 158047-9 | LINK PLATE COMPLETE | 1 | €2.78 | 1-4 weeks to ship | |
| 158047-9 | LINK PLATE COMPLETE | 1 | €2.78 | 1-4 weeks to ship | ||
| 042 | 233175-2 | COMPRESSION SPRING 9 | 1 | €0.56 | 1-4 weeks to ship | |
| 233175-2 | COMPRESSION SPRING 9 | 1 | €0.56 | 1-4 weeks to ship | ||
| 046 | 168321-7 | BRAKE BAND | 1 | €11.13 | 1-4 weeks to ship | |
| 168321-7 | BRAKE BAND | 1 | €11.13 | 1-4 weeks to ship | ||
| 047 | 346739-4 | BRAKE RING | 1 | €0.56 | 1-4 weeks to ship | |
| 346739-4 | BRAKE RING | 1 | €0.56 | 1-4 weeks to ship | ||
| 048 | 231817-2 | TENSION SPRING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 231817-2 | TENSION SPRING 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 050 | 213017-6 | O RING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 213017-6 | O RING 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 051 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 052 | 424601-4 | CONNECTOR | 1 | €0.70 | 1-4 weeks to ship | |
| 424601-4 | CONNECTOR | 1 | €0.70 | 1-4 weeks to ship | ||
| 053 | 135615-5 | SPUR GEAR 43 ASS'Y | 1 | €10.71 | 1-4 weeks to ship | |
| 135615-5 | SPUR GEAR 43 ASS'Y | 1 | €10.71 | 1-4 weeks to ship | ||
| 055 | 210106-8 | BALL BEARING 6001LLB | 1 | €1.67 | 1-4 weeks to ship | |
| 210106-8 | BALL BEARING 6001LLB | 1 | €1.67 | 1-4 weeks to ship | ||
| 056 | 961006-2 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 961006-2 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 057 | 210033-9 | BALL BEARING 696ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 210033-9 | BALL BEARING 696ZZ | 1 | €1.11 | 1-4 weeks to ship | ||
| 058 | 326359-0 | ROD | 1 | €0.56 | 1-4 weeks to ship | |
| 326359-0 | ROD | 1 | €0.56 | 1-4 weeks to ship | ||
| 060 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 061 | 345651-5 | SPIKE BUMPER | 1 | €0.83 | 1-4 weeks to ship | |
| 345651-5 | SPIKE BUMPER | 1 | €0.83 | 1-4 weeks to ship | ||
| 062 | 187784-8 | HOUSING SET | 1 | €29.22 | 1-4 weeks to ship | |
| 187784-8 | HOUSING SET | 1 | €29.22 | 1-4 weeks to ship | ||
| 063 | 266326-2 | TAPPING SCREW 4X18 | 7 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 7 | €0.56 | 1-4 weeks to ship | ||
| 064 | 221526-1 | SPROCKET | 1 | €2.78 | 1-4 weeks to ship | |
| 221526-1 | SPROCKET | 1 | €2.78 | 1-4 weeks to ship | ||
| 065 | 259036-8 | STOP RING E-8 | 1 | €2.78 | 1-4 weeks to ship | |
| 259036-8 | STOP RING E-8 | 1 | €2.78 | 1-4 weeks to ship | ||
| 067 | 454727-8 | TENSION COVER | 1 | €0.70 | 1-4 weeks to ship | |
| 454727-8 | TENSION COVER | 1 | €0.70 | 1-4 weeks to ship | ||
| 454727-8 | TENSION COVER | 1 | €0.70 | 1-4 weeks to ship | ||
| 454727-8 | TENSION COVER | 1 | €0.70 | 1-4 weeks to ship | ||
| 068 | 454726-0 | DIAL 30 | 1 | €0.56 | 1-4 weeks to ship | |
| 454726-0 | DIAL 30 | 1 | €0.56 | 1-4 weeks to ship | ||
| 454726-0 | DIAL 30 | 1 | €0.56 | 1-4 weeks to ship | ||
| 454726-0 | DIAL 30 | 1 | €0.56 | 1-4 weeks to ship | ||
| 069 | 326360-5 | SHAFT | 1 | €1.11 | 1-4 weeks to ship | |
| 326360-5 | SHAFT | 1 | €1.11 | 1-4 weeks to ship | ||
| 070 | 227496-2 | STRAIGHT BEVEL GEAR 14 | 1 | €1.11 | 1-4 weeks to ship | |
| 227496-2 | STRAIGHT BEVEL GEAR 14 | 1 | €1.11 | 1-4 weeks to ship | ||
| 071 | 227496-2 | STRAIGHT BEVEL GEAR 14 | 1 | €1.11 | 1-4 weeks to ship | |
| 227496-2 | STRAIGHT BEVEL GEAR 14 | 1 | €1.11 | 1-4 weeks to ship | ||
| 072 | 324620-9 | ADJUST SCREW | 1 | €0.56 | 1-4 weeks to ship | |
| 324620-9 | ADJUST SCREW | 1 | €0.56 | 1-4 weeks to ship | ||
| 074 | 424603-0 | GROMMET | 1 | €0.14 | 1-4 weeks to ship | |
| 424603-0 | GROMMET | 1 | €0.14 | 1-4 weeks to ship | ||
| 076 | 221427-3 | WORM GEAR | 1 | €2.78 | 1-4 weeks to ship | |
| 221427-3 | WORM GEAR | 1 | €2.78 | 1-4 weeks to ship | ||
| 077 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 078 | 266427-6 | TAPPING SCREW 4X12 | 3 | €0.14 | 1-4 weeks to ship | |
| 266427-6 | TAPPING SCREW 4X12 | 3 | €0.14 | 1-4 weeks to ship | ||
| 080 | 454728-6 | COVER | 1 | €0.70 | 1-4 weeks to ship | |
| 454728-6 | COVER | 1 | €0.70 | 1-4 weeks to ship | ||
| 454728-6 | COVER | 1 | €0.70 | 1-4 weeks to ship | ||
| 454728-6 | COVER | 1 | €0.70 | 1-4 weeks to ship | ||
| 081 | 142235-8 | NUT COMPLETE | 1 | €5.57 | 1-4 weeks to ship | |
| 142235-8 | NUT COMPLETE | 1 | €5.57 | 1-4 weeks to ship | ||
| 082 | SOUND 104DB LABEL | 1 | Not available in store | |||
| SOUND 104DB LABEL | 1 | Not available in store | ||||
