ES2141TLC
ES2141TLC

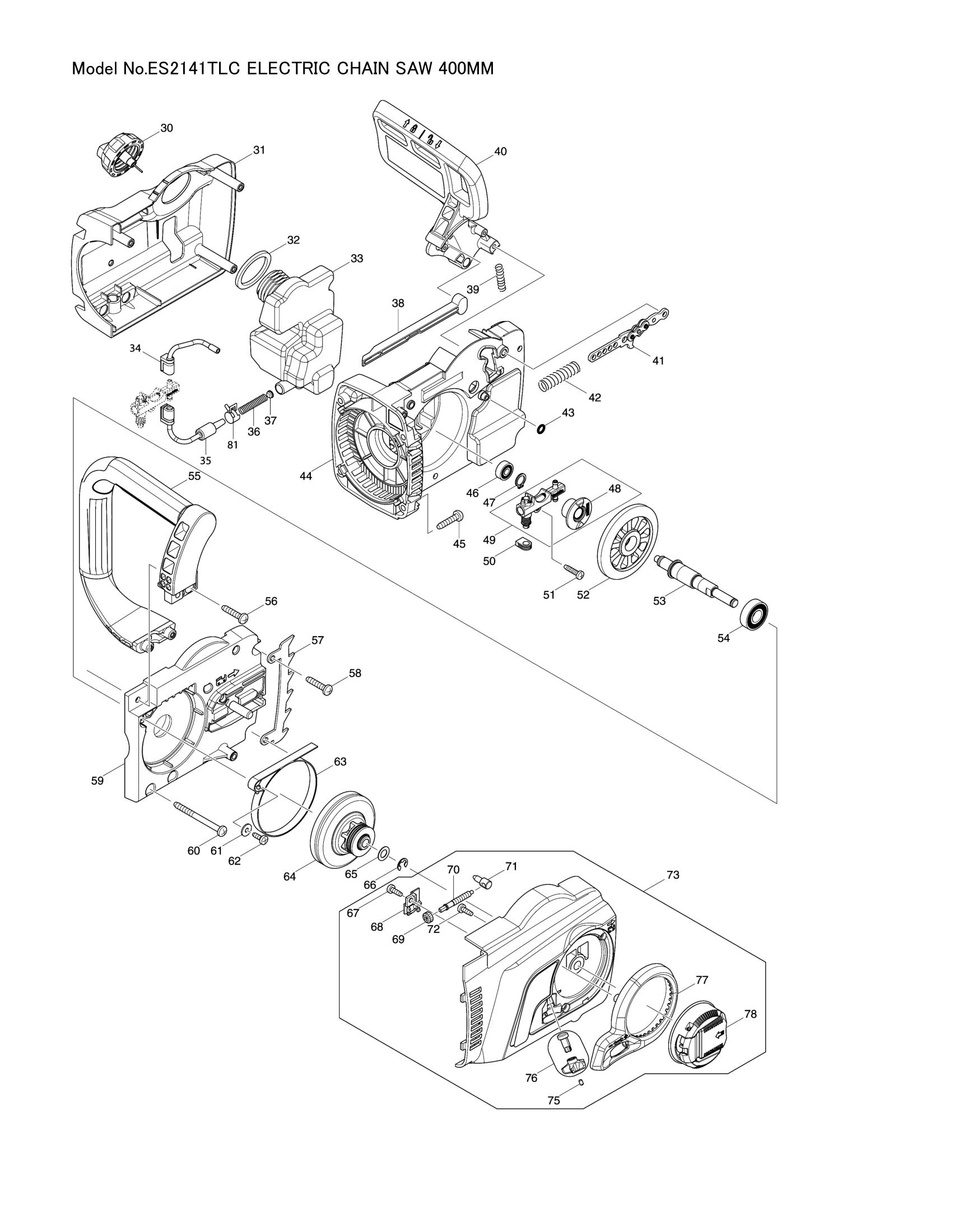

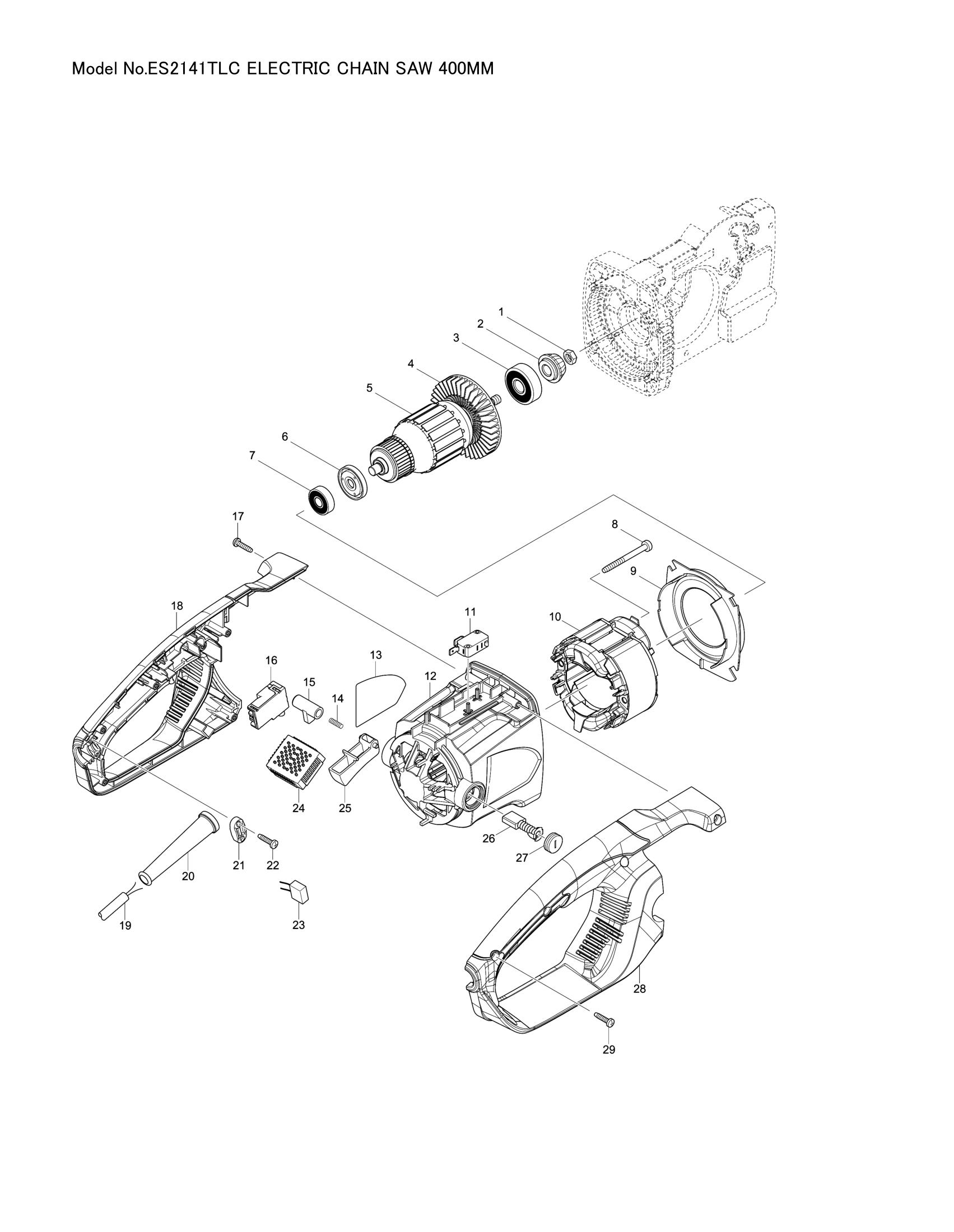

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 931403-6 | HEX. NUT M8 | 1 | €0.56 | 1-4 weeks to ship | |
| 931403-6 | HEX. NUT M8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 002 | 227626-5 | SPIRAL BEVEL GEAR 12 | 1 | €5.57 | 1-4 weeks to ship | |
| 227626-5 | SPIRAL BEVEL GEAR 12 | 1 | €5.57 | 1-4 weeks to ship | ||
| 003 | 211111-8 | BALL BEARING 6301LLB | 1 | €5.57 | 1-4 weeks to ship | |
| 211111-8 | BALL BEARING 6301LLB | 1 | €5.57 | 1-4 weeks to ship | ||
| 004 | 240003-4 | FAN 80 | 1 | €1.39 | 1-4 weeks to ship | |
| 240003-4 | FAN 80 | 1 | €1.39 | 1-4 weeks to ship | ||
| 005 | 517904-4 | ARMATURE ASS'Y 240V | 1 | €52.88 | 1-4 weeks to ship | |
| 517904-4 | ARMATURE ASS'Y 240V | 1 | €52.88 | 1-4 weeks to ship | ||
| 006 | 681666-1 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 681666-1 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 007 | 210084-2 | BALL BEARING 629ZZ | 1 | €1.39 | 1-4 weeks to ship | |
| 210084-2 | BALL BEARING 629ZZ | 1 | €1.39 | 1-4 weeks to ship | ||
| 008 | 266095-5 | TAPPING SCREW 5X55 | 2 | €0.83 | 1-4 weeks to ship | |
| 266095-5 | TAPPING SCREW 5X55 | 2 | €0.83 | 1-4 weeks to ship | ||
| 009 | 419410-4 | BAFFLE PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 419410-4 | BAFFLE PLATE | 1 | €0.56 | 1-4 weeks to ship | ||
| 011 | 650577-1 | SWITCH SD-006-BB2AA-AA | 1 | €2.78 | 1-4 weeks to ship | |
| 650577-1 | SWITCH SD-006-BB2AA-AA | 1 | €2.78 | 1-4 weeks to ship | ||
| 012 | MOTOR HOUSING COMPLETE | 1 | Not available in store | |||
| MOTOR HOUSING COMPLETE | 1 | Not available in store | ||||
| 013 | ES-2141 TLC NAME PLATE | 1 | Not available in store | |||
| ES-2141 TLC NAME PLATE | 1 | Not available in store | ||||
| 014 | 233173-6 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 233173-6 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 015 | 416178-3 | LOCK-OFF BUTTON | 1 | €0.56 | 1-4 weeks to ship | |
| 416178-3 | LOCK-OFF BUTTON | 1 | €0.56 | 1-4 weeks to ship | ||
| 016 | 650717-1 | SWITCH TGC30B | 1 | €8.35 | 1-4 weeks to ship | |
| 650717-1 | SWITCH TGC30B | 1 | €8.35 | 1-4 weeks to ship | ||
| 017 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 018 | HANDLE SET | 1 | Not available in store | |||
| HANDLE SET | 1 | Not available in store | ||||
| 020 | 682540-6 | CORD GUARD 9.3-90 | 1 | €1.39 | 1-4 weeks to ship | |
| 682540-6 | CORD GUARD 9.3-90 | 1 | €1.39 | 1-4 weeks to ship | ||
| 021 | 687124-5 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 687124-5 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 022 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 023 | 645105-5 | NOISE SUPPRESSOR | 1 | €0.83 | 1-4 weeks to ship | |
| 645105-5 | NOISE SUPPRESSOR | 1 | €0.83 | 1-4 weeks to ship | ||
| 645105-5 | NOISE SUPPRESSOR | 1 | €0.83 | 1-4 weeks to ship | ||
| 645105-5 | NOISE SUPPRESSOR | 1 | €0.83 | 1-4 weeks to ship | ||
| 024 | 631719-6 | CONTROLLER | 1 | €41.75 | 1-4 weeks to ship | |
| 631719-6 | CONTROLLER | 1 | €41.75 | 1-4 weeks to ship | ||
| 025 | 419411-2 | SWITCH LEVER | 1 | €0.56 | 1-4 weeks to ship | |
| 419411-2 | SWITCH LEVER | 1 | €0.56 | 1-4 weeks to ship | ||
| 026 | 181044-0 | CARBON BRUSH CB-153 | 1 | €4.17 | 1-4 weeks to ship | |
| 181044-0 | CARBON BRUSH CB-153 | 1 | €4.17 | 1-4 weeks to ship | ||
| 028 | HANDLE SET | 1 | Not available in store | |||
| HANDLE SET | 1 | Not available in store | ||||
| 029 | 265995-6 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | ||
| 030 | 142282-9 | TANK CAP COMPLETE | 1 | €2.78 | 1-4 weeks to ship | |
| 142282-9 | TANK CAP COMPLETE | 1 | €2.78 | 1-4 weeks to ship | ||
| 031 | 454822-4 | GEAR HOUSING COVER | 1 | €3.62 | 1-4 weeks to ship | |
| 454822-4 | GEAR HOUSING COVER | 1 | €3.62 | 1-4 weeks to ship | ||
| 032 | 421959-2 | SPONGE SEAL | 1 | €0.56 | 1-4 weeks to ship | |
| 421959-2 | SPONGE SEAL | 1 | €0.56 | 1-4 weeks to ship | ||
| 033 | 454826-6 | OIL TANK | 1 | €1.53 | 1-4 weeks to ship | |
| 454826-6 | OIL TANK | 1 | €1.53 | 1-4 weeks to ship | ||
| 034 | 424611-1 | CONNECTOR B | 1 | €0.97 | 1-4 weeks to ship | |
| 424611-1 | CONNECTOR B | 1 | €0.97 | 1-4 weeks to ship | ||
| 035 | 424610-3 | CONNECTOR A | 1 | €0.83 | 1-4 weeks to ship | |
| 424610-3 | CONNECTOR A | 1 | €0.83 | 1-4 weeks to ship | ||
| 036 | 231975-4 | SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 231975-4 | SPRING | 1 | €0.56 | 1-4 weeks to ship | ||
| 037 | 416274-7 | CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 416274-7 | CAP | 1 | €0.56 | 1-4 weeks to ship | ||
| 038 | 454825-8 | ROD | 1 | €0.42 | 1-4 weeks to ship | |
| 454825-8 | ROD | 1 | €0.42 | 1-4 weeks to ship | ||
| 039 | 233174-4 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 233174-4 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 041 | 158044-5 | LINK PLATE COMPLETE | 1 | €11.13 | 1-4 weeks to ship | |
| 158044-5 | LINK PLATE COMPLETE | 1 | €11.13 | 1-4 weeks to ship | ||
| 042 | 234005-0 | COMPRESSION SPRING 9 | 1 | €0.56 | 1-4 weeks to ship | |
| 234005-0 | COMPRESSION SPRING 9 | 1 | €0.56 | 1-4 weeks to ship | ||
| 043 | 213017-6 | O RING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 213017-6 | O RING 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 044 | 454821-6 | GEAR HOUSING | 1 | €7.51 | 1-4 weeks to ship | |
| 454821-6 | GEAR HOUSING | 1 | €7.51 | 1-4 weeks to ship | ||
| 045 | 266041-8 | TAPPING SCREW 5X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 266041-8 | TAPPING SCREW 5X25 | 4 | €0.56 | 1-4 weeks to ship | ||
| 047 | 961006-2 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 961006-2 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 048 | 221427-3 | WORM GEAR | 1 | €2.78 | 1-4 weeks to ship | |
| 221427-3 | WORM GEAR | 1 | €2.78 | 1-4 weeks to ship | ||
| 050 | 424612-9 | GROMMET | 1 | €1.53 | 1-4 weeks to ship | |
| 424612-9 | GROMMET | 1 | €1.53 | 1-4 weeks to ship | ||
| 051 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 052 | 227627-3 | SPIRAL BEVEL GEAR 37 | 1 | €8.21 | 1-4 weeks to ship | |
| 227627-3 | SPIRAL BEVEL GEAR 37 | 1 | €8.21 | 1-4 weeks to ship | ||
| 053 | 326373-6 | SPINDLE | 1 | €5.57 | 1-4 weeks to ship | |
| 326373-6 | SPINDLE | 1 | €5.57 | 1-4 weeks to ship | ||
| 055 | 454823-2 | FRONT HANDLE | 1 | €6.12 | 1-4 weeks to ship | |
| 454823-2 | FRONT HANDLE | 1 | €6.12 | 1-4 weeks to ship | ||
| 056 | 266041-8 | TAPPING SCREW 5X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 266041-8 | TAPPING SCREW 5X25 | 2 | €0.56 | 1-4 weeks to ship | ||
| 057 | 345651-5 | SPIKE BUMPER | 1 | €0.83 | 1-4 weeks to ship | |
| 345651-5 | SPIKE BUMPER | 1 | €0.83 | 1-4 weeks to ship | ||
| 058 | 266041-8 | TAPPING SCREW 5X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 266041-8 | TAPPING SCREW 5X25 | 2 | €0.56 | 1-4 weeks to ship | ||
| 059 | 319091-3 | BEARING HOUSING | 1 | €13.64 | 1-4 weeks to ship | |
| 319091-3 | BEARING HOUSING | 1 | €13.64 | 1-4 weeks to ship | ||
| 060 | 266044-2 | TAPPING SCREW 5X60 | 2 | €1.11 | 1-4 weeks to ship | |
| 266044-2 | TAPPING SCREW 5X60 | 2 | €1.11 | 1-4 weeks to ship | ||
| 061 | 267195-4 | FLAT WASHER 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 267195-4 | FLAT WASHER 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 063 | 168426-3 | BRAKE BAND | 1 | €4.17 | 1-4 weeks to ship | |
| 168426-3 | BRAKE BAND | 1 | €4.17 | 1-4 weeks to ship | ||
| 065 | 253215-0 | FLAT WASHER 8 | 1 | €2.09 | 1-4 weeks to ship | |
| 253215-0 | FLAT WASHER 8 | 1 | €2.09 | 1-4 weeks to ship | ||
| 066 | 259033-4 | RETAINING RING E TYPE 6 | 1 | €0.05 | 1-4 weeks to ship | |
| 259033-4 | RETAINING RING E TYPE 6 | 1 | €0.05 | 1-4 weeks to ship | ||
| 067 | 266427-6 | TAPPING SCREW 4X12 | 1 | €0.14 | 1-4 weeks to ship | |
| 266427-6 | TAPPING SCREW 4X12 | 1 | €0.14 | 1-4 weeks to ship | ||
| 068 | 454818-5 | COVER | 1 | €0.56 | 1-4 weeks to ship | |
| 454818-5 | COVER | 1 | €0.56 | 1-4 weeks to ship | ||
| 069 | 227496-2 | STRAIGHT BEVEL GEAR 14 | 1 | €1.11 | 1-4 weeks to ship | |
| 227496-2 | STRAIGHT BEVEL GEAR 14 | 1 | €1.11 | 1-4 weeks to ship | ||
| 070 | 326372-8 | ADJUST SCREW | 1 | €0.56 | 1-4 weeks to ship | |
| 326372-8 | ADJUST SCREW | 1 | €0.56 | 1-4 weeks to ship | ||
| 071 | 326310-0 | ADJUST PIN | 1 | €0.97 | 1-4 weeks to ship | |
| 326310-0 | ADJUST PIN | 1 | €0.97 | 1-4 weeks to ship | ||
| 072 | 266427-6 | TAPPING SCREW 4X12 | 3 | €0.14 | 1-4 weeks to ship | |
| 266427-6 | TAPPING SCREW 4X12 | 3 | €0.14 | 1-4 weeks to ship | ||
| 075 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 076 | 142665-3 | DRIVE GEAR COMPLETE | 1 | €5.57 | 1-4 weeks to ship | |
| 142665-3 | DRIVE GEAR COMPLETE | 1 | €5.57 | 1-4 weeks to ship | ||
| 077 | 454819-3 | NUT COVER | 1 | €0.83 | 1-4 weeks to ship | |
| 454819-3 | NUT COVER | 1 | €0.83 | 1-4 weeks to ship | ||
| 078 | 142235-8 | NUT COMPLETE | 1 | €5.57 | 1-4 weeks to ship | |
| 142235-8 | NUT COMPLETE | 1 | €5.57 | 1-4 weeks to ship | ||
| 081 | 324685-1 | HOSE CLAMP | 1 | €1.39 | 1-4 weeks to ship | |
| 324685-1 | HOSE CLAMP | 1 | €1.39 | 1-4 weeks to ship | ||
