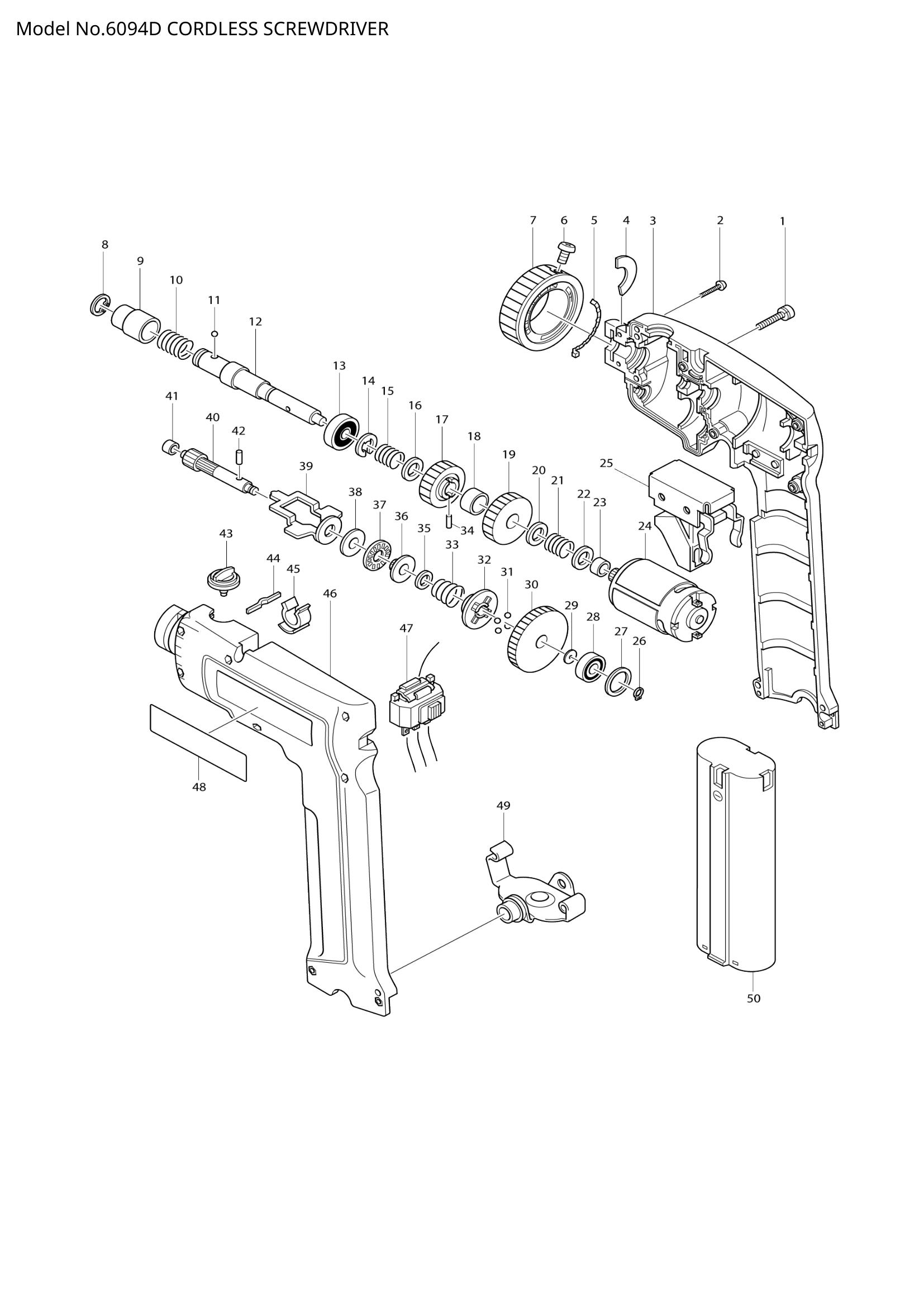

6094D
6094D
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 911143-2 | PAN HEAD SCREW M4X22 | 6 | €0.56 | 1-4 weeks to ship | |
| 002 | 911163-6 | PAN HEAD SCREW M4X35 | 2 | €0.56 | 1-4 weeks to ship | |
| 004 | 343421-6 | GUIDE PLATE | 2 | €2.09 | 1-4 weeks to ship | |
| 005 | 343410-1 | CAM PLATE | 1 | €1.11 | 1-4 weeks to ship | |
| 006 | 251322-3 | + PAN HEAD SCREW M5X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 007 | 410936-9 | CHANGE RING | 1 | €13.92 | 1-4 weeks to ship | |
| 010 | 231421-7 | COMPRESSION SPRING 13 | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | 216001-0 | STEEL BALL 3.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 012 | 321996-5 | SPINDLE | 1 | €43.00 | 1-4 weeks to ship | |
| 013 | 211061-7 | BALL BEARING 6000LLB | 1 | €2.78 | 1-4 weeks to ship | |
| 014 | 961015-1 | STOP RING E-9 | 1 | €0.28 | 1-4 weeks to ship | |
| 961015-1 | STOP RING E-9 | 1 | €0.28 | 1-4 weeks to ship | ||
| 015 | COMPRESSION SPRING 10 | 1 | Not available in store | |||
| 016 | 253330-0 | THIN WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 221862-5 | SPUR GEAR 78 | 1 | €15.03 | 1-4 weeks to ship | |
| 018 | 257073-6 | RING 16 | 1 | €2.78 | 1-4 weeks to ship | |
| 019 | 221884-5 | SPUR GEAR 93 | 1 | €15.03 | 1-4 weeks to ship | |
| 020 | 253330-0 | THIN WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | COMPRESSION SPRING 10 | 1 | Not available in store | |||
| 022 | 253807-5 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | 214017-9 | PLANE BEARING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | 961002-0 | RETAINING RING S-6 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 253842-3 | FLAT WASHER 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 211016-2 | BALL BEARING 626LLB | 1 | €4.17 | 1-4 weeks to ship | |
| 029 | 253804-1 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 033 | 231927-5 | CONICAL COMPR. SPRING 16-21 | 1 | €0.56 | 1-4 weeks to ship | |
| 034 | 256101-4 | PIN 3 | 1 | €2.09 | 1-4 weeks to ship | |
| 035 | RING 8 | 1 | Not available in store | |||
| 036 | DISC | 1 | Not available in store | |||
| 037 | THRUST NEEDLE CAGE 1023 | 1 | Not available in store | |||
| 038 | 253851-2 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 039 | SLIDER | 1 | Not available in store | |||
| 040 | 226062-2 | GEAR COMPLETE 12-28 | 1 | €19.48 | 1-4 weeks to ship | |
| 041 | 214019-5 | PLANE BEARING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 042 | 256119-5 | PIN 3 | 1 | €0.83 | 1-4 weeks to ship | |
| 043 | 168096-8 | SHIFTER | 1 | €5.57 | 1-4 weeks to ship | |
| 044 | 232053-3 | LEAF SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 045 | 411640-3 | HOLDER 6 | 1 | €2.09 | 1-4 weeks to ship | |
| 048 | 855883-1 | NAME PLATE 6094D | 1 | €2.78 | 1-4 weeks to ship | |
| 402 | 414938-7 | BATTERY COVER | 1 | €2.09 | 1-4 weeks to ship | |
