EM370
EM370
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|

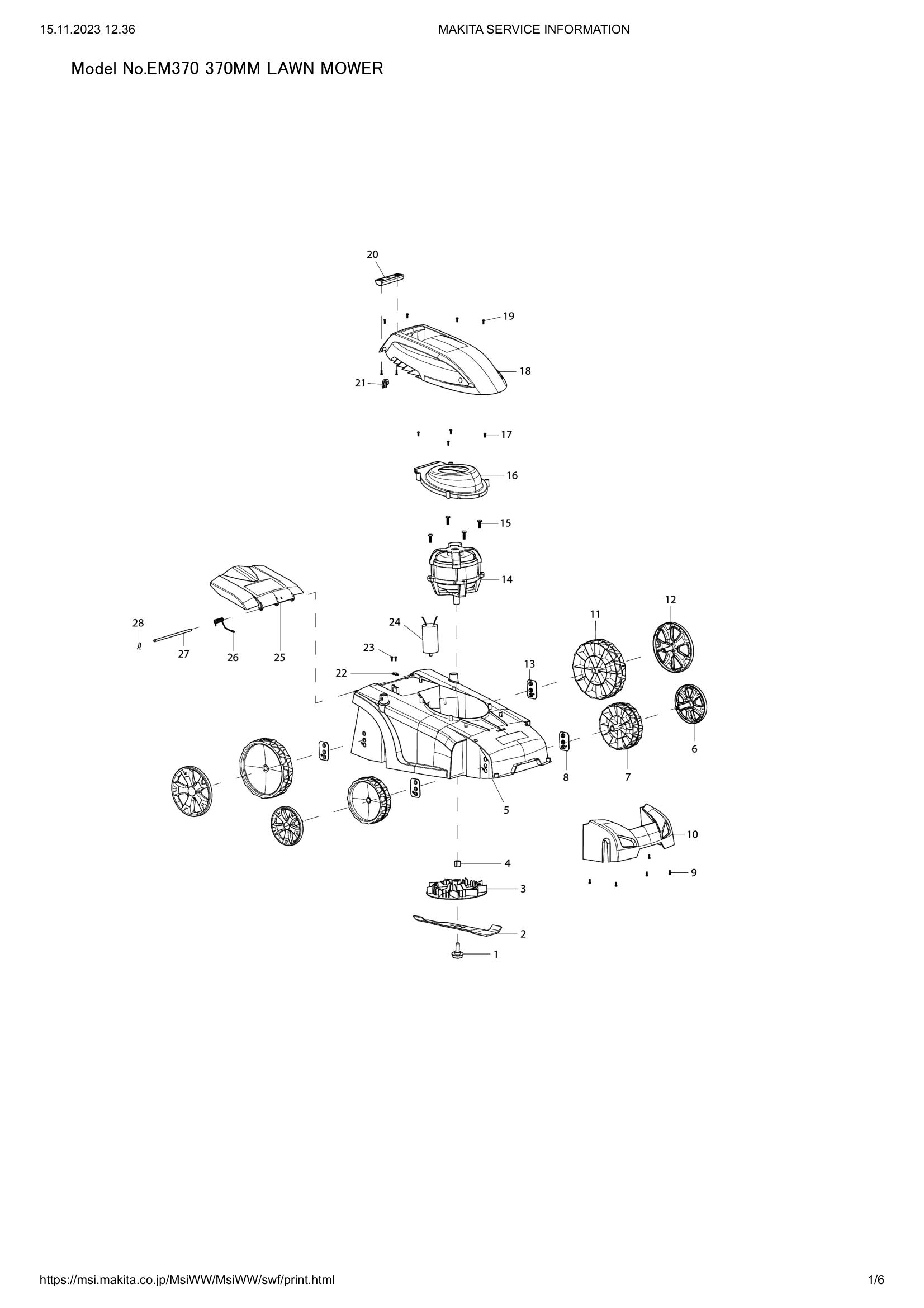

| 006 | 671003028 | 5.5" WHEEL COVER | 2 | €5.57 | 1-4 weeks to ship | |
| 671003028 | 5.5" WHEEL COVER | 2 | €5.57 | 1-4 weeks to ship | ||
| 671003028 | 5.5" WHEEL COVER | 2 | €5.57 | 1-4 weeks to ship | ||
| 007 | 671919001 | 5.5" WHEEL | 2 | €11.13 | 1-4 weeks to ship | |
| 671919001 | 5.5" WHEEL | 2 | €11.13 | 1-4 weeks to ship | ||
| 671919001 | 5.5" WHEEL | 2 | €11.13 | 1-4 weeks to ship | ||
| 008 | 671002281 | THREAD PRESSING PLATE | 2 | €1.53 | 1-4 weeks to ship | |
| 671002281 | THREAD PRESSING PLATE | 2 | €1.53 | 1-4 weeks to ship | ||
| 671002281 | THREAD PRESSING PLATE | 2 | €1.53 | 1-4 weeks to ship | ||
| 010 | HEAD COVER | 1 | Not available in store | |||
| HEAD COVER | 1 | Not available in store | ||||
| HEAD COVER | 1 | Not available in store | ||||
| 011 | 671920001 | 7" WHEEL | 2 | €14.33 | 1-4 weeks to ship | |
| 671920001 | 7" WHEEL | 2 | €14.33 | 1-4 weeks to ship | ||
| 671920001 | 7" WHEEL | 2 | €14.33 | 1-4 weeks to ship | ||
| 012 | 671003029 | 7" WHEEL COVER | 2 | €8.35 | 1-4 weeks to ship | |
| 671003029 | 7" WHEEL COVER | 2 | €8.35 | 1-4 weeks to ship | ||
| 671003029 | 7" WHEEL COVER | 2 | €8.35 | 1-4 weeks to ship | ||
| 013 | 671002281 | THREAD PRESSING PLATE | 2 | €1.53 | 1-4 weeks to ship | |
| 671002281 | THREAD PRESSING PLATE | 2 | €1.53 | 1-4 weeks to ship | ||
| 671002281 | THREAD PRESSING PLATE | 2 | €1.53 | 1-4 weeks to ship | ||
| 014 | DA00000823 | MOTOR ASSY 230V 50HZ | 1 | €173.52 | 1-4 weeks to ship | |
| DA00000823 | MOTOR ASSY 230V 50HZ | 1 | €173.52 | 1-4 weeks to ship | ||
| DA00000823 | MOTOR ASSY 230V 50HZ | 1 | €173.52 | 1-4 weeks to ship | ||
| 016 | MOTOR WIND GUIDE COVER | 1 | Not available in store | |||
| MOTOR WIND GUIDE COVER | 1 | Not available in store | ||||
| MOTOR WIND GUIDE COVER | 1 | Not available in store | ||||
| 018 | MOTOR COVER | 1 | Not available in store | |||
| MOTOR COVER | 1 | Not available in store | ||||
| MOTOR COVER | 1 | Not available in store | ||||
| 020 | MOTOR COVER HANDLE | 1 | Not available in store | |||
| MOTOR COVER HANDLE | 1 | Not available in store | ||||
| MOTOR COVER HANDLE | 1 | Not available in store | ||||
| 021 | GROMMET | 1 | Not available in store | |||
| GROMMET | 1 | Not available in store | ||||
| GROMMET | 1 | Not available in store | ||||
| 022 | CORD CLAMP | 1 | Not available in store | |||
| CORD CLAMP | 1 | Not available in store | ||||
| CORD CLAMP | 1 | Not available in store | ||||
| 026 | SPRING OF REAR FLAP | 1 | Not available in store | |||
| SPRING OF REAR FLAP | 1 | Not available in store | ||||
| SPRING OF REAR FLAP | 1 | Not available in store | ||||
| 027 | FIXED SHAFT OF REAR FLAP | 1 | Not available in store | |||
| FIXED SHAFT OF REAR FLAP | 1 | Not available in store | ||||
| FIXED SHAFT OF REAR FLAP | 1 | Not available in store | ||||
| 028 | CLAMP PIN | 1 | Not available in store | |||
| CLAMP PIN | 1 | Not available in store | ||||
| CLAMP PIN | 1 | Not available in store | ||||
| 030 | LOWER HANDLE BAR | 2 | Not available in store | |||
| LOWER HANDLE BAR | 2 | Not available in store | ||||
| LOWER HANDLE BAR | 2 | Not available in store | ||||
| 031 | CABLE CLIP | 1 | Not available in store | |||
| CABLE CLIP | 1 | Not available in store | ||||
| CABLE CLIP | 1 | Not available in store | ||||
| 033 | 671007007 | FLAT WASHER 8 | 2 | €1.11 | 1-4 weeks to ship | |
| 671007007 | FLAT WASHER 8 | 2 | €1.11 | 1-4 weeks to ship | ||
| 671007007 | FLAT WASHER 8 | 2 | €1.11 | 1-4 weeks to ship | ||
| 034 | PIPE END CAP | 2 | Not available in store | |||
| PIPE END CAP | 2 | Not available in store | ||||
| PIPE END CAP | 2 | Not available in store | ||||
| 035 | PRESSER PLATE | 2 | Not available in store | |||
| PRESSER PLATE | 2 | Not available in store | ||||
| PRESSER PLATE | 2 | Not available in store | ||||
| 036 | 671002466 | TENSION BOLT M6 | 2 | €2.78 | 1-4 weeks to ship | |
| 671002466 | TENSION BOLT M6 | 2 | €2.78 | 1-4 weeks to ship | ||
| 671002466 | TENSION BOLT M6 | 2 | €2.78 | 1-4 weeks to ship | ||
| 037 | 671431001 | TENSION LEVER | 2 | €8.35 | 1-4 weeks to ship | |
| 671431001 | TENSION LEVER | 2 | €8.35 | 1-4 weeks to ship | ||
| 671431001 | TENSION LEVER | 2 | €8.35 | 1-4 weeks to ship | ||
| 038 | 671090040 | PIN 5.3X20 | 2 | €1.11 | 1-4 weeks to ship | |
| 671090040 | PIN 5.3X20 | 2 | €1.11 | 1-4 weeks to ship | ||
| 671090040 | PIN 5.3X20 | 2 | €1.11 | 1-4 weeks to ship | ||
| 042 | UPPER HANDLE BAR | 1 | Not available in store | |||
| UPPER HANDLE BAR | 1 | Not available in store | ||||
| UPPER HANDLE BAR | 1 | Not available in store | ||||
| 043 | 671073001 | HANDLE SUPPORT(LEFT) | 1 | €1.25 | 1-4 weeks to ship | |
| 671073001 | HANDLE SUPPORT(LEFT) | 1 | €1.25 | 1-4 weeks to ship | ||
| 671073001 | HANDLE SUPPORT(LEFT) | 1 | €1.25 | 1-4 weeks to ship | ||
| 671073001 | HANDLE SUPPORT(LEFT) | 1 | €1.25 | 1-4 weeks to ship | ||
| 671073001 | HANDLE SUPPORT(LEFT) | 1 | €1.25 | 1-4 weeks to ship | ||
| 671073001 | HANDLE SUPPORT(LEFT) | 1 | €1.25 | 1-4 weeks to ship | ||
| 045 | 671074001 | HANDLE SUPPORT(RIGHT) | 1 | €1.25 | 1-4 weeks to ship | |
| 671074001 | HANDLE SUPPORT(RIGHT) | 1 | €1.25 | 1-4 weeks to ship | ||
| 671074001 | HANDLE SUPPORT(RIGHT) | 1 | €1.25 | 1-4 weeks to ship | ||
| 671074001 | HANDLE SUPPORT(RIGHT) | 1 | €1.25 | 1-4 weeks to ship | ||
| 671074001 | HANDLE SUPPORT(RIGHT) | 1 | €1.25 | 1-4 weeks to ship | ||
| 671074001 | HANDLE SUPPORT(RIGHT) | 1 | €1.25 | 1-4 weeks to ship | ||
| 048 | DA00000824 | POWER SUPPLY CORD | 1 | €6.40 | 1-4 weeks to ship | |
| DA00000824 | POWER SUPPLY CORD | 1 | €6.40 | 1-4 weeks to ship | ||
| DA00000824 | POWER SUPPLY CORD | 1 | €6.40 | 1-4 weeks to ship | ||
| 049 | DA00000818 | GROMMET | 1 | €0.28 | 1-4 weeks to ship | |
| DA00000818 | GROMMET | 1 | €0.28 | 1-4 weeks to ship | ||
| DA00000818 | GROMMET | 1 | €0.28 | 1-4 weeks to ship | ||
| 050 | 671425003 | SWITCH LINK BUTTON | 1 | €0.56 | 1-4 weeks to ship | |
| 671425003 | SWITCH LINK BUTTON | 1 | €0.56 | 1-4 weeks to ship | ||
| 671425003 | SWITCH LINK BUTTON | 1 | €0.56 | 1-4 weeks to ship | ||
| 051 | 671011079 | COMPRESSION SPRING | 1 | €1.11 | 1-4 weeks to ship | |
| 671011079 | COMPRESSION SPRING | 1 | €1.11 | 1-4 weeks to ship | ||
| 671011079 | COMPRESSION SPRING | 1 | €1.11 | 1-4 weeks to ship | ||
| 054 | 671010040 | SWITCH | 1 | €13.92 | 1-4 weeks to ship | |
| 671010040 | SWITCH | 1 | €13.92 | 1-4 weeks to ship | ||
| 671010040 | SWITCH | 1 | €13.92 | 1-4 weeks to ship | ||
| 056 | CORD CLAMP | 1 | Not available in store | |||
| CORD CLAMP | 1 | Not available in store | ||||
| CORD CLAMP | 1 | Not available in store | ||||
| 058 | 671069001 | SWITCH BOX LEFT | 1 | €4.45 | 1-4 weeks to ship | |
| 671069001 | SWITCH BOX LEFT | 1 | €4.45 | 1-4 weeks to ship | ||
| 671069001 | SWITCH BOX LEFT | 1 | €4.45 | 1-4 weeks to ship | ||
| 671069001 | SWITCH BOX LEFT | 1 | €4.45 | 1-4 weeks to ship | ||
| 671069001 | SWITCH BOX LEFT | 1 | €4.45 | 1-4 weeks to ship | ||
| 671069001 | SWITCH BOX LEFT | 1 | €4.45 | 1-4 weeks to ship | ||
| 060 | DA00000815 | POWER SUPPLY PLUG UNIT | 1 | €0.83 | 1-4 weeks to ship | |
| DA00000815 | POWER SUPPLY PLUG UNIT | 1 | €0.83 | 1-4 weeks to ship | ||
| DA00000815 | POWER SUPPLY PLUG UNIT | 1 | €0.83 | 1-4 weeks to ship | ||
| 061 | TAPPING SCREW ST3X10 | 1 | Not available in store | |||
| TAPPING SCREW ST3X10 | 1 | Not available in store | ||||
| TAPPING SCREW ST3X10 | 1 | Not available in store | ||||
| 062 | 671011124 | TENSION SPRING | 1 | €1.11 | 1-4 weeks to ship | |
| 671011124 | TENSION SPRING | 1 | €1.11 | 1-4 weeks to ship | ||
| 671011124 | TENSION SPRING | 1 | €1.11 | 1-4 weeks to ship | ||
| 065 | 671001714 | START BAR | 1 | €6.12 | 1-4 weeks to ship | |
| 671001714 | START BAR | 1 | €6.12 | 1-4 weeks to ship | ||
| 671001714 | START BAR | 1 | €6.12 | 1-4 weeks to ship | ||
| 067 | 671011124 | TENSION SPRING | 1 | €1.11 | 1-4 weeks to ship | |
| 671011124 | TENSION SPRING | 1 | €1.11 | 1-4 weeks to ship | ||
| 671011124 | TENSION SPRING | 1 | €1.11 | 1-4 weeks to ship | ||
| 068 | TAPPING SCREW ST3X10 | 1 | Not available in store | |||
| TAPPING SCREW ST3X10 | 1 | Not available in store | ||||
| TAPPING SCREW ST3X10 | 1 | Not available in store | ||||

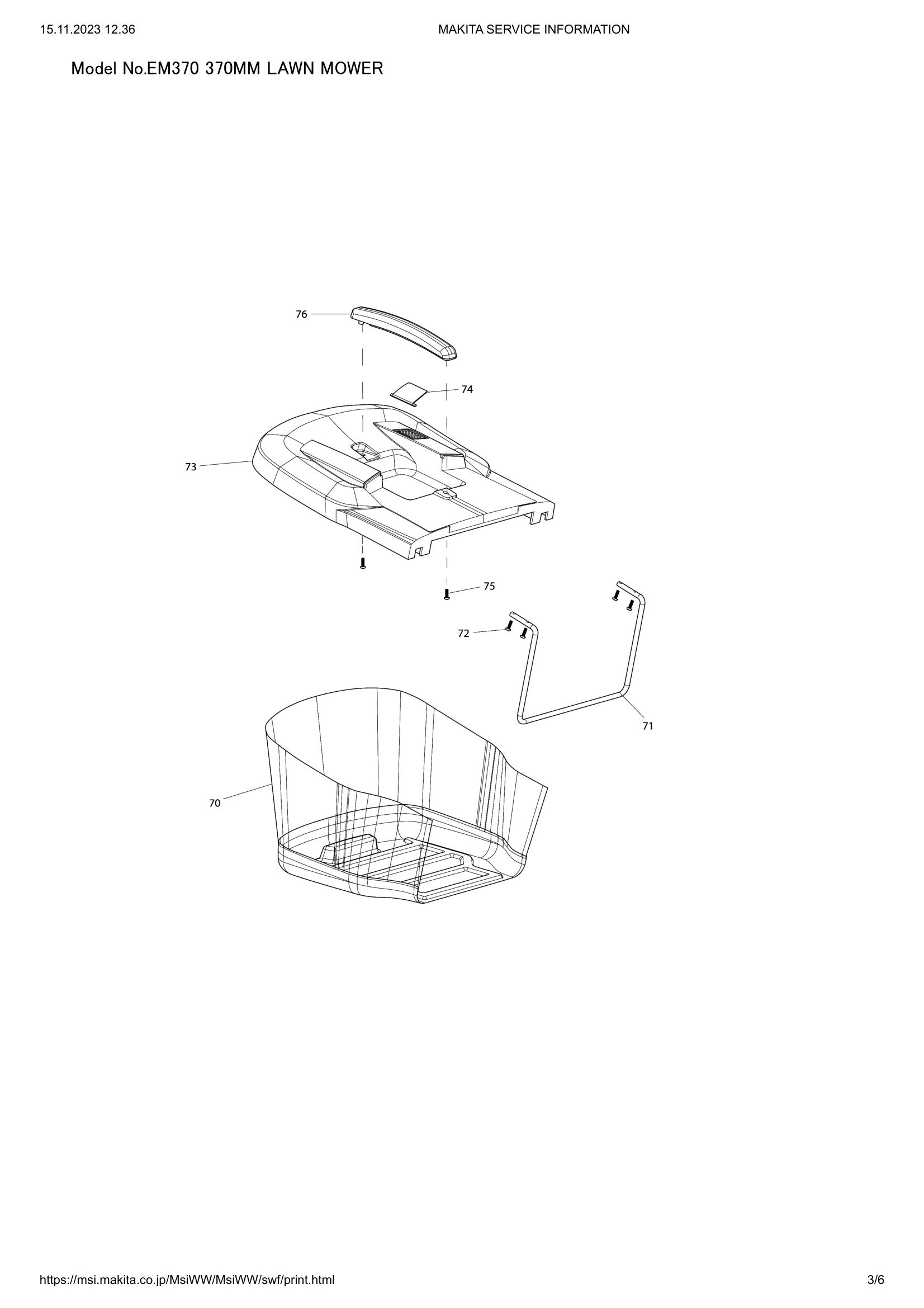

| 070 | GRASS CATCHER(DOLMAR) | 1 | Not available in store | |||
| GRASS CATCHER(DOLMAR) | 1 | Not available in store | ||||
| GRASS CATCHER(DOLMAR) | 1 | Not available in store | ||||
| 071 | 671002387 | GRASS CATCHER BRACKET | 1 | €8.49 | 1-4 weeks to ship | |
| 671002387 | GRASS CATCHER BRACKET | 1 | €8.49 | 1-4 weeks to ship | ||
| 671002387 | GRASS CATCHER BRACKET | 1 | €8.49 | 1-4 weeks to ship | ||
| 671002387 | GRASS CATCHER BRACKET | 1 | €8.49 | 1-4 weeks to ship | ||
| 671002387 | GRASS CATCHER BRACKET | 1 | €8.49 | 1-4 weeks to ship | ||
| 671002387 | GRASS CATCHER BRACKET | 1 | €8.49 | 1-4 weeks to ship | ||
| 073 | 671985001 | COVER OF GRASS CATCHER | 1 | €23.93 | 1-4 weeks to ship | |
| 671985001 | COVER OF GRASS CATCHER | 1 | €23.93 | 1-4 weeks to ship | ||
| 671985001 | COVER OF GRASS CATCHER | 1 | €23.93 | 1-4 weeks to ship | ||
| 671985001 | COVER OF GRASS CATCHER | 1 | €23.93 | 1-4 weeks to ship | ||
| 671985001 | COVER OF GRASS CATCHER | 1 | €23.93 | 1-4 weeks to ship | ||
| 671985001 | COVER OF GRASS CATCHER | 1 | €23.93 | 1-4 weeks to ship | ||
| 074 | LEVEL INDICATOR | 1 | Not available in store | |||
| LEVEL INDICATOR | 1 | Not available in store | ||||
| LEVEL INDICATOR | 1 | Not available in store | ||||
| 076 | 671988001 | HANDLE OF GRASS CATCHER | 1 | €2.09 | 1-4 weeks to ship | |
| 671988001 | HANDLE OF GRASS CATCHER | 1 | €2.09 | 1-4 weeks to ship | ||
| 671988001 | HANDLE OF GRASS CATCHER | 1 | €2.09 | 1-4 weeks to ship | ||
| 671988001 | HANDLE OF GRASS CATCHER | 1 | €2.09 | 1-4 weeks to ship | ||
| 671988001 | HANDLE OF GRASS CATCHER | 1 | €2.09 | 1-4 weeks to ship | ||
| 671988001 | HANDLE OF GRASS CATCHER | 1 | €2.09 | 1-4 weeks to ship | ||
