1923B
1923B

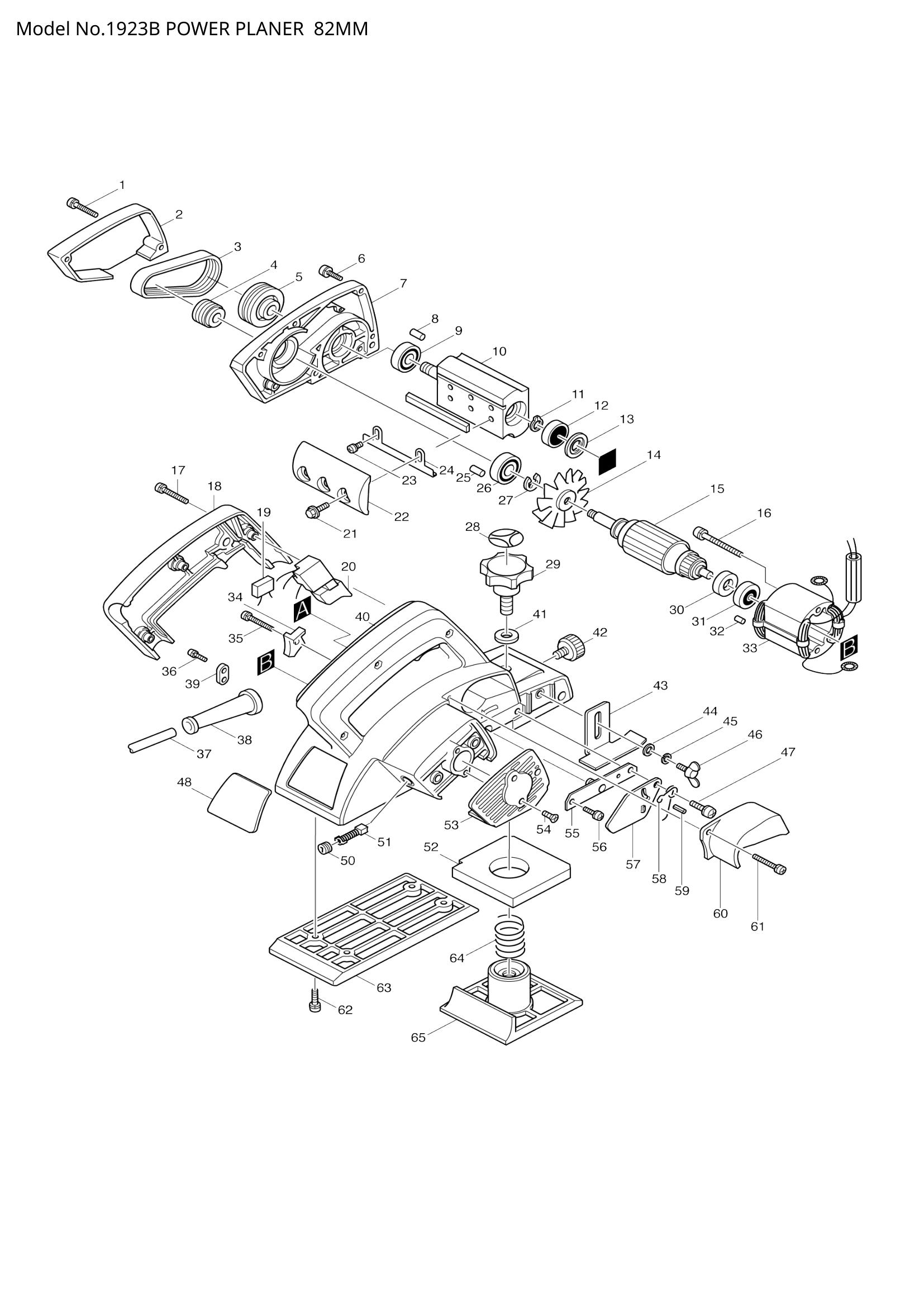

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 911148-2 | PAN HEAD SCREW M4X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 911148-2 | PAN HEAD SCREW M4X25 | 2 | €0.56 | 1-4 weeks to ship | ||
| 002 | 411019-8 | BELT COVER | 1 | €4.17 | 1-4 weeks to ship | |
| 411019-8 | BELT COVER | 1 | €4.17 | 1-4 weeks to ship | ||
| 003 | 225007-7 | POLY V-BELT 4-241 | 1 | €8.35 | 1-4 weeks to ship | |
| 225007-7 | POLY V-BELT 4-241 | 1 | €8.35 | 1-4 weeks to ship | ||
| 006 | 911136-9 | PAN HEAD SCREW M4X20 | 6 | €0.56 | 1-4 weeks to ship | |
| 911136-9 | PAN HEAD SCREW M4X20 | 6 | €0.56 | 1-4 weeks to ship | ||
| 007 | 152198-0 | BRACKET COMPLETE | 1 | €22.26 | 1-4 weeks to ship | |
| 152198-0 | BRACKET COMPLETE | 1 | €22.26 | 1-4 weeks to ship | ||
| 008 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 009 | 211062-5 | BALL BEARING 6000ZZ | 1 | €2.78 | 1-4 weeks to ship | |
| 211062-5 | BALL BEARING 6000ZZ | 1 | €2.78 | 1-4 weeks to ship | ||
| 011 | 961003-8 | RETAINING RING S-7 | 1 | €0.56 | 1-4 weeks to ship | |
| 961003-8 | RETAINING RING S-7 | 1 | €0.56 | 1-4 weeks to ship | ||
| 013 | 285637-6 | BEARING RETAINER 7-21 | 1 | €0.56 | 1-4 weeks to ship | |
| 285637-6 | BEARING RETAINER 7-21 | 1 | €0.56 | 1-4 weeks to ship | ||
| 021 | 251609-3 | HEX. FLANGE HEAD BOLT M6X17 | 6 | €0.56 | 1-4 weeks to ship | |
| 251609-3 | HEX. FLANGE HEAD BOLT M6X17 | 6 | €0.56 | 1-4 weeks to ship | ||
| 024 | ADJUST PLATE | 2 | Not available in store | |||
| ADJUST PLATE | 2 | Not available in store | ||||
| 025 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 026 | 211061-7 | BALL BEARING 6000LLB | 1 | €2.78 | 1-4 weeks to ship | |
| 211061-7 | BALL BEARING 6000LLB | 1 | €2.78 | 1-4 weeks to ship | ||
| 027 | 961015-1 | STOP RING E-9 | 1 | €0.28 | 1-4 weeks to ship | |
| 961015-1 | STOP RING E-9 | 1 | €0.28 | 1-4 weeks to ship | ||
| 961015-1 | STOP RING E-9 | 1 | €0.28 | 1-4 weeks to ship | ||
| 961015-1 | STOP RING E-9 | 1 | €0.28 | 1-4 weeks to ship | ||
| 029 | 271231-0 | KNOB 46 | 1 | €2.78 | 1-4 weeks to ship | |
| 271231-0 | KNOB 46 | 1 | €2.78 | 1-4 weeks to ship | ||
| 030 | 681614-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 681614-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 031 | 211028-5 | BALL BEARING 627LB | 1 | €4.17 | 1-4 weeks to ship | |
| 211028-5 | BALL BEARING 627LB | 1 | €4.17 | 1-4 weeks to ship | ||
| 034 | 411306-5 | BAFFLE PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 411306-5 | BAFFLE PLATE | 1 | €2.78 | 1-4 weeks to ship | ||
| 035 | 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 040 | 156592-8 | MAIN FRAME | 1 | €65.82 | 1-4 weeks to ship | |
| 156592-8 | MAIN FRAME | 1 | €65.82 | 1-4 weeks to ship | ||
| 041 | 941251-5 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 941251-5 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 042 | 251812-6 | SCREW M5X10 | 1 | €0.83 | 1-4 weeks to ship | |
| 251812-6 | SCREW M5X10 | 1 | €0.83 | 1-4 weeks to ship | ||
| 043 | 342390-8 | DEPTH GUIDE | 1 | €2.78 | 1-4 weeks to ship | |
| 342390-8 | DEPTH GUIDE | 1 | €2.78 | 1-4 weeks to ship | ||
| 044 | 941101-4 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 941101-4 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 045 | 942101-7 | SPRING WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 942101-7 | SPRING WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 942101-7 | SPRING WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 942101-7 | SPRING WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 046 | 924206-5 | WING BOLT M5X10 | 1 | €0.56 | 1-4 weeks to ship | |
| 924206-5 | WING BOLT M5X10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 924206-5 | WING BOLT M5X10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 924206-5 | WING BOLT M5X10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 050 | 643550-8 | BRUSH HOLDER CAP 5-8 | 2 | €0.83 | 1-4 weeks to ship | |
| 643550-8 | BRUSH HOLDER CAP 5-8 | 2 | €0.83 | 1-4 weeks to ship | ||
| 052 | 421007-7 | RUBBER PACKING | 1 | €0.97 | 1-4 weeks to ship | |
| 421007-7 | RUBBER PACKING | 1 | €0.97 | 1-4 weeks to ship | ||
| 053 | 411305-7 | REAR COVER | 1 | €4.45 | 1-4 weeks to ship | |
| 411305-7 | REAR COVER | 1 | €4.45 | 1-4 weeks to ship | ||
| 054 | 912117-6 | COUNTERSUNK HEAD SCREW M4 | 2 | €0.56 | 1-4 weeks to ship | |
| 912117-6 | COUNTERSUNK HEAD SCREW M4 | 2 | €0.56 | 1-4 weeks to ship | ||
| 056 | 911226-8 | PAN HEAD SCREW M5X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 911226-8 | PAN HEAD SCREW M5X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 058 | 231504-3 | TORSION SPRING 10 | 1 | €0.83 | 1-4 weeks to ship | |
| 231504-3 | TORSION SPRING 10 | 1 | €0.83 | 1-4 weeks to ship | ||
| 061 | 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 063 | 312023-9 | BASE | 1 | €11.13 | 1-4 weeks to ship | |
| 312023-9 | BASE | 1 | €11.13 | 1-4 weeks to ship | ||
| 064 | 231004-3 | COMPRESSION SPRING 18 | 1 | €1.39 | 1-4 weeks to ship | |
| 231004-3 | COMPRESSION SPRING 18 | 1 | €1.39 | 1-4 weeks to ship | ||
| 407 | 911228-4 | PAN HEAD SCREW M5X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 911228-4 | PAN HEAD SCREW M5X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 408 | 411086-3 | GAUGE PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 411086-3 | GAUGE PLATE | 1 | €2.78 | 1-4 weeks to ship | ||
| 413 | BLADE GAUGE ASS'Y | 1 | Not available in store | |||
| BLADE GAUGE ASS'Y | 1 | Not available in store | ||||
| 416 | PLASTIC CARRYING CASE | 1 | Not available in store | |||
| PLASTIC CARRYING CASE | 1 | Not available in store | ||||
| 900 | 251212-0 | + FLAT HEAD SCREW M5X13 | 4 | €0.56 | 1-4 weeks to ship | |
| 251212-0 | + FLAT HEAD SCREW M5X13 | 4 | €0.56 | 1-4 weeks to ship | ||
| 917 | 343947-8 | SLIDE PLATE | 1 | €4.45 | 1-4 weeks to ship | |
| 343947-8 | SLIDE PLATE | 1 | €4.45 | 1-4 weeks to ship | ||

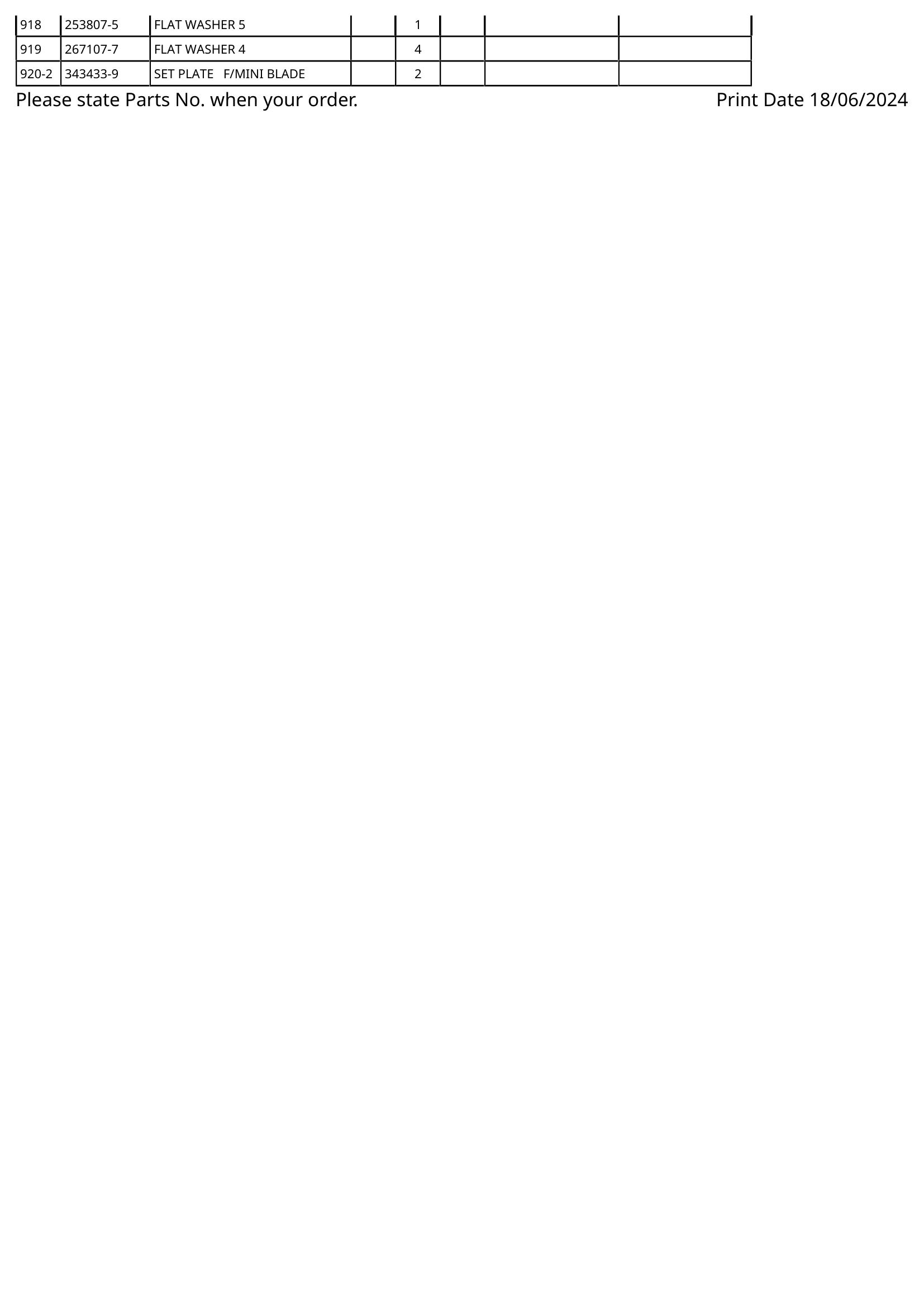

| 918 | 253807-5 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 253807-5 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 919 | 267107-7 | FLAT WASHER 4 | 4 | €2.09 | 1-4 weeks to ship | |
| 267107-7 | FLAT WASHER 4 | 4 | €2.09 | 1-4 weeks to ship | ||
