DVC560
DVC560

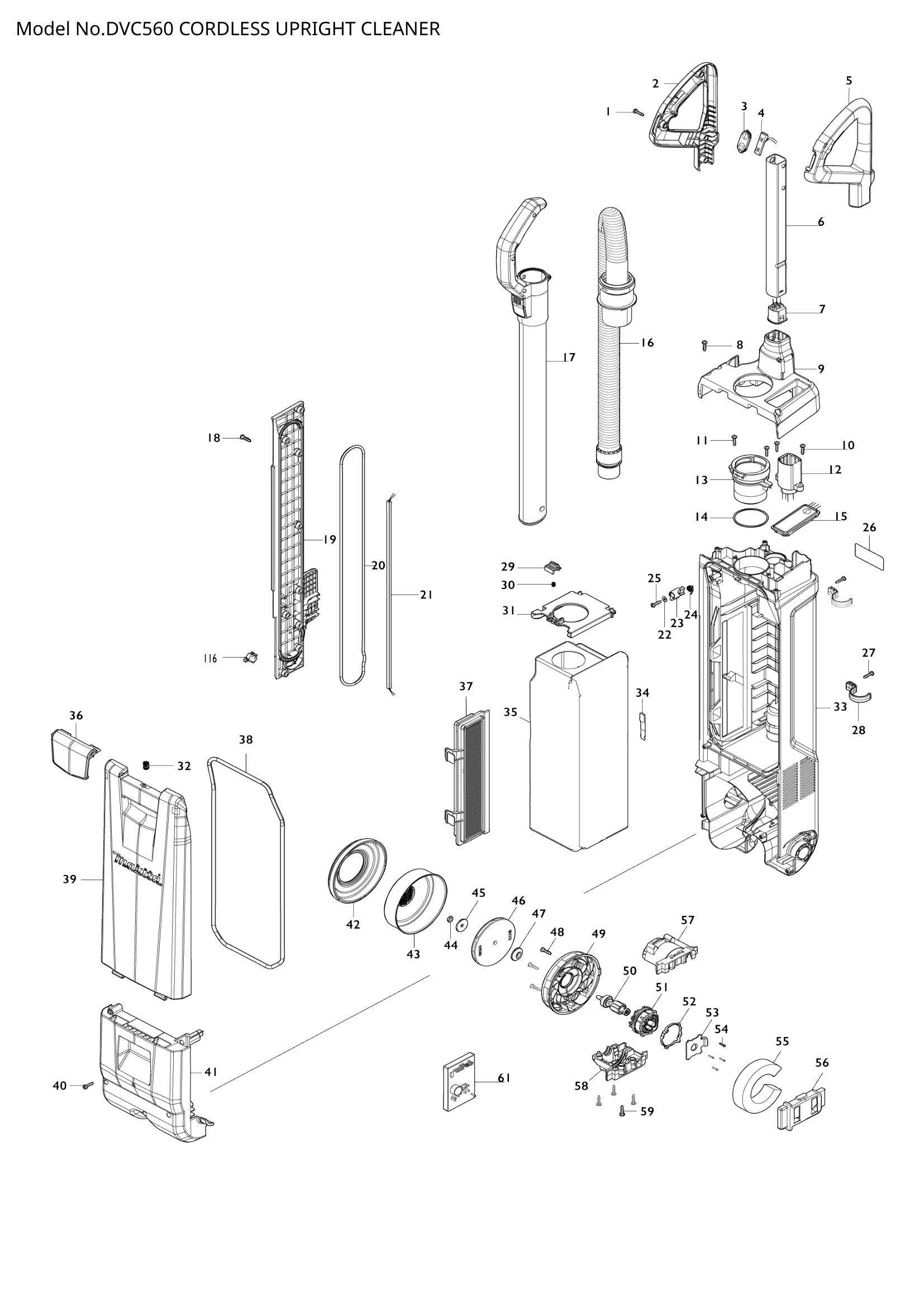

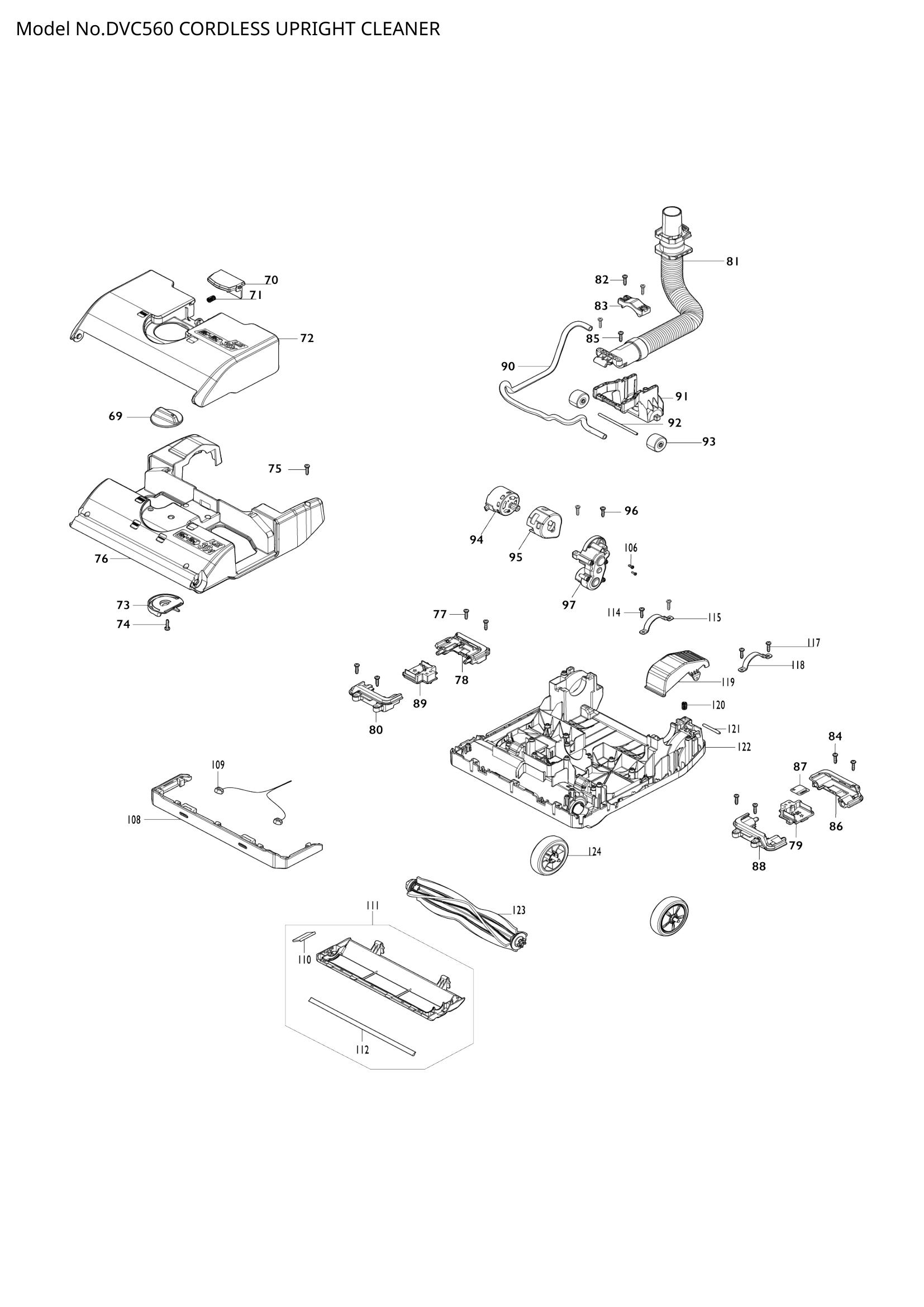

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 002 | HANDLE SET | 1 | Not available in store | |||
| HANDLE SET | 1 | Not available in store | ||||
| 003 | SWITCH PLATE COMPLETE | 1 | Not available in store | |||
| SWITCH PLATE COMPLETE | 1 | Not available in store | ||||
| 004 | 631973-2 | SWITCH UNIT | 1 | €11.13 | 1-4 weeks to ship | |
| 631973-2 | SWITCH UNIT | 1 | €11.13 | 1-4 weeks to ship | ||
| 005 | HANDLE SET | 1 | Not available in store | |||
| HANDLE SET | 1 | Not available in store | ||||
| 006 | PIPE A | 1 | Not available in store | |||
| PIPE A | 1 | Not available in store | ||||
| 007 | LEAD UNIT | 1 | Not available in store | |||
| LEAD UNIT | 1 | Not available in store | ||||
| 008 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 009 | TOP COVER COMPLETE | 1 | Not available in store | |||
| TOP COVER COMPLETE | 1 | Not available in store | ||||
| 010 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 011 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 012 | LEAD UNIT | 1 | Not available in store | |||
| LEAD UNIT | 1 | Not available in store | ||||
| 013 | INLET | 1 | Not available in store | |||
| INLET | 1 | Not available in store | ||||
| 015 | INDICATION CIRCUIT COMPLETE | 1 | Not available in store | |||
| INDICATION CIRCUIT COMPLETE | 1 | Not available in store | ||||
| 017 | PIPE ASSEMBLY | 1 | Not available in store | |||
| PIPE ASSEMBLY | 1 | Not available in store | ||||
| 018 | 266326-2 | TAPPING SCREW 4X18 | 9 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 9 | €0.56 | 1-4 weeks to ship | ||
| 019 | SIDE DUST BOX COVER | 1 | Not available in store | |||
| SIDE DUST BOX COVER | 1 | Not available in store | ||||
| 020 | SEAL RING B | 1 | Not available in store | |||
| SEAL RING B | 1 | Not available in store | ||||
| 021 | LEAD UNIT | 1 | Not available in store | |||
| LEAD UNIT | 1 | Not available in store | ||||
| 022 | 941051-3 | FLAT WASHER 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 941051-3 | FLAT WASHER 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 023 | STOPPER PLATE | 1 | Not available in store | |||
| STOPPER PLATE | 1 | Not available in store | ||||
| 024 | TORSION SPRING 9 | 1 | Not available in store | |||
| TORSION SPRING 9 | 1 | Not available in store | ||||
| 025 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 026 | DVC560 NAME PLATE | 1 | Not available in store | |||
| DVC560 NAME PLATE | 1 | Not available in store | ||||
| 027 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 028 | NOZZLE HOLDER | 2 | Not available in store | |||
| NOZZLE HOLDER | 2 | Not available in store | ||||
| 029 | LOCK LEVER A | 1 | Not available in store | |||
| LOCK LEVER A | 1 | Not available in store | ||||
| 030 | 231309-1 | COMPRESSION SPRING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 231309-1 | COMPRESSION SPRING 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 031 | STAY | 1 | Not available in store | |||
| STAY | 1 | Not available in store | ||||
| 032 | 234391-9 | COMPRESSION SPRING 8 | 1 | €0.14 | 1-4 weeks to ship | |
| 234391-9 | COMPRESSION SPRING 8 | 1 | €0.14 | 1-4 weeks to ship | ||
| 034 | VALVE COMPLETE | 1 | Not available in store | |||
| VALVE COMPLETE | 1 | Not available in store | ||||
| 036 | LATCH | 1 | Not available in store | |||
| LATCH | 1 | Not available in store | ||||
| 037 | MAIN FILTER H SET | 1 | Not available in store | |||
| MAIN FILTER H SET | 1 | Not available in store | ||||
| 038 | SEAL RING A | 1 | Not available in store | |||
| SEAL RING A | 1 | Not available in store | ||||
| 039 | DUST BOX COVER | 1 | Not available in store | |||
| DUST BOX COVER | 1 | Not available in store | ||||
| 040 | 266326-2 | TAPPING SCREW 4X18 | 7 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 7 | €0.56 | 1-4 weeks to ship | ||
| 041 | MOTOR COVER COMPLETE | 1 | Not available in store | |||
| MOTOR COVER COMPLETE | 1 | Not available in store | ||||
| 042 | SUPPORT RING | 1 | Not available in store | |||
| SUPPORT RING | 1 | Not available in store | ||||
| 043 | FAN COVER | 1 | Not available in store | |||
| FAN COVER | 1 | Not available in store | ||||
| 044 | HEX. NUT M6 | 1 | Not available in store | |||
| HEX. NUT M6 | 1 | Not available in store | ||||
| 045 | WASHER 6 | 1 | Not available in store | |||
| WASHER 6 | 1 | Not available in store | ||||
| 046 | FAN 94 | 1 | Not available in store | |||
| FAN 94 | 1 | Not available in store | ||||
| 047 | 313062-2 | FLANGE | 1 | €3.20 | 1-4 weeks to ship | |
| 313062-2 | FLANGE | 1 | €3.20 | 1-4 weeks to ship | ||
| 048 | 266326-2 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | ||
| 049 | 456736-3 | FAN BASE | 1 | €4.59 | 1-4 weeks to ship | |
| 456736-3 | FAN BASE | 1 | €4.59 | 1-4 weeks to ship | ||
| 051 | STATOR | 1 | Not available in store | |||
| STATOR | 1 | Not available in store | ||||
| 052 | 687464-1 | SUPPORT | 1 | €3.90 | 1-4 weeks to ship | |
| 687464-1 | SUPPORT | 1 | €3.90 | 1-4 weeks to ship | ||
| 053 | 620526-2 | CONTROLLER B | 1 | €15.72 | 1-4 weeks to ship | |
| 620526-2 | CONTROLLER B | 1 | €15.72 | 1-4 weeks to ship | ||
| 054 | 266786-8 | + PAN HEAD TAPPING SCREW 2X | 4 | €0.56 | 1-4 weeks to ship | |
| 266786-8 | + PAN HEAD TAPPING SCREW 2X | 4 | €0.56 | 1-4 weeks to ship | ||
| 055 | BAND DAMPER C | 1 | Not available in store | |||
| BAND DAMPER C | 1 | Not available in store | ||||
| 056 | 424837-5 | SUPPORT A | 1 | €1.95 | 1-4 weeks to ship | |
| 424837-5 | SUPPORT A | 1 | €1.95 | 1-4 weeks to ship | ||
| 057 | 183D13-1 | MOTOR HOUSING SET | 1 | €5.71 | 1-4 weeks to ship | |
| 183D13-1 | MOTOR HOUSING SET | 1 | €5.71 | 1-4 weeks to ship | ||
| 058 | 183D13-1 | MOTOR HOUSING SET | 1 | €5.71 | 1-4 weeks to ship | |
| 183D13-1 | MOTOR HOUSING SET | 1 | €5.71 | 1-4 weeks to ship | ||
| 059 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 069 | HEIGHT CHANGE LEVER | 1 | Not available in store | |||
| HEIGHT CHANGE LEVER | 1 | Not available in store | ||||
| 070 | LOCK LEVER B | 1 | Not available in store | |||
| LOCK LEVER B | 1 | Not available in store | ||||
| 071 | 234332-5 | COMPRESSION SPRING 7 | 1 | €0.14 | 1-4 weeks to ship | |
| 234332-5 | COMPRESSION SPRING 7 | 1 | €0.14 | 1-4 weeks to ship | ||
| 072 | BATTERY COVER | 1 | Not available in store | |||
| BATTERY COVER | 1 | Not available in store | ||||
| 073 | CAM | 1 | Not available in store | |||
| CAM | 1 | Not available in store | ||||
| 074 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 075 | 266326-2 | TAPPING SCREW 4X18 | 8 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 8 | €0.56 | 1-4 weeks to ship | ||
| 076 | UPPER HOUSING | 1 | Not available in store | |||
| UPPER HOUSING | 1 | Not available in store | ||||
| 077 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 078 | TERMINAL CASE SET | 1 | Not available in store | |||
| TERMINAL CASE SET | 1 | Not available in store | ||||
| 079 | 644809-6 | TERMINAL | 1 | €3.76 | 1-4 weeks to ship | |
| 644809-6 | TERMINAL | 1 | €3.76 | 1-4 weeks to ship | ||
| 644809-6 | TERMINAL | 1 | €3.76 | 1-4 weeks to ship | ||
| 644809-6 | TERMINAL | 1 | €3.76 | 1-4 weeks to ship | ||
| 080 | TERMINAL CASE SET | 1 | Not available in store | |||
| TERMINAL CASE SET | 1 | Not available in store | ||||
| 082 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 083 | CAM PLATE | 1 | Not available in store | |||
| CAM PLATE | 1 | Not available in store | ||||
| 084 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 085 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 086 | TERMINAL CASE SET | 1 | Not available in store | |||
| TERMINAL CASE SET | 1 | Not available in store | ||||
| 087 | DVC560 SERIAL NO. LABEL | 1 | Not available in store | |||
| DVC560 SERIAL NO. LABEL | 1 | Not available in store | ||||
| 088 | TERMINAL CASE SET | 1 | Not available in store | |||
| TERMINAL CASE SET | 1 | Not available in store | ||||
| 089 | 644809-6 | TERMINAL | 1 | €3.76 | 1-4 weeks to ship | |
| 644809-6 | TERMINAL | 1 | €3.76 | 1-4 weeks to ship | ||
| 644809-6 | TERMINAL | 1 | €3.76 | 1-4 weeks to ship | ||
| 644809-6 | TERMINAL | 1 | €3.76 | 1-4 weeks to ship | ||
| 090 | TUBE | 1 | Not available in store | |||
| TUBE | 1 | Not available in store | ||||
| 091 | FRONT ROLLER HOLDER | 1 | Not available in store | |||
| FRONT ROLLER HOLDER | 1 | Not available in store | ||||
| 092 | FRONT ROLLER SHAFT | 1 | Not available in store | |||
| FRONT ROLLER SHAFT | 1 | Not available in store | ||||
| 093 | FRONT ROLLER | 2 | Not available in store | |||
| FRONT ROLLER | 2 | Not available in store | ||||
| 094 | DC MOTOR | 1 | Not available in store | |||
| DC MOTOR | 1 | Not available in store | ||||
| 095 | TUBE JOINT | 1 | Not available in store | |||
| TUBE JOINT | 1 | Not available in store | ||||
| 096 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 097 | BRUSH GEAR ASSEMBLY | 1 | Not available in store | |||
| BRUSH GEAR ASSEMBLY | 1 | Not available in store | ||||
| 106 | 265199-0 | + PAN HEAD SCREW M3X8 | 2 | €0.56 | 1-4 weeks to ship | |
| 265199-0 | + PAN HEAD SCREW M3X8 | 2 | €0.56 | 1-4 weeks to ship | ||
| 108 | BUMPER | 1 | Not available in store | |||
| BUMPER | 1 | Not available in store | ||||
| 109 | LED CIRCUIT | 1 | Not available in store | |||
| LED CIRCUIT | 1 | Not available in store | ||||
| 110 | SIDE BRUSH | 1 | Not available in store | |||
| SIDE BRUSH | 1 | Not available in store | ||||
| 111 | BOTTOM PLATE ASSEMBLY | 1 | Not available in store | |||
| BOTTOM PLATE ASSEMBLY | 1 | Not available in store | ||||
| 112 | BRUSH | 1 | Not available in store | |||
| BRUSH | 1 | Not available in store | ||||
| 114 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 115 | HINGE HOLDER | 1 | Not available in store | |||
| HINGE HOLDER | 1 | Not available in store | ||||
| 116 | SWITCH UNIT | 1 | Not available in store | |||
| SWITCH UNIT | 1 | Not available in store | ||||
| 117 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 118 | HINGE HOLDER | 1 | Not available in store | |||
| HINGE HOLDER | 1 | Not available in store | ||||
| 120 | 234339-1 | COMPRESSION SPRING 6 | 1 | €0.08 | 1-4 weeks to ship | |
| 234339-1 | COMPRESSION SPRING 6 | 1 | €0.08 | 1-4 weeks to ship | ||
| 121 | PIN 4 | 1 | Not available in store | |||
| PIN 4 | 1 | Not available in store | ||||
| 122 | LOWER HOUSING COMPLETE | 1 | Not available in store | |||
| LOWER HOUSING COMPLETE | 1 | Not available in store | ||||
| 124 | CASTER 75 COMPLETE | 2 | Not available in store | |||
| CASTER 75 COMPLETE | 2 | Not available in store | ||||
| 125 | FOOT LEVER STOPPER S | 1 | Not available in store | |||
| FOOT LEVER STOPPER S | 1 | Not available in store | ||||
| 126 | 266326-2 | TAPPING SCREW 4X18 S | 1 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 S | 1 | €0.56 | 1-4 weeks to ship | ||
