DVC155L
DVC155L

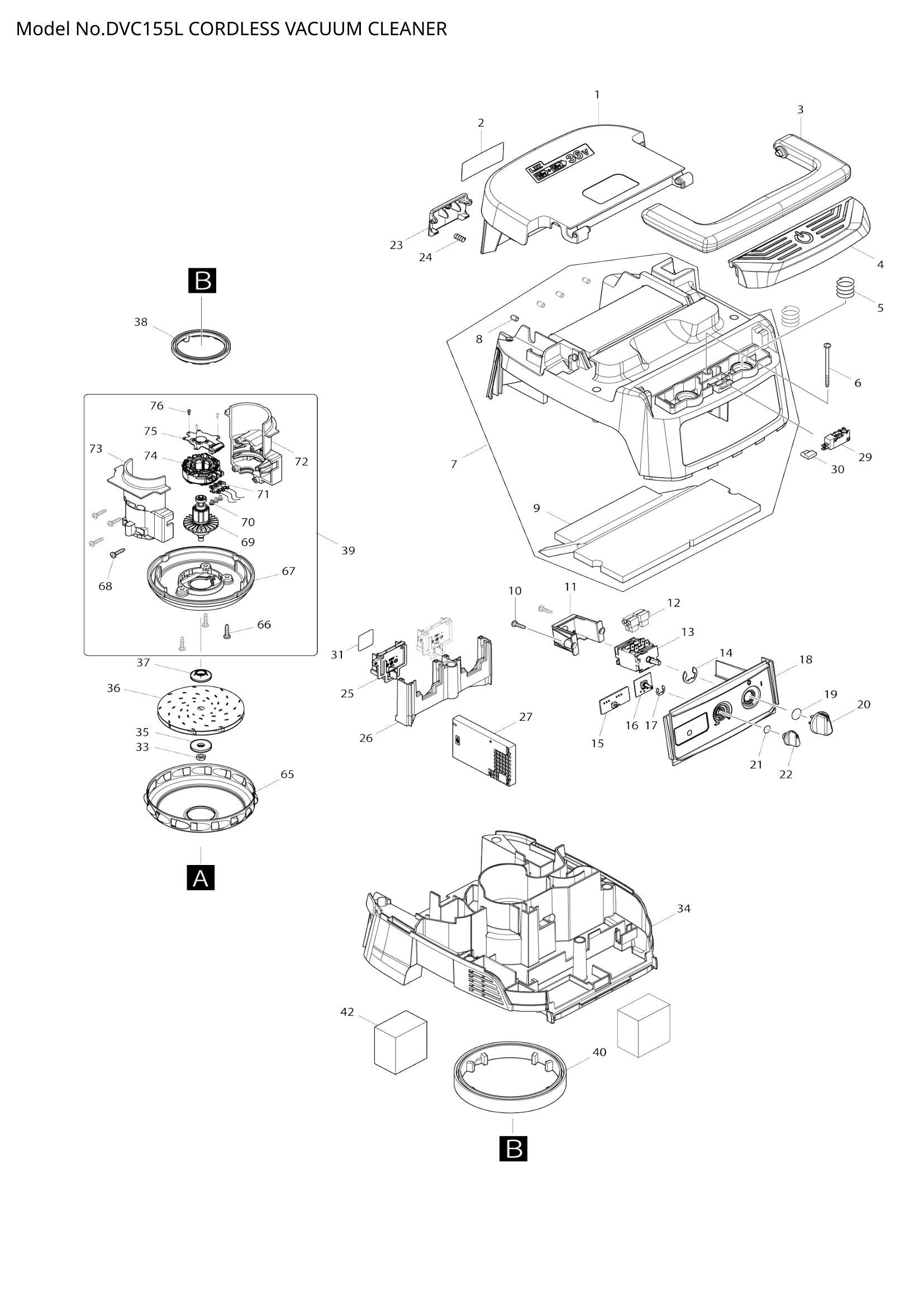

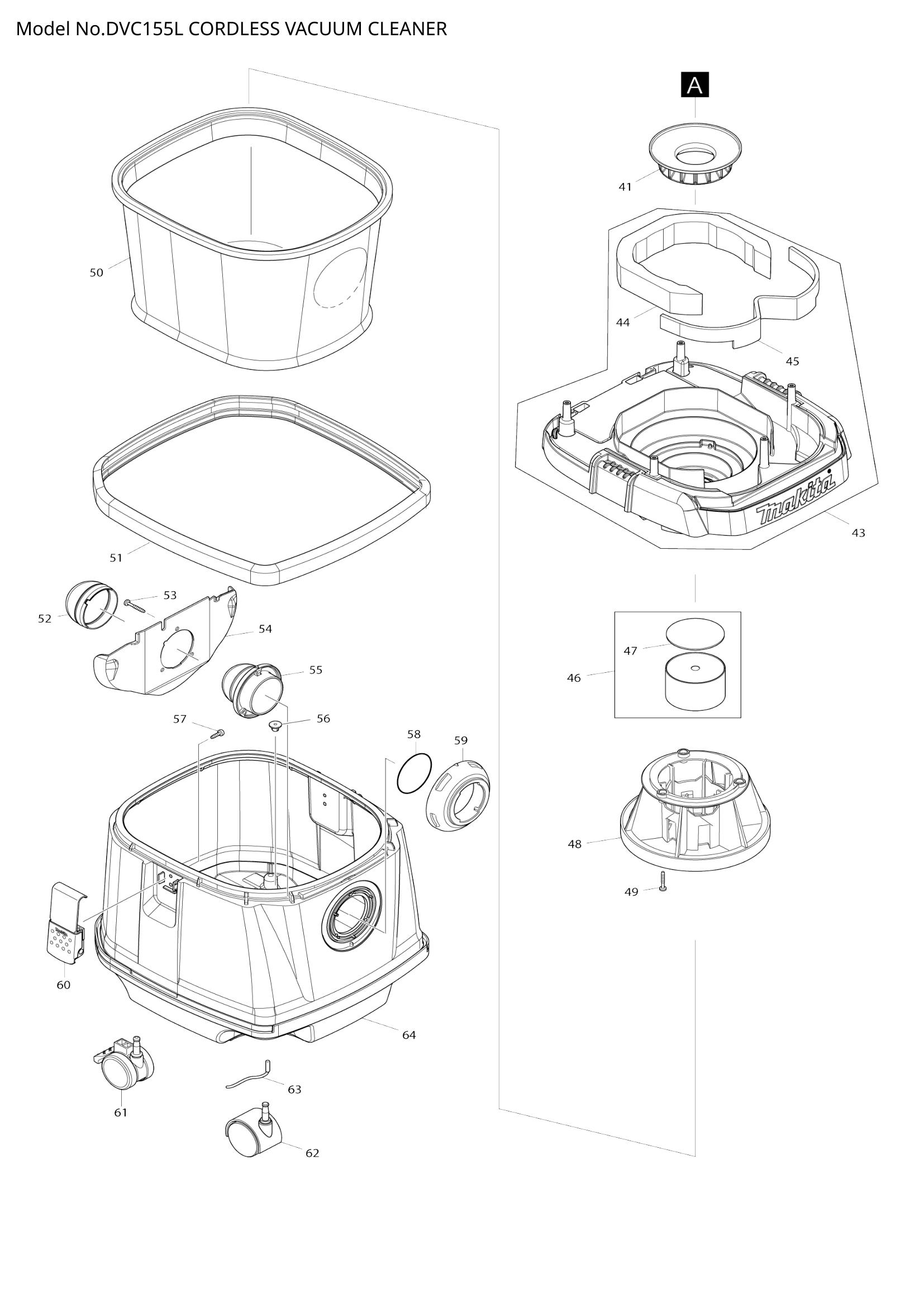

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 143174-5 | BATTERY COVER COMPLETE | 1 | €11.13 | 1-4 weeks to ship | |
| 143174-5 | BATTERY COVER COMPLETE | 1 | €11.13 | 1-4 weeks to ship | ||
| 002 | DVC155L NAME PLATE | 1 | Not available in store | |||
| DVC155L NAME PLATE | 1 | Not available in store | ||||
| 003 | 455734-4 | GRIP | 1 | €7.24 | 1-4 weeks to ship | |
| 455734-4 | GRIP | 1 | €7.24 | 1-4 weeks to ship | ||
| 455734-4 | GRIP | 1 | €7.24 | 1-4 weeks to ship | ||
| 455734-4 | GRIP | 1 | €7.24 | 1-4 weeks to ship | ||
| 004 | SWITCH BUTTON | 1 | Not available in store | |||
| SWITCH BUTTON | 1 | Not available in store | ||||
| 005 | 234273-5 | COMPRESSION SPRING 20 | 2 | €0.14 | 1-4 weeks to ship | |
| 234273-5 | COMPRESSION SPRING 20 | 2 | €0.14 | 1-4 weeks to ship | ||
| 006 | 266340-8 | TAPPING SCREW 4X65 | 6 | €0.56 | 1-4 weeks to ship | |
| 266340-8 | TAPPING SCREW 4X65 | 6 | €0.56 | 1-4 weeks to ship | ||
| 007 | 144409-7 | COWLING COMPLETE | 1 | €25.74 | 1-4 weeks to ship | |
| 144409-7 | COWLING COMPLETE | 1 | €25.74 | 1-4 weeks to ship | ||
| 008 | 263005-3 | RUBBER PIN 6 | 4 | €0.56 | 1-4 weeks to ship | |
| 263005-3 | RUBBER PIN 6 | 4 | €0.56 | 1-4 weeks to ship | ||
| 009 | 424688-6 | TOP DAMPER | 1 | €3.06 | 1-4 weeks to ship | |
| 424688-6 | TOP DAMPER | 1 | €3.06 | 1-4 weeks to ship | ||
| 010 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 011 | 451343-7 | SWITCH HOLDER | 1 | €0.56 | 1-4 weeks to ship | |
| 451343-7 | SWITCH HOLDER | 1 | €0.56 | 1-4 weeks to ship | ||
| 012 | RECEPTACLE SLEEVE | 4 | Not available in store | |||
| RECEPTACLE SLEEVE | 4 | Not available in store | ||||
| 013 | 650622-2 | SWITCH | 1 | €9.18 | 1-4 weeks to ship | |
| 650622-2 | SWITCH | 1 | €9.18 | 1-4 weeks to ship | ||
| 650622-2 | SWITCH | 1 | €9.18 | 1-4 weeks to ship | ||
| 650622-2 | SWITCH | 1 | €9.18 | 1-4 weeks to ship | ||
| 014 | 961062-2 | STOP RING E-12 | 1 | €0.28 | 1-4 weeks to ship | |
| 961062-2 | STOP RING E-12 | 1 | €0.28 | 1-4 weeks to ship | ||
| 961062-2 | STOP RING E-12 | 1 | €0.28 | 1-4 weeks to ship | ||
| 961062-2 | STOP RING E-12 | 1 | €0.28 | 1-4 weeks to ship | ||
| 015 | 620649-6 | LED CIRCUIT | 1 | €15.97 | 1-4 weeks to ship | |
| 620649-6 | LED CIRCUIT | 1 | €15.97 | 1-4 weeks to ship | ||
| 620649-6 | LED CIRCUIT | 1 | €15.97 | 1-4 weeks to ship | ||
| 620649-6 | LED CIRCUIT | 1 | €15.97 | 1-4 weeks to ship | ||
| 016 | 631922-9 | SUB CONTROLLER | 1 | €8.35 | 1-4 weeks to ship | |
| 631922-9 | SUB CONTROLLER | 1 | €8.35 | 1-4 weeks to ship | ||
| 017 | 961013-5 | STOP RING E-7 | 1 | €0.56 | 1-4 weeks to ship | |
| 961013-5 | STOP RING E-7 | 1 | €0.56 | 1-4 weeks to ship | ||
| 018 | 144479-6 | SWITCH BASE COMPLETE | 1 | €8.35 | 1-4 weeks to ship | |
| 144479-6 | SWITCH BASE COMPLETE | 1 | €8.35 | 1-4 weeks to ship | ||
| 019 | 213176-6 | O RING 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 213176-6 | O RING 14 | 1 | €0.56 | 1-4 weeks to ship | ||
| 020 | 455733-6 | SWITCH LEVER | 1 | €2.09 | 1-4 weeks to ship | |
| 455733-6 | SWITCH LEVER | 1 | €2.09 | 1-4 weeks to ship | ||
| 455733-6 | SWITCH LEVER | 1 | €2.09 | 1-4 weeks to ship | ||
| 455733-6 | SWITCH LEVER | 1 | €2.09 | 1-4 weeks to ship | ||
| 021 | 213054-0 | O RING 9 | 1 | €0.56 | 1-4 weeks to ship | |
| 213054-0 | O RING 9 | 1 | €0.56 | 1-4 weeks to ship | ||
| 022 | 451344-5 | SWITCH DIAL | 1 | €0.56 | 1-4 weeks to ship | |
| 451344-5 | SWITCH DIAL | 1 | €0.56 | 1-4 weeks to ship | ||
| 023 | 455728-9 | BATTERY COVER HOOK | 1 | €1.95 | 1-4 weeks to ship | |
| 455728-9 | BATTERY COVER HOOK | 1 | €1.95 | 1-4 weeks to ship | ||
| 455728-9 | BATTERY COVER HOOK | 1 | €1.95 | 1-4 weeks to ship | ||
| 455728-9 | BATTERY COVER HOOK | 1 | €1.95 | 1-4 weeks to ship | ||
| 024 | 231240-1 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 231240-1 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | ||
| 025 | 644808-8 | TERMINAL | 2 | €4.17 | 1-4 weeks to ship | |
| 644808-8 | TERMINAL | 2 | €4.17 | 1-4 weeks to ship | ||
| 026 | 455729-7 | TERMINAL BASE | 1 | €4.45 | 1-4 weeks to ship | |
| 455729-7 | TERMINAL BASE | 1 | €4.45 | 1-4 weeks to ship | ||
| 455729-7 | TERMINAL BASE | 1 | €4.45 | 1-4 weeks to ship | ||
| 455729-7 | TERMINAL BASE | 1 | €4.45 | 1-4 weeks to ship | ||
| 027 | 620639-9 | CONTROLLER | 1 | €152.30 | 1-4 weeks to ship | |
| 620639-9 | CONTROLLER | 1 | €152.30 | 1-4 weeks to ship | ||
| 620639-9 | CONTROLLER | 1 | €152.30 | 1-4 weeks to ship | ||
| 620639-9 | CONTROLLER | 1 | €152.30 | 1-4 weeks to ship | ||
| 029 | 651910-0 | SWITCH D2VW-01-3HS | 1 | €6.82 | 1-4 weeks to ship | |
| 651910-0 | SWITCH D2VW-01-3HS | 1 | €6.82 | 1-4 weeks to ship | ||
| 651910-0 | SWITCH D2VW-01-3HS | 1 | €6.82 | 1-4 weeks to ship | ||
| 651910-0 | SWITCH D2VW-01-3HS | 1 | €6.82 | 1-4 weeks to ship | ||
| 030 | 686039-3 | RECEPTACLE SLEEVE | 1 | €0.18 | 1-4 weeks to ship | |
| 686039-3 | RECEPTACLE SLEEVE | 1 | €0.18 | 1-4 weeks to ship | ||
| 031 | DVC155L SERIAL NO. LABEL | 1 | Not available in store | |||
| DVC155L SERIAL NO. LABEL | 1 | Not available in store | ||||
| 033 | HEX. NUT M6 | 1 | Not available in store | |||
| HEX. NUT M6 | 1 | Not available in store | ||||
| 034 | SEPARATOR | 1 | Not available in store | |||
| SEPARATOR | 1 | Not available in store | ||||
| 035 | 253752-4 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 253752-4 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 036 | 240178-9 | FAN 104 | 1 | €4.72 | 1-4 weeks to ship | |
| 240178-9 | FAN 104 | 1 | €4.72 | 1-4 weeks to ship | ||
| 037 | 313062-2 | FLANGE | 1 | €3.20 | 1-4 weeks to ship | |
| 313062-2 | FLANGE | 1 | €3.20 | 1-4 weeks to ship | ||
| 038 | 424685-2 | RUBBER RING 60 | 1 | €1.67 | 1-4 weeks to ship | |
| 424685-2 | RUBBER RING 60 | 1 | €1.67 | 1-4 weeks to ship | ||
| 039 | MOTOR ASSEMBLY | 1 | Not available in store | |||
| MOTOR ASSEMBLY | 1 | Not available in store | ||||
| 040 | 424686-0 | RUBBER RING 120 | 1 | €5.71 | 1-4 weeks to ship | |
| 424686-0 | RUBBER RING 120 | 1 | €5.71 | 1-4 weeks to ship | ||
| 041 | SUPPORT RING | 1 | Not available in store | |||
| SUPPORT RING | 1 | Not available in store | ||||
| 042 | 424690-9 | REAR BLOCK FILTER | 2 | €0.70 | 1-4 weeks to ship | |
| 424690-9 | REAR BLOCK FILTER | 2 | €0.70 | 1-4 weeks to ship | ||
| 043 | 143175-3 | TANK COVER COMPLETE | 1 | €43.00 | 1-4 weeks to ship | |
| 143175-3 | TANK COVER COMPLETE | 1 | €43.00 | 1-4 weeks to ship | ||
| 044 | 424691-7 | BAND DAMPER | 1 | €3.62 | 1-4 weeks to ship | |
| 424691-7 | BAND DAMPER | 1 | €3.62 | 1-4 weeks to ship | ||
| 045 | 424689-4 | FRONT DAMPER | 1 | €0.83 | 1-4 weeks to ship | |
| 424689-4 | FRONT DAMPER | 1 | €0.83 | 1-4 weeks to ship | ||
| 046 | 158166-1 | FLOAT COMPLETE | 1 | €4.73 | 1-4 weeks to ship | |
| 158166-1 | FLOAT COMPLETE | 1 | €4.73 | 1-4 weeks to ship | ||
| 047 | 423365-7 | SPONGE SEAL 70 | 1 | €0.97 | 1-4 weeks to ship | |
| 423365-7 | SPONGE SEAL 70 | 1 | €0.97 | 1-4 weeks to ship | ||
| 048 | 419725-9 | FLOAT CAGE | 1 | €4.31 | 1-4 weeks to ship | |
| 419725-9 | FLOAT CAGE | 1 | €4.31 | 1-4 weeks to ship | ||
| 049 | 266374-1 | TAPPING SCREW 4X25 | 3 | €0.56 | 1-4 weeks to ship | |
| 266374-1 | TAPPING SCREW 4X25 | 3 | €0.56 | 1-4 weeks to ship | ||
| 050 | 140248-3 | CLOTH FILTER COMPLETE | 1 | €27.83 | 1-4 weeks to ship | |
| 140248-3 | CLOTH FILTER COMPLETE | 1 | €27.83 | 1-4 weeks to ship | ||
| 051 | 422148-2 | BUMPER | 1 | €10.37 | 1-4 weeks to ship | |
| 422148-2 | BUMPER | 1 | €10.37 | 1-4 weeks to ship | ||
| 052 | 424382-0 | RUBBER HOLDER | 1 | €1.11 | 1-4 weeks to ship | |
| 424382-0 | RUBBER HOLDER | 1 | €1.11 | 1-4 weeks to ship | ||
| 053 | 266257-5 | TAPPING SCREW 4X28 | 3 | €0.56 | 1-4 weeks to ship | |
| 266257-5 | TAPPING SCREW 4X28 | 3 | €0.56 | 1-4 weeks to ship | ||
| 054 | 419351-4 | HOLDER PLATE | 1 | €1.95 | 1-4 weeks to ship | |
| 419351-4 | HOLDER PLATE | 1 | €1.95 | 1-4 weeks to ship | ||
| 055 | 419350-6 | HOLDER | 1 | €1.81 | 1-4 weeks to ship | |
| 419350-6 | HOLDER | 1 | €1.81 | 1-4 weeks to ship | ||
| 056 | 421468-1 | CORD SEAL | 1 | €2.09 | 1-4 weeks to ship | |
| 421468-1 | CORD SEAL | 1 | €2.09 | 1-4 weeks to ship | ||
| 057 | 266192-7 | TAPPING SCREW 4X14 | 4 | €0.56 | 1-4 weeks to ship | |
| 266192-7 | TAPPING SCREW 4X14 | 4 | €0.56 | 1-4 weeks to ship | ||
| 058 | 213655-4 | O RING 56 | 1 | €0.83 | 1-4 weeks to ship | |
| 213655-4 | O RING 56 | 1 | €0.83 | 1-4 weeks to ship | ||
| 059 | 451348-7 | INLET | 1 | €3.34 | 1-4 weeks to ship | |
| 451348-7 | INLET | 1 | €3.34 | 1-4 weeks to ship | ||
| 060 | 168537-4 | HOOK | 2 | €11.13 | 1-4 weeks to ship | |
| 168537-4 | HOOK | 2 | €11.13 | 1-4 weeks to ship | ||
| 061 | 168535-8 | CASTER 50 | 2 | €6.12 | 1-4 weeks to ship | |
| 168535-8 | CASTER 50 | 2 | €6.12 | 1-4 weeks to ship | ||
| 062 | 168434-4 | CASTER 50 | 2 | €5.15 | 1-4 weeks to ship | |
| 168434-4 | CASTER 50 | 2 | €5.15 | 1-4 weeks to ship | ||
| 063 | 649150-2 | EARTH LINE 120 | 1 | €4.45 | 1-4 weeks to ship | |
| 649150-2 | EARTH LINE 120 | 1 | €4.45 | 1-4 weeks to ship | ||
| 064 | TANK | 1 | Not available in store | |||
| TANK | 1 | Not available in store | ||||
| 065 | 347171-5 | FAN COVER | 1 | €5.23 | 1-4 weeks to ship | |
| 347171-5 | FAN COVER | 1 | €5.23 | 1-4 weeks to ship | ||
| 066 | 266326-2 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | ||
| 067 | 457486-3 | FAN BASE | 1 | €5.32 | 1-4 weeks to ship | |
| 457486-3 | FAN BASE | 1 | €5.32 | 1-4 weeks to ship | ||
| 457486-3 | FAN BASE | 1 | €5.32 | 1-4 weeks to ship | ||
| 457486-3 | FAN BASE | 1 | €5.32 | 1-4 weeks to ship | ||
| 068 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 069 | 619431-8 | ROTOR | 1 | €21.25 | 1-4 weeks to ship | |
| 619431-8 | ROTOR | 1 | €21.25 | 1-4 weeks to ship | ||
| 619431-8 | ROTOR | 1 | €21.25 | 1-4 weeks to ship | ||
| 619431-8 | ROTOR | 1 | €21.25 | 1-4 weeks to ship | ||
| 070 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | ||
| 071 | 632J83-8 | LEAD UNIT | 1 | €3.97 | 1-4 weeks to ship | |
| 632J83-8 | LEAD UNIT | 1 | €3.97 | 1-4 weeks to ship | ||
| 632J83-8 | LEAD UNIT | 1 | €3.97 | 1-4 weeks to ship | ||
| 632J83-8 | LEAD UNIT | 1 | €3.97 | 1-4 weeks to ship | ||
| 072 | 183F90-5 | MOTOR HOUSING SET | 1 | €7.63 | 1-4 weeks to ship | |
| 183F90-5 | MOTOR HOUSING SET | 1 | €7.63 | 1-4 weeks to ship | ||
| 073 | 183F90-5 | MOTOR HOUSING SET | 1 | €7.63 | 1-4 weeks to ship | |
| 183F90-5 | MOTOR HOUSING SET | 1 | €7.63 | 1-4 weeks to ship | ||
| 074 | STATOR | 1 | Not available in store | |||
| STATOR | 1 | Not available in store | ||||
| 075 | 620648-8 | CONTROLLER B | 1 | €21.29 | 1-4 weeks to ship | |
| 620648-8 | CONTROLLER B | 1 | €21.29 | 1-4 weeks to ship | ||
| 620648-8 | CONTROLLER B | 1 | €21.29 | 1-4 weeks to ship | ||
| 620648-8 | CONTROLLER B | 1 | €21.29 | 1-4 weeks to ship | ||
| 076 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | ||
