DUX60
DUX60

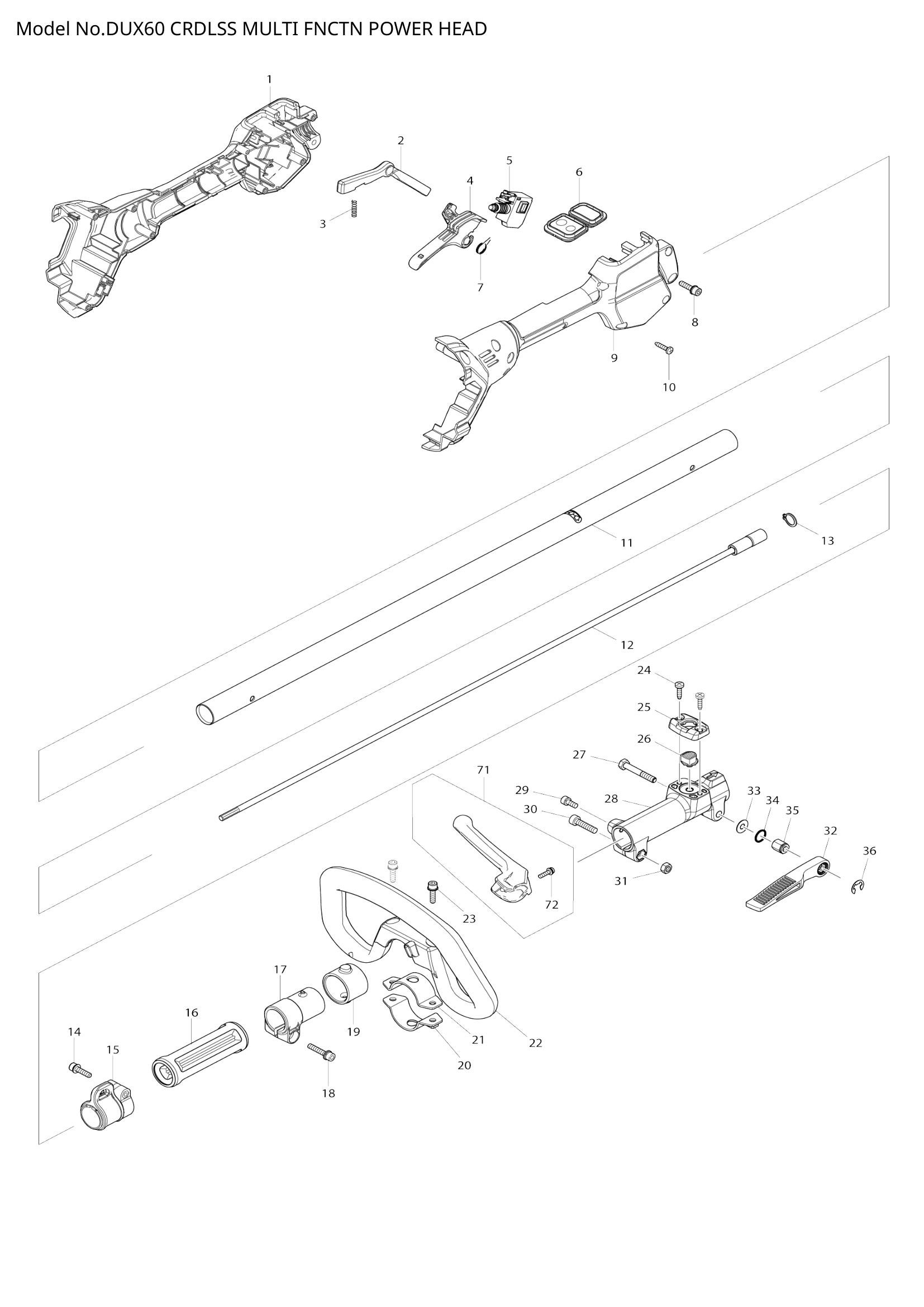

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 183G31-7 | GRIP SET | 1 | €21.64 | 1-4 weeks to ship | |
| 183G31-7 | GRIP SET | 1 | €21.64 | 1-4 weeks to ship | ||
| 002 | 457773-0 | LOCK OFF LEVER | 1 | €2.53 | 1-4 weeks to ship | |
| 457773-0 | LOCK OFF LEVER | 1 | €2.53 | 1-4 weeks to ship | ||
| 457773-0 | LOCK OFF LEVER | 1 | €2.53 | 1-4 weeks to ship | ||
| 457773-0 | LOCK OFF LEVER | 1 | €2.53 | 1-4 weeks to ship | ||
| 003 | 233101-1 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 233101-1 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 004 | 457771-4 | SWITCH LEVER | 1 | €2.82 | 1-4 weeks to ship | |
| 457771-4 | SWITCH LEVER | 1 | €2.82 | 1-4 weeks to ship | ||
| 457771-4 | SWITCH LEVER | 1 | €2.82 | 1-4 weeks to ship | ||
| 457771-4 | SWITCH LEVER | 1 | €2.82 | 1-4 weeks to ship | ||
| 005 | 650709-0 | SWITCH C3JW-1A-P | 1 | €14.47 | 1-4 weeks to ship | |
| 650709-0 | SWITCH C3JW-1A-P | 1 | €14.47 | 1-4 weeks to ship | ||
| 650709-0 | SWITCH C3JW-1A-P | 1 | €14.47 | 1-4 weeks to ship | ||
| 650709-0 | SWITCH C3JW-1A-P | 1 | €14.47 | 1-4 weeks to ship | ||
| 007 | 233540-5 | TORSION SPRING 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 233540-5 | TORSION SPRING 11 | 1 | €0.56 | 1-4 weeks to ship | ||
| 008 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 009 | 183G31-7 | GRIP SET | 1 | €21.64 | 1-4 weeks to ship | |
| 183G31-7 | GRIP SET | 1 | €21.64 | 1-4 weeks to ship | ||
| 010 | 266326-2 | TAPPING SCREW 4X18 | 8 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 8 | €0.56 | 1-4 weeks to ship | ||
| 011 | 141499-1 | SHAFT PIPE B COMPLETE | 1 | €37.71 | 1-4 weeks to ship | |
| 141499-1 | SHAFT PIPE B COMPLETE | 1 | €37.71 | 1-4 weeks to ship | ||
| 012 | 141238-9 | SHAFT B COMPLETE | 1 | €23.79 | 1-4 weeks to ship | |
| 141238-9 | SHAFT B COMPLETE | 1 | €23.79 | 1-4 weeks to ship | ||
| 013 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 014 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 015 | 168478-4 | HANGER | 1 | €4.17 | 1-4 weeks to ship | |
| 168478-4 | HANGER | 1 | €4.17 | 1-4 weeks to ship | ||
| 016 | 451601-1 | SPACER 24 | 1 | €2.09 | 1-4 weeks to ship | |
| 451601-1 | SPACER 24 | 1 | €2.09 | 1-4 weeks to ship | ||
| 451601-1 | SPACER 24 | 1 | €2.09 | 1-4 weeks to ship | ||
| 451601-1 | SPACER 24 | 1 | €2.09 | 1-4 weeks to ship | ||
| 017 | 457269-1 | PIPE HOLDER 24 | 1 | €1.64 | 1-4 weeks to ship | |
| 457269-1 | PIPE HOLDER 24 | 1 | €1.64 | 1-4 weeks to ship | ||
| 457269-1 | PIPE HOLDER 24 | 1 | €1.64 | 1-4 weeks to ship | ||
| 457269-1 | PIPE HOLDER 24 | 1 | €1.64 | 1-4 weeks to ship | ||
| 018 | 922244-1 | H.S.H.BOLT M5X25 WITH WG | 1 | €1.39 | 1-4 weeks to ship | |
| 922244-1 | H.S.H.BOLT M5X25 WITH WG | 1 | €1.39 | 1-4 weeks to ship | ||
| 019 | 424942-8 | DAMPER | 1 | €1.31 | 1-4 weeks to ship | |
| 424942-8 | DAMPER | 1 | €1.31 | 1-4 weeks to ship | ||
| 020 | 347114-7 | LOWER CLAMP 35 | 1 | €1.35 | 1-4 weeks to ship | |
| 347114-7 | LOWER CLAMP 35 | 1 | €1.35 | 1-4 weeks to ship | ||
| 021 | 347113-9 | UPPER CLAMP 35 | 1 | €0.81 | 1-4 weeks to ship | |
| 347113-9 | UPPER CLAMP 35 | 1 | €0.81 | 1-4 weeks to ship | ||
| 022 | 457772-2 | LOOP HANDLE | 1 | €12.48 | 1-4 weeks to ship | |
| 457772-2 | LOOP HANDLE | 1 | €12.48 | 1-4 weeks to ship | ||
| 457772-2 | LOOP HANDLE | 1 | €12.48 | 1-4 weeks to ship | ||
| 457772-2 | LOOP HANDLE | 1 | €12.48 | 1-4 weeks to ship | ||
| 023 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 2 | €0.56 | 1-4 weeks to ship | |
| 922233-6 | H.S.H.BOLT M5X20 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 024 | 266034-5 | TAPPING SCREW CT 4X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 266034-5 | TAPPING SCREW CT 4X16 | 2 | €0.56 | 1-4 weeks to ship | ||
| 026 | 452839-1 | RELEASE BUTTON | 1 | €0.97 | 1-4 weeks to ship | |
| 452839-1 | RELEASE BUTTON | 1 | €0.97 | 1-4 weeks to ship | ||
| 027 | 265596-0 | HEX.BOLT M6X40 | 1 | €0.42 | 1-4 weeks to ship | |
| 265596-0 | HEX.BOLT M6X40 | 1 | €0.42 | 1-4 weeks to ship | ||
| 029 | 922211-6 | H.S.H.BOLT M5X12 WITH W | 1 | €0.56 | 1-4 weeks to ship | |
| 922211-6 | H.S.H.BOLT M5X12 WITH W | 1 | €0.56 | 1-4 weeks to ship | ||
| 030 | 922342-1 | HEX. SOCKET HEAD BOLT M6X25 | 1 | €0.56 | 1-4 weeks to ship | |
| 922342-1 | HEX. SOCKET HEAD BOLT M6X25 | 1 | €0.56 | 1-4 weeks to ship | ||
| 031 | 931302-2 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 931302-2 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 032 | 272268-0 | LEVER 94 | 1 | €2.78 | 1-4 weeks to ship | |
| 272268-0 | LEVER 94 | 1 | €2.78 | 1-4 weeks to ship | ||
| 033 | 253332-6 | THIN WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 253332-6 | THIN WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 034 | 213105-9 | O RING 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 213105-9 | O RING 11 | 1 | €0.56 | 1-4 weeks to ship | ||
| 035 | 252159-1 | HEX. NUT M6 | 1 | €2.78 | 1-4 weeks to ship | |
| 252159-1 | HEX. NUT M6 | 1 | €2.78 | 1-4 weeks to ship | ||
| 036 | 961014-3 | STOP RING E-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 961014-3 | STOP RING E-8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 037 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 039 | 911233-1 | PAN HEAD SCREW M5X20 | 4 | €0.56 | 1-4 weeks to ship | |
| 911233-1 | PAN HEAD SCREW M5X20 | 4 | €0.56 | 1-4 weeks to ship | ||
| 040 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 041 | 213045-1 | O-RING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 213045-1 | O-RING 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 042 | 325811-5 | SPINDLE HUB | 1 | €16.70 | 1-4 weeks to ship | |
| 325811-5 | SPINDLE HUB | 1 | €16.70 | 1-4 weeks to ship | ||
| 043 | 211148-5 | BALL BEARING 6001ZZ | 1 | €8.35 | 1-4 weeks to ship | |
| 211148-5 | BALL BEARING 6001ZZ | 1 | €8.35 | 1-4 weeks to ship | ||
| 044 | 253744-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 253744-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 045 | 227720-3 | HELICAL GEAR 33 | 1 | €19.48 | 1-4 weeks to ship | |
| 227720-3 | HELICAL GEAR 33 | 1 | €19.48 | 1-4 weeks to ship | ||
| 046 | 253744-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 253744-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 048 | 319608-2 | GEAR BOX | 1 | €12.98 | 1-4 weeks to ship | |
| 319608-2 | GEAR BOX | 1 | €12.98 | 1-4 weeks to ship | ||
| 049 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 050 | 266041-8 | TAPPING SCREW 5X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 266041-8 | TAPPING SCREW 5X25 | 4 | €0.56 | 1-4 weeks to ship | ||
| 051 | 213961-7 | O RING 22 | 1 | €0.56 | 1-4 weeks to ship | |
| 213961-7 | O RING 22 | 1 | €0.56 | 1-4 weeks to ship | ||
| 053 | 227721-1 | HELICAL GEAR 16 | 1 | €4.63 | 1-4 weeks to ship | |
| 227721-1 | HELICAL GEAR 16 | 1 | €4.63 | 1-4 weeks to ship | ||
| 055 | 961006-2 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 961006-2 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 058 | 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | ||
| 059 | DUX60 NAME PLATE | 1 | Not available in store | |||
| DUX60 NAME PLATE | 1 | Not available in store | ||||
| 060 | 183G29-4 | HOUSING SET | 1 | €17.32 | 1-4 weeks to ship | |
| 183G29-4 | HOUSING SET | 1 | €17.32 | 1-4 weeks to ship | ||
| 061 | 251314-2 | + TRUSS HEAD SCREW M4X12 | 3 | €0.56 | 1-4 weeks to ship | |
| 251314-2 | + TRUSS HEAD SCREW M4X12 | 3 | €0.56 | 1-4 weeks to ship | ||
| 062 | 346858-6 | BATTERY GUARD | 1 | €11.69 | 1-4 weeks to ship | |
| 346858-6 | BATTERY GUARD | 1 | €11.69 | 1-4 weeks to ship | ||
| 063 | DUX60 SERIAL NO. LABEL | 1 | Not available in store | |||
| DUX60 SERIAL NO. LABEL | 1 | Not available in store | ||||
| 065 | 644809-6 | TERMINAL | 2 | €3.76 | 1-4 weeks to ship | |
| 644809-6 | TERMINAL | 2 | €3.76 | 1-4 weeks to ship | ||
| 644809-6 | TERMINAL | 2 | €3.76 | 1-4 weeks to ship | ||
| 644809-6 | TERMINAL | 2 | €3.76 | 1-4 weeks to ship | ||
| 066 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 067 | 183G30-9 | MOTOR HOUSING SET | 1 | €5.02 | 1-4 weeks to ship | |
| 183G30-9 | MOTOR HOUSING SET | 1 | €5.02 | 1-4 weeks to ship | ||
| 068 | 183G30-9 | MOTOR HOUSING SET | 1 | €5.02 | 1-4 weeks to ship | |
| 183G30-9 | MOTOR HOUSING SET | 1 | €5.02 | 1-4 weeks to ship | ||
| 069 | 183G29-4 | HOUSING SET | 1 | €17.32 | 1-4 weeks to ship | |
| 183G29-4 | HOUSING SET | 1 | €17.32 | 1-4 weeks to ship | ||
| 070 | 922211-6 | H.S.H.BOLT M5X12 WITH W | 1 | €0.56 | 1-4 weeks to ship | |
| 922211-6 | H.S.H.BOLT M5X12 WITH W | 1 | €0.56 | 1-4 weeks to ship | ||
| 071 | 144315-6 | BARRIER COMPLETE | 1 | €3.92 | 1-4 weeks to ship | |
| 144315-6 | BARRIER COMPLETE | 1 | €3.92 | 1-4 weeks to ship | ||
| 072 | 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 073 | CONTROLLER B S | 1 | Not available in store | |||
| CONTROLLER B S | 1 | Not available in store | ||||
| 074 | PAN HEAD SCREW M2X6 S | 6 | Not available in store | |||
| PAN HEAD SCREW M2X6 S | 6 | Not available in store | ||||
