DUR369A
DUR369A

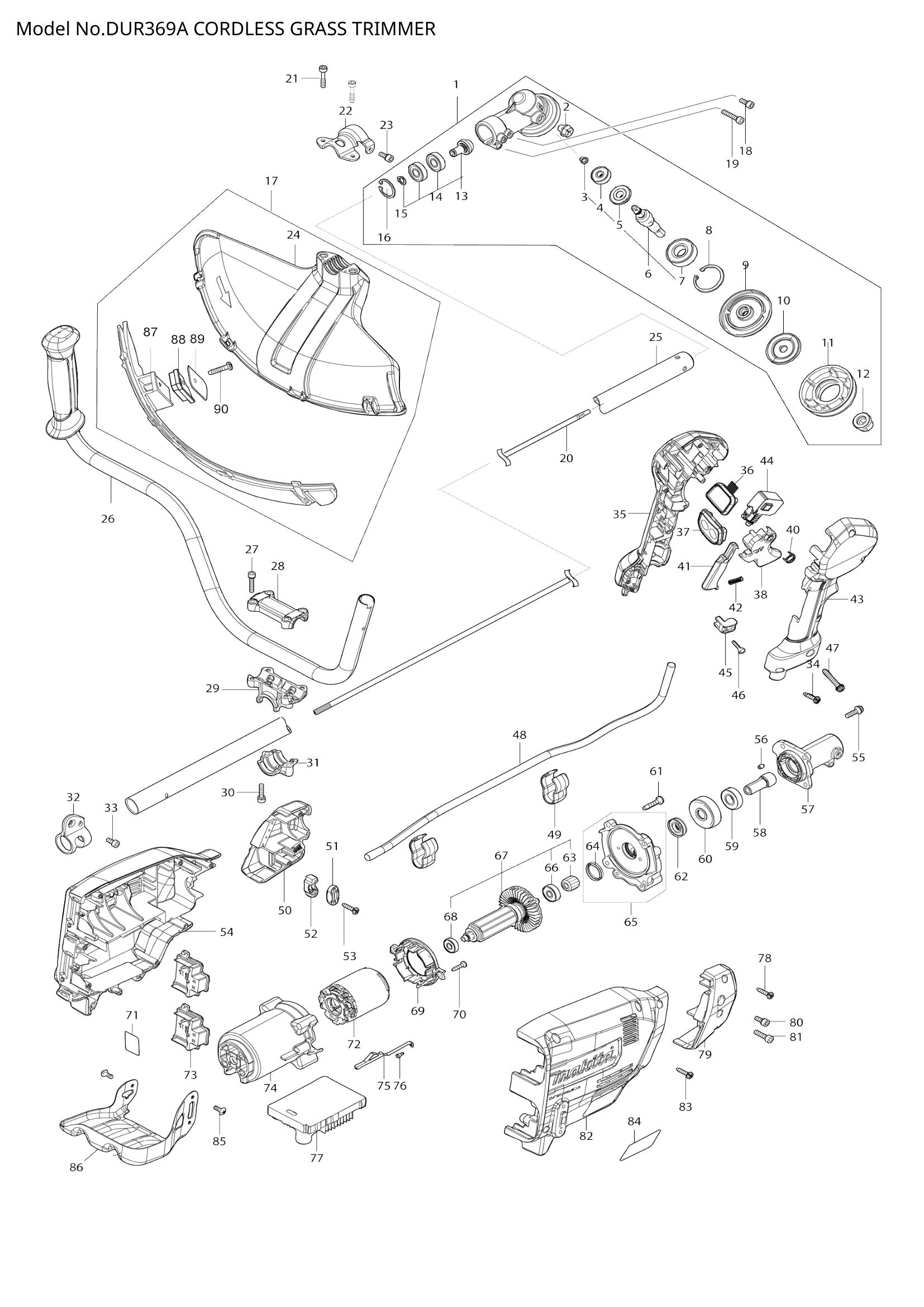

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 123853-1 | GEAR CASE ASSEMBLY | 1 | €69.58 | 1-4 weeks to ship | |
| 002 | 265590-2 | +HEX.BOLT M8X10 WITH R | 1 | €0.56 | 1-4 weeks to ship | |
| 003 | 232350-7 | RING SPRING 6 | 1 | €0.42 | 1-4 weeks to ship | |
| 004 | 210030-5 | BALL BEARING 627ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 005 | SPIRAL BEVEL GEAR 19 | 1 | Not available in store | |||
| 006 | 136233-2 | CUTTER SHAFT ASS'Y | 1 | €45.92 | 1-4 weeks to ship | |
| 007 | 211228-7 | BALL BEARING 6202DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 008 | 257432-4 | RETAINING RING R-35 | 1 | €0.70 | 1-4 weeks to ship | |
| 009 | 144312-2 | RECEIVE WASHER COMPLETE | 1 | €14.89 | 1-4 weeks to ship | |
| 010 | 347104-0 | CLAMP WASHER | 1 | €2.78 | 1-4 weeks to ship | |
| 011 | CUP US | 1 | Not available in store | |||
| 012 | 252236-9 | HEX. LOCK NUT M10-17 | 1 | €2.50 | 1-4 weeks to ship | |
| 013 | 136235-8 | SPIRAL BEVEL GEAR ASS'Y | 1 | €29.22 | 1-4 weeks to ship | |
| 014 | 210049-4 | BALL BEARING 609ZZ | 2 | €4.17 | 1-4 weeks to ship | |
| 015 | RETAINING RING (EXT) S-9 | 1 | Not available in store | |||
| 016 | RETAINING RING (INT)R-24 | 1 | Not available in store | |||
| 017 | PROTECTOR U 430 SET MG | 1 | Not available in store | |||
| 018 | 922216-6 | H.S.H.BOLT M5X14 WITH W | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | 327056-1 | SHAFT | 1 | €5.57 | 1-4 weeks to ship | |
| 021 | 251513-6 | H.S.H.BOLT M5X25 | 2 | €0.28 | 1-4 weeks to ship | |
| 022 | 347107-4 | PROTECTOR CLAMP 24 | 1 | €2.09 | 1-4 weeks to ship | |
| 023 | 922216-6 | H.S.H.BOLT M5X14 WITH W | 1 | €0.56 | 1-4 weeks to ship | |
| 024 | 457271-4 | PROTECTOR U 450 | 1 | €9.18 | 1-4 weeks to ship | |
| 457271-4 | PROTECTOR U 450 | 1 | €9.18 | 1-4 weeks to ship | ||
| 025 | SHAFT PIPE COMPLETE A | 1 | Not available in store | |||
| 026 | 140L83-1 | HANDLE 19 COMPLETE | 1 | €21.57 | 1-4 weeks to ship | |
| 027 | 922241-7 | HEX. SOCKET HEAD BOLT M5X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 028 | 318272-6 | HANDLE HOLDER 1 | 1 | €1.95 | 1-4 weeks to ship | |
| 029 | HANDLE HOLDER | 1 | Not available in store | |||
| 030 | 922241-7 | HEX. SOCKET HEAD BOLT M5X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 031 | PIPE CLAMP | 1 | Not available in store | |||
| 032 | 347116-3 | HANGER | 1 | €1.39 | 1-4 weeks to ship | |
| 033 | 922212-4 | HEX. SOCKET HEAD BOLT M5X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 034 | 266326-2 | TAPPING SCREW 4X18 | 5 | €0.56 | 1-4 weeks to ship | |
| 035 | GRIP SET | 1 | Not available in store | |||
| 036 | INDICATION CIRCUIT COMPLETE | 1 | Not available in store | |||
| 037 | SWITCH CIRCUIT COMPLETE G | 1 | Not available in store | |||
| 038 | SWITCH LEVER | 1 | Not available in store | |||
| 040 | 233540-5 | TORSION SPRING 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 041 | LOCK OFF LEVER | 1 | Not available in store | |||
| 042 | 233101-1 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 043 | GRIP SET | 1 | Not available in store | |||
| 044 | SWITCH C3JW-1A-P-2 | 1 | Not available in store | |||
| 045 | 687260-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 687260-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 046 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 047 | 911258-5 | PAN HEAD SCREW M5X35 | 1 | €0.56 | 1-4 weeks to ship | |
| 911258-5 | PAN HEAD SCREW M5X35 | 1 | €0.56 | 1-4 weeks to ship | ||
| 048 | POWER SUPPLY CORD UNIT | 1 | Not available in store | |||
| 049 | 457458-8 | CLAMP | 2 | €0.70 | 1-4 weeks to ship | |
| 050 | HOUSING COVER SET | 1 | Not available in store | |||
| 052 | 687051-6 | STRAIN RELIEF | 1 | €2.09 | 1-4 weeks to ship | |
| 053 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 054 | HOUSING SET | 1 | Not available in store | |||
| 055 | 911233-1 | PAN HEAD SCREW M5X20 | 4 | €0.56 | 1-4 weeks to ship | |
| 056 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 057 | PIPE BRACKET | 1 | Not available in store | |||
| 058 | 325811-5 | SPINDLE HUB | 1 | €16.70 | 1-4 weeks to ship | |
| 059 | 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 060 | HELICAL GEAR 29 | 1 | Not available in store | |||
| 061 | 266459-3 | TAPPING SCREW 5X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 062 | 211150-8 | BALL BEARING 6901ZZ | 1 | €5.57 | 1-4 weeks to ship | |
| 063 | HELICAL GEAR 10 | 1 | Not available in store | |||
| 064 | 213961-7 | O RING 22 | 1 | €0.56 | 1-4 weeks to ship | |
| 065 | GEAR BOX ASS'Y | 1 | Not available in store | |||
| 066 | 210005-4 | BALL BEARING 608DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 067 | ROTOR ASS'Y | 1 | Not available in store | |||
| 068 | 210062-2 | BALL BEARING 607ZZ | 1 | €0.83 | 1-4 weeks to ship | |
| 069 | BAFFLE PLATE | 1 | Not available in store | |||
| 070 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 071 | DUR369A SERIAL NO. LABEL | 1 | Not available in store | |||
| 073 | 644809-6 | TERMINAL | 2 | €3.76 | 1-4 weeks to ship | |
| 644809-6 | TERMINAL | 2 | €3.76 | 1-4 weeks to ship | ||
| 074 | MOTOR HOUSING | 1 | Not available in store | |||
| 076 | 911102-6 | PAN HEAD SCREW M4X6 | 1 | €0.14 | 1-4 weeks to ship | |
| 077 | CONTROLLER | 1 | Not available in store | |||
| 078 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 079 | HOUSING COVER SET | 1 | Not available in store | |||
| 081 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 082 | HOUSING SET | 1 | Not available in store | |||
| 083 | 266326-2 | TAPPING SCREW 4X18 | 7 | €0.56 | 1-4 weeks to ship | |
| 084 | DUR369A NAME PLATE | 1 | Not available in store | |||
| 085 | 251314-2 | + TRUSS HEAD SCREW M4X12 | 3 | €0.56 | 1-4 weeks to ship | |
| 086 | BATTERY GUARD | 1 | Not available in store | |||
| 087 | 144316-4 | PROTECTOR U EXT. 420-450 COM | 1 | €6.54 | 1-4 weeks to ship | |
| 088 | CUTTER EXTENSION | 1 | Not available in store | |||
| 089 | 347115-5 | CUTTER | 1 | €1.81 | 1-4 weeks to ship | |
| 090 | 266459-3 | TAPPING SCREW 5X25 | 1 | €0.56 | 1-4 weeks to ship | |
| 091 | CONTROLLER B S | 1 | Not available in store | |||
| 092 | LEAD UNIT S | 1 | Not available in store | |||
| 093 | PAN HEAD SCREW M2X6 S | 6 | Not available in store | |||
