DUR191L
DUR191L

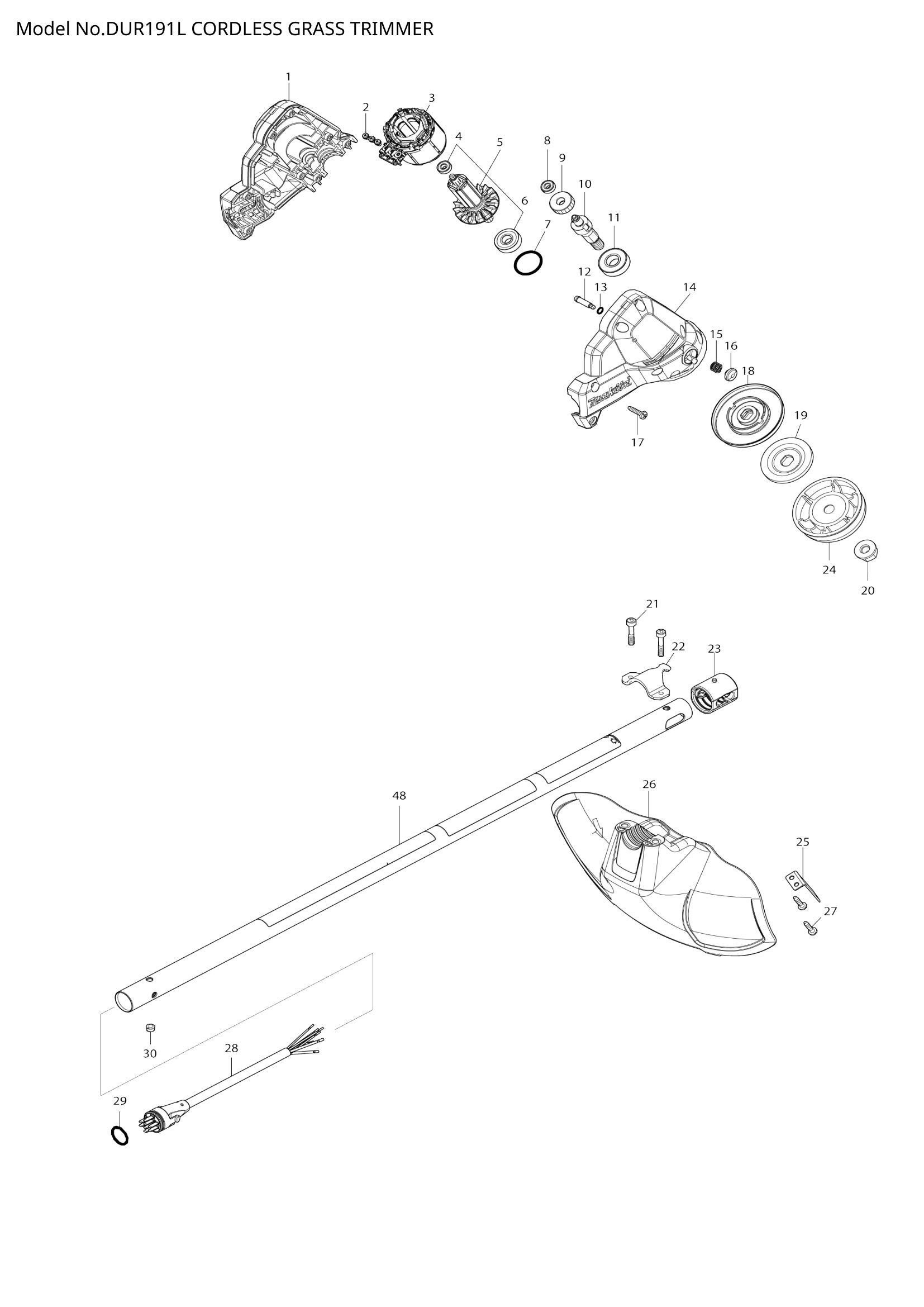

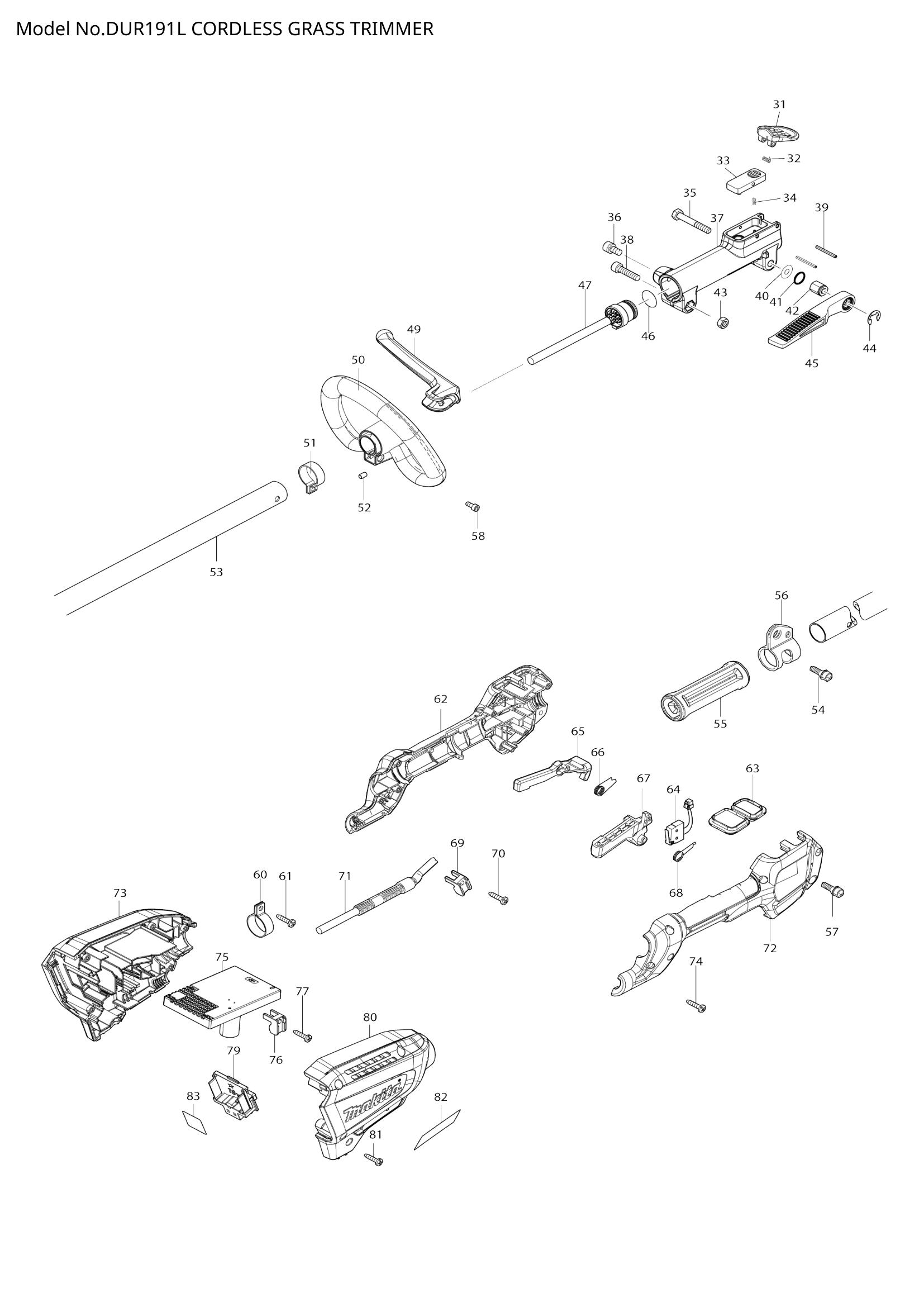

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | MOTOR HOUSING SET | 1 | Not available in store | |||
| MOTOR HOUSING SET | 1 | Not available in store | ||||
| 002 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | ||
| 003 | 629248-1 | STATOR | 1 | €12.80 | 1-4 weeks to ship | |
| 629248-1 | STATOR | 1 | €12.80 | 1-4 weeks to ship | ||
| 629248-1 | STATOR | 1 | €12.80 | 1-4 weeks to ship | ||
| 629248-1 | STATOR | 1 | €12.80 | 1-4 weeks to ship | ||
| 004 | BALL BEARING 695ZZ | 1 | Not available in store | |||
| BALL BEARING 695ZZ | 1 | Not available in store | ||||
| 005 | ROTOR ASS'Y | 1 | Not available in store | |||
| ROTOR ASS'Y | 1 | Not available in store | ||||
| 006 | 210049-4 | BALL BEARING 609ZZ | 1 | €4.17 | 1-4 weeks to ship | |
| 210049-4 | BALL BEARING 609ZZ | 1 | €4.17 | 1-4 weeks to ship | ||
| 007 | 213380-7 | O RING 24 | 1 | €0.56 | 1-4 weeks to ship | |
| 213380-7 | O RING 24 | 1 | €0.56 | 1-4 weeks to ship | ||
| 008 | BALL BEARING 695ZZ | 1 | Not available in store | |||
| BALL BEARING 695ZZ | 1 | Not available in store | ||||
| 009 | 221492-2 | HELICAL GEAR 26 | 1 | €3.06 | 1-4 weeks to ship | |
| 221492-2 | HELICAL GEAR 26 | 1 | €3.06 | 1-4 weeks to ship | ||
| 010 | CUTTER SHAFT | 1 | Not available in store | |||
| CUTTER SHAFT | 1 | Not available in store | ||||
| 011 | 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | ||
| 012 | 256546-6 | SHOULDER PIN 4 | 1 | €0.42 | 1-4 weeks to ship | |
| 256546-6 | SHOULDER PIN 4 | 1 | €0.42 | 1-4 weeks to ship | ||
| 013 | 213021-5 | O RING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 213021-5 | O RING 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 014 | MOTOR HOUSING SET | 1 | Not available in store | |||
| MOTOR HOUSING SET | 1 | Not available in store | ||||
| 015 | 233072-2 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 233072-2 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 016 | PIN CAP | 1 | Not available in store | |||
| PIN CAP | 1 | Not available in store | ||||
| 017 | 266326-2 | TAPPING SCREW 4X18 | 8 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 8 | €0.56 | 1-4 weeks to ship | ||
| 018 | RECEIVE WASHER COMPLETE | 1 | Not available in store | |||
| RECEIVE WASHER COMPLETE | 1 | Not available in store | ||||
| 021 | 251513-6 | H.S.H.BOLT M5X25 | 2 | €0.28 | 1-4 weeks to ship | |
| 251513-6 | H.S.H.BOLT M5X25 | 2 | €0.28 | 1-4 weeks to ship | ||
| 022 | PROTECTOR CLAMP | 1 | Not available in store | |||
| PROTECTOR CLAMP | 1 | Not available in store | ||||
| 023 | 424567-8 | RUBBER SLEEVE 24 | 1 | €1.25 | 1-4 weeks to ship | |
| 424567-8 | RUBBER SLEEVE 24 | 1 | €1.25 | 1-4 weeks to ship | ||
| 025 | 346855-2 | CUTTER | 1 | €3.34 | 1-4 weeks to ship | |
| 346855-2 | CUTTER | 1 | €3.34 | 1-4 weeks to ship | ||
| 026 | PROTECTOR | 1 | Not available in store | |||
| PROTECTOR | 1 | Not available in store | ||||
| 027 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 028 | 699088-1 | POWER SUPPLY CORD UNIT | 1 | €33.72 | 1-4 weeks to ship | |
| 699088-1 | POWER SUPPLY CORD UNIT | 1 | €33.72 | 1-4 weeks to ship | ||
| 029 | 213275-4 | O RING 18 | 1 | €0.28 | 1-4 weeks to ship | |
| 213275-4 | O RING 18 | 1 | €0.28 | 1-4 weeks to ship | ||
| 030 | 326880-9 | STOPPER PIN B | 1 | €0.14 | 1-4 weeks to ship | |
| 326880-9 | STOPPER PIN B | 1 | €0.14 | 1-4 weeks to ship | ||
| 031 | 454304-6 | JOINT COVER | 1 | €5.43 | 1-4 weeks to ship | |
| 454304-6 | JOINT COVER | 1 | €5.43 | 1-4 weeks to ship | ||
| 032 | 233604-5 | TORSION SPRING 3 | 1 | €1.11 | 1-4 weeks to ship | |
| 233604-5 | TORSION SPRING 3 | 1 | €1.11 | 1-4 weeks to ship | ||
| 033 | 454303-8 | LOCK LEVER | 1 | €5.57 | 1-4 weeks to ship | |
| 454303-8 | LOCK LEVER | 1 | €5.57 | 1-4 weeks to ship | ||
| 034 | 233211-4 | COMPRESSION SPRING 2 | 1 | €0.56 | 1-4 weeks to ship | |
| 233211-4 | COMPRESSION SPRING 2 | 1 | €0.56 | 1-4 weeks to ship | ||
| 035 | 265596-0 | HEX.BOLT M6X40 | 1 | €0.42 | 1-4 weeks to ship | |
| 265596-0 | HEX.BOLT M6X40 | 1 | €0.42 | 1-4 weeks to ship | ||
| 036 | 922311-2 | HEX. SOCKET HEAD BOLT M6X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 922311-2 | HEX. SOCKET HEAD BOLT M6X12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 038 | 922342-1 | HEX. SOCKET HEAD BOLT M6X25 | 1 | €0.56 | 1-4 weeks to ship | |
| 922342-1 | HEX. SOCKET HEAD BOLT M6X25 | 1 | €0.56 | 1-4 weeks to ship | ||
| 039 | 258010-3 | SPRING PIN 2.5-25 | 2 | €0.56 | 1-4 weeks to ship | |
| 258010-3 | SPRING PIN 2.5-25 | 2 | €0.56 | 1-4 weeks to ship | ||
| 040 | 253332-6 | THIN WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 253332-6 | THIN WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 041 | 213105-9 | O RING 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 213105-9 | O RING 11 | 1 | €0.56 | 1-4 weeks to ship | ||
| 042 | 252159-1 | HEX. NUT M6 | 1 | €2.78 | 1-4 weeks to ship | |
| 252159-1 | HEX. NUT M6 | 1 | €2.78 | 1-4 weeks to ship | ||
| 043 | 931302-2 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 931302-2 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 044 | 961014-3 | STOP RING E-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 961014-3 | STOP RING E-8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 045 | 272268-0 | LEVER 94 | 1 | €2.78 | 1-4 weeks to ship | |
| 272268-0 | LEVER 94 | 1 | €2.78 | 1-4 weeks to ship | ||
| 046 | 213275-4 | O RING 18 | 1 | €0.28 | 1-4 weeks to ship | |
| 213275-4 | O RING 18 | 1 | €0.28 | 1-4 weeks to ship | ||
| 047 | 699087-3 | POWER SUPPLY CORD UNIT | 1 | €39.94 | 1-4 weeks to ship | |
| 699087-3 | POWER SUPPLY CORD UNIT | 1 | €39.94 | 1-4 weeks to ship | ||
| 048 | PIPE COMPLETE A | 1 | Not available in store | |||
| PIPE COMPLETE A | 1 | Not available in store | ||||
| 049 | BARRIER COMPLETE | 1 | Not available in store | |||
| BARRIER COMPLETE | 1 | Not available in store | ||||
| 051 | 347011-7 | PIPE CLAMP 29 | 1 | €1.47 | 1-4 weeks to ship | |
| 347011-7 | PIPE CLAMP 29 | 1 | €1.47 | 1-4 weeks to ship | ||
| 052 | 263005-3 | RUBBER PIN 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 263005-3 | RUBBER PIN 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 053 | PIPE B | 1 | Not available in store | |||
| PIPE B | 1 | Not available in store | ||||
| 054 | 922212-4 | HEX. SOCKET HEAD BOLT M5X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 922212-4 | HEX. SOCKET HEAD BOLT M5X12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 055 | 451601-1 | SPACER 24 | 1 | €2.09 | 1-4 weeks to ship | |
| 451601-1 | SPACER 24 | 1 | €2.09 | 1-4 weeks to ship | ||
| 451601-1 | SPACER 24 | 1 | €2.09 | 1-4 weeks to ship | ||
| 451601-1 | SPACER 24 | 1 | €2.09 | 1-4 weeks to ship | ||
| 056 | 347116-3 | HANGER | 1 | €1.39 | 1-4 weeks to ship | |
| 347116-3 | HANGER | 1 | €1.39 | 1-4 weeks to ship | ||
| 057 | 922228-9 | H.S.H.BOLT M5X18 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 922228-9 | H.S.H.BOLT M5X18 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 058 | 922212-4 | HEX. SOCKET HEAD BOLT M5X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 922212-4 | HEX. SOCKET HEAD BOLT M5X12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 060 | 346248-3 | CLAMP 24 | 1 | €0.83 | 1-4 weeks to ship | |
| 346248-3 | CLAMP 24 | 1 | €0.83 | 1-4 weeks to ship | ||
| 061 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 062 | GRIP SET | 1 | Not available in store | |||
| GRIP SET | 1 | Not available in store | ||||
| 063 | SUB CONTROLLER COMPLETE | 1 | Not available in store | |||
| SUB CONTROLLER COMPLETE | 1 | Not available in store | ||||
| 064 | 632E26-0 | SWITCH UNIT | 1 | €16.70 | 1-4 weeks to ship | |
| 632E26-0 | SWITCH UNIT | 1 | €16.70 | 1-4 weeks to ship | ||
| 632E26-0 | SWITCH UNIT | 1 | €16.70 | 1-4 weeks to ship | ||
| 632E26-0 | SWITCH UNIT | 1 | €16.70 | 1-4 weeks to ship | ||
| 066 | 233621-5 | TORSION SPRING 9 | 1 | €0.14 | 1-4 weeks to ship | |
| 233621-5 | TORSION SPRING 9 | 1 | €0.14 | 1-4 weeks to ship | ||
| 067 | 455625-9 | SWITCH LEVER | 1 | €3.62 | 1-4 weeks to ship | |
| 455625-9 | SWITCH LEVER | 1 | €3.62 | 1-4 weeks to ship | ||
| 455625-9 | SWITCH LEVER | 1 | €3.62 | 1-4 weeks to ship | ||
| 455625-9 | SWITCH LEVER | 1 | €3.62 | 1-4 weeks to ship | ||
| 068 | 233612-6 | TORSION SPRING 10 | 1 | €1.39 | 1-4 weeks to ship | |
| 233612-6 | TORSION SPRING 10 | 1 | €1.39 | 1-4 weeks to ship | ||
| 069 | 687260-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 687260-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 687260-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 687260-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 070 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 071 | POWER SUPPLY CORD UNIT | 1 | Not available in store | |||
| POWER SUPPLY CORD UNIT | 1 | Not available in store | ||||
| 072 | GRIP SET | 1 | Not available in store | |||
| GRIP SET | 1 | Not available in store | ||||
| 074 | 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | ||
| 076 | 687260-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 687260-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 687260-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 687260-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 077 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 079 | 644809-6 | TERMINAL | 1 | €3.76 | 1-4 weeks to ship | |
| 644809-6 | TERMINAL | 1 | €3.76 | 1-4 weeks to ship | ||
| 644809-6 | TERMINAL | 1 | €3.76 | 1-4 weeks to ship | ||
| 644809-6 | TERMINAL | 1 | €3.76 | 1-4 weeks to ship | ||
| 081 | 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | ||
| 082 | DUR191L NAME PLATE | 1 | Not available in store | |||
| DUR191L NAME PLATE | 1 | Not available in store | ||||
| 083 | DUR191L SERIAL NO. LABEL | 1 | Not available in store | |||
| DUR191L SERIAL NO. LABEL | 1 | Not available in store | ||||
