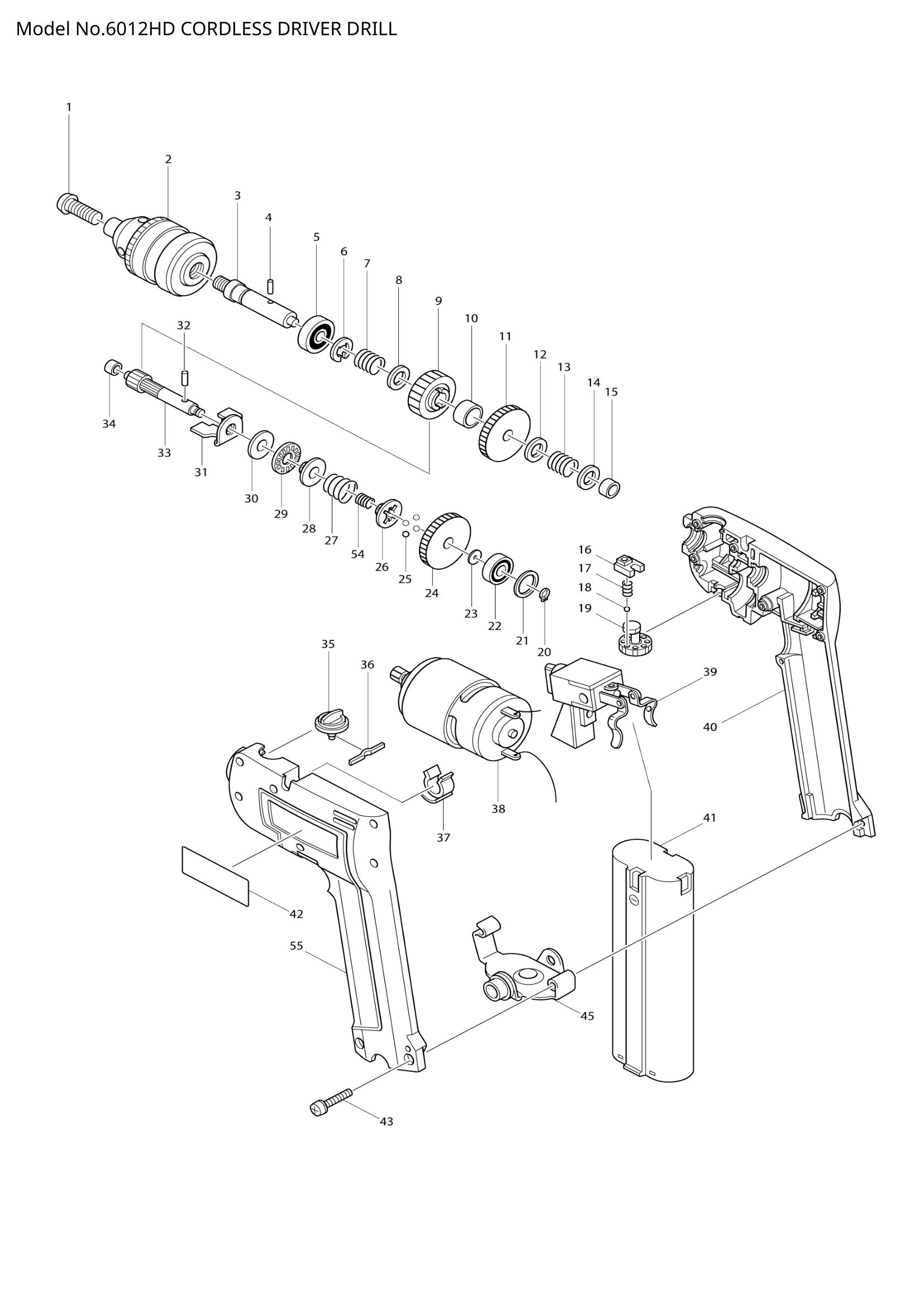

6012HD
6012HD
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 251448-1 | - PAN HEAD SCREW M5X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 002 | DRILL CHUCK | 1 | Not available in store | |||
| 003 | 321723-0 | SPINDLE | 1 | €16.70 | 1-4 weeks to ship | |
| 004 | 256101-4 | PIN 3 | 1 | €2.09 | 1-4 weeks to ship | |
| 005 | 211061-7 | BALL BEARING 6000LLB | 1 | €2.78 | 1-4 weeks to ship | |
| 006 | 961015-1 | STOP RING E-9 | 1 | €0.28 | 1-4 weeks to ship | |
| 961015-1 | STOP RING E-9 | 1 | €0.28 | 1-4 weeks to ship | ||
| 007 | COMPRESSION SPRING 10 | 1 | Not available in store | |||
| 008 | 253330-0 | THIN WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 221862-5 | SPUR GEAR 78 | 1 | €15.03 | 1-4 weeks to ship | |
| 010 | 257073-6 | RING 16 | 1 | €2.78 | 1-4 weeks to ship | |
| 011 | 221884-5 | SPUR GEAR 93 | 1 | €15.03 | 1-4 weeks to ship | |
| 012 | 253330-0 | THIN WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | COMPRESSION SPRING 10 | 1 | Not available in store | |||
| 014 | 253807-5 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 214017-9 | PLANE BEARING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 411953-2 | SHIFT KNOB SUPPOTER | 1 | €2.09 | 1-4 weeks to ship | |
| 017 | COMPRESSION SPRING 3 | 1 | Not available in store | |||
| 018 | 216002-8 | STEEL BALL 4.8 | 1 | €0.56 | 1-4 weeks to ship | |
| 019 | 152178-6 | SHIFT KNOB COMPLETE | 1 | €10.85 | 1-4 weeks to ship | |
| 020 | 961002-0 | RETAINING RING S-6 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 253842-3 | FLAT WASHER 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 211016-2 | BALL BEARING 626LLB | 1 | €4.17 | 1-4 weeks to ship | |
| 023 | 253804-1 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 024 | SPUR GEAR 89 | 1 | Not available in store | |||
| 025 | 216002-8 | STEEL BALL 4.8 | 4 | €0.56 | 1-4 weeks to ship | |
| 026 | CLUTCH CAM | 1 | Not available in store | |||
| 027 | 231927-5 | CONICAL COMPR. SPRING 16-21 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | DISC | 1 | Not available in store | |||
| 029 | THRUST NEEDLE CAGE 1023 | 1 | Not available in store | |||
| 030 | 253851-2 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 031 | 164625-5 | SLIDER | 1 | €2.92 | 1-4 weeks to ship | |
| 032 | 256119-5 | PIN 3 | 1 | €0.83 | 1-4 weeks to ship | |
| 033 | 226062-2 | GEAR COMPLETE 12-28 | 1 | €19.48 | 1-4 weeks to ship | |
| 034 | 214019-5 | PLANE BEARING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | 168096-8 | SHIFTER | 1 | €5.57 | 1-4 weeks to ship | |
| 036 | 232053-3 | LEAF SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | 411640-3 | HOLDER 6 | 1 | €2.09 | 1-4 weeks to ship | |
| 039 | 531043-6 | SWITCH ASS'Y TG60A | 1 | €19.48 | 1-4 weeks to ship | |
| 040 | 182144-9 | HOUSING SET | 1 | €48.42 | 1-4 weeks to ship | |
| 041 | BATTERY 9000 SET | 1 | Not available in store | |||
| 042 | 854607-2 | NAME PLATE 6012HD | 1 | €2.78 | 1-4 weeks to ship | |
| 043 | 911143-2 | PAN HEAD SCREW M4X22 | 8 | €0.56 | 1-4 weeks to ship | |
| 045 | SET PLATE | 1 | Not available in store | |||
| 054 | 231338-4 | COMPRESSION SPRING 8 | 1 | €2.09 | 1-4 weeks to ship | |
| 055 | 182144-9 | HOUSING SET | 1 | €48.42 | 1-4 weeks to ship | |
