DUP361
DUP361

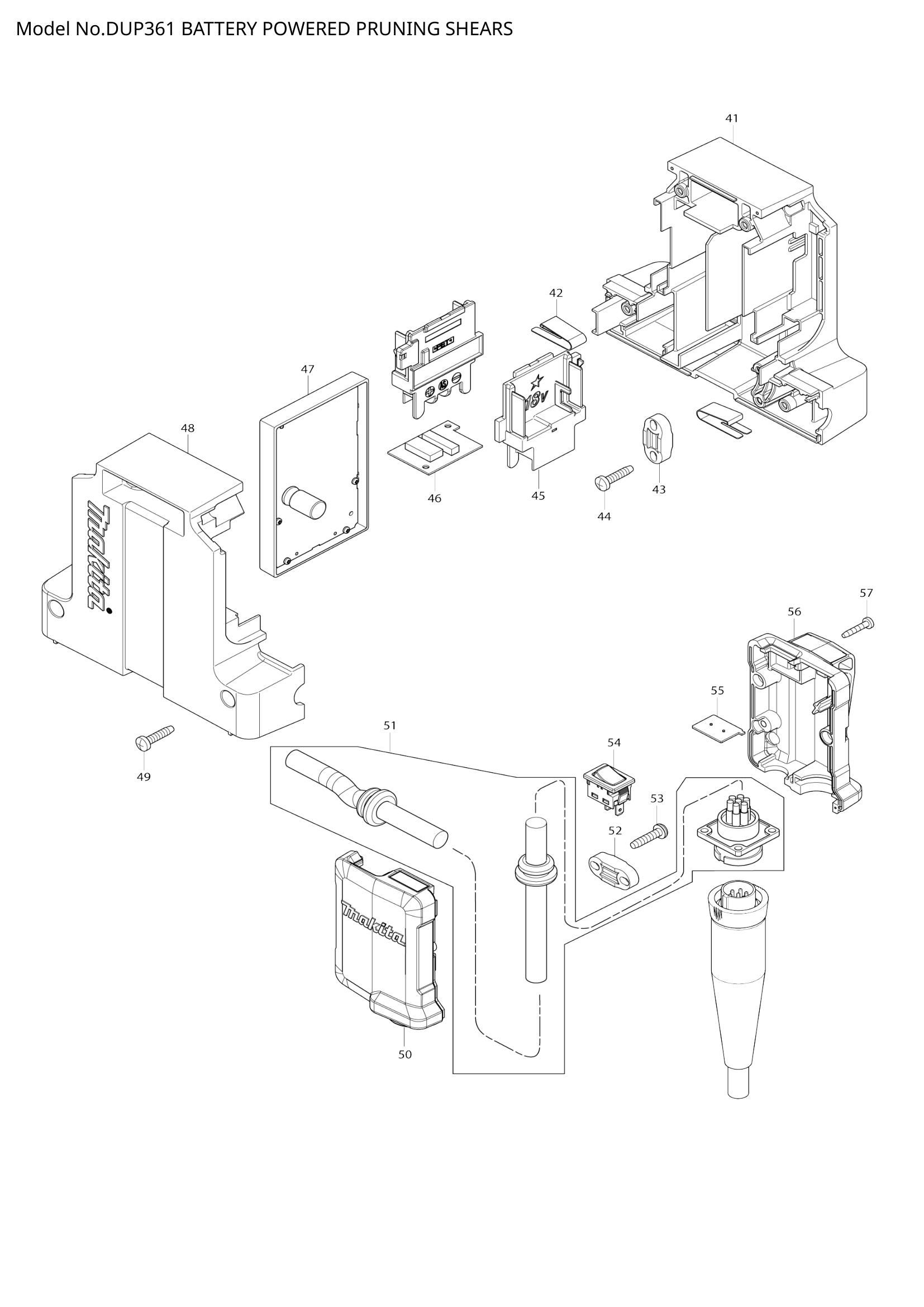

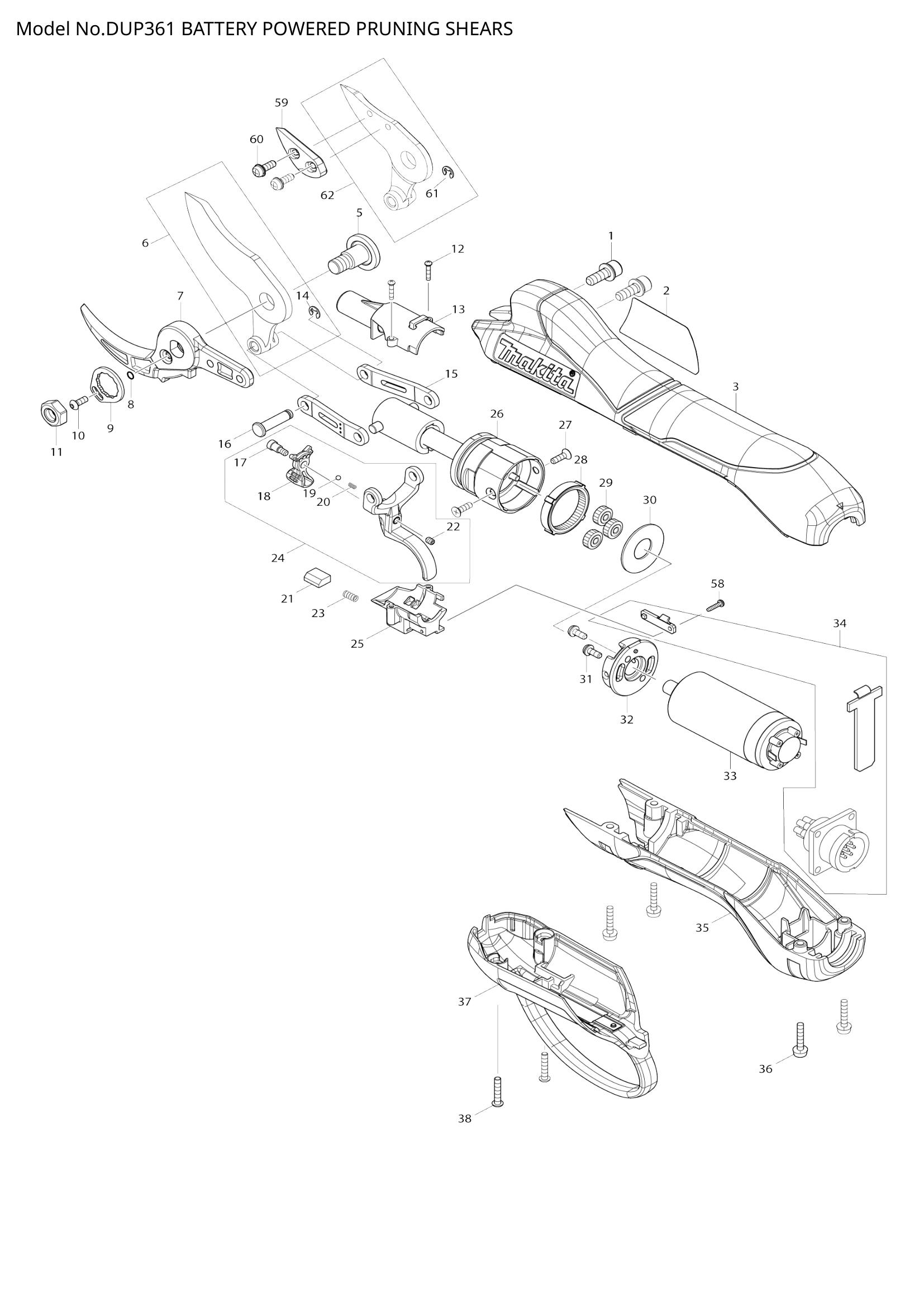

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | DUP361 NAME PLATE | 1 | Not available in store | |||
| DUP361 NAME PLATE | 1 | Not available in store | ||||
| 003 | 456209-6 | UPPER HOUSING | 1 | €27.13 | 1-4 weeks to ship | |
| 456209-6 | UPPER HOUSING | 1 | €27.13 | 1-4 weeks to ship | ||
| 005 | 251474-0 | SHOULDER SCREW M8 | 1 | €9.04 | 1-4 weeks to ship | |
| 251474-0 | SHOULDER SCREW M8 | 1 | €9.04 | 1-4 weeks to ship | ||
| 006 | 197366-8 | SHEAR BLADE U SET | 1 | €89.61 | 1-4 weeks to ship | |
| 197366-8 | SHEAR BLADE U SET | 1 | €89.61 | 1-4 weeks to ship | ||
| 008 | 213034-6 | O RING 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 213034-6 | O RING 3 | 1 | €0.56 | 1-4 weeks to ship | ||
| 009 | 346940-1 | LOCK PLATE | 1 | €1.39 | 1-4 weeks to ship | |
| 346940-1 | LOCK PLATE | 1 | €1.39 | 1-4 weeks to ship | ||
| 010 | 266557-3 | H.S.BUTTON HEAD BOLT M3X8 | 1 | €0.28 | 1-4 weeks to ship | |
| 266557-3 | H.S.BUTTON HEAD BOLT M3X8 | 1 | €0.28 | 1-4 weeks to ship | ||
| 011 | 264118-3 | HEX. NUT M8 | 1 | €3.34 | 1-4 weeks to ship | |
| 264118-3 | HEX. NUT M8 | 1 | €3.34 | 1-4 weeks to ship | ||
| 012 | 266786-8 | + PAN HEAD TAPPING SCREW 2X | 2 | €0.56 | 1-4 weeks to ship | |
| 266786-8 | + PAN HEAD TAPPING SCREW 2X | 2 | €0.56 | 1-4 weeks to ship | ||
| 013 | 456218-5 | BALL NUT COVER B | 1 | €2.23 | 1-4 weeks to ship | |
| 456218-5 | BALL NUT COVER B | 1 | €2.23 | 1-4 weeks to ship | ||
| 014 | 961011-9 | STOP RING E-4 | 1 | €0.56 | 1-4 weeks to ship | |
| 961011-9 | STOP RING E-4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 016 | 256568-6 | FLAT FILLISTER HD.PIN 5 | 1 | €3.06 | 1-4 weeks to ship | |
| 256568-6 | FLAT FILLISTER HD.PIN 5 | 1 | €3.06 | 1-4 weeks to ship | ||
| 017 | + FLAT HEAD SCREW M3X4 | 1 | Not available in store | |||
| + FLAT HEAD SCREW M3X4 | 1 | Not available in store | ||||
| 018 | LEVER | 1 | Not available in store | |||
| LEVER | 1 | Not available in store | ||||
| 019 | 216031-1 | STEEL BALL 2.3 | 1 | €0.56 | 1-4 weeks to ship | |
| 216031-1 | STEEL BALL 2.3 | 1 | €0.56 | 1-4 weeks to ship | ||
| 020 | 233491-2 | COMPRESSION SPRING 2 | 1 | €0.56 | 1-4 weeks to ship | |
| 233491-2 | COMPRESSION SPRING 2 | 1 | €0.56 | 1-4 weeks to ship | ||
| 021 | 688189-0 | MAGNET | 1 | €7.37 | 1-4 weeks to ship | |
| 688189-0 | MAGNET | 1 | €7.37 | 1-4 weeks to ship | ||
| 022 | H.S.SET SCREW(FLAT POINT)M3X | 1 | Not available in store | |||
| H.S.SET SCREW(FLAT POINT)M3X | 1 | Not available in store | ||||
| 023 | 231397-8 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 231397-8 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 024 | 123536-3 | TRIGGER ASS'Y | 1 | €15.86 | 1-4 weeks to ship | |
| 123536-3 | TRIGGER ASS'Y | 1 | €15.86 | 1-4 weeks to ship | ||
| 025 | 456217-7 | BALL NUT COVER A | 1 | €2.37 | 1-4 weeks to ship | |
| 456217-7 | BALL NUT COVER A | 1 | €2.37 | 1-4 weeks to ship | ||
| 027 | 912012-0 | C.H.SCREW M3X10 | 2 | €0.14 | 1-4 weeks to ship | |
| 912012-0 | C.H.SCREW M3X10 | 2 | €0.14 | 1-4 weeks to ship | ||
| 028 | 227390-8 | INTERNAL GEAR 48 | 1 | €2.92 | 1-4 weeks to ship | |
| 227390-8 | INTERNAL GEAR 48 | 1 | €2.92 | 1-4 weeks to ship | ||
| 029 | 227389-3 | SPUR GEAR 18 | 3 | €0.14 | 1-4 weeks to ship | |
| 227389-3 | SPUR GEAR 18 | 3 | €0.14 | 1-4 weeks to ship | ||
| 030 | 253810-6 | FLAT WASHER 12 | 1 | €1.11 | 1-4 weeks to ship | |
| 253810-6 | FLAT WASHER 12 | 1 | €1.11 | 1-4 weeks to ship | ||
| 031 | 911006-2 | PAN HEAD SCREW M3X8 | 2 | €0.56 | 1-4 weeks to ship | |
| 911006-2 | PAN HEAD SCREW M3X8 | 2 | €0.56 | 1-4 weeks to ship | ||
| 032 | MOTOR HOLDER | 1 | Not available in store | |||
| MOTOR HOLDER | 1 | Not available in store | ||||
| 033 | 629160-5 | DC MOTOR | 1 | €621.30 | 1-4 weeks to ship | |
| 629160-5 | DC MOTOR | 1 | €621.30 | 1-4 weeks to ship | ||
| 034 | 620459-1 | SUB CONTROLLER | 1 | €150.70 | 1-4 weeks to ship | |
| 620459-1 | SUB CONTROLLER | 1 | €150.70 | 1-4 weeks to ship | ||
| 035 | 456211-9 | LOWER HOUSING | 1 | €10.85 | 1-4 weeks to ship | |
| 456211-9 | LOWER HOUSING | 1 | €10.85 | 1-4 weeks to ship | ||
| 036 | 911028-2 | PAN HEAD SCREW M3X16 | 4 | €0.83 | 1-4 weeks to ship | |
| 911028-2 | PAN HEAD SCREW M3X16 | 4 | €0.83 | 1-4 weeks to ship | ||
| 038 | HEX.S.BUTTON HEAD SCREW M3 | 2 | Not available in store | |||
| HEX.S.BUTTON HEAD SCREW M3 | 2 | Not available in store | ||||
| 041 | 183B69-2 | CONTROLLER HOUSING SET | 1 | €24.07 | 1-4 weeks to ship | |
| 183B69-2 | CONTROLLER HOUSING SET | 1 | €24.07 | 1-4 weeks to ship | ||
| 042 | LEAF SPRING | 2 | Not available in store | |||
| LEAF SPRING | 2 | Not available in store | ||||
| 043 | 687053-2 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 687053-2 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 044 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 045 | 643899-6 | TERMINAL | 2 | €3.34 | 1-4 weeks to ship | |
| 643899-6 | TERMINAL | 2 | €3.34 | 1-4 weeks to ship | ||
| 046 | 620461-4 | RF UNIT | 1 | €38.96 | 1-4 weeks to ship | |
| 620461-4 | RF UNIT | 1 | €38.96 | 1-4 weeks to ship | ||
| 047 | 620458-3 | CONTROLLER | 1 | €215.13 | 1-4 weeks to ship | |
| 620458-3 | CONTROLLER | 1 | €215.13 | 1-4 weeks to ship | ||
| 048 | 183B69-2 | CONTROLLER HOUSING SET | 1 | €24.07 | 1-4 weeks to ship | |
| 183B69-2 | CONTROLLER HOUSING SET | 1 | €24.07 | 1-4 weeks to ship | ||
| 049 | 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 052 | 687053-2 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 687053-2 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 053 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 054 | 651536-8 | SWITCH 1941. 1451 | 1 | €8.49 | 1-4 weeks to ship | |
| 651536-8 | SWITCH 1941. 1451 | 1 | €8.49 | 1-4 weeks to ship | ||
| 055 | 620460-6 | LED CIRCUIT | 1 | €10.30 | 1-4 weeks to ship | |
| 620460-6 | LED CIRCUIT | 1 | €10.30 | 1-4 weeks to ship | ||
| 058 | 266786-8 | + PAN HEAD TAPPING SCREW 2X | 1 | €0.56 | 1-4 weeks to ship | |
| 266786-8 | + PAN HEAD TAPPING SCREW 2X | 1 | €0.56 | 1-4 weeks to ship | ||
