DUP180
DUP180

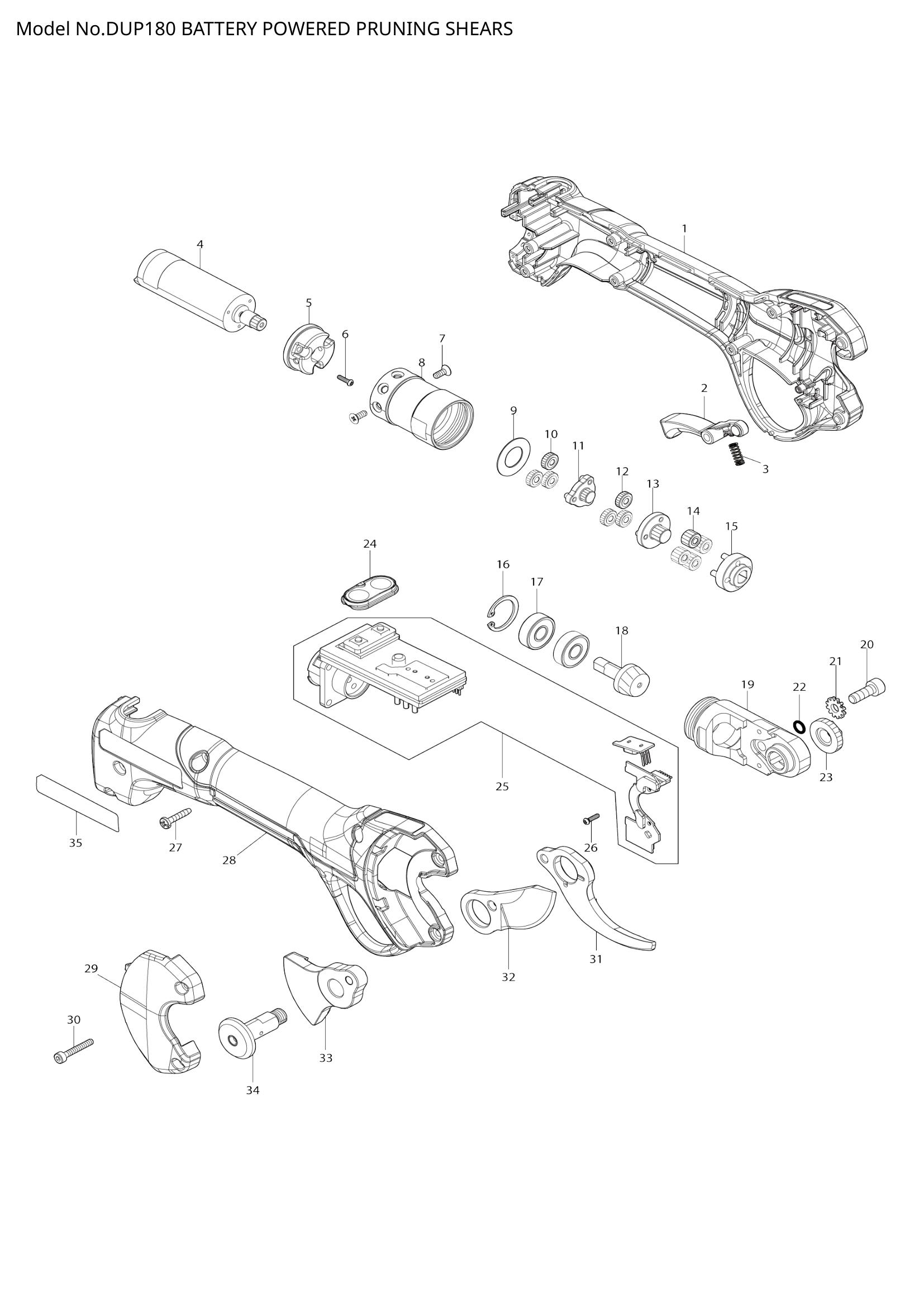

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | HOUSING SET | 1 | Not available in store | |||
| 002 | TRIGGER COMPLETE | 1 | Not available in store | |||
| 003 | COMPRESSION SPRING 3 | 1 | Not available in store | |||
| 004 | DC MOTOR | 1 | Not available in store | |||
| 005 | MOTOR HOLDER | 1 | Not available in store | |||
| 006 | PAN HEAD SCREW M2X8 | 3 | Not available in store | |||
| 007 | C.H.SCREW M3X8 | 2 | Not available in store | |||
| 008 | INTERNAL GEAR 43 | 1 | Not available in store | |||
| 009 | 253084-9 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | SPUR GEAR 15 | 3 | Not available in store | |||
| 011 | SPUR GEAR 11 B COMPLETE | 1 | Not available in store | |||
| 012 | SPUR GEAR 15 | 3 | Not available in store | |||
| 013 | SPUR GEAR 13 COMPLETE | 1 | Not available in store | |||
| 014 | SPUR GEAR 14 | 4 | Not available in store | |||
| 015 | SUPPORTER COMPLETE | 1 | Not available in store | |||
| 016 | RETAINING RING (INT) R-19 | 1 | Not available in store | |||
| 017 | 210017-7 | BALL BEARING 607DDW | 2 | €2.78 | 1-4 weeks to ship | |
| 018 | ZEROL BEVEL GEAR 9 | 1 | Not available in store | |||
| 019 | GEAR HOUSING | 1 | Not available in store | |||
| 020 | HEX.SOCKET HEAD BOLT M5X14 | 1 | Not available in store | |||
| 021 | LOCK PLATE | 1 | Not available in store | |||
| 022 | 213021-5 | O RING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | HEX. NUT M8 | 1 | Not available in store | |||
| 024 | SWITCH PLATE COMPLETE | 1 | Not available in store | |||
| 025 | CONTROLLER | 1 | Not available in store | |||
| 026 | PAN HEAD SCREW M2X8 | 2 | Not available in store | |||
| 027 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 6 | €0.56 | 1-4 weeks to ship | |
| 028 | HOUSING SET | 1 | Not available in store | |||
| 030 | HEX SOCKET HEAD BOLT M3X20 | 2 | Not available in store | |||
| 031 | SHEAR BLADE L SET | 1 | Not available in store | |||
| 032 | SHEAR BLADE U SET | 1 | Not available in store | |||
| 033 | BLADE HOLDER COMPLETE | 1 | Not available in store | |||
| 034 | SHOULDER SCREW M8 COMPLET | 1 | Not available in store | |||
| 035 | DUP180 NAME PLATE | 1 | Not available in store | |||
