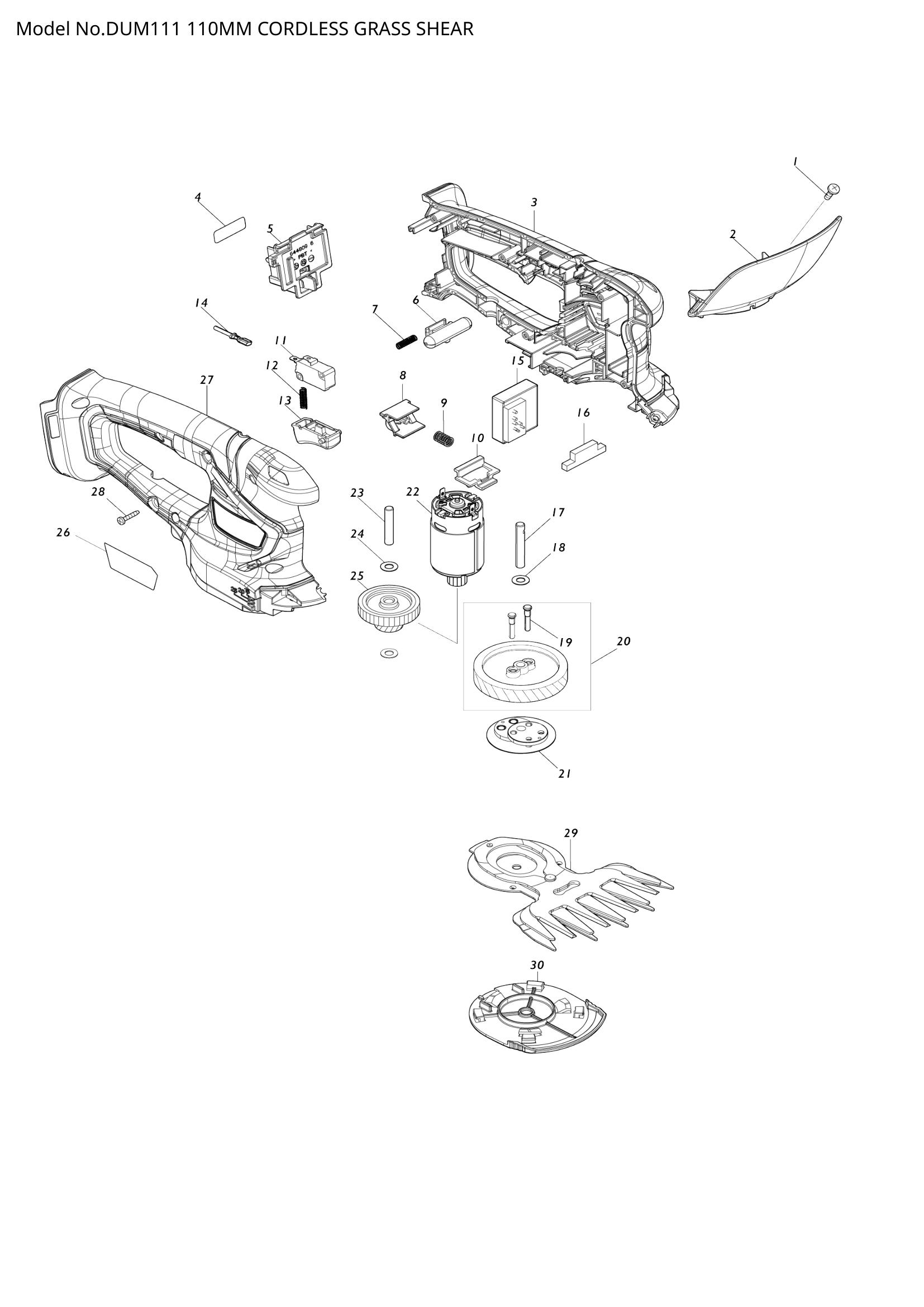

DUM111
DUM111
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 915116-7 | BINDING HEAD SCREW M4X12 | 1 | €0.83 | 1-4 weeks to ship | |
| 004 | DUM111 SERIAL NO. LABEL | 1 | Not available in store | |||
| 007 | 231473-8 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 008 | 457534-8 | SLIDE PLATE | 1 | €0.54 | 1-4 weeks to ship | |
| 457534-8 | SLIDE PLATE | 1 | €0.54 | 1-4 weeks to ship | ||
| 009 | 234339-1 | COMPRESSION SPRING 6 | 1 | €0.08 | 1-4 weeks to ship | |
| 010 | 454879-5 | LOCK LEVER | 1 | €0.42 | 1-4 weeks to ship | |
| 454879-5 | LOCK LEVER | 1 | €0.42 | 1-4 weeks to ship | ||
| 011 | 650744-8 | SWITCH D3V-16-3C26 | 1 | €2.09 | 1-4 weeks to ship | |
| 650744-8 | SWITCH D3V-16-3C26 | 1 | €2.09 | 1-4 weeks to ship | ||
| 012 | 231473-8 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | 417564-1 | SWITCH LEVER | 1 | €2.78 | 1-4 weeks to ship | |
| 014 | LEAD UNIT | 1 | Not available in store | |||
| 015 | CONTROLLER | 1 | Not available in store | |||
| 016 | 451814-4 | DUST GUARD | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 268254-7 | PIN 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 018 | 253715-0 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 019 | 268256-3 | PIN 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 020 | 135883-0 | HELICAL GEAR 47 ASS'Y | 1 | €2.37 | 1-4 weeks to ship | |
| 021 | 161598-3 | CRANK COMPLETE | 1 | €6.54 | 1-4 weeks to ship | |
| 022 | 629945-9 | DC MOTOR | 1 | €13.92 | 1-4 weeks to ship | |
| 629945-9 | DC MOTOR | 1 | €13.92 | 1-4 weeks to ship | ||
| 023 | 268076-5 | PIN 6 | 1 | €0.42 | 1-4 weeks to ship | |
| 024 | 253715-0 | FLAT WASHER 6 | 2 | €0.56 | 1-4 weeks to ship | |
| 025 | 226831-1 | GEAR 12-31 | 1 | €1.39 | 1-4 weeks to ship | |
| 026 | DUM111 NAME PLATE | 1 | Not available in store | |||
| 028 | 266429-2 | TAPPING SCREW 3X16 | 6 | €0.56 | 1-4 weeks to ship | |
| 029 | SHEAR BLADE ASSEMBLY 110 SE | 1 | Not available in store | |||
| 030 | 140451-6 | UNDER COVER COMPLETE | 1 | €4.17 | 1-4 weeks to ship | |
