DUH506
DUH506

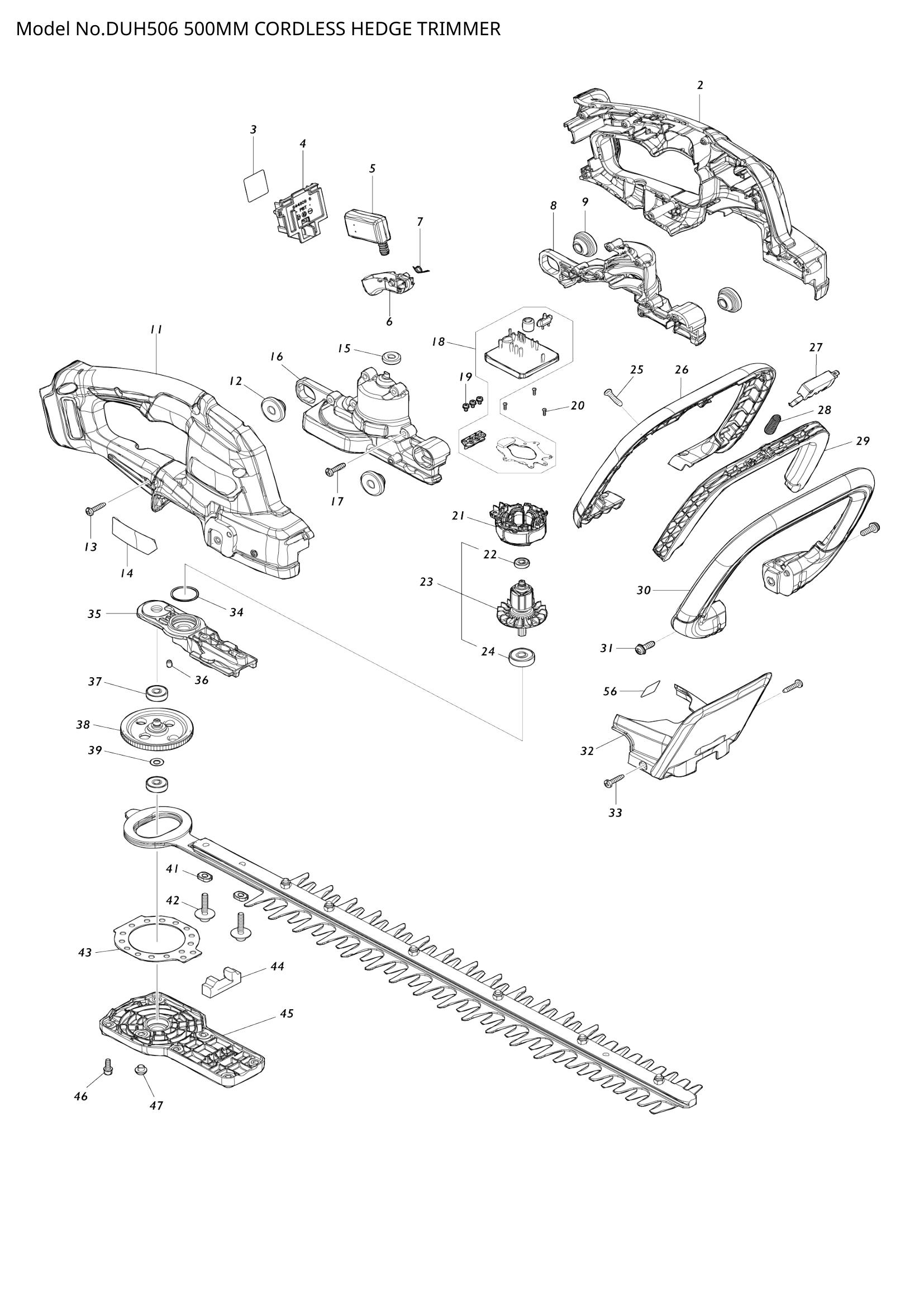

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | HANDLE SET | 1 | Not available in store | |||
| HANDLE SET | 1 | Not available in store | ||||
| 003 | DUH506 SERIAL NO. LABEL | 1 | Not available in store | |||
| DUH506 SERIAL NO. LABEL | 1 | Not available in store | ||||
| 004 | 644809-6 | TERMINAL | 1 | €3.76 | 1-4 weeks to ship | |
| 644809-6 | TERMINAL | 1 | €3.76 | 1-4 weeks to ship | ||
| 644809-6 | TERMINAL | 1 | €3.76 | 1-4 weeks to ship | ||
| 644809-6 | TERMINAL | 1 | €3.76 | 1-4 weeks to ship | ||
| 005 | SWITCH C3XA-3PSPM-1 | 1 | Not available in store | |||
| SWITCH C3XA-3PSPM-1 | 1 | Not available in store | ||||
| 006 | SWITCH LEVER RE | 1 | Not available in store | |||
| SWITCH LEVER RE | 1 | Not available in store | ||||
| 007 | TORSION SPRING 6 | 1 | Not available in store | |||
| TORSION SPRING 6 | 1 | Not available in store | ||||
| 008 | MOTOR HOUSING SET | 1 | Not available in store | |||
| MOTOR HOUSING SET | 1 | Not available in store | ||||
| 009 | 424394-3 | RUBBER RING 8 | 2 | €0.70 | 1-4 weeks to ship | |
| 424394-3 | RUBBER RING 8 | 2 | €0.70 | 1-4 weeks to ship | ||
| 011 | HANDLE SET | 1 | Not available in store | |||
| HANDLE SET | 1 | Not available in store | ||||
| 012 | 424394-3 | RUBBER RING 8 | 2 | €0.70 | 1-4 weeks to ship | |
| 424394-3 | RUBBER RING 8 | 2 | €0.70 | 1-4 weeks to ship | ||
| 014 | DUH506 NAME PLATE | 1 | Not available in store | |||
| DUH506 NAME PLATE | 1 | Not available in store | ||||
| 015 | 424195-9 | RUBBER RING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 424195-9 | RUBBER RING 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 016 | MOTOR HOUSING SET | 1 | Not available in store | |||
| MOTOR HOUSING SET | 1 | Not available in store | ||||
| 018 | CONTROLLER | 1 | Not available in store | |||
| CONTROLLER | 1 | Not available in store | ||||
| 019 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | ||
| 021 | STATOR | 1 | Not available in store | |||
| STATOR | 1 | Not available in store | ||||
| 022 | 211157-4 | BALL BEARING 695ZZ | 1 | €1.39 | 1-4 weeks to ship | |
| 211157-4 | BALL BEARING 695ZZ | 1 | €1.39 | 1-4 weeks to ship | ||
| 023 | ROTOR ASSY | 1 | Not available in store | |||
| ROTOR ASSY | 1 | Not available in store | ||||
| 024 | 210023-2 | BALL BEARING 627DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 210023-2 | BALL BEARING 627DDW | 1 | €2.78 | 1-4 weeks to ship | ||
| 026 | FRONT HANDLE COVER E | 1 | Not available in store | |||
| FRONT HANDLE COVER E | 1 | Not available in store | ||||
| 027 | SWITCH D2VW-01L3-3HS | 1 | Not available in store | |||
| SWITCH D2VW-01L3-3HS | 1 | Not available in store | ||||
| 028 | 231325-3 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 231325-3 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 029 | SWITCH LEVER FE | 1 | Not available in store | |||
| SWITCH LEVER FE | 1 | Not available in store | ||||
| 030 | FRONT HANDLE E | 1 | Not available in store | |||
| FRONT HANDLE E | 1 | Not available in store | ||||
| 031 | 911223-4 | PAN HEAD SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 911223-4 | PAN HEAD SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | ||
| 911223-4 | PAN HEAD SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | ||
| 911223-4 | PAN HEAD SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | ||
| 034 | 213961-7 | O RING 22 | 1 | €0.56 | 1-4 weeks to ship | |
| 213961-7 | O RING 22 | 1 | €0.56 | 1-4 weeks to ship | ||
| 035 | BEARING HOUSING E | 1 | Not available in store | |||
| BEARING HOUSING E | 1 | Not available in store | ||||
| 036 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 037 | 211016-2 | BALL BEARING 626LLB | 2 | €4.17 | 1-4 weeks to ship | |
| 211016-2 | BALL BEARING 626LLB | 2 | €4.17 | 1-4 weeks to ship | ||
| 039 | 253715-0 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 253715-0 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 041 | SPACER | 2 | Not available in store | |||
| SPACER | 2 | Not available in store | ||||
| 042 | H.S.H.BOLT M5X25 WITH WR | 2 | Not available in store | |||
| H.S.H.BOLT M5X25 WITH WR | 2 | Not available in store | ||||
| 043 | PLATE | 1 | Not available in store | |||
| PLATE | 1 | Not available in store | ||||
| 044 | DUST GUARD | 1 | Not available in store | |||
| DUST GUARD | 1 | Not available in store | ||||
| 045 | UNDER COVER | 1 | Not available in store | |||
| UNDER COVER | 1 | Not available in store | ||||
| 046 | 922118-6 | HEX. SOCKET HEAD BOLT M4X12 | 6 | €0.56 | 1-4 weeks to ship | |
| 922118-6 | HEX. SOCKET HEAD BOLT M4X12 | 6 | €0.56 | 1-4 weeks to ship | ||
| 047 | H.S.BUTTON HEAD BOLT M6X4 | 1 | Not available in store | |||
| H.S.BUTTON HEAD BOLT M6X4 | 1 | Not available in store | ||||
| 048 | HEX. LOCK NUT M5-8 | 6 | Not available in store | |||
| HEX. LOCK NUT M5-8 | 6 | Not available in store | ||||

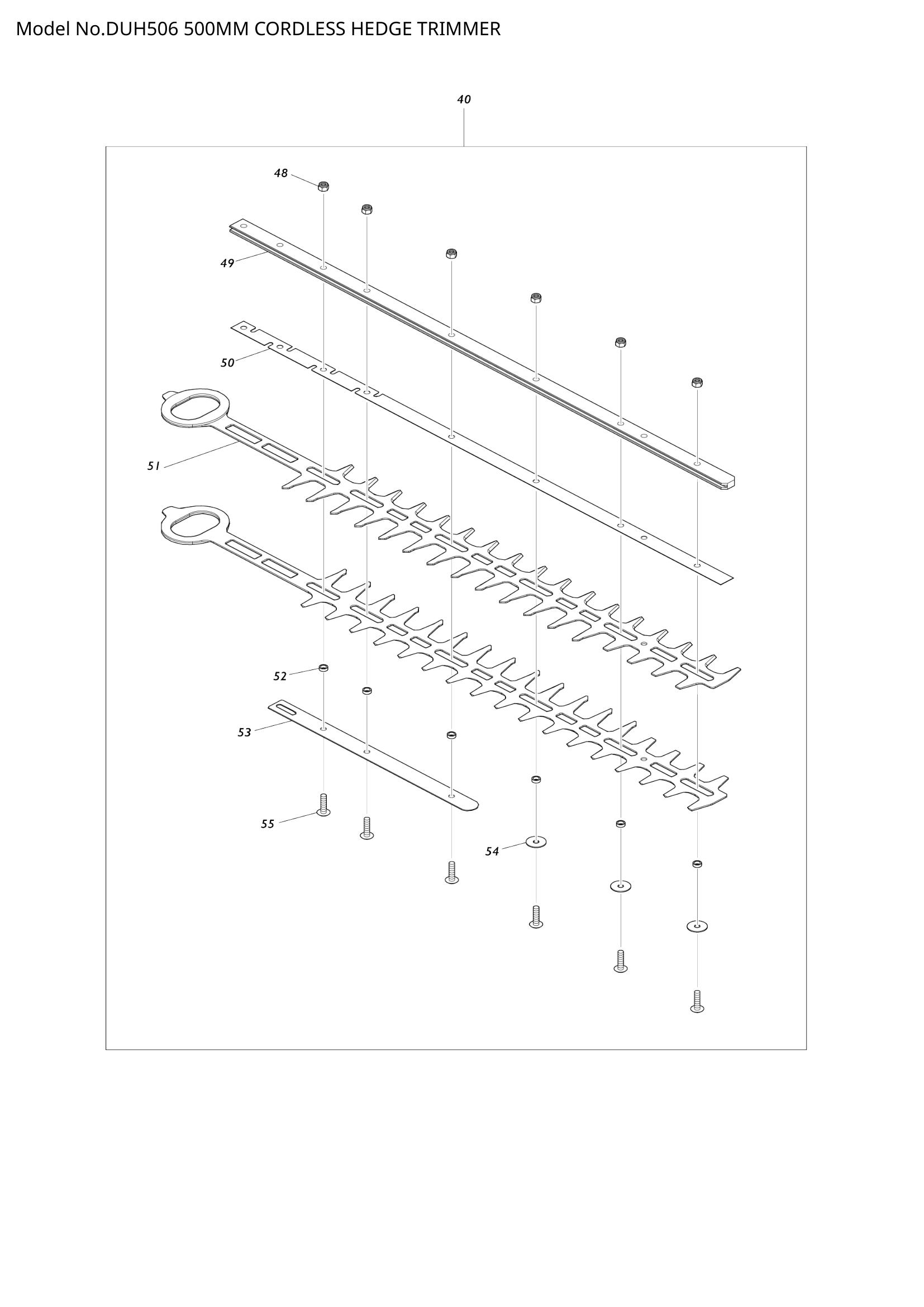

| 049 | GUIDE BAR 500E | 1 | Not available in store | |||
| GUIDE BAR 500E | 1 | Not available in store | ||||
| 050 | PLATE 500E | 1 | Not available in store | |||
| PLATE 500E | 1 | Not available in store | ||||
| 052 | RING 5 | 6 | Not available in store | |||
| RING 5 | 6 | Not available in store | ||||
| 053 | LOWER PLATE | 1 | Not available in store | |||
| LOWER PLATE | 1 | Not available in store | ||||
| 054 | FLAT WASHER 5 | 3 | Not available in store | |||
| FLAT WASHER 5 | 3 | Not available in store | ||||
| 055 | +TRUSS HEAD SCREW M5X20 | 6 | Not available in store | |||
| +TRUSS HEAD SCREW M5X20 | 6 | Not available in store | ||||
| 056 | SOUND 90DB LABEL | 1 | Not available in store | |||
| SOUND 90DB LABEL | 1 | Not available in store | ||||
