DUH501
DUH501

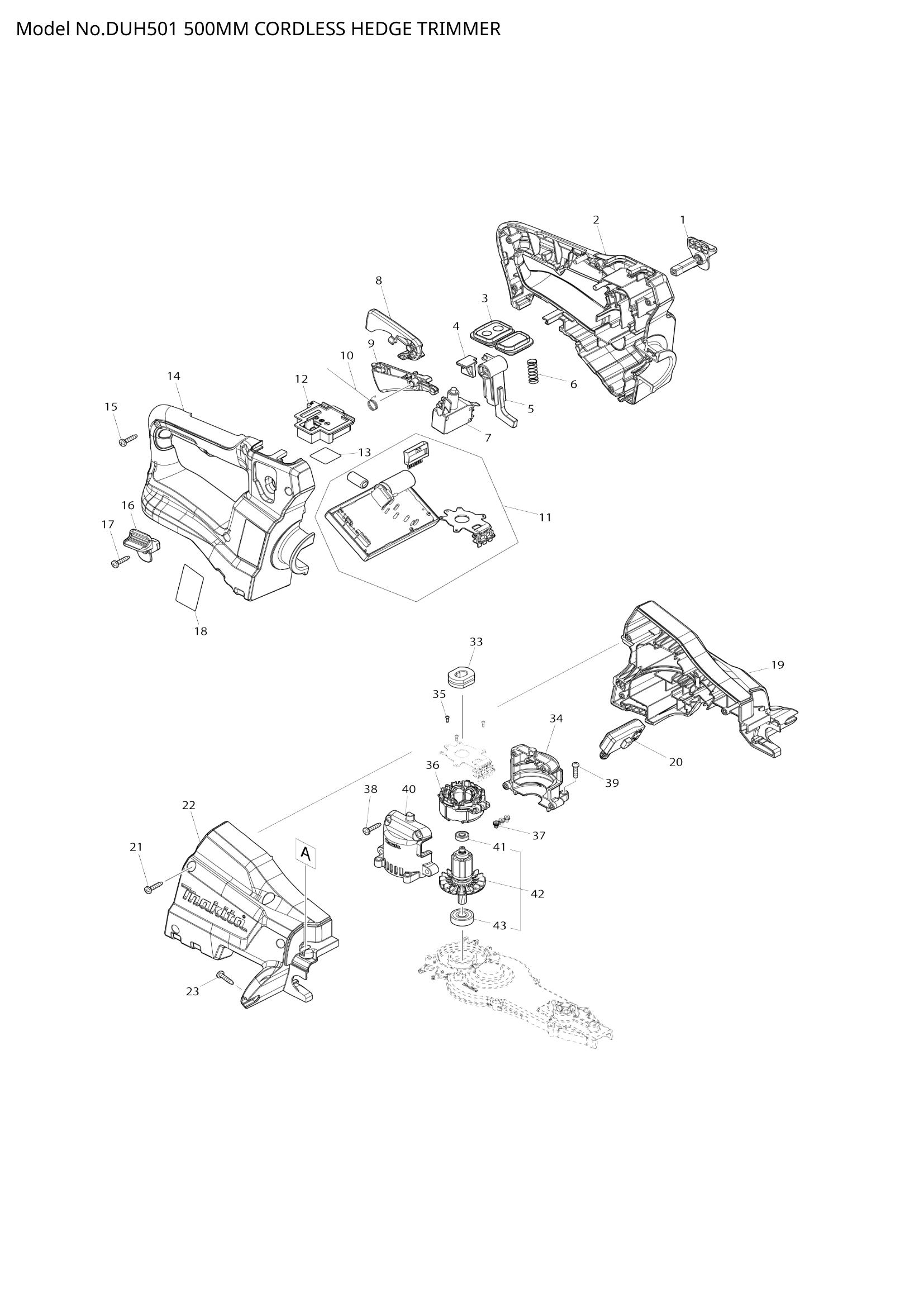

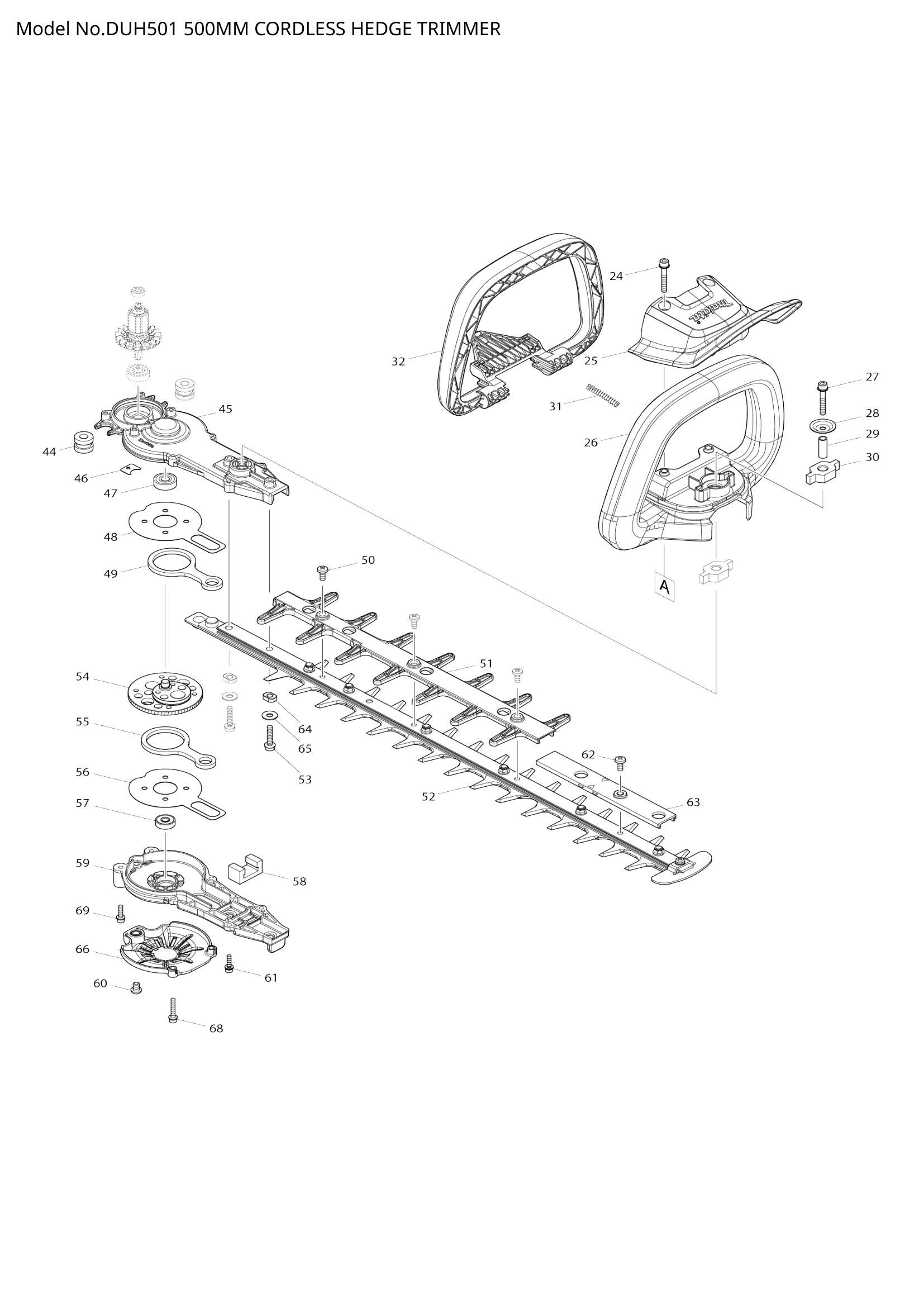

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 458406-0 | LOCK LEVER L | 1 | €0.70 | 1-4 weeks to ship | |
| 458406-0 | LOCK LEVER L | 1 | €0.70 | 1-4 weeks to ship | ||
| 458406-0 | LOCK LEVER L | 1 | €0.70 | 1-4 weeks to ship | ||
| 458406-0 | LOCK LEVER L | 1 | €0.70 | 1-4 weeks to ship | ||
| 002 | HANDLE SET | 1 | Not available in store | |||
| HANDLE SET | 1 | Not available in store | ||||
| 003 | 140A04-7 | SUB CONTROLLER COMPLETE | 1 | €4.59 | 1-4 weeks to ship | |
| 140A04-7 | SUB CONTROLLER COMPLETE | 1 | €4.59 | 1-4 weeks to ship | ||
| 004 | 458570-7 | SLIDER | 1 | €1.25 | 1-4 weeks to ship | |
| 458570-7 | SLIDER | 1 | €1.25 | 1-4 weeks to ship | ||
| 005 | 458405-2 | LOCK ARM | 1 | €1.39 | 1-4 weeks to ship | |
| 458405-2 | LOCK ARM | 1 | €1.39 | 1-4 weeks to ship | ||
| 458405-2 | LOCK ARM | 1 | €1.39 | 1-4 weeks to ship | ||
| 458405-2 | LOCK ARM | 1 | €1.39 | 1-4 weeks to ship | ||
| 006 | 234204-4 | COMPRESSION SPRING 8 | 1 | €1.25 | 1-4 weeks to ship | |
| 234204-4 | COMPRESSION SPRING 8 | 1 | €1.25 | 1-4 weeks to ship | ||
| 007 | 650781-2 | SWITCH C3JW-6B-P | 1 | €20.87 | 1-4 weeks to ship | |
| 650781-2 | SWITCH C3JW-6B-P | 1 | €20.87 | 1-4 weeks to ship | ||
| 650781-2 | SWITCH C3JW-6B-P | 1 | €20.87 | 1-4 weeks to ship | ||
| 650781-2 | SWITCH C3JW-6B-P | 1 | €20.87 | 1-4 weeks to ship | ||
| 008 | 458403-6 | LOCK OFF LEVER | 1 | €1.39 | 1-4 weeks to ship | |
| 458403-6 | LOCK OFF LEVER | 1 | €1.39 | 1-4 weeks to ship | ||
| 458403-6 | LOCK OFF LEVER | 1 | €1.39 | 1-4 weeks to ship | ||
| 458403-6 | LOCK OFF LEVER | 1 | €1.39 | 1-4 weeks to ship | ||
| 009 | 458404-4 | SWITCH LEVER R | 1 | €1.39 | 1-4 weeks to ship | |
| 458404-4 | SWITCH LEVER R | 1 | €1.39 | 1-4 weeks to ship | ||
| 458404-4 | SWITCH LEVER R | 1 | €1.39 | 1-4 weeks to ship | ||
| 458404-4 | SWITCH LEVER R | 1 | €1.39 | 1-4 weeks to ship | ||
| 010 | 232454-5 | TORSION SPRING 10 | 1 | €0.42 | 1-4 weeks to ship | |
| 232454-5 | TORSION SPRING 10 | 1 | €0.42 | 1-4 weeks to ship | ||
| 012 | 644809-6 | TERMINAL | 1 | €3.76 | 1-4 weeks to ship | |
| 644809-6 | TERMINAL | 1 | €3.76 | 1-4 weeks to ship | ||
| 644809-6 | TERMINAL | 1 | €3.76 | 1-4 weeks to ship | ||
| 644809-6 | TERMINAL | 1 | €3.76 | 1-4 weeks to ship | ||
| 013 | DUH501 SERIAL NO. LABEL | 1 | Not available in store | |||
| DUH501 SERIAL NO. LABEL | 1 | Not available in store | ||||
| 014 | HANDLE SET | 1 | Not available in store | |||
| HANDLE SET | 1 | Not available in store | ||||
| 016 | 458407-8 | LOCK LEVER R | 1 | €0.70 | 1-4 weeks to ship | |
| 458407-8 | LOCK LEVER R | 1 | €0.70 | 1-4 weeks to ship | ||
| 458407-8 | LOCK LEVER R | 1 | €0.70 | 1-4 weeks to ship | ||
| 458407-8 | LOCK LEVER R | 1 | €0.70 | 1-4 weeks to ship | ||
| 018 | DUH501 NAME PLATE | 1 | Not available in store | |||
| DUH501 NAME PLATE | 1 | Not available in store | ||||
| 019 | 183K21-4 | HOUSING SET | 1 | €17.39 | 1-4 weeks to ship | |
| 183K21-4 | HOUSING SET | 1 | €17.39 | 1-4 weeks to ship | ||
| 020 | 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | |
| 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | ||
| 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | ||
| 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | ||
| 022 | 183K21-4 | HOUSING SET | 1 | €17.39 | 1-4 weeks to ship | |
| 183K21-4 | HOUSING SET | 1 | €17.39 | 1-4 weeks to ship | ||
| 024 | 265182-7 | + PAN HEAD SCREW M5X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 265182-7 | + PAN HEAD SCREW M5X25 | 2 | €0.56 | 1-4 weeks to ship | ||
| 025 | 458399-1 | PROTECTOR | 1 | €4.17 | 1-4 weeks to ship | |
| 458399-1 | PROTECTOR | 1 | €4.17 | 1-4 weeks to ship | ||
| 026 | 458400-2 | FRONT GRIP E | 1 | €9.74 | 1-4 weeks to ship | |
| 458400-2 | FRONT GRIP E | 1 | €9.74 | 1-4 weeks to ship | ||
| 028 | 253416-0 | DISH WASHER 5 | 1 | €0.97 | 1-4 weeks to ship | |
| 253416-0 | DISH WASHER 5 | 1 | €0.97 | 1-4 weeks to ship | ||
| 029 | 257678-2 | SLEEVE 6 | 1 | €1.53 | 1-4 weeks to ship | |
| 257678-2 | SLEEVE 6 | 1 | €1.53 | 1-4 weeks to ship | ||
| 030 | 422260-8 | RUBBER SLEEVE 8 | 2 | €2.09 | 1-4 weeks to ship | |
| 422260-8 | RUBBER SLEEVE 8 | 2 | €2.09 | 1-4 weeks to ship | ||
| 032 | 458402-8 | SWITCH LEVER F | 1 | €6.26 | 1-4 weeks to ship | |
| 458402-8 | SWITCH LEVER F | 1 | €6.26 | 1-4 weeks to ship | ||
| 458402-8 | SWITCH LEVER F | 1 | €6.26 | 1-4 weeks to ship | ||
| 458402-8 | SWITCH LEVER F | 1 | €6.26 | 1-4 weeks to ship | ||
| 033 | 422261-6 | RUBBER SLEEVE | 1 | €1.95 | 1-4 weeks to ship | |
| 422261-6 | RUBBER SLEEVE | 1 | €1.95 | 1-4 weeks to ship | ||
| 036 | 629352-6 | STATOR | 1 | €25.74 | 1-4 weeks to ship | |
| 629352-6 | STATOR | 1 | €25.74 | 1-4 weeks to ship | ||
| 037 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | ||
| 041 | 211157-4 | BALL BEARING 695ZZ | 1 | €1.39 | 1-4 weeks to ship | |
| 211157-4 | BALL BEARING 695ZZ | 1 | €1.39 | 1-4 weeks to ship | ||
| 044 | 422259-3 | RUBBER SLEEVE 8 | 2 | €1.53 | 1-4 weeks to ship | |
| 422259-3 | RUBBER SLEEVE 8 | 2 | €1.53 | 1-4 weeks to ship | ||
| 047 | 211032-4 | BALL BEARING 608ZZ | 1 | €1.67 | 1-4 weeks to ship | |
| 211032-4 | BALL BEARING 608ZZ | 1 | €1.67 | 1-4 weeks to ship | ||
| 048 | 347361-0 | FRICTION PLATE | 1 | €0.70 | 1-4 weeks to ship | |
| 347361-0 | FRICTION PLATE | 1 | €0.70 | 1-4 weeks to ship | ||
| 049 | 347362-8 | CONNECTING ROD | 1 | €4.87 | 1-4 weeks to ship | |
| 347362-8 | CONNECTING ROD | 1 | €4.87 | 1-4 weeks to ship | ||
| 050 | 915211-3 | BINDING HEAD SCREW M5X12 | 3 | €0.56 | 1-4 weeks to ship | |
| 915211-3 | BINDING HEAD SCREW M5X12 | 3 | €0.56 | 1-4 weeks to ship | ||
| 054 | 140B79-2 | GEAR COMPLETE | 1 | €28.39 | 1-4 weeks to ship | |
| 140B79-2 | GEAR COMPLETE | 1 | €28.39 | 1-4 weeks to ship | ||
| 055 | 347362-8 | CONNECTING ROD | 1 | €4.87 | 1-4 weeks to ship | |
| 347362-8 | CONNECTING ROD | 1 | €4.87 | 1-4 weeks to ship | ||
| 056 | 347361-0 | FRICTION PLATE | 1 | €0.70 | 1-4 weeks to ship | |
| 347361-0 | FRICTION PLATE | 1 | €0.70 | 1-4 weeks to ship | ||
| 057 | BALL BEARING 626ZZ | 1 | Not available in store | |||
| BALL BEARING 626ZZ | 1 | Not available in store | ||||
| 058 | 443159-4 | SEAL | 1 | €5.57 | 1-4 weeks to ship | |
| 443159-4 | SEAL | 1 | €5.57 | 1-4 weeks to ship | ||
| 060 | H.S.BOTTON HEAD BOLT M6X8 | 1 | Not available in store | |||
| H.S.BOTTON HEAD BOLT M6X8 | 1 | Not available in store | ||||
| 062 | 915211-3 | BINDING HEAD SCREW M5X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 915211-3 | BINDING HEAD SCREW M5X12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 063 | SPACER 500H | 1 | Not available in store | |||
| SPACER 500H | 1 | Not available in store | ||||
| 064 | SLEEVE 5 | 2 | Not available in store | |||
| SLEEVE 5 | 2 | Not available in store | ||||
| 066 | UNDER COVER | 1 | Not available in store | |||
| UNDER COVER | 1 | Not available in store | ||||
| 068 | 265698-2 | HEX. SOCKET HEAD BOLT M4X25 | 2 | €0.22 | 1-4 weeks to ship | |
| 265698-2 | HEX. SOCKET HEAD BOLT M4X25 | 2 | €0.22 | 1-4 weeks to ship | ||
| 069 | 265A29-1 | HEX. SOCKET HEAD BOLT M4X16 | 2 | €0.19 | 1-4 weeks to ship | |
| 265A29-1 | HEX. SOCKET HEAD BOLT M4X16 | 2 | €0.19 | 1-4 weeks to ship | ||
