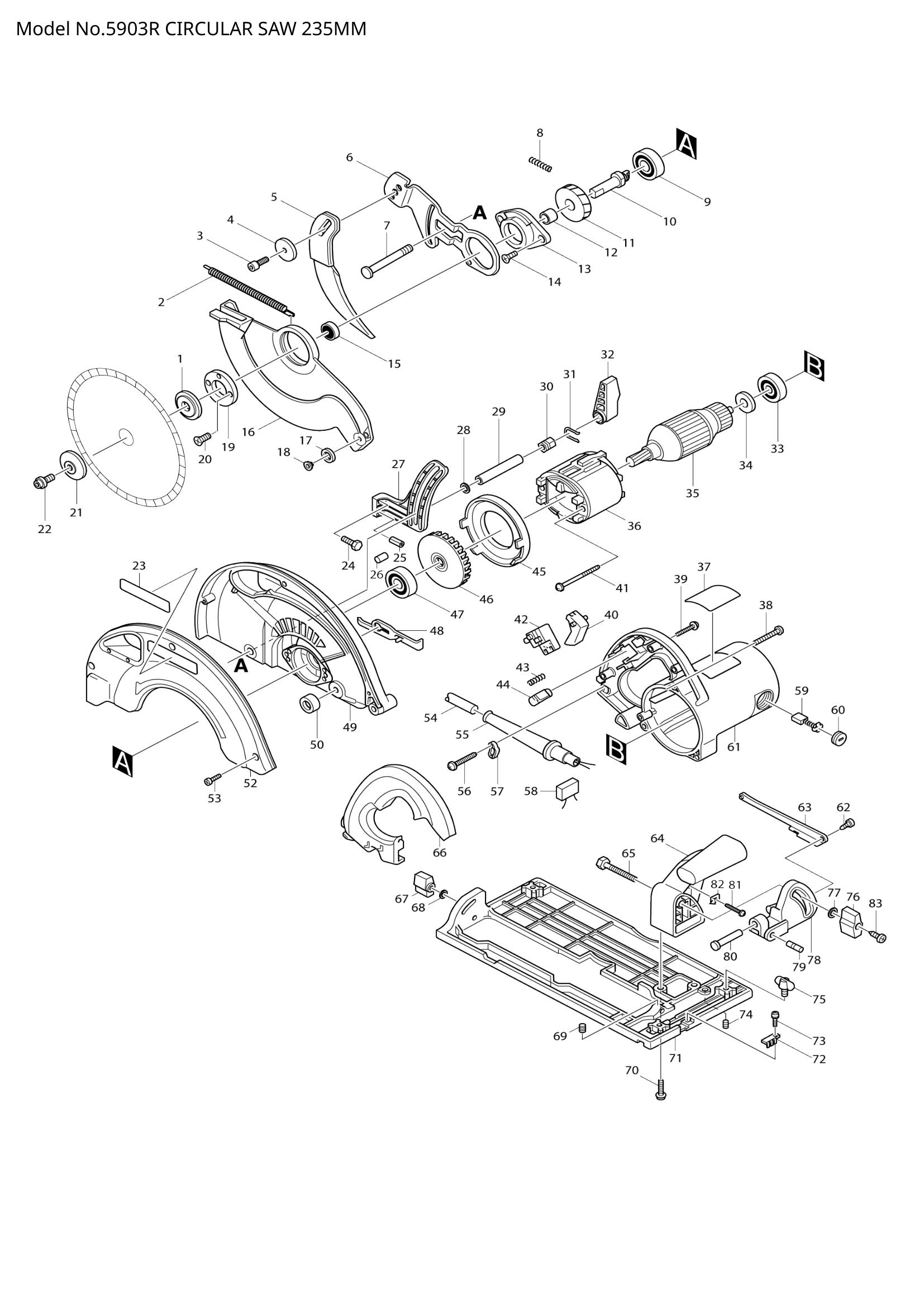

5903R
5903R
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 224302-2 | INNER FLANGE 42 | 1 | €2.78 | 1-4 weeks to ship | |
| 003 | 922422-3 | HEX. SOCKET HEAD BOLT M8X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 004 | 267123-9 | FLAT WASHER 8 | 1 | €0.83 | 1-4 weeks to ship | |
| 007 | 266019-1 | CAP SQUARE NECK BOLT M8X98 | 1 | €1.67 | 1-4 weeks to ship | |
| 008 | 233084-5 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 010 | 322662-7 | SPINDLE | 1 | €8.35 | 1-4 weeks to ship | |
| 011 | 226422-8 | HELICAL GEAR 39 | 1 | €22.26 | 1-4 weeks to ship | |
| 015 | 211228-7 | BALL BEARING 6202DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 017 | 415438-0 | ROLLER 20 | 2 | €0.56 | 1-4 weeks to ship | |
| 018 | 415437-2 | ROLLER PIN 6 | 2 | €0.56 | 1-4 weeks to ship | |
| 019 | 285677-4 | BEARING RETAINER 30-55 | 1 | €1.39 | 1-4 weeks to ship | |
| 020 | 912222-9 | COUNTERSUNK HEAD SCREW M5 | 2 | €0.56 | 1-4 weeks to ship | |
| 021 | 224301-4 | OUTER FLANGE 42 | 1 | €2.78 | 1-4 weeks to ship | |
| 022 | 265408-7 | HEX. SOCKET HEAD BOLT M8X20 | 1 | €1.11 | 1-4 weeks to ship | |
| 024 | 921342-8 | HEX. BOLT M6X25 | 1 | €0.56 | 1-4 weeks to ship | |
| 025 | 951210-1 | SPRING PIN 6-20 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 316557-4 | DEPTH GUIDE | 1 | €13.92 | 1-4 weeks to ship | |
| 028 | 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 029 | 331432-3 | PIPE 9 | 1 | €1.67 | 1-4 weeks to ship | |
| 030 | 252134-7 | HEX. NUT M8 | 1 | €1.67 | 1-4 weeks to ship | |
| 031 | 231955-0 | RING SPRING 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | 272230-5 | LEVER 54 | 1 | €0.83 | 1-4 weeks to ship | |
| 034 | 681633-6 | INSULATION WASHER | 1 | €1.67 | 1-4 weeks to ship | |
| 038 | 266037-9 | TAPPING SCREW BIND CT 5X45 | 3 | €0.56 | 1-4 weeks to ship | |
| 040 | 415439-8 | SWITCH LEVER | 1 | €1.67 | 1-4 weeks to ship | |
| 042 | 651923-1 | SWITCH TG70B | 1 | €16.70 | 1-4 weeks to ship | |
| 043 | 231230-4 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 044 | 415440-3 | LOCK-OFF BUTTON | 1 | €1.11 | 1-4 weeks to ship | |
| 045 | 415436-4 | BAFFLE PLATE | 1 | €1.67 | 1-4 weeks to ship | |
| 046 | 241868-7 | FAN 82 | 1 | €2.78 | 1-4 weeks to ship | |
| 048 | 344108-3 | SHAFT LOCK | 1 | €1.67 | 1-4 weeks to ship | |
| 053 | 266036-1 | TAPPING SCREW BIND CT 5X20 | 3 | €0.56 | 1-4 weeks to ship | |
| 060 | 643700-5 | BRUSH HOLDER CAP 7-18 | 2 | €1.11 | 1-4 weeks to ship | |
| 063 | 344107-5 | LINK | 1 | €2.78 | 1-4 weeks to ship | |
| 064 | 415432-2 | ANGULAR PLATE GUIDE | 1 | €8.35 | 1-4 weeks to ship | |
| 065 | 921477-5 | HEX. BOLT M8X55 | 1 | €0.56 | 1-4 weeks to ship | |
| 067 | 252624-0 | WING NUT M6 | 1 | €1.67 | 1-4 weeks to ship | |
| 068 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 069 | 265993-0 | H.S.SET SCREW(CUP POINT)M4X5 | 1 | €0.56 | 1-4 weeks to ship | |
| 072 | 415433-0 | TOP GUIDE | 1 | €2.09 | 1-4 weeks to ship | |
| 076 | 252626-6 | WING NUT | 1 | €2.78 | 1-4 weeks to ship | |
| 077 | 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 079 | 256231-1 | PIN 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 080 | 256692-5 | PIN 8 | 1 | €1.11 | 1-4 weeks to ship | |
| 082 | 816128-2 | POINTER | 1 | €0.56 | 1-4 weeks to ship | |
| 083 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 084 | 213459-4 | O RING 32 | 1 | €0.56 | 1-4 weeks to ship | |
| 085 | 213560-5 | O RING 44 | 1 | €0.56 | 1-4 weeks to ship |
