DUC302
DUC302

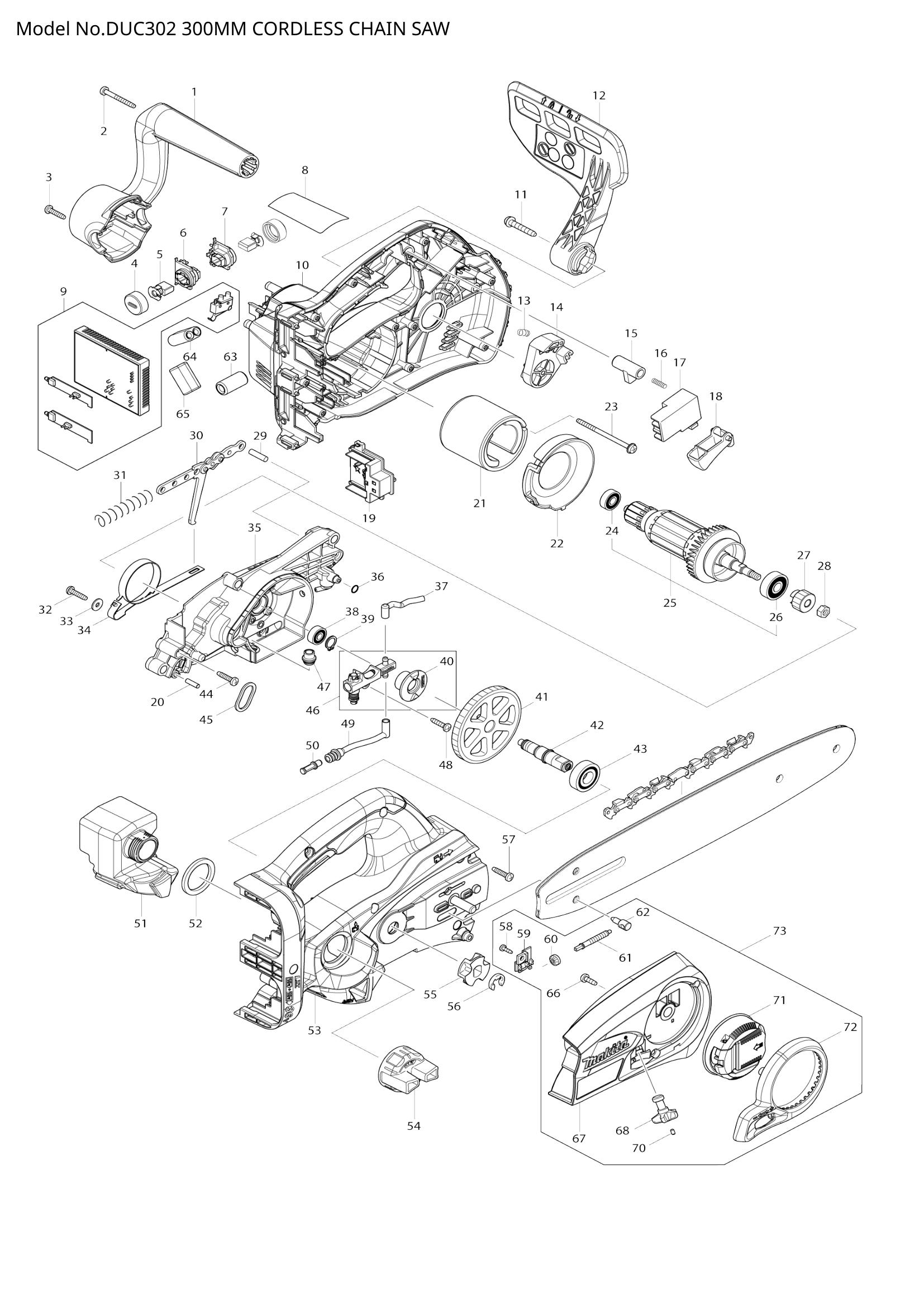

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 451972-6 | FRONT HANDLE | 1 | €19.48 | 1-4 weeks to ship | |
| 002 | 266053-1 | TAPPING SCREW 4X35 | 1 | €0.56 | 1-4 weeks to ship | |
| 003 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 008 | DUC302 NAME PLATE | 1 | Not available in store | |||
| 010 | 187882-8 | HOUSING SET | 1 | €124.82 | 1-4 weeks to ship | |
| 011 | 266173-1 | TAPPING SCREW 5X30 | 1 | €0.56 | 1-4 weeks to ship | |
| 012 | 142836-2 | FRONT HAND GUARD COMPLETE | 1 | €15.58 | 1-4 weeks to ship | |
| 013 | 231298-0 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 451973-4 | HAND GUARD SUPPORT | 1 | €11.13 | 1-4 weeks to ship | |
| 016 | 233173-6 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 650730-9 | SWITCH TG72BD-6 | 1 | €13.92 | 1-4 weeks to ship | |
| 650730-9 | SWITCH TG72BD-6 | 1 | €13.92 | 1-4 weeks to ship | ||
| 018 | 450212-9 | SWITCH LEVER | 1 | €2.78 | 1-4 weeks to ship | |
| 019 | 644808-8 | TERMINAL | 2 | €4.17 | 1-4 weeks to ship | |
| 020 | 256184-4 | PIN 4 | 1 | €0.28 | 1-4 weeks to ship | |
| 021 | 638571-3 | YOKE UNIT | 1 | €13.92 | 1-4 weeks to ship | |
| 022 | 451970-0 | BAFFLE PLATE | 1 | €4.17 | 1-4 weeks to ship | |
| 023 | 266292-3 | TAPPING SCREW 4X65 | 2 | €1.11 | 1-4 weeks to ship | |
| 024 | 210062-2 | BALL BEARING 607ZZ | 1 | €0.83 | 1-4 weeks to ship | |
| 025 | 519268-2 | ARMATURE ASS'Y 36V | 1 | €64.01 | 1-4 weeks to ship | |
| 026 | 211092-6 | BALL BEARING 629DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 027 | 227252-0 | SPUR GEAR 16 | 1 | €19.48 | 1-4 weeks to ship | |
| 028 | 252186-8 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 029 | 256123-4 | PIN 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 030 | 158047-9 | LINK PLATE COMPLETE | 1 | €2.78 | 1-4 weeks to ship | |
| 031 | 233175-2 | COMPRESSION SPRING 9 | 1 | €0.56 | 1-4 weeks to ship | |
| 034 | 168321-7 | BRAKE BAND | 1 | €11.13 | 1-4 weeks to ship | |
| 035 | 142573-8 | BEARING HOUSING COMPLETE | 1 | €22.40 | 1-4 weeks to ship | |
| 036 | 213039-6 | O RING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | 422058-3 | CONNECTOR | 1 | €2.78 | 1-4 weeks to ship | |
| 038 | 210028-2 | BALL BEARING 606ZZ | 1 | €0.83 | 1-4 weeks to ship | |
| 039 | 961006-2 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 040 | 221427-3 | WORM GEAR | 1 | €2.78 | 1-4 weeks to ship | |
| 041 | 227251-2 | SPUR GEAR 73 | 1 | €13.92 | 1-4 weeks to ship | |
| 042 | 326417-2 | SPINDLE | 1 | €2.37 | 1-4 weeks to ship | |
| 044 | 265995-6 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | |
| 045 | 310593-2 | HANGER | 1 | €1.95 | 1-4 weeks to ship | |
| 047 | 424629-2 | GROMMET | 1 | €1.53 | 1-4 weeks to ship | |
| 048 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 051 | 455121-7 | OIL TANK | 1 | €15.03 | 1-4 weeks to ship | |
| 052 | 424326-0 | SPONGE SHEET | 1 | €0.56 | 1-4 weeks to ship | |
| 053 | 187882-8 | HOUSING SET | 1 | €124.82 | 1-4 weeks to ship | |
| 055 | 221526-1 | SPROCKET | 1 | €2.78 | 1-4 weeks to ship | |
| 056 | 961014-3 | STOP RING E-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 057 | 265995-6 | TAPPING SCREW 4X18 | 9 | €0.56 | 1-4 weeks to ship | |
| 058 | 266020-6 | TAPPING SCREW 4X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 059 | 454818-5 | COVER | 1 | €0.56 | 1-4 weeks to ship | |
| 060 | 227496-2 | STRAIGHT BEVEL GEAR 14 | 1 | €1.11 | 1-4 weeks to ship | |
| 061 | 326372-8 | ADJUST SCREW | 1 | €0.56 | 1-4 weeks to ship | |
| 062 | 326310-0 | ADJUST PIN | 1 | €0.97 | 1-4 weeks to ship | |
| 063 | 688161-2 | LINE FILTER | 1 | €0.56 | 1-4 weeks to ship | |
| 066 | 266020-6 | TAPPING SCREW 4X12 | 3 | €0.56 | 1-4 weeks to ship | |
| 067 | 142571-2 | SPROCKET COVER COMPLETE | 1 | €18.83 | 1-4 weeks to ship | |
| 068 | 142665-3 | DRIVE GEAR COMPLETE | 1 | €5.57 | 1-4 weeks to ship | |
| 070 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 071 | 142235-8 | NUT COMPLETE | 1 | €5.57 | 1-4 weeks to ship | |
| 072 | 454819-3 | NUT COVER | 1 | €0.83 | 1-4 weeks to ship | |
| 073 | 196779-0 | SPROCKET COVER SET | 1 | €46.06 | 1-4 weeks to ship | |
| 074 | 234207-8 | COMPRESSION SPRING 6 S | 1 | €0.56 | 1-4 weeks to ship | |
