DUC254C
DUC254C

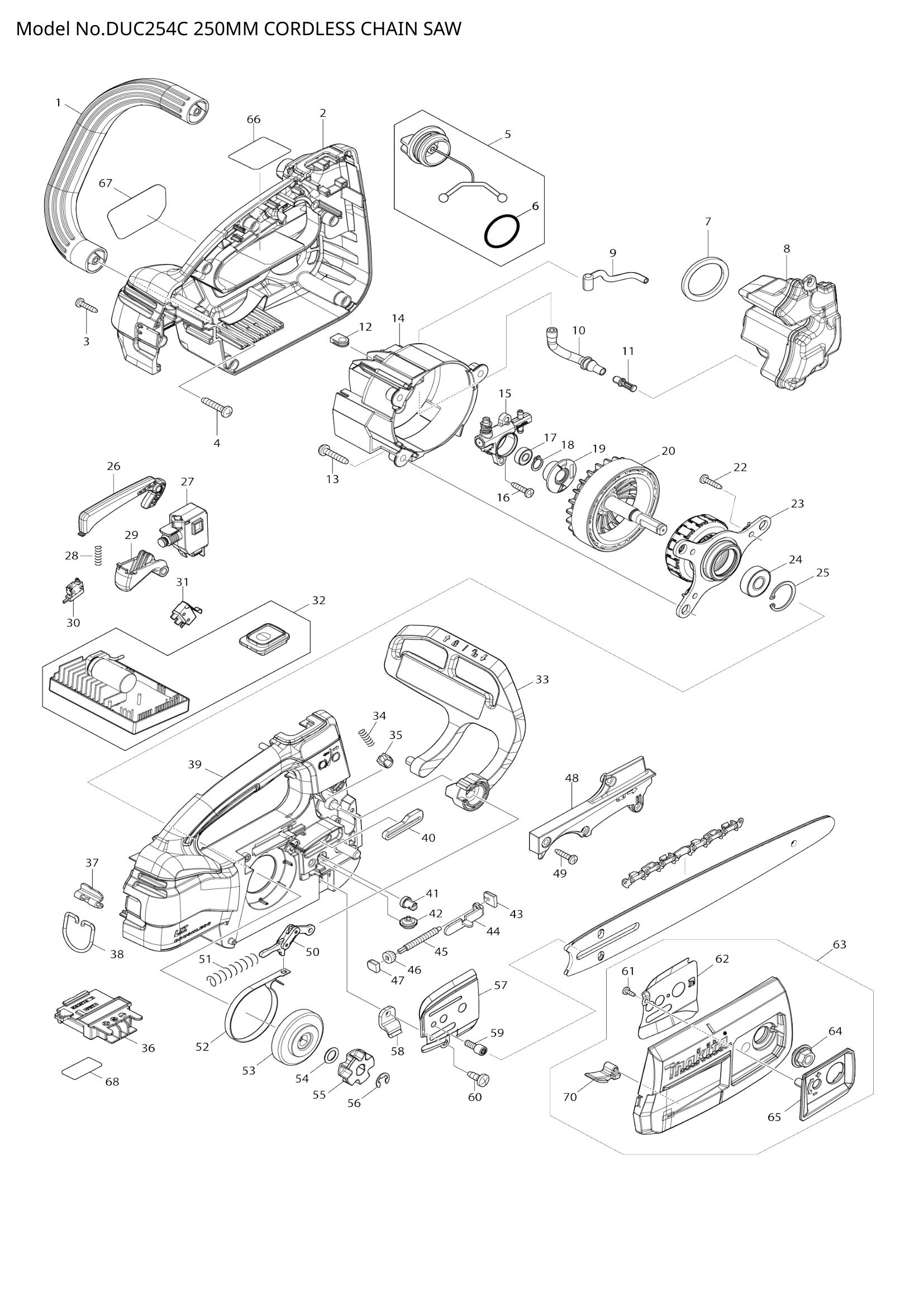

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | SIDE HANDLE | 1 | Not available in store | |||
| 004 | 266041-8 | TAPPING SCREW 5X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 005 | 168508-1 | TANK CAP COMPLETE | 1 | €2.64 | 1-4 weeks to ship | |
| 006 | 213355-6 | O-RING 25 | 1 | €2.37 | 1-4 weeks to ship | |
| 007 | 421959-2 | SPONGE SEAL | 1 | €0.56 | 1-4 weeks to ship | |
| 008 | OIL TANK COMPLETE | 1 | Not available in store | |||
| 009 | CONNECTOR A | 1 | Not available in store | |||
| 010 | CONNECTOR B | 1 | Not available in store | |||
| 011 | 450437-5 | FILTER | 1 | €11.13 | 1-4 weeks to ship | |
| 012 | 424612-9 | GROMMET | 1 | €1.53 | 1-4 weeks to ship | |
| 013 | 266041-8 | TAPPING SCREW 5X25 | 3 | €0.56 | 1-4 weeks to ship | |
| 014 | MOTOR HOUSING | 1 | Not available in store | |||
| 015 | 142857-4 | OIL PUMP COMPLETE | 1 | €17.67 | 1-4 weeks to ship | |
| 017 | 210026-6 | BALL BEARING 696ZZ | 1 | €4.17 | 1-4 weeks to ship | |
| 018 | 961006-2 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 019 | 221428-1 | WORM GEAR | 1 | €3.06 | 1-4 weeks to ship | |
| 020 | ROTOR | 1 | Not available in store | |||
| 023 | STATOR COMPLETE | 1 | Not available in store | |||
| 024 | 210059-1 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 025 | 962105-3 | RETAINING RING R-26 | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | CATCH LEVER | 1 | Not available in store | |||
| 027 | SWITCH C3JW-6BM-P | 1 | Not available in store | |||
| 028 | 233476-8 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 029 | SWITCH LEVER | 1 | Not available in store | |||
| 030 | 632L49-0 | SWITCH UNIT | 1 | €9.44 | 1-4 weeks to ship | |
| 031 | 632L48-2 | SWITCH UNIT | 1 | €13.64 | 1-4 weeks to ship | |
| 033 | FRONT HAND GUARD COMPLETE | 1 | Not available in store | |||
| 034 | COMPRESSION SPRING 3 | 1 | Not available in store | |||
| 036 | 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | |
| 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | ||
| 037 | HOOK SUPPORT | 1 | Not available in store | |||
| 038 | 281222-3 | HOOK | 1 | €0.42 | 1-4 weeks to ship | |
| 040 | GROMET | 1 | Not available in store | |||
| 041 | 227620-7 | DRIVE GEAR 14 | 1 | €1.25 | 1-4 weeks to ship | |
| 042 | 227634-6 | STRAIGHT BEVEL GEAR 14 | 1 | €3.62 | 1-4 weeks to ship | |
| 046 | 227496-2 | STRAIGHT BEVEL GEAR 14 | 1 | €1.11 | 1-4 weeks to ship | |
| 048 | HOUSING R COVER | 1 | Not available in store | |||
| 050 | LINK PLATE COMPLETE | 1 | Not available in store | |||
| 052 | BRAKE BAND | 1 | Not available in store | |||
| 056 | 961013-5 | STOP RING E-7 | 1 | €0.56 | 1-4 weeks to ship | |
| 058 | CHAIN CATCHER | 1 | Not available in store | |||
| 059 | 266905-6 | H.L. SOCKET HEAD BOLT M5X12 | 1 | €0.42 | 1-4 weeks to ship | |
| 061 | 266007-8 | TAPPING SCREW BIND PT 3X10 | 1 | €0.56 | 1-4 weeks to ship | |
| 065 | NUT COVER | 1 | Not available in store | |||
| 066 | DUC254C NAME PLATE | 1 | Not available in store | |||
| 068 | DUC254C SERIAL NO. LABEL | 1 | Not available in store | |||
| 070 | CHIP GUIDE | 1 | Not available in store | |||
